Product Description

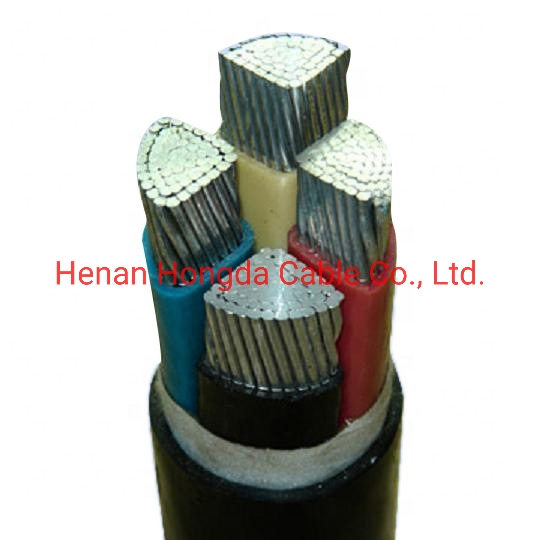

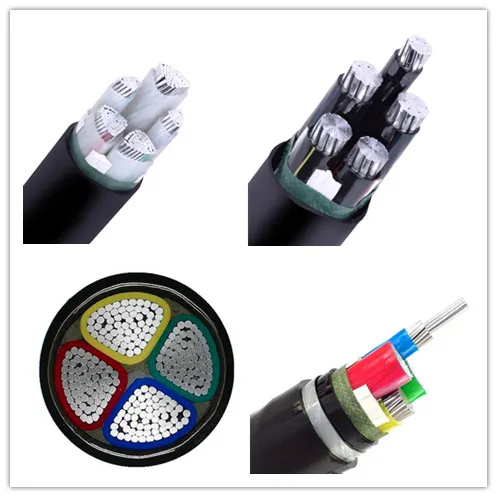

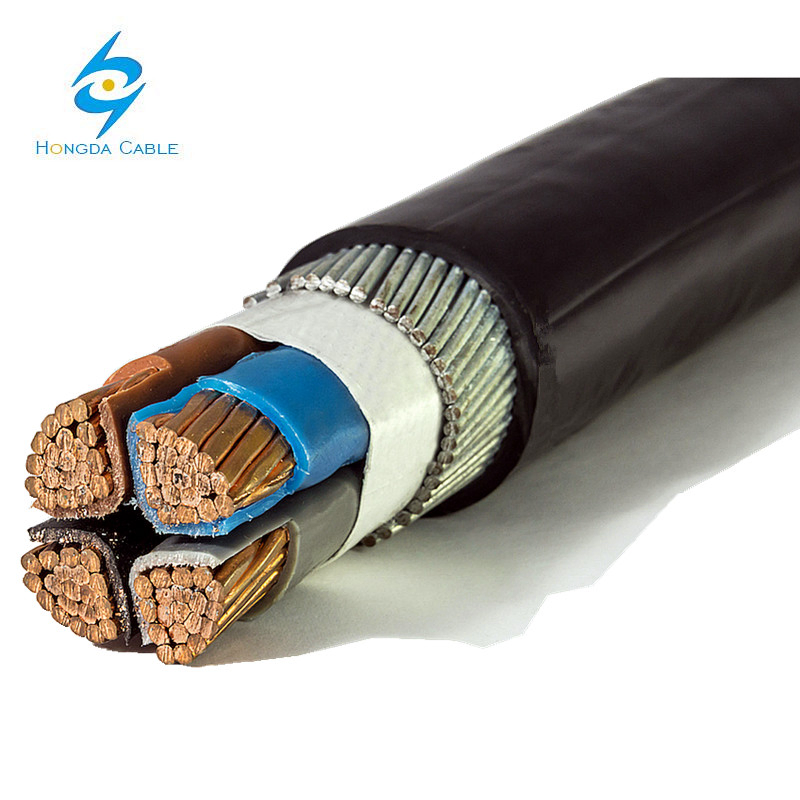

Vvg Avvg Cable Yjlv Avvg 1kv 4x240 3x240 3x185mm PVC insulated Circular Compacted Stranded Aluminum

Application:

PVC insulated cables are used for power distribution and transmission, building, appliance, flexible cord and machine tool. Insulation and jackets made from PVC which has a number of desirable properties inculding flexibility, resistance to temperature, resistance to adverse environmental situations and low cost.

Standards:

GB/12706-2008, IEC60502, IEC 60228,IEC60332,BS 6004, AS/NZS 5000.1 etc.

*Hongda Cable can also design and produce for special application requirement.

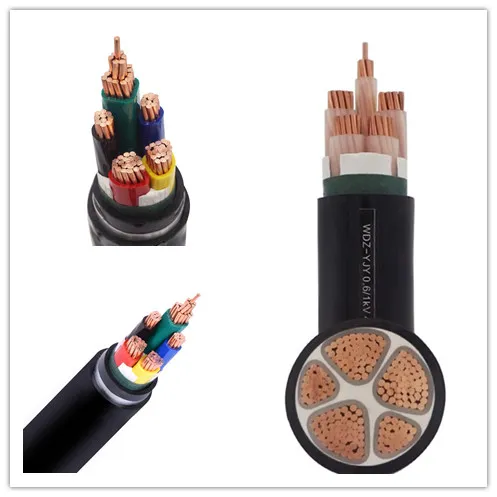

Construction:
1) AL or Cu conductor, PVC insulated, PVC or PE sheathed cable;
2) Al or Cu conductor, PVC insulated, steel wire or steel tape amour, PVC or PE sheathed cable;
Special cable:
We can also produce this kind of cables with flame-retardant, Fire-resistant, anti-termite, low smoke and non-halogen cables, respectively according to the requirements of customers.

Type:

Type	Name	Application
VV	Copper conductor ,PVC insulated, PVC sheathed electrical cable	For laying in doors,in tunnel or cable trench, unable to bear external mechanical forces,S ingle core cable in magnteicduct is not permissible
VLY	Aluminum conductor ,PVC insulated, PVC sheathed electrical cable
VY	Copper conductor,PVC insulated , PE sheath electrical cable
VLY	Aluminum conductor ,PVC insulated, PE sheathed electrical cable
VV22	Copper conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable	For laying in doors,in tunnels,in cable trench or direct buried,able to bear external mechanical forces, but unable to bear large pulling force.
VLV22	Aluminum conductor ,PVC insulated, steel tape armoured,PVC sheathed electrical cable
VV23	Copper conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable
VLV23	Aluminum conductor ,PVC insulated, steel tape armoured,PE sheathed electrical cable
VV32	Copper conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable	For laying indoors,in tunnels,cable trench, well or direct buried,able to bear external mechanical forces and determinate pulling force.
VLV32	Aluminum conductor ,PVC insulated, fine steel wire armoured,PVC sheathed electrical cable
VV33	Copper conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable
VLV33	Aluminum conductor ,PVC insulated, fine steel wire armoured,PE sheathed electrical cable

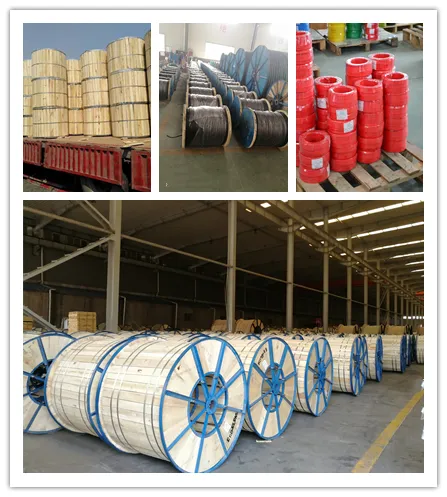

Packing:

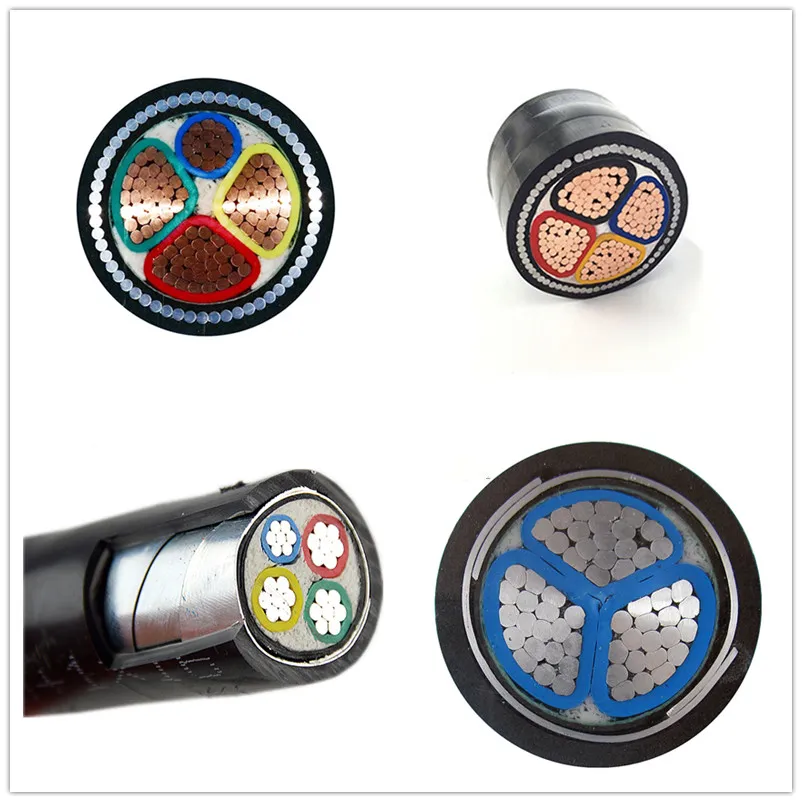

Vvg Avvg Cable Yjlv Avvg 1kv 4X240 3X240 3X185mm PVC Insulated Circular Compacted Stranded Aluminum

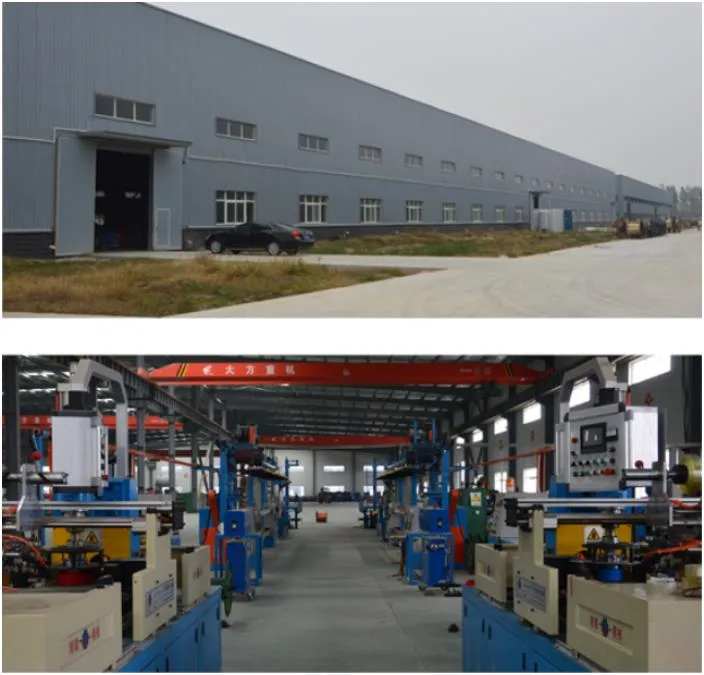

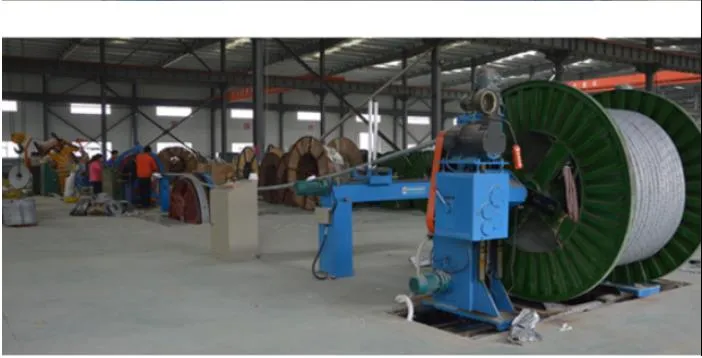

Factory :

Contact Details:

HENEN HONGDA CABLE CO., LTD.
Factory: Huijin Rd & Changping Rd, East Development Zone, Zhandian, Jiaozuo 454950, China.
