UL854 Single Aluminum Conductor 600V Urd
Professional OEM manufacturerTop ten cable manufactuer in ChinaLeading ESP cable manufacture , largest Rubber cable manufacturer in China.With UL,TUV,KEMA,CE,BV,PSB,SABA certificationsWith TUV TYPE TESTING REPORTWith ISO9001,ISO18001,OHSAS18001 syetem certifications UL854 Single Aluminum Conductor 6......
Send Inquiry
Product Description
Professional OEM manufacturer
Top ten cable manufactuer in China
Leading ESP cable manufacture , largest Rubber cable manufacturer in China.
With UL,TUV,KEMA,CE,BV,PSB,SABA certifications
With TUV TYPE TESTING REPORT
With ISO9001,ISO18001,OHSAS18001 syetem certifications
APPLICATIONS Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.

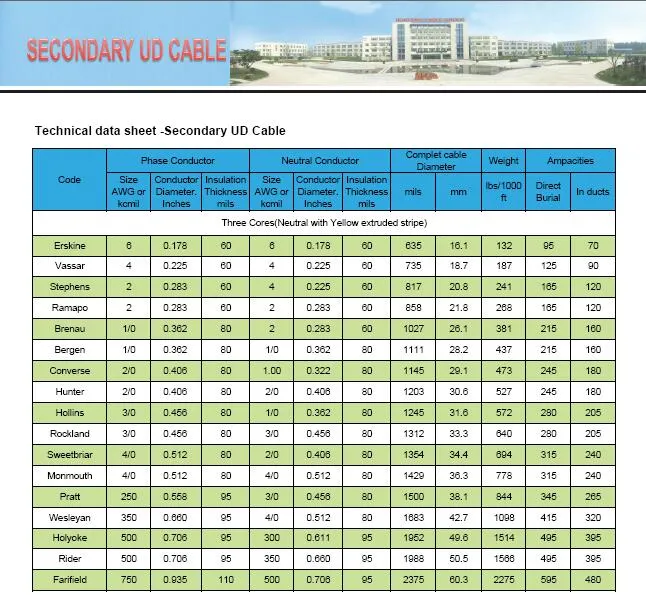

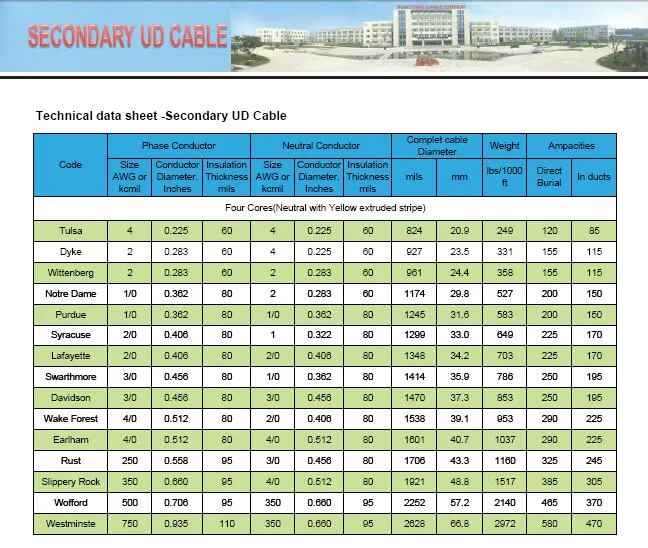

SPECIFICATIONS Huatong's quadruplex or paralleled 600 volt secondary UD cable meets or exceeds the following ASTM specifications:
• B230 Aluminum, 1350-H19 Wire for Electrical Purposes
• B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded
• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
• B901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Huatong's quadruplex 600 volt secondary UD cable meets or exceeds all applicable requirements of ICEA S-105-692 for cross-linked polyethylene insulated conductors and UL Standard 854 for Type USE-2.

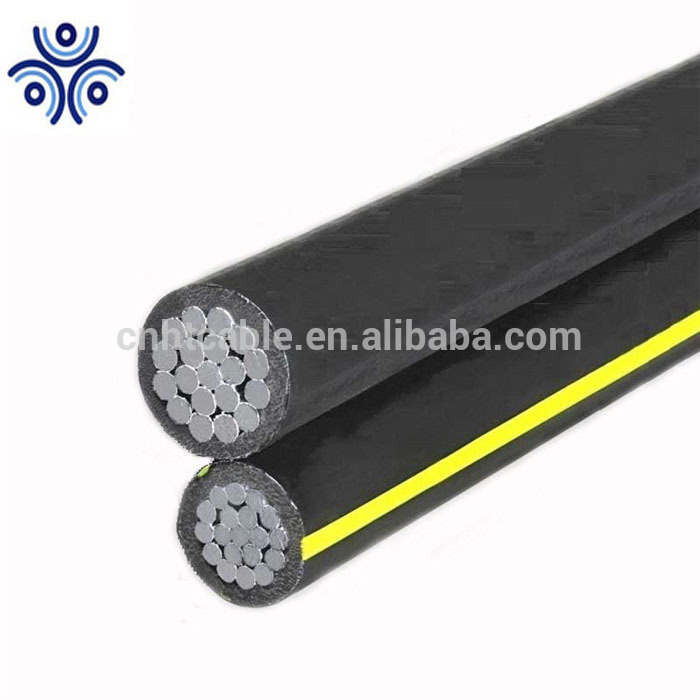

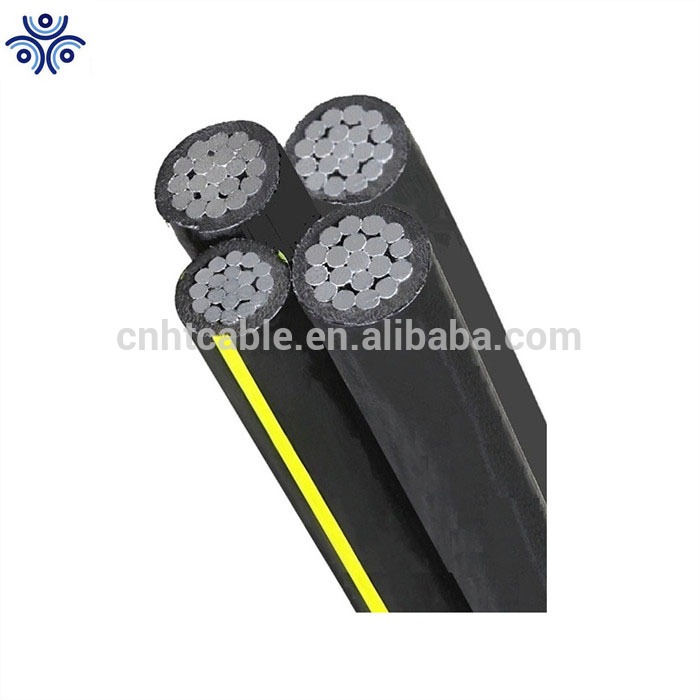

CONSTRUCTION Conductors are stranded, compressed 1350-H16/H26 aluminum, insulated with cross-linked polyethylene. Neutrals are identified by triple yellow extruded stripe. Cables with "YES" neutrals have sequential footage markers. Conductors are durably surface printed for identification. Three phase conductors and one neutral conductor are cabled together to produce the quadruplex cable configuration.
Certificate:
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate

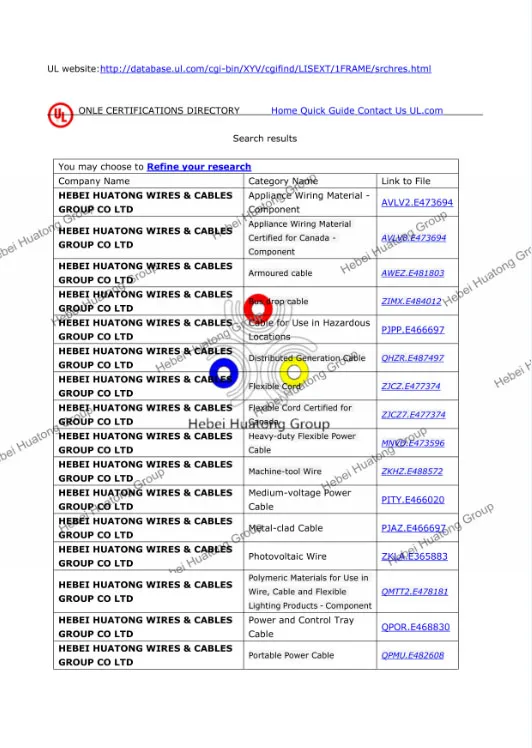

USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
Company profile:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on
Our Service:
1.How many year have our factory producing power cable?
Our factory produce power cable for 22 years.
2 Hong Long time the customer can get the new price after get your inquiry?
Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
3.Which port our factory is near to? Tianjin port
4.Which payment term do we accept?
T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.
5.What about the package for our power cable?
It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.
6.How long meter power cable for one wooden drum?
This is according to power cable's diameter and customer's requirments.
7.How about our delivery time?
According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.
8.Do we provide sample for free?
Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
Top ten cable manufactuer in China
Leading ESP cable manufacture , largest Rubber cable manufacturer in China.
With UL,TUV,KEMA,CE,BV,PSB,SABA certifications
With TUV TYPE TESTING REPORT
With ISO9001,ISO18001,OHSAS18001 syetem certifications
UL854 Single Aluminum Conductor 600V URD
APPLICATIONS Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.
SPECIFICATIONS Huatong's quadruplex or paralleled 600 volt secondary UD cable meets or exceeds the following ASTM specifications:
• B230 Aluminum, 1350-H19 Wire for Electrical Purposes
• B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded
• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
• B901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Huatong's quadruplex 600 volt secondary UD cable meets or exceeds all applicable requirements of ICEA S-105-692 for cross-linked polyethylene insulated conductors and UL Standard 854 for Type USE-2.
CONSTRUCTION Conductors are stranded, compressed 1350-H16/H26 aluminum, insulated with cross-linked polyethylene. Neutrals are identified by triple yellow extruded stripe. Cables with "YES" neutrals have sequential footage markers. Conductors are durably surface printed for identification. Three phase conductors and one neutral conductor are cabled together to produce the quadruplex cable configuration.
Certificate:
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificate
USA is our main market. We have many distributors from USA companies. And we have obtained UL certifications for many products, such as TC cable, DLO cable,RHH/RHW/RHW-2/XHH/XHHW/XHHW-2/SIS, THHN/THHW/THW/THW-2/THWN/THWN-2/TW,SER/SEU/USE/USE-2/MHF, MV-90/MV-105,TC cable,MC cable,DLO,type DG,PV wire,AC Cable,Soow,Welding cable and so on.
Company profile:
Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220,000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billionYuan.Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, largescale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria,Congo, Middle East and Southeast Asia and so on
Our Service:
1.How many year have our factory producing power cable?
Our factory produce power cable for 22 years.
2 Hong Long time the customer can get the new price after get your inquiry?
Usually , It is only one hour is ok for us , because we are factory , we caculate the price by ourself.
3.Which port our factory is near to? Tianjin port
4.Which payment term do we accept?
T/T 30% in advance and balance before shiping the product or L/C 100% at sight both is ok.
5.What about the package for our power cable?
It is usually packed in strong wooden drum.The drum size is usually:2.0m x 1.25m x 1.12m x 1.4m which suitable for container , we can do it according to customer requirments.
6.How long meter power cable for one wooden drum?
This is according to power cable's diameter and customer's requirments.
7.How about our delivery time?
According to your order's quantity , for 1million meters power cable, it is only 25 working days is ok.
8.Do we provide sample for free?
Yes , we provide the sample to you for free , you only paid for the delivery freight is ok.
