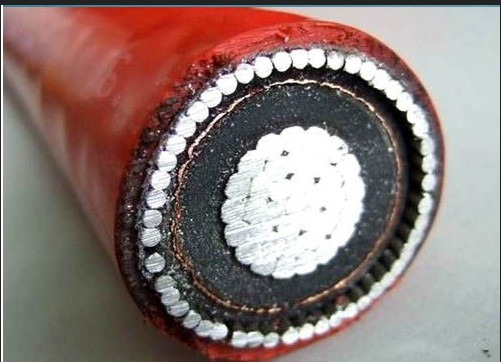

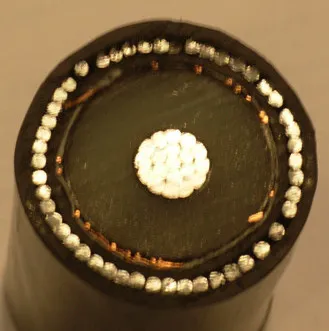

Ht 11kv 500mcm A/A Aluminium Armoured S/C Power Cable

Product Description

HT 11kV 500mcm A/A Aluminium Armoured s/c Power Cable

11kV 1x500MCM Aluminum Conductor AWA Armoured Power Cable
ITEM	DESCRIPTION	UNIT	Data
	Rated Voltage	KV	6/10
1	*Reference standard*	--	IEC60502-2
2	*Conductor*
	Material	--	Stranded Aluminum Wire, Compacted round
	Core number x size	--	1x253mm2
	Stranding no.of wire	no.	Min.30
	Approx. Conductor Diameter	mm	17.6-19.2
	Max. D.C. Resistance of conductor at 20ºC	Ω/km	0.114
3	*Conductor Screen*
	Material		Semi-conducting compound
	Nominal thickness	mm	0.6
4	*Insulation*
	Material	--	XLPE
	Nominal thickness	mm	3.4
5	*Insulation screen*
	Material	--	Semi-conducting compound
	Nominal thickness	mm	0.7
6	*Metal shield layer*
6	Material	--	Copper tape
	Copper tape thickness	mm	Min.0.06
7	*Inner sheath*
	Material	--	Black PVC
	Nominal Thickness	mm	1.2
8	*Armour layer*
	Material of armour	--	Aluminum wire
	Single wire dia.	mm	2.0
9	*Outer sheath*
	Material	--	PVC
	Nominal thickness	mm	2.2
10	*Complete cable*
	Overall diameter (approx.)	mm	40
	Weight per km (approx.)	Kg/km	2180
