High Voltage 66kv 110kv Power Station Cable Line Single Core 1600mm2 IEC 60840
110 KV XLPE Insulated Power Cable1.StandardWe produced according to National Standard of GB/T11017.2-2002 of the People's Republic of China.2.Range of applicationIt is suitable for single-core power cable's installation and operation under normal conditions of rated voltage 64/110KV, but it ......
Send Inquiry
Product Description

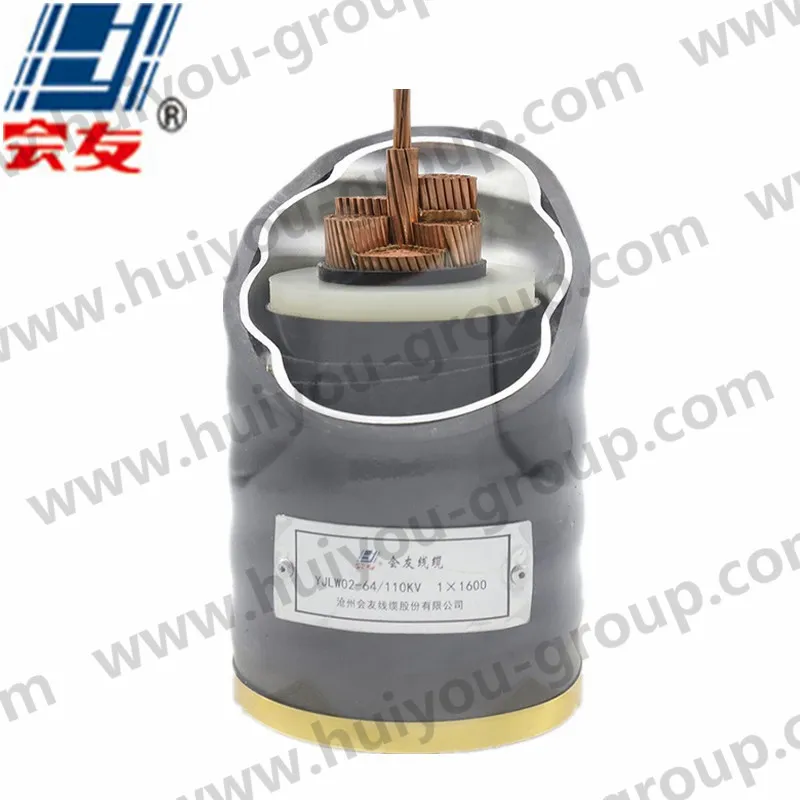

110 KV XLPE Insulated Power Cable
1.Standard
We produced according to National Standard of GB/T11017.2-2002 of the People's Republic of China.
2.Range of application
It is suitable for single-core power cable's installation and operation under normal conditions of rated voltage 64/110KV, but it is not suitable for cable laying under special conditions, such as sub
3. Characteristics of cable
Rated voltage
Rated voltage is the reference voltage for cable design and electrical performance test.
Working temperature
The allowable long term maximum temperature of conductor is 90ºC when the cable is in normal working conditions.
Short circuit
The allowable maximum temperature is 250ºC when it short circuited (The longest duration is not exceeding 5s).
Bending radius
The allowable minimum bending radius is 25 times of cable diameter when installed.
4. Service environment( Place )
Lead sheath cable, is suitable for environment with more serious corrosion but no much nitric acid , acetic acid and organic matter( Such as mud, coal and strong alkaline corrosion matter with technical force, pulling force, stress and vibration etc.)
Aluminum sheath cable , is suitable for environment with minor corrosion and required to bear a certain mechanical force(For example ,connected with transformer directly and laying at bridge opening or in shaft etc.)
Metal plastic compound sheath cable is suitable for general damp and warm place, no corrosion or light corrosion and no direct contact with water and bear not so much technical force, pulling force, stress and vibration.
PVC outer sheath cable is mainly used in cable line with general fire-proof requirement and insulation requirement for outer sheath .
PE outer sheath cable is mainly suitable for directly buried laying cable line with higher requirement on outer sheath insulation , low temperature environment under 20ºC , or soaked place by chemical liquid and low toxicity requirement when cable burns , when PE outer sheath is used in tunnel or shaft , fire-control and flame-retardant measures should be adopted if necessary .
Note: Corrugated aluminium sheath includes extruded corrugated aluminium sheath and alumiium tape welding corrugate aluminium sheath , both of them have code of LW according to JB/T5268.1. The welding corrugated aluminium sheath should be indicated clearly in the name of product, if "welding" is not indicated in the name, it means extruded corrugated aluminium sheath.
The minimum thickness of insulation layer and flat core is in accordance with Article 10.6.2 of GB/T11017.1-2002.
Representation method of product
For example

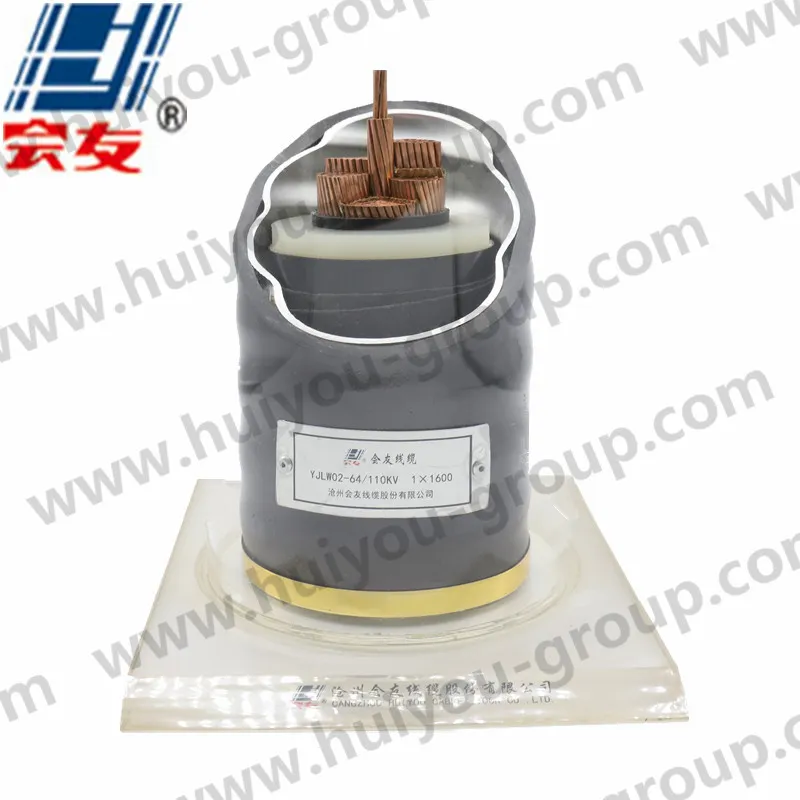

A. Single-core copper conductor with rated voltage 64/110 KV ,nominal sectional area of 630 mm2 , so XLPE insulated corrugated aluminium sheath PVC sheath power cable will be represented as : YJLW02-64/110 KV-1×630 GB/T11017.2-2002.
B. Single-core copper conductor with rated voltage of 64/110 KV, nominal sectional area of 300 mm2, lead XLPE insulated corrugated lead sheath PVC sheath longitudinally water blocking power cable will be represented as : YJQ03-Z-64/110KV-1×300 GB/T11017.2-2002.
1.Standard
We produced according to National Standard of GB/T11017.2-2002 of the People's Republic of China.
2.Range of application
It is suitable for single-core power cable's installation and operation under normal conditions of rated voltage 64/110KV, but it is not suitable for cable laying under special conditions, such as sub
3. Characteristics of cable
Rated voltage
Rated voltage is the reference voltage for cable design and electrical performance test.
Working temperature
The allowable long term maximum temperature of conductor is 90ºC when the cable is in normal working conditions.
Short circuit
The allowable maximum temperature is 250ºC when it short circuited (The longest duration is not exceeding 5s).
Bending radius
The allowable minimum bending radius is 25 times of cable diameter when installed.
4. Service environment( Place )
Lead sheath cable, is suitable for environment with more serious corrosion but no much nitric acid , acetic acid and organic matter( Such as mud, coal and strong alkaline corrosion matter with technical force, pulling force, stress and vibration etc.)
Aluminum sheath cable , is suitable for environment with minor corrosion and required to bear a certain mechanical force(For example ,connected with transformer directly and laying at bridge opening or in shaft etc.)
Metal plastic compound sheath cable is suitable for general damp and warm place, no corrosion or light corrosion and no direct contact with water and bear not so much technical force, pulling force, stress and vibration.
PVC outer sheath cable is mainly used in cable line with general fire-proof requirement and insulation requirement for outer sheath .
PE outer sheath cable is mainly suitable for directly buried laying cable line with higher requirement on outer sheath insulation , low temperature environment under 20ºC , or soaked place by chemical liquid and low toxicity requirement when cable burns , when PE outer sheath is used in tunnel or shaft , fire-control and flame-retardant measures should be adopted if necessary .
- model and Name of product
| Model | Name of cable | |
| Copper core | Aluminium core | |
| YJLW02 | YJLLW02 | XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PCV sheath power cable |
| YJLW03 | YJLLW03 | XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PE sheath power cable |
| YJLW02-Z | YJLLW02-Z | XLPE insulated corrugated aluminium sheath or welding corrugated aluuminium sheath PVC sheath longitudinally water blocking power cable |
| YJLW03-Z | YJLLW03-Z | XLPE insulated corrugated aluminium sheath or welding corrugated aluminium sheath PVC sheath longitudinally water blocking power cable |
| YJQ02 | YJLQ02 | XLPE insulated lead sheath PVC sheath power cable |
| YJQ03 | YJLQ03 | XLPE insulated lead sheath PVC sheath power cable |
| YJQ02-Z | YJLQ02-Z | XLPE insulated lead sheath PVC sheath longitudinally water blocking power cable |
| YJQ03-Z | YJLQ03-Z | XLPE insulated lead sheath PE sheath longitudinally water blocking power cable |

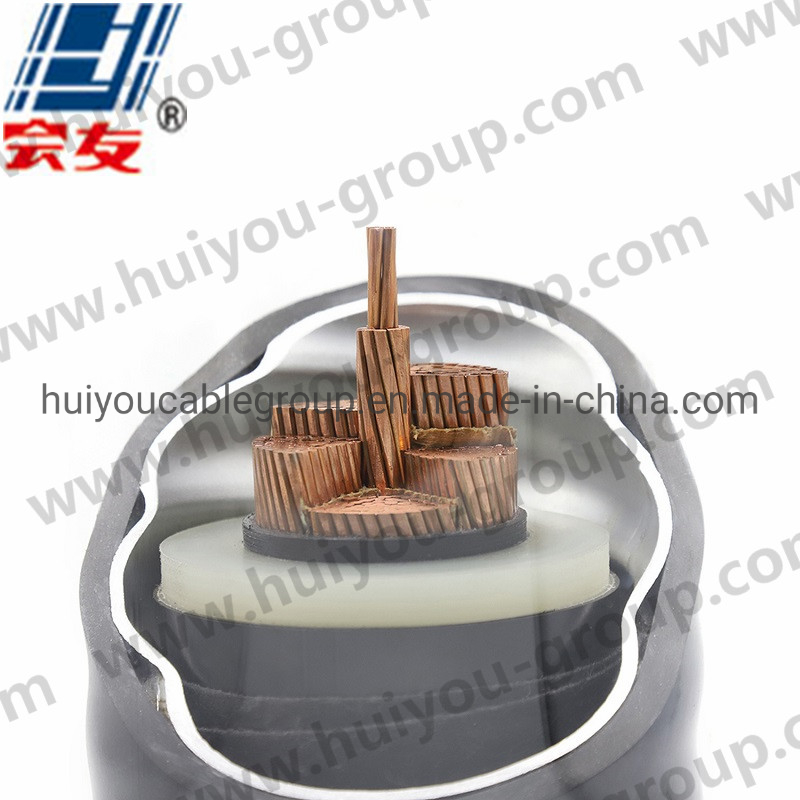

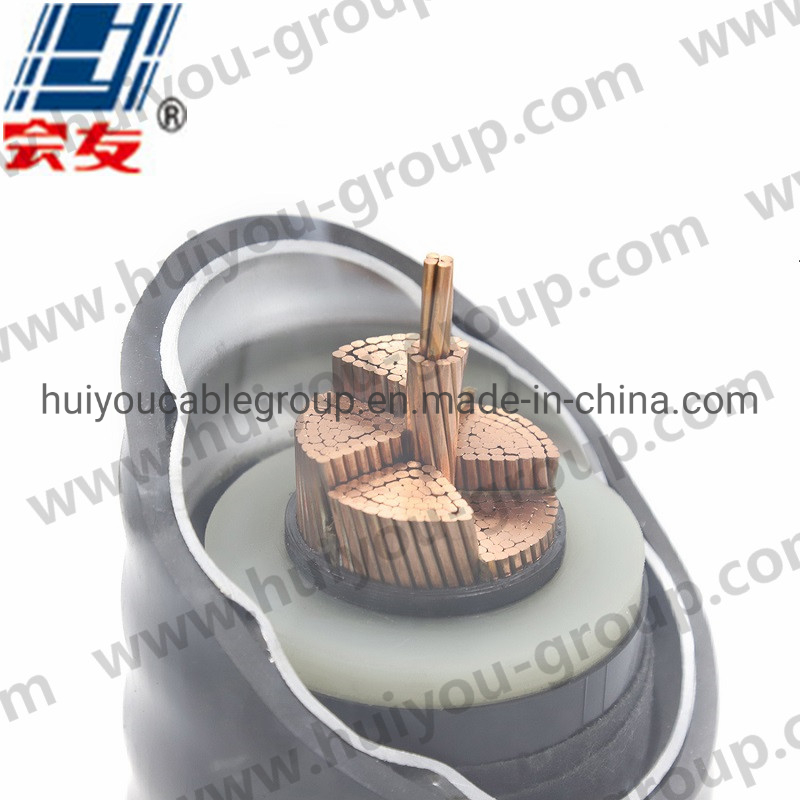

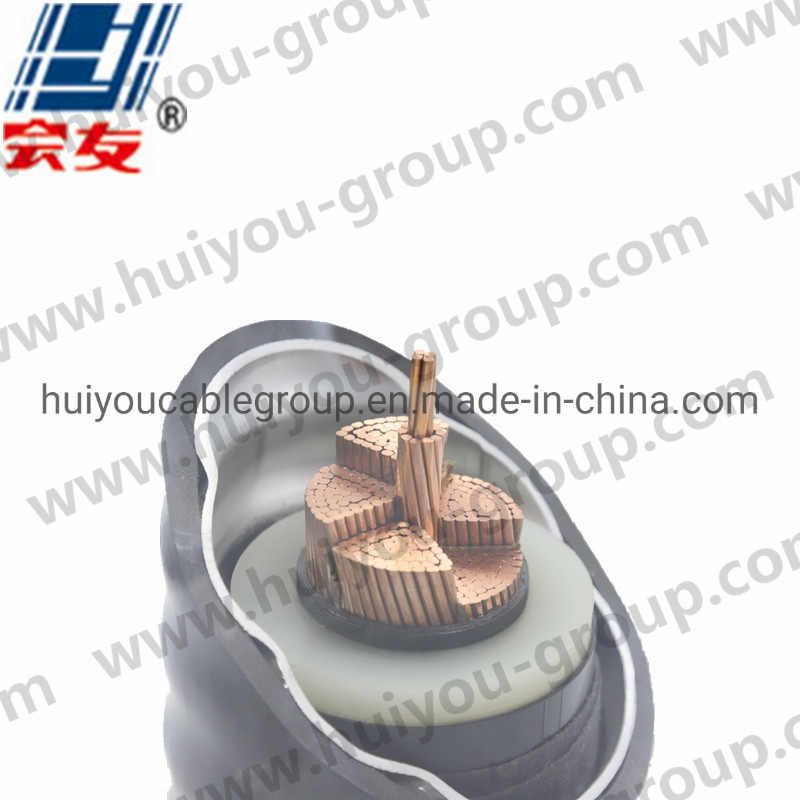

- Conductor structure, specifications , insulation thickness
| Conductor core | Specifications Nominalcross(mm2) | Structural style of conductor core | Insulation nominal thickness(mm) | Note | |
| Copper wire | Aluminium wire | ||||
| TR Type | LY4 orLY 6 Type | 240 | Stranded round compact | 19 | 1. TR Type copper conductor is in accordance with GB/t3953 |
| 300 | Stranded round compact | 18.5 | 2. LY4 or LY6 type aluminium conductor is in accordance with GB/T3955. | ||
| 400 | Stranded round compact | 17.5 | 3. Conductor direct current resistance I in accordance with GB/T3956. | ||
| 500 | Stranded round compact | 17.5 | 4. The number of single wire in copper core segmental conductor is not less than 170pcs. | ||
| 630 | Stranded round compact | 16.5 | 5. Insulation material is XLPE. | ||
| 800 | Stranded round compact/Segmental conductor | 16 | |||
| 1000 | Segmental conductor | 16 | |||
| 1200 | Segmental conductor | 16 | |||
| 1400 | Segmental conductor | 16 | |||
| 1600 | Segmental conductor | 16 | |||
Representation method of product
For example
A. Single-core copper conductor with rated voltage 64/110 KV ,nominal sectional area of 630 mm2 , so XLPE insulated corrugated aluminium sheath PVC sheath power cable will be represented as : YJLW02-64/110 KV-1×630 GB/T11017.2-2002.
B. Single-core copper conductor with rated voltage of 64/110 KV, nominal sectional area of 300 mm2, lead XLPE insulated corrugated lead sheath PVC sheath longitudinally water blocking power cable will be represented as : YJQ03-Z-64/110KV-1×300 GB/T11017.2-2002.
