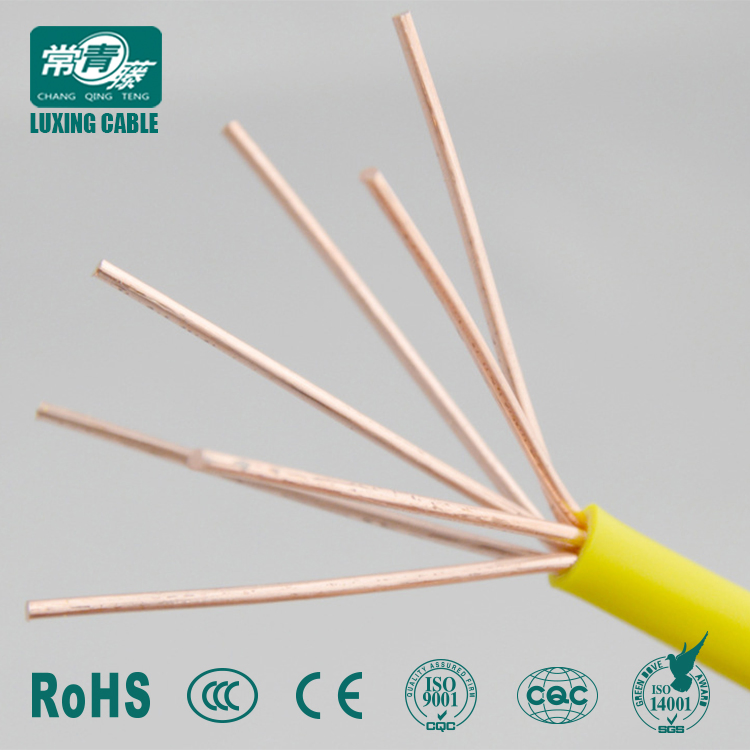

Cu PVC Insulation Sheath Round Insulation Power Wire Cable
PVC Insulated and PVC sheathed Single Core and Multi Core CablesStandard:BS 6004Voltage rating:300/500VApplication:Domestic and light industrial .Suitable ;clipped to surface,on trays or in free air where there is Little risk of mechanical damage, Suitable for laying into trunking Or conduit etc. Wh......
Send Inquiry
Product Description
PVC Insulated and PVC sheathed Single Core and Multi Core Cables
Standard:BS 6004Voltage rating:300/500V
Application:Domestic and light industrial .Suitable ;clipped to surface,on trays or in free air where there is Little risk of mechanical damage, Suitable for laying into trunking Or conduit etc. When mechanical protection is required.May be embedded in plaster.

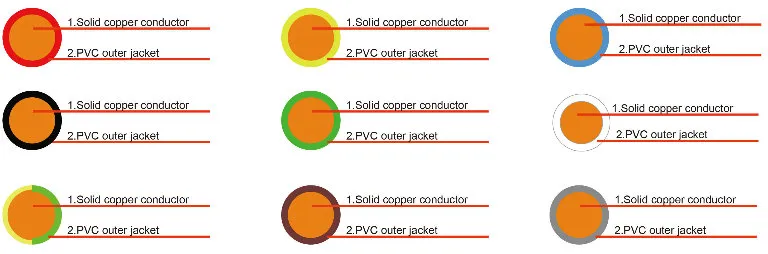

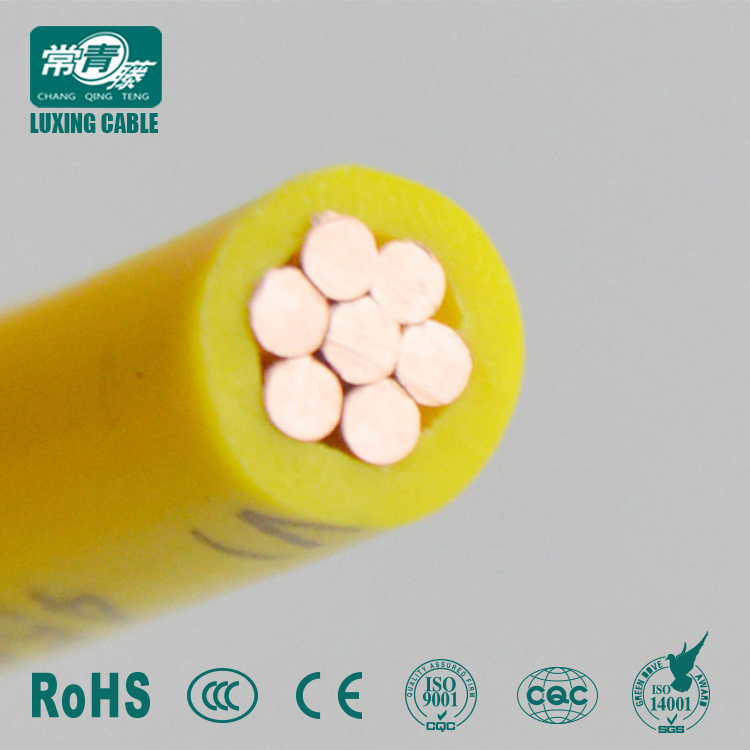

Construction:Single core and Multi Core Cable.Solid or Stranded Plain copper ,PVC insulated and PVC sheathed.

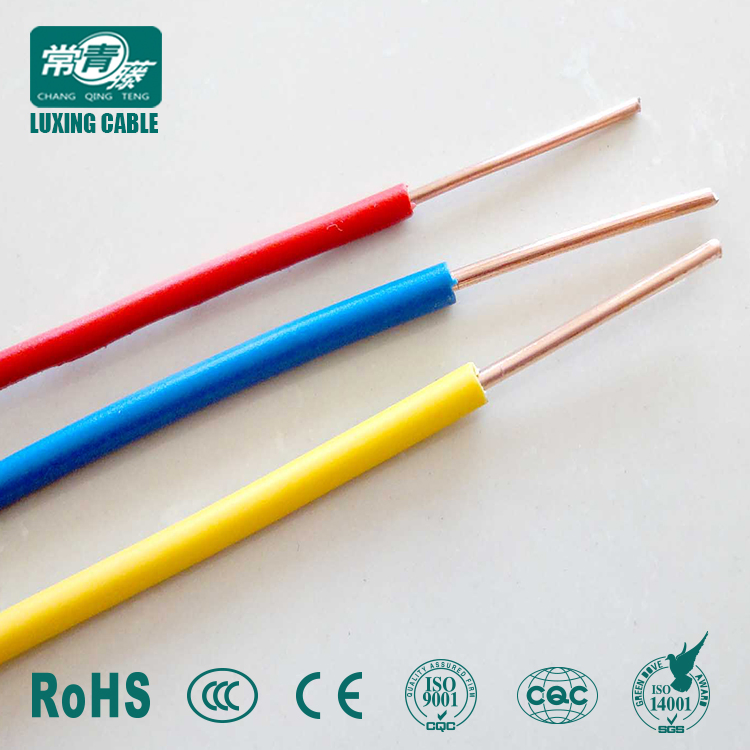

Core colour:
single core:Brown or Blue
Two core: Brown and Blue

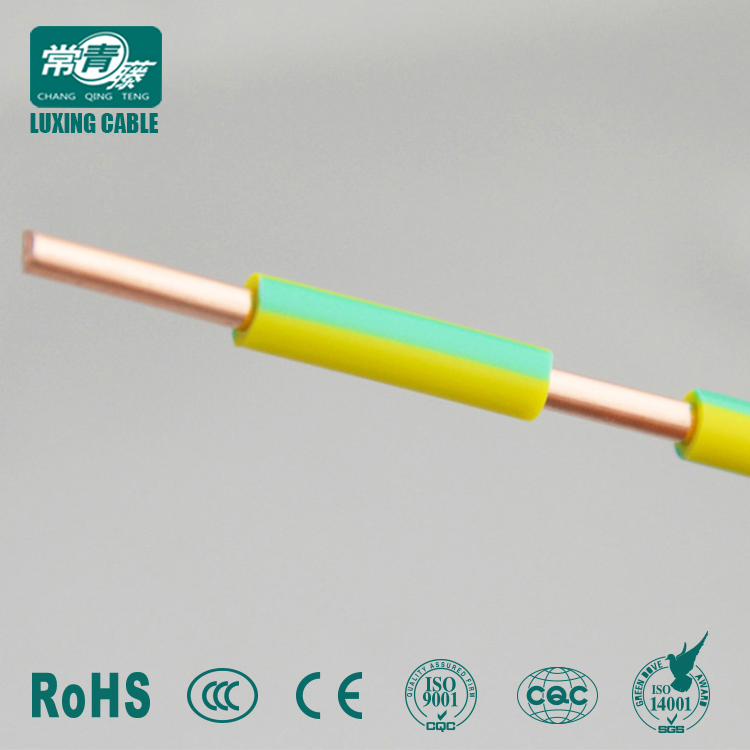

Three core: Brown,Blue and Green/Yellow
Four core: Green/Yellow, Black, Brown and Blue
Five core: Green/Yellow, Black, Brown,Blue and Black
Sheath color:Grey
Other colors Available to order.
Minimum bending radius:10 times
Maximum conductor temperature:70°C
Maximum conductor temperature during short Circuit:160°c
The Cable experiments through AC 3000V 5min an voltage.
| PVC Insulated and PVC sheathed Single Core and Multi Core Cables | |||||||
| Nominal Area(mm²) | Category | Insulate thickness (mm) | Coat thickness(mm) | Biggest Diameter (mm) | Approx. weight of cable | Least insulates resistance (MΩ·km) | D.C.resistance Of conductor 20°C |
| (kg/km) | (Ω/km) | ||||||
| 1x1.5 | 1 | 0.7 | 0.8 | 4.38 | 33.2 | 0.011 | 12.1 |
| 2 | 0.7 | 0.8 | 4.56 | 35.9 | 0.010 | 12.1 | |
| 5 | 0.7 | 0.8 | 4.8 | 36.1 | 0.010 | 12.1 | |
| 1x2.5 | 1 | 0.8 | 0.8 | 5.1 | 47.5 | 0.010 | 7.41 |
| 2 | 0.8 | 0.8 | 5.3 | 50.5 | 0.009 | 7.41 | |
| 5 | 0.8 | 0.8 | 5.4 | 50.6 | 0.009 | 7.41 | |
| 1x4 | 1 | 0.8 | 0.9 | 5.7 | 67.7 | 0.0085 | 4.61 |
| 2 | 0.8 | 0.9 | 6.0 | 72.0 | 0.0077 | 4.61 | |
| 5 | 0.8 | 0.9 | 6.0 | 72.6 | 0.0077 | 4.61 | |
| 1x6 | 1 | 0.8 | 0.9 | 5.2 | 88.8 | 0.0070 | 3.08 |
| 2 | 0.8 | 0.9 | 6.7 | 96.4 | 0.0065 | 3.08 | |
| 5 | 0.8 | 0.9 | 7.0 | 100.4 | 0.0070 | 3.08 | |
| 1x10 | 1 | 1.0 | 0.9 | 7.3 | 138.9 | 0.0070 | 1.83 |
| 2 | 1.0 | 0.9 | 7.9 | 146.9 | 0.0065 | 1.83 | |
| 5 | 1.0 | 0.9 | 7.6 | 160.1 | 0.0065 | 1.83 | |
| 1x16 | 2 | 1.0 | 1.0 | 9.1 | 218.3 | 0.0052 | 1.15 |
ApplicationsProduct Description
Construction
Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.Insulation
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90C continuous operation.Colour Code
Colour Code (1)
| 1 Core | Red or Black |
| 2 Cores | Red, Black |
| 3 Cores | Red, Yellow, Blue |
| 4 Cores | Red, Yellow, Blue, Black |
| 5 Cores | Red, Yellow, Blue, Black, Green |
| Above 5 Cores | Black Cores with White numerals |
Colour Code (2)
| 1 Core | Brown or Blue |
| 2 Cores | Brown, Blue |
| 3 Cores | Brown, Black, Grey |
| 4 Cores | Blue, Brown, Black, Grey |
| 5 Cores | Green/Yellow, Blue, Brown, Black, Grey |
| Above 5 Cores | Black Cores with White numerals |
Assembly / Inner Covering
The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.Armour
Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Core Identification:
1 Core: Brown
2 Cores: Brown, Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey;
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Alternative core identification: White Cores with Black numbers

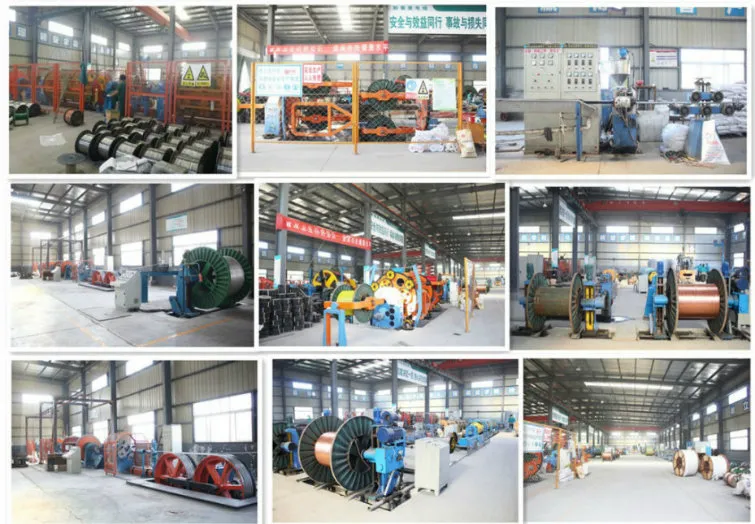

Our Factory

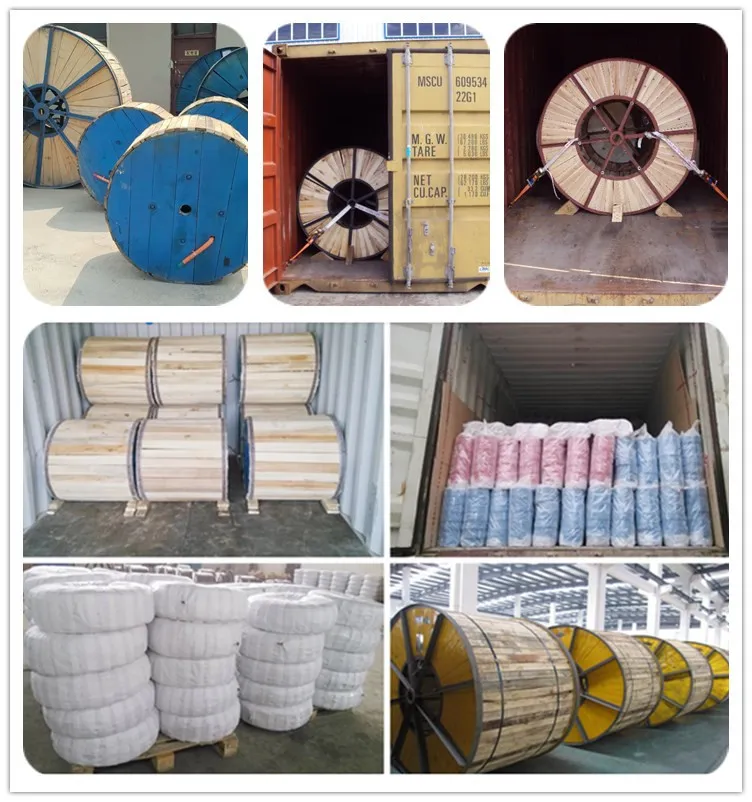

Packing

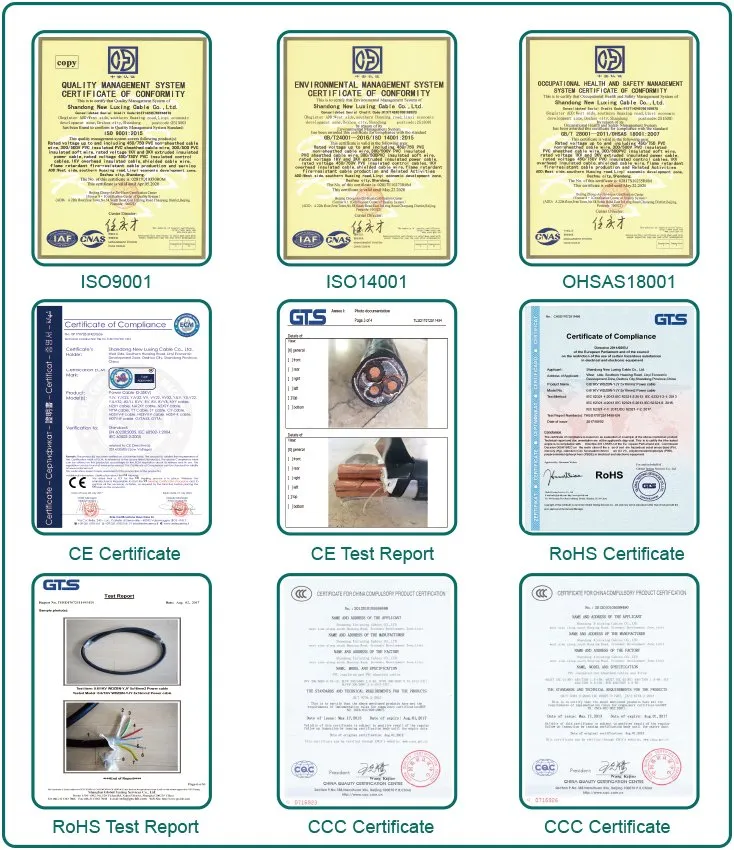

Our Certificate
