Product Description
Conductores de aleacion de Aluminio AAAC Azusa ASTM B398,399

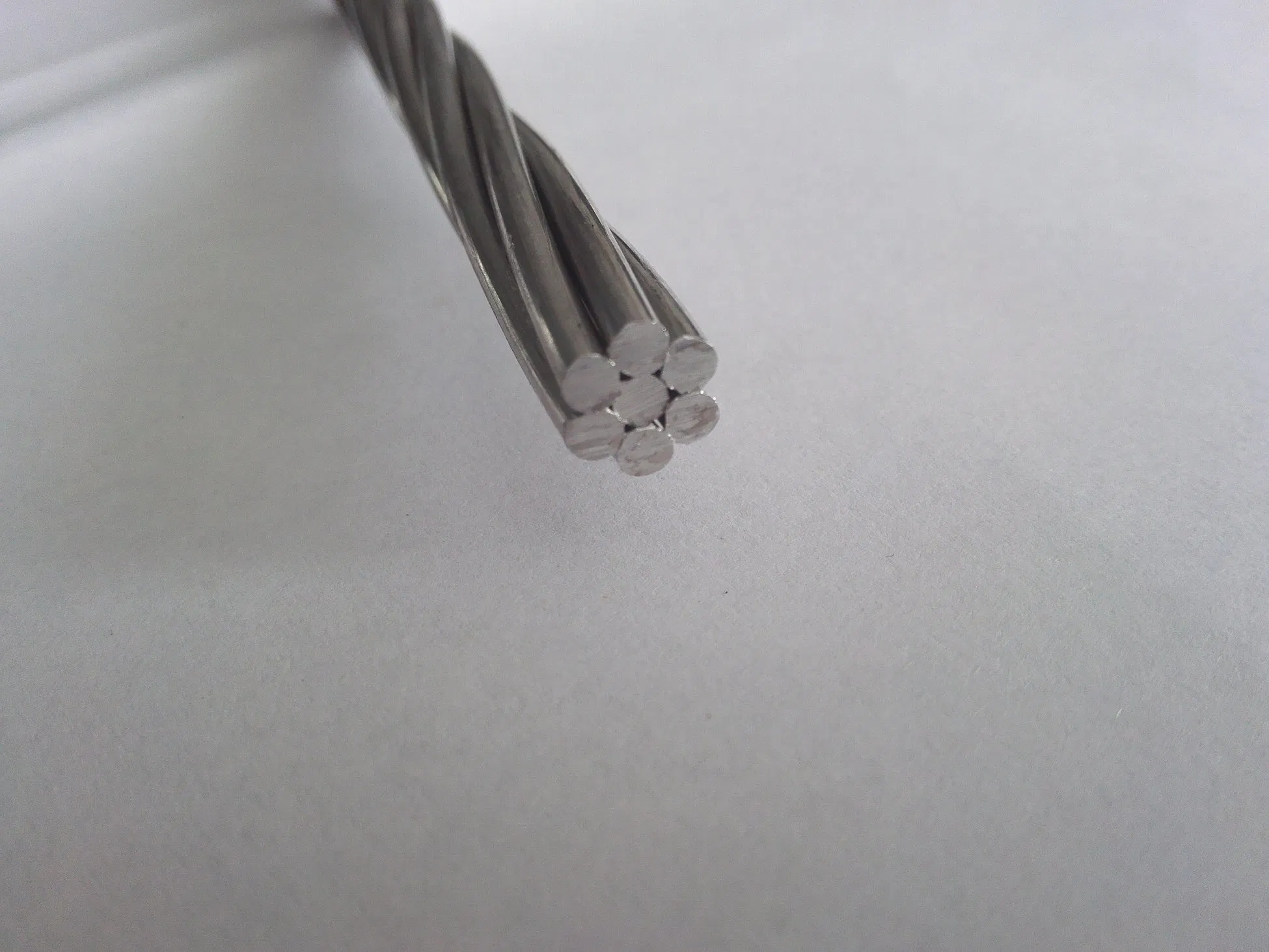

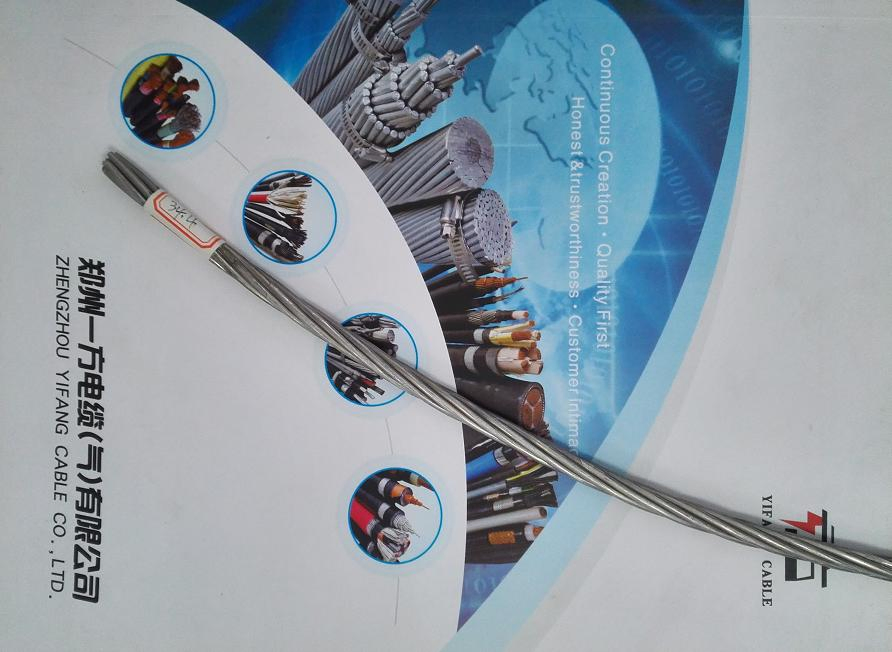

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| TECHNICAL DATA OF AAAC Azusa | |||
| NO | DESCRIPTION | UNIT | DATA |
| 1 | Type/ code name | -- | Azusa |
| 2 | Material | -- | Aluminium Alloy |
| 3 | Standards | -- | ASTM B399,B398 |
| 4 | Cross Section Area | mm2 | 62.4 |

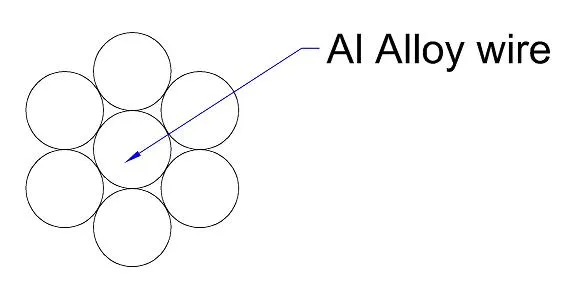

| 5 | Conductor construction | ||
| Wire No. | No.s | 7 | |
| Nominal wire dia. | mm | 3.37 | |
| 6 | Approx. Overall Diameter | mm | 10.11 |
| 7 | Approx. Weight | kg/km | 170.5 |
| 8 | Min.Breaking Load | kN | 18.97 |
| 9 | Max. D.C. Resistant 20ºC | Ω/km | 0.537 |
