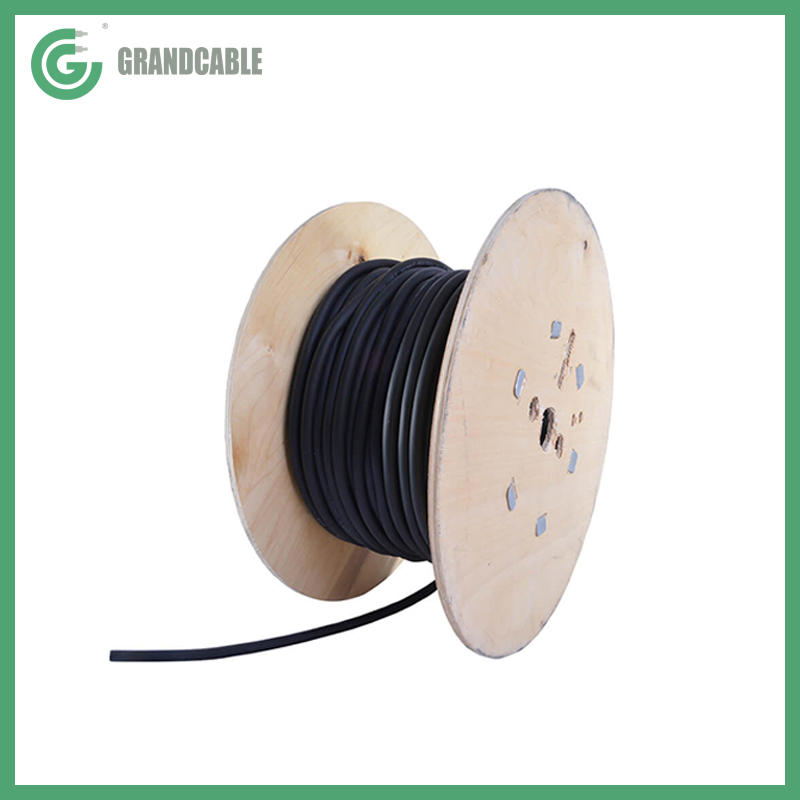

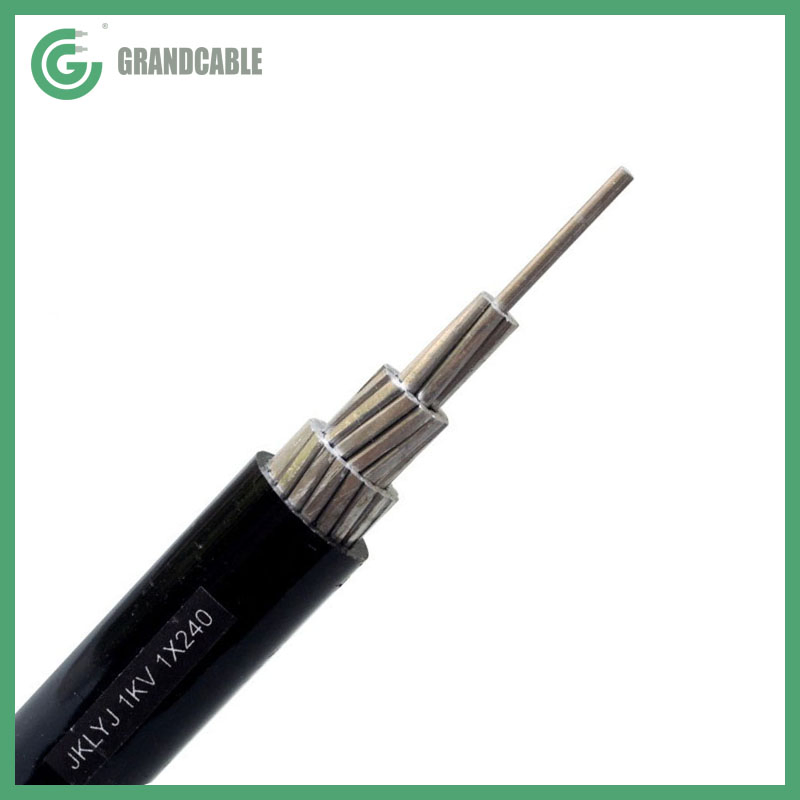

Product Description

CABLE DISTRIBUTION ALEACION DE ALUMINIO AISLADO -XLPE

Construction

Cable with class 2 rope conductor built with 6101 or 6201 (IRAM 2212) aluminum alloy wired wires in successive and alternating layers, being the direction of the last layer of alarms, the right.

Applicable Standards

IRAM 63002 IRAM 2212 IEC 61089

Insulation and colors

Insulated in cross-linked polyethylene (XLPE), suitable for interperie and atmospheric agents. According to IRAM 63002 standard and its complementary standards. In Black.

Dimenison Characteristics:

Section	Structure	Maximum admissible current	Max outside diameter	Average insulation thickness	Maximum resistance at 20°C	Maximum resistance at 65°C	Calculated breaking load	Mass
mm2	Nos. x mm	A	mm	mm	Ohm/km	Ohm/km	DaN	kg/km
16	7x1.70	68	7.1	1.0	2.09	2.44	445	70
25	7x2.15	92	8.9	1.2	1.31	1.53	710	110
35	7x2.52	112	10.0	1.2	0.952	1.11	975	146
50	7x3.02	140	12.0	1.4	0.663	0.775	1400	203
50	19x1.85	145	12.0	1.4	0.654	0.775	1430	203
70	19x2.15	173	13.6	1.4	0.484	0.563	1930	264
95	19x2.52	211	15.7	1.6	0.352	0.410	2650	360
120	19x2.85	248	17.5	1.6	0.275	0.321	3390	445
120	37x2.15	248	18.5	1.6	0.249	0.321	3755	485
150	37x2.25	281	19.4	1.8	0.227	0.264	4110	544
185	37x2.52	325	21.6	2.0	0.181	0.211	5160	680
240	37x2.85	387	24.5	2.2	0.142	0.161	6600	865

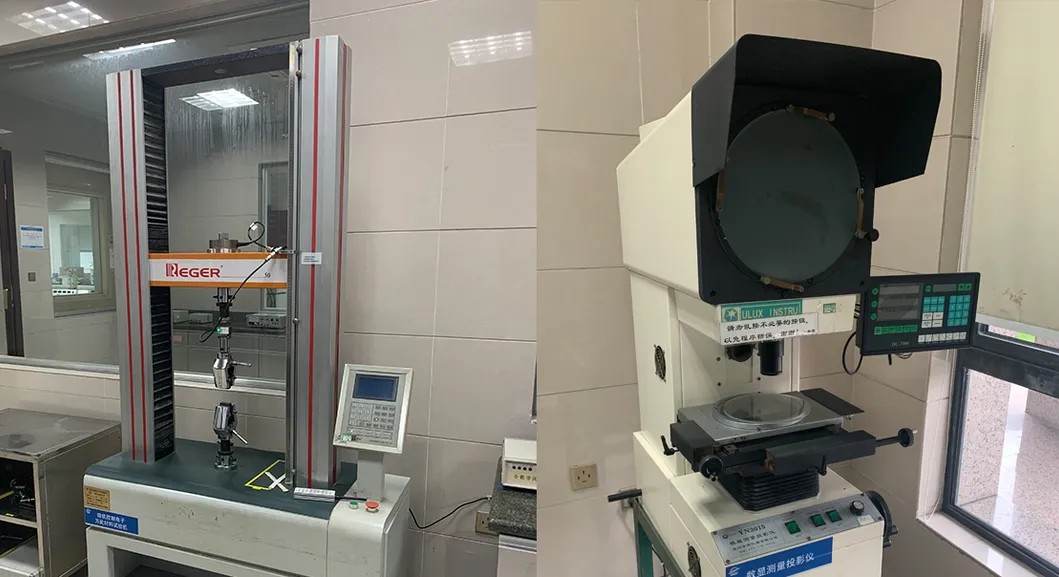

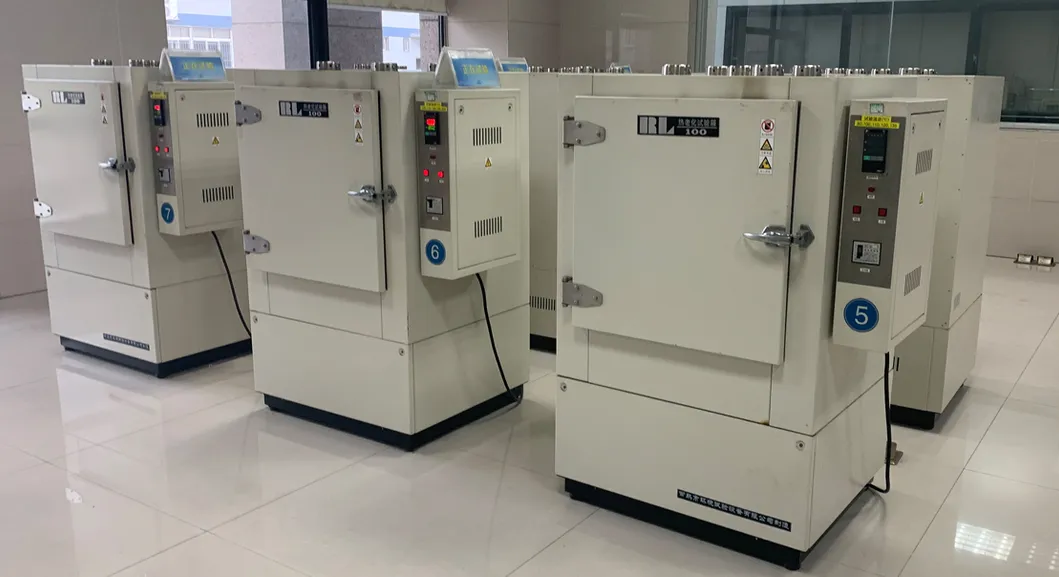

Testing Facilities

CONDUCTOR ALUMINUM CABLE 120mm2 XLPE AISLADO INSULATED 0.6/1kV

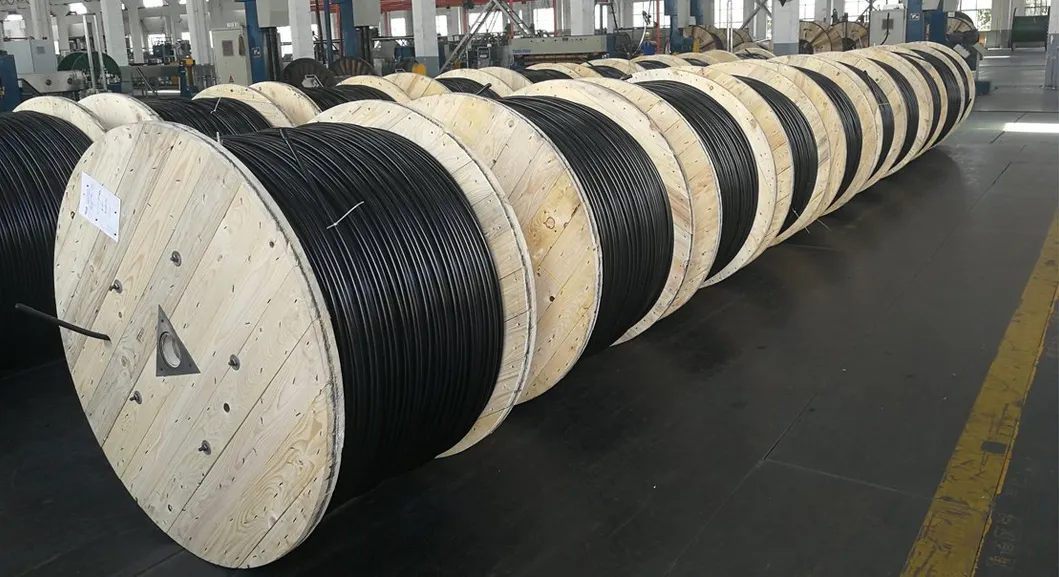

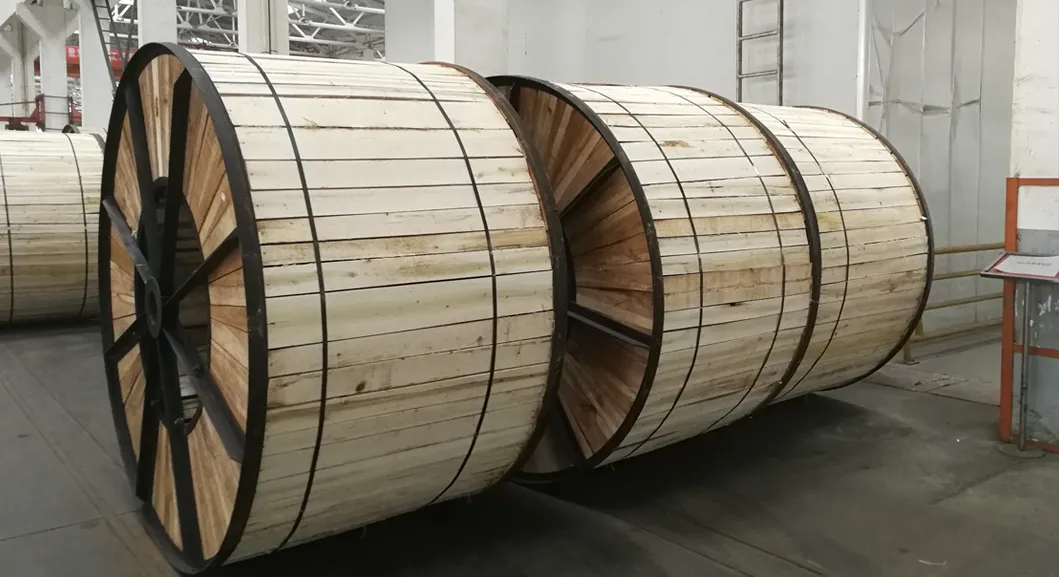

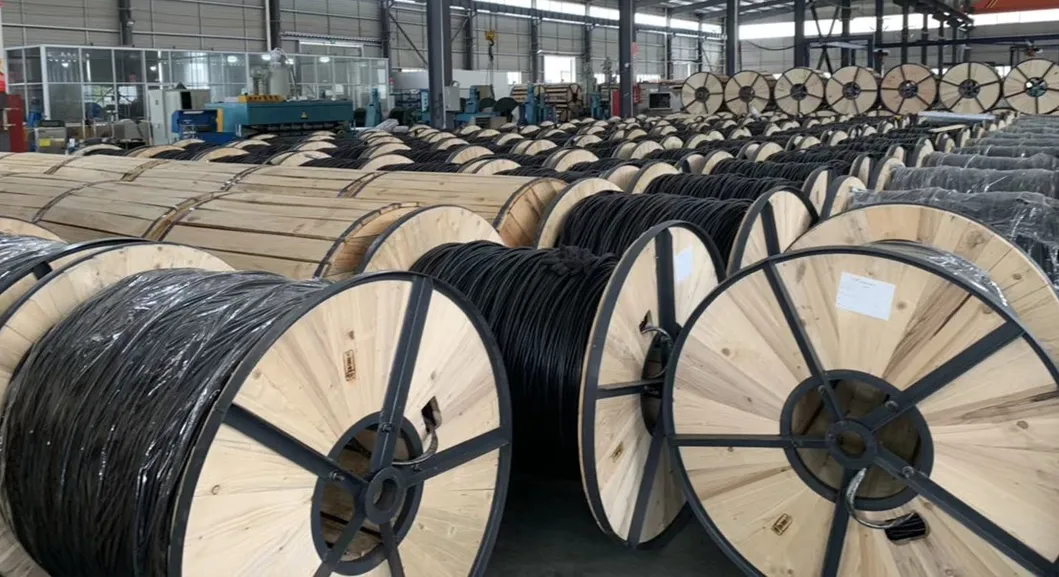

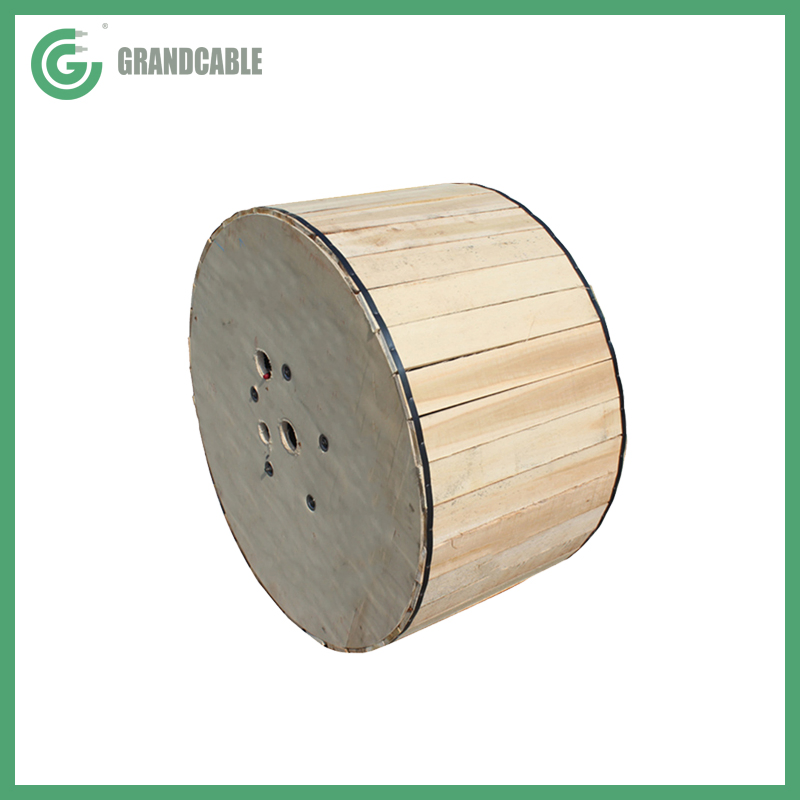

Packaging Photos

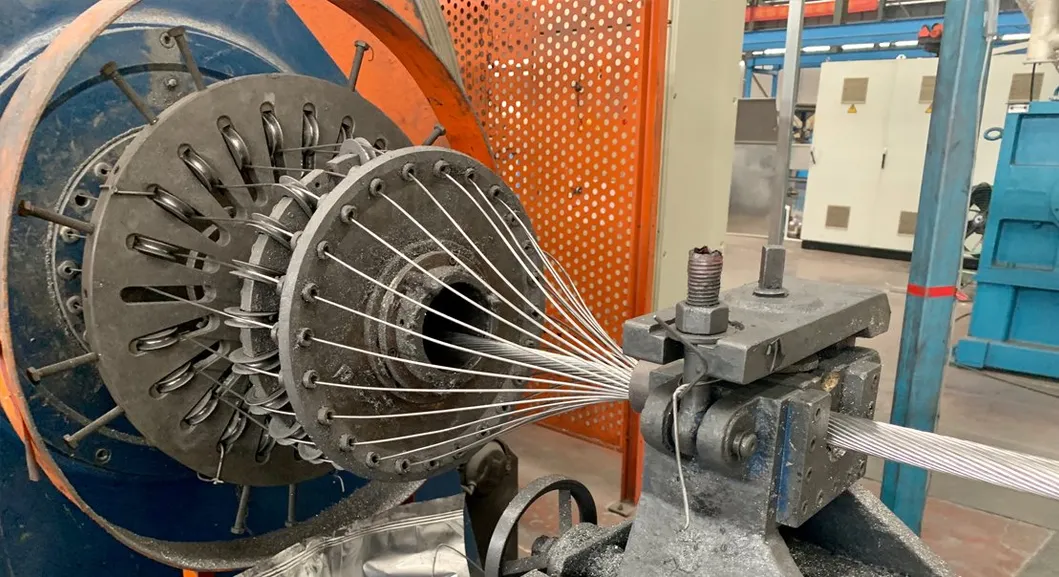

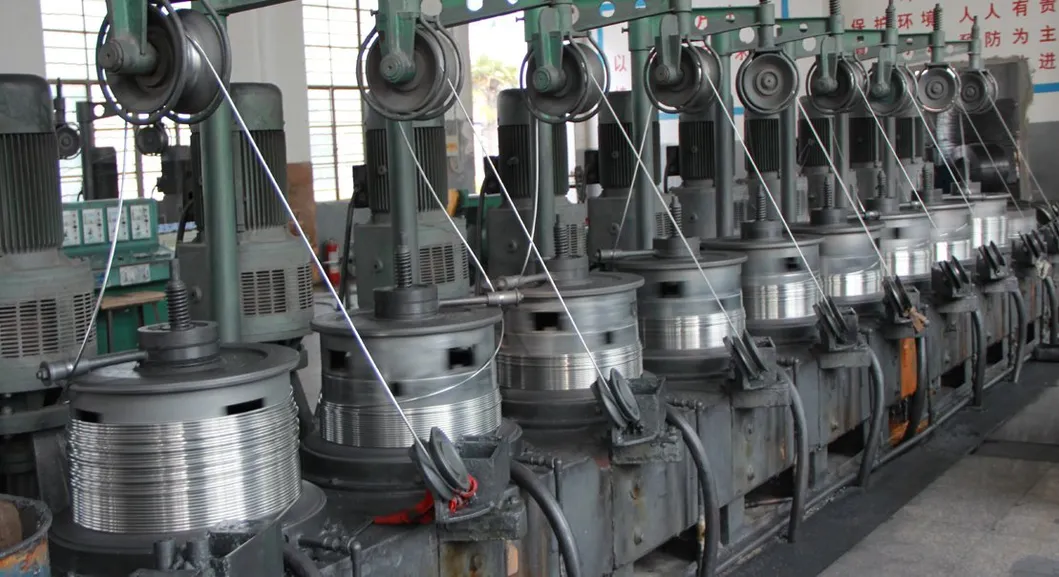

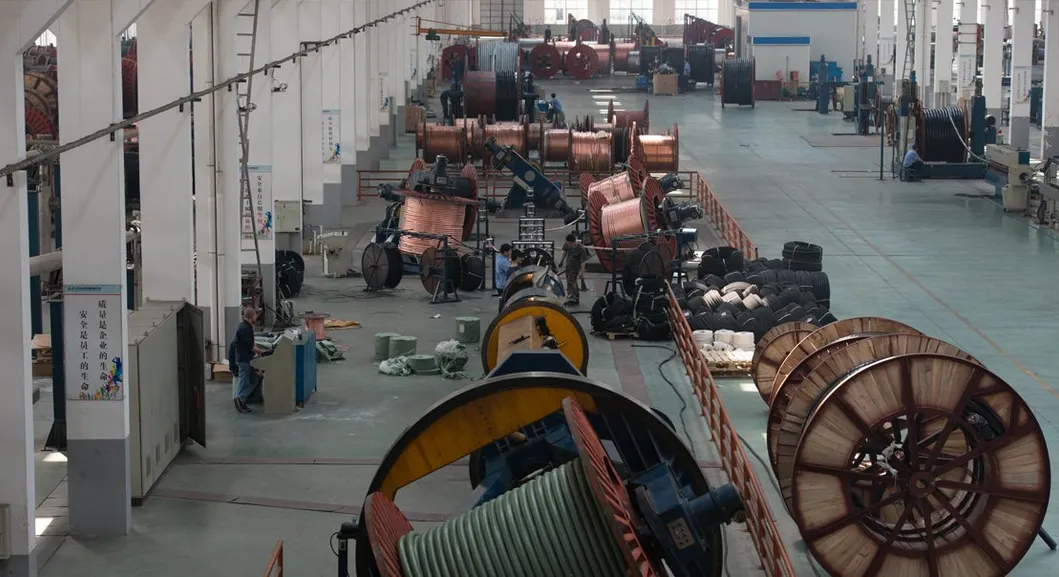

Workshop Views

About us:
Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q: How long does it take get my inquiry replied?

A: Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q: Can I get samples before placing the order?

A: You will get a sample for free if we have the storage of that cable.

Q: What's the MOQ of your product?

A: The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
