Product Description

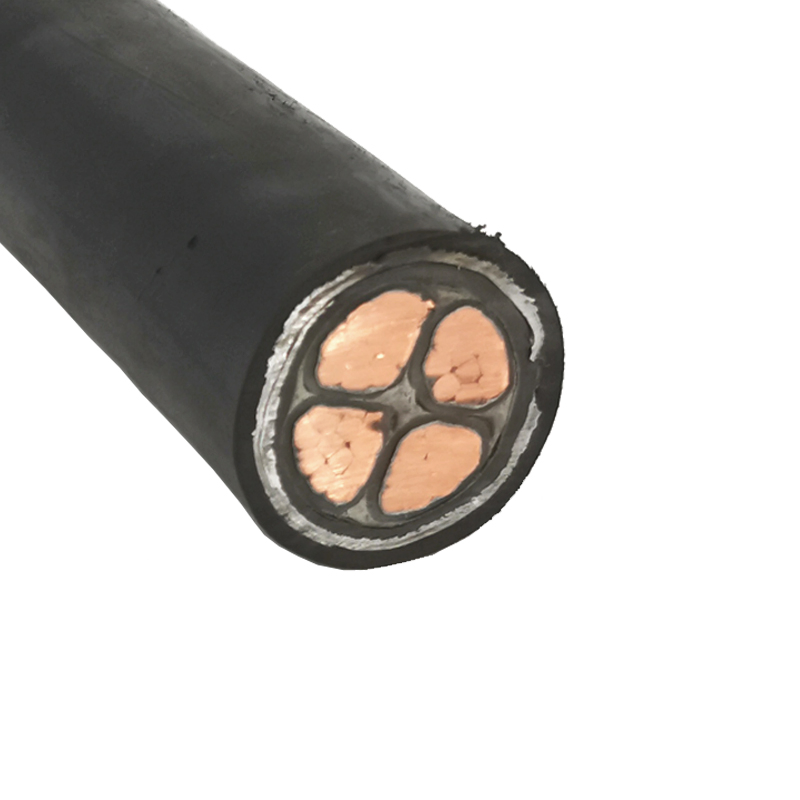

China factory price 4core 35mm2 50mm2 70mm2 SWA PVC insulation aluminum copper power cable

_{XLPE Insulated Power Cable}

_{Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river.

YJV cables are the backbone cables in power transmission. They are usually found in urban underground passages (underground manhole covers) or buried underground. Construction teams often cut off the power cables during construction and cause large-scale power outages.}

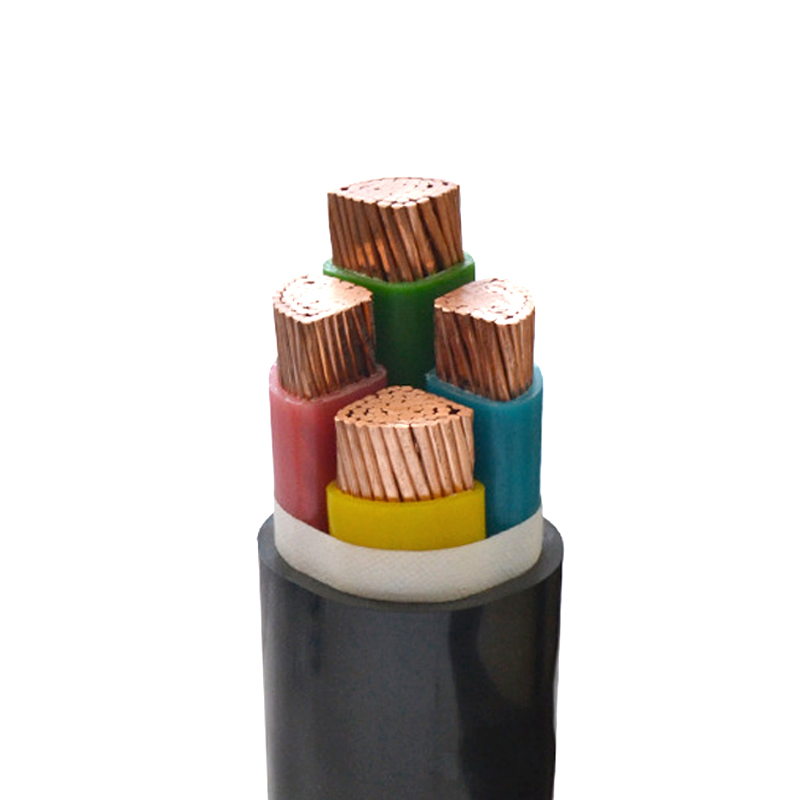

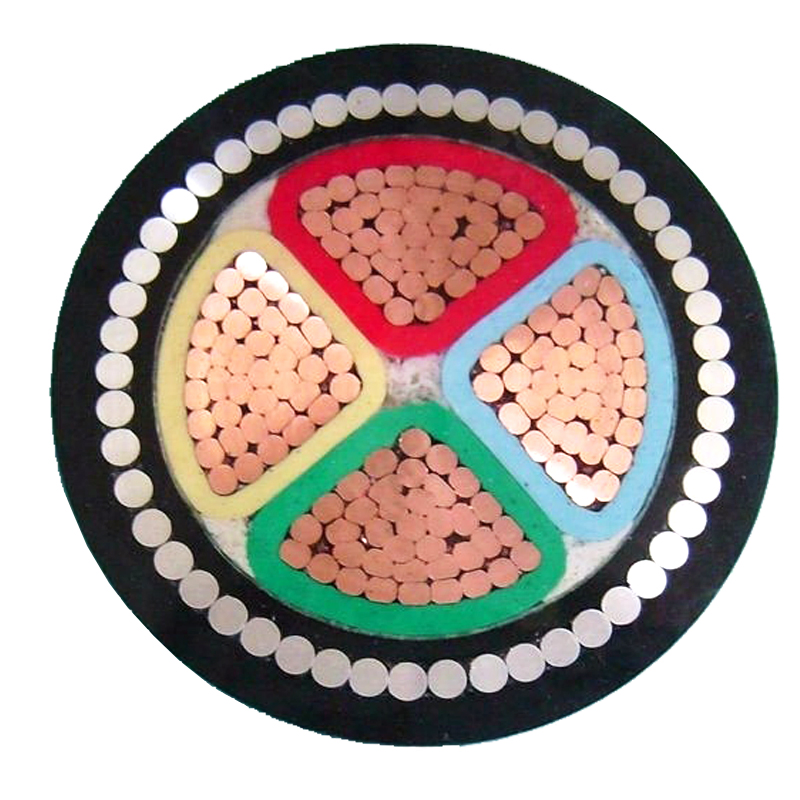

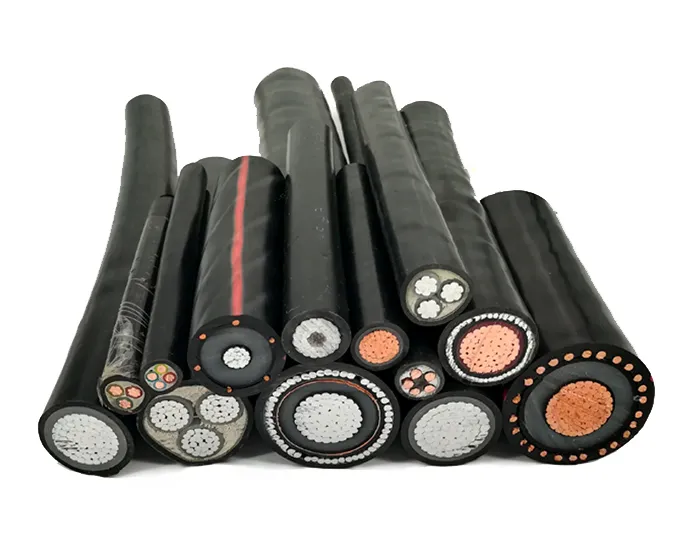

China Factory Price 4core 35mm2 50mm2 70mm2 Swa XLPE PVC Insulation Aluminum Copper Power Cable

^Brand	^RMjT
^{Product Name}	^{YJV (YJLV), Copper (aluminum) core XLPE insulated PVC sheathed power cable}
^{Rated Voltage}	^{0.6/1KV 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 21/35KV; 6/35KV}
^Conductor	^{Plain annealed stranded compacted circular copper or aluminium conductor to IEC 60228 class 2}
^Standard	^{GB/T12706.1-2008,IEC60502-1-1997, IEC60228, IEC60332, BS5467, BS6622, IS1554, IS7098 and ICEA S-66-524 etc}
^Screen	^{Extruded semi-conductive compound}
^{Metallic Screen}	^{copper tape or concentric layer of copper wires}
^Material	^{Copper (aluminum) conductor, polyethylene insulator, filler (nylon, pvc composite material, etc.), polyvinyl chloride outer sheath}
^{Inner Sheath}	^{Extruded layer of PVC ST2 or PE , LSZH}
^{Outer Sheath}	^{PVC type ST2 to IEC 60502 or PE ,LSZH}
^Armoured	^{Steel tape armored, steel wire armored, Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable}
^{Number of cores}	^{Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.}
^{Common size}	^{1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², etc.}
^Types	^{Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type}
^Application	^{power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.}

_{Instruction of appliction:
* the ambient temperature for cable installation: ≥0ºC
* maximum conductor temperature in normal operation: ≤90ºC
* max operating temperature of conductor when cable short-circuited (5s maximum duration): ≤250ºC.}

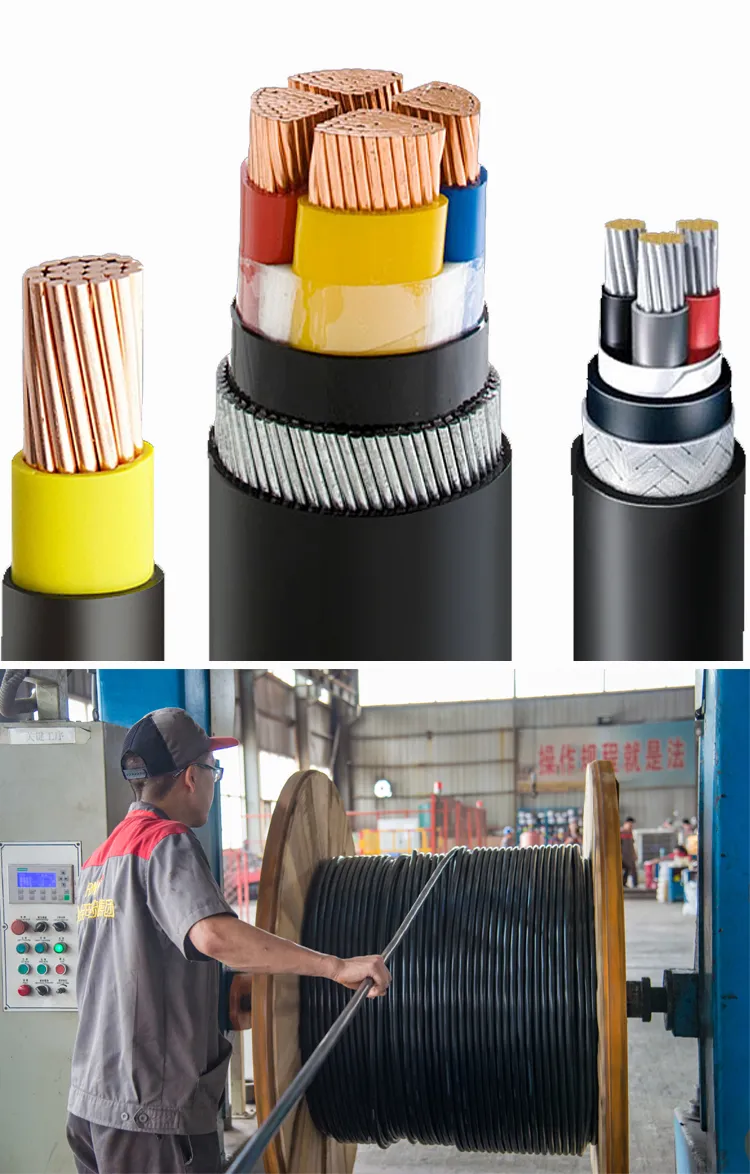

Overhead Double Insulated PVC Sheath Copper Aluminum Conductor Stranded Underground Armored Power Wire XLPE Electric Cable

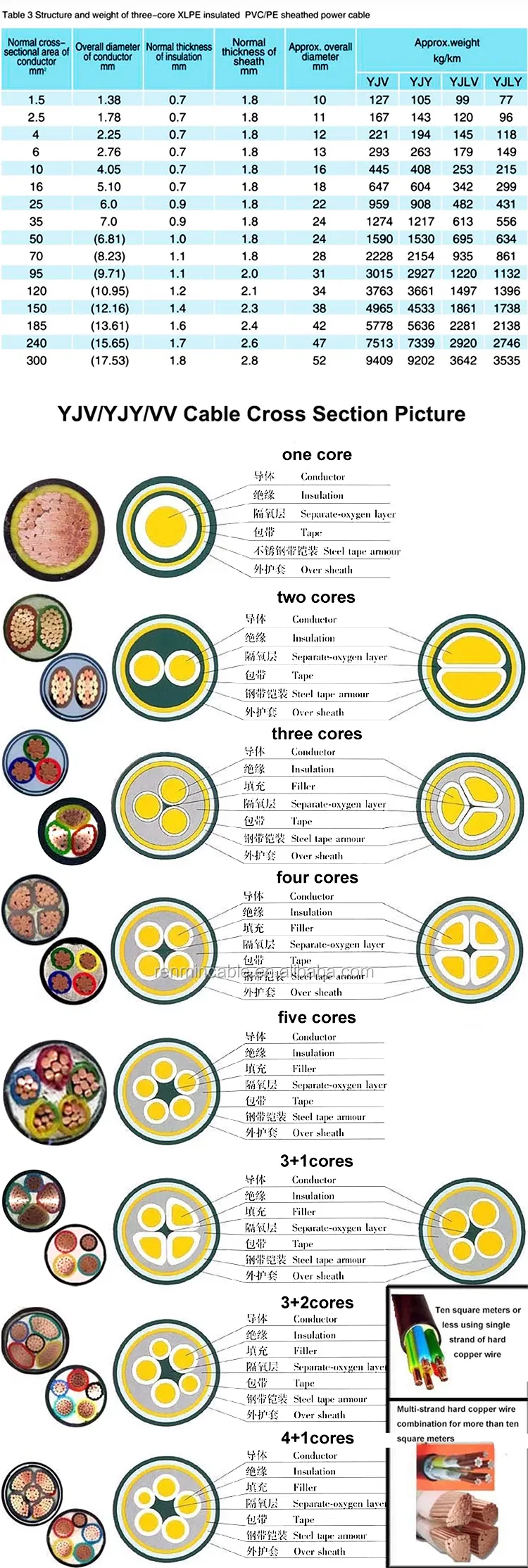

_{Part Production Range of XLPE insulated power cable}

^Model		_Name	_Application
^Cu	^Al	_Name	_Application
^YJV	^YJLV	^{XLPE insulated PVC sheathed power cable}	^{For laying aerial indoors , in-tunnel or cable trench}
^YJY	^YJLY	^{XLPE insulated PE sheathed power cable}	^{For laying aerial indoors , in-tunnel or cable trench}
^YJV22	^YJLV22	^{XLPE insulated steel tape armored PVC sheathed power cable}	^{For laying indoors , intunnel or cable trench}
^YJV23	^YJLV23	^{XLPE insulated steel tape armored PE sheathed power cable}	^{For laying indoors , intunnel or cable trench}
^YJV32	^YJLV32	^{XLPE insulated thin steel wire armored PVC sheathed power cable}	^{For laying high-drop, well or underwater}
^YJV33	^YJLV33	^{XLPE insulated thin steel wire armored PE sheathed power cable}	^{For laying high-drop, well or underwater}
^YJV42	^YJLV42	^{XLPE insulated thick steel wire armored PVC sheathed power cable}	^{Able to bear external mechanical forces, for laying in silo into sea}
^YJV43	^YJLV43	^{XLPE insulated thick steel wire armored PE sheathed power cable}

_{Installation Precautions:}^{_{1. The minimum bending radius when laying the cable is not less than 10 times the outer diameter of the cable.
2. yjv / yjlv cables are laid indoors, in channels and pipes, and can also be buried in loose soil, which cannot bear external forces.
3. The yjv22 / yjlv22 cables are laid underground and can withstand external mechanical forces, but cannot withstand large tensile forces.
4. Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during the laying process and keep away from heat sources.
5. When laying the cable through the pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the click. It is for bidden to squeeze the cable when passing through the pipe. The total area of the cable should not exceed 40% of the total area of the pipe}}

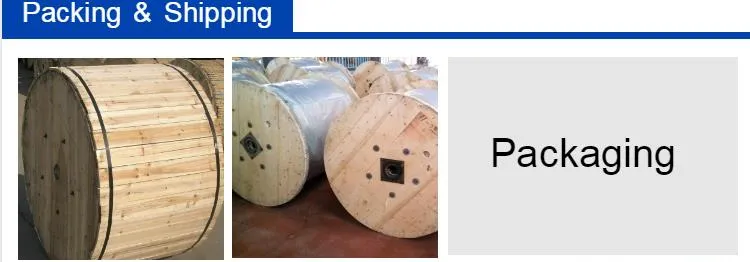

Packing

_{Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!}

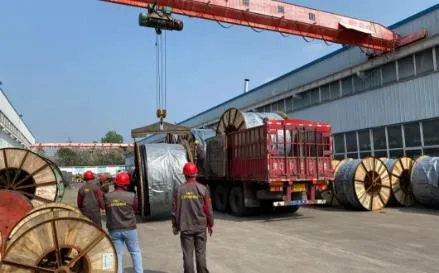

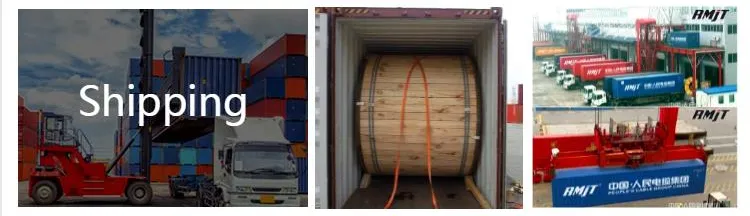

Delivery

Port: Tianjin, or other ports as per your requirements.

_{Sea freight: FOB/C&F/CIF quotation are all available.
* For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.}

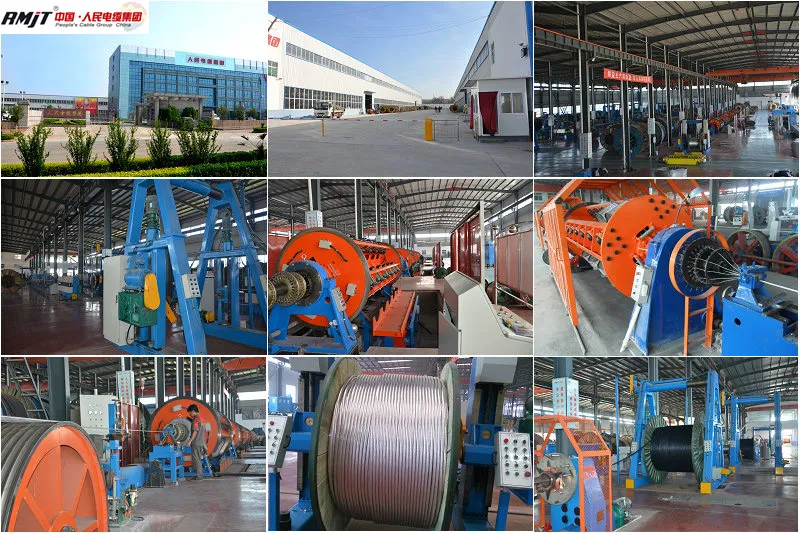

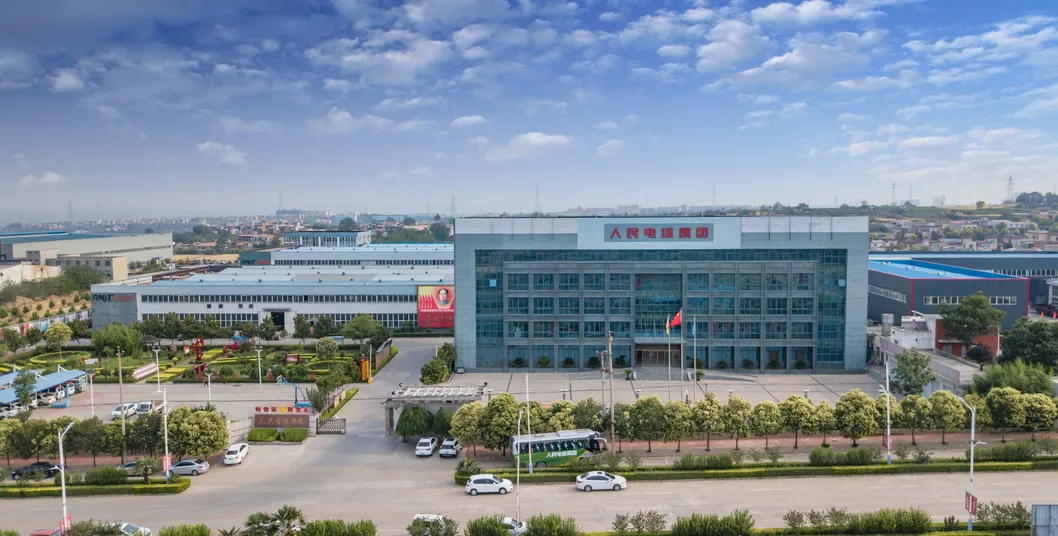

About us

^{_{People's Cable Group was established in 2007. It is a national non-regional enterprise integrating R&D, production and sales of wires and cables, with a total area of more than 300,000 square meters and a building area of 230,000 square meters. The actual capital assets exceed 350 million U.S. dollars, and there are 630 employees, including 65 professional and technical experts. It is located at No. 13, Yongding East Road, People's Cable Industrial Park, Gongyi Economic and Technological Development Zone, Zhengzhou City, Henan Province, China. National Highway 310 and Lianhuo Expressway run through it. The geographical position is superior and the transportation is very convenient. It is a good place for tourism and business negotiation.}}

Overhead Double Insulated PVC Sheath Copper Aluminum Conductor Stranded Underground Armored Power Wire XLPE Electric Cable

_{People's Cable Group Co., Ltd. specializes in the production of high, medium and low voltage series of wires and cables. The main products are PVC insulated power cables, fire-resistant cables, flame-retardant cables, control cables, rubber cables, overhead insulated cables, low-voltage coaxial cables-smokeless Halogen-free cables and shielded cables, pre-branched cables, waterproof cables, rat-proof cables, aluminum stranded wires, steel core aluminum stranded wires, railway transportation cables and cables, PVC insulated wires, buried wires, anti-aging wires, etc., more than 30 varieties, More than 3000 products of several specifications have been exported to more than ten countries and regions such as Southeast Asia, the Middle East, Africa and South America.}

Overhead Double Insulated PVC Sheath Copper Aluminum Conductor Stranded Underground Armored Power Wire XLPE Electric Cable

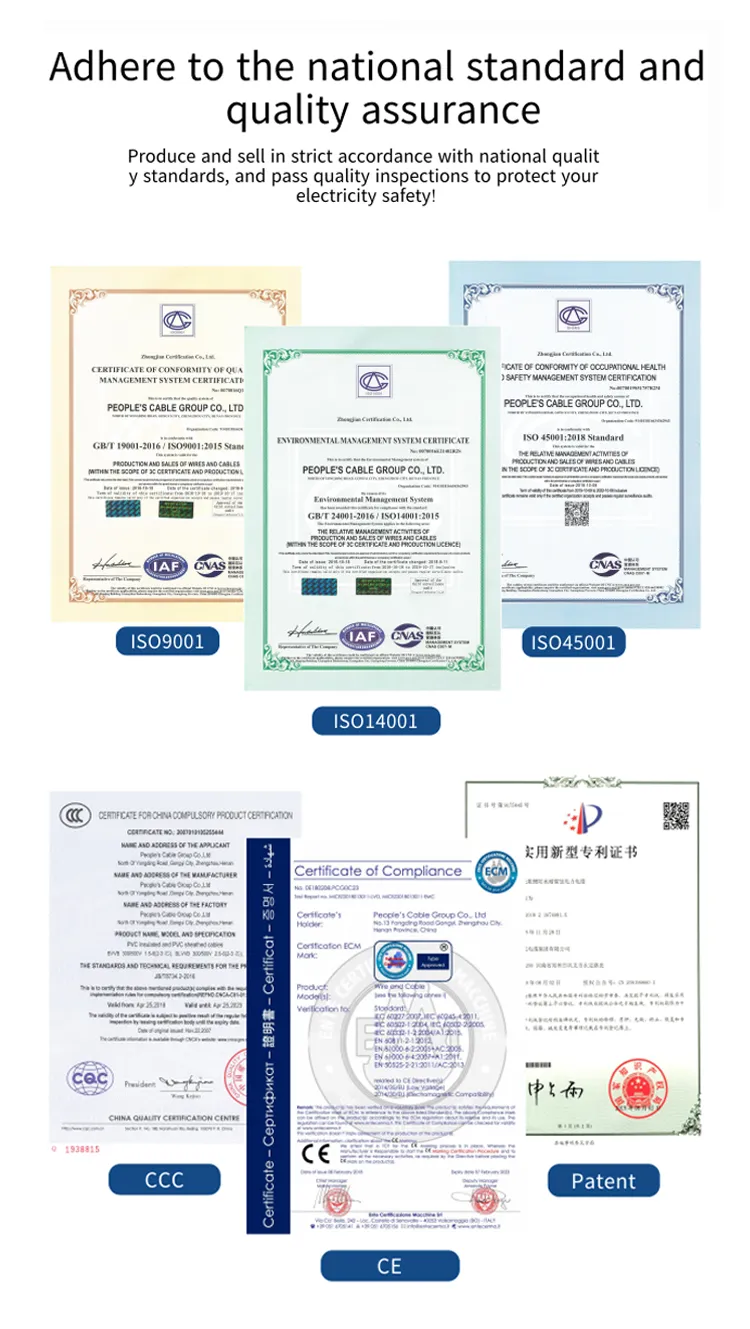

Certificate

_{People's Cable Group Co., Ltd. has strong technical force, advanced production equipment, complete testing equipment, reliable product quality and excellent after-sales service. The products are produced in strict accordance with GB, ICE, BS and other standards. It has passed ISO9001-2008 quality system certification, 14001-2004 environmental system certification, 28001-2001 occupational health and safety management system certification, national compulsory CCC certification, and obtained a national industrial product production license. Over the years, it has passed the inspections of national, provincial and municipal quality supervision departments many times. In 2010, it was recognized as a provincial-level enterprise technology research and development center by the Henan Provincial Development and Reform Commission.}
