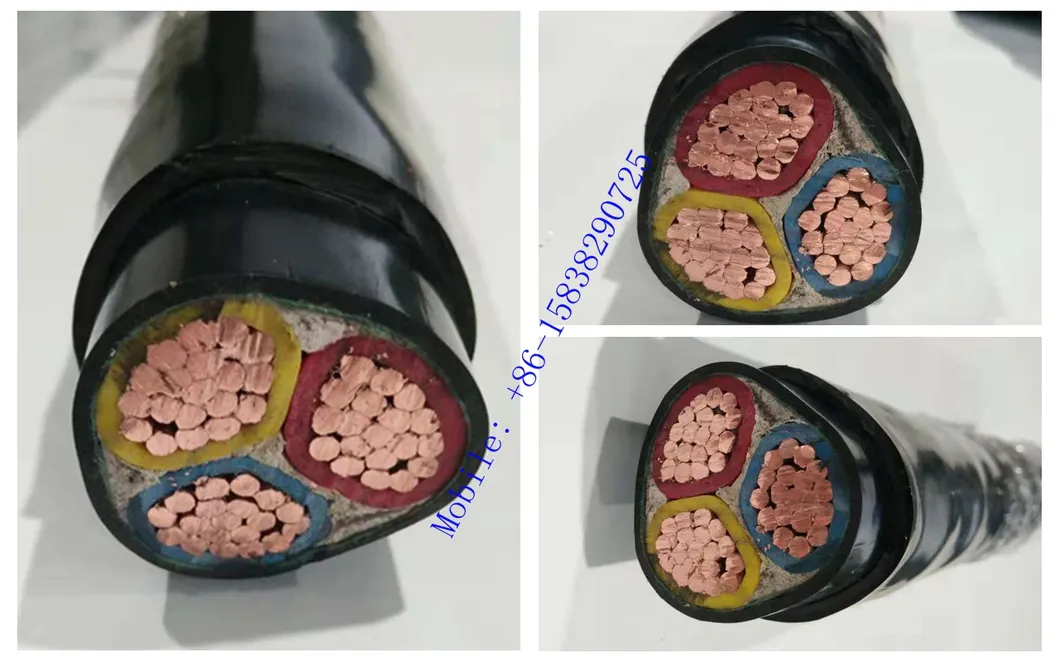

600V 4X25mm 4X50mm 4X95mm 4X120mm PVC Power Cable Nyy
600V 4x25mm 4x50mm 4x95mm 4x120mm 4 Core pvc power cable nyyNYYPVC Insulated Heavy Current Cable 0,6/1kV Single and Multicorenyy cable Application:This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to......
Send Inquiry
Product Description
600V 4x25mm 4x50mm 4x95mm 4x120mm 4 Core pvc power cable nyy
nyy cable Parameters:
* The current carrying capacity of the cables depends on the number of cores loaded (see DIN VDE 0276-627)
NYY
PVC Insulated Heavy Current Cable 0,6/1kV Single and Multicore
nyy cable Application:
This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be Expected.

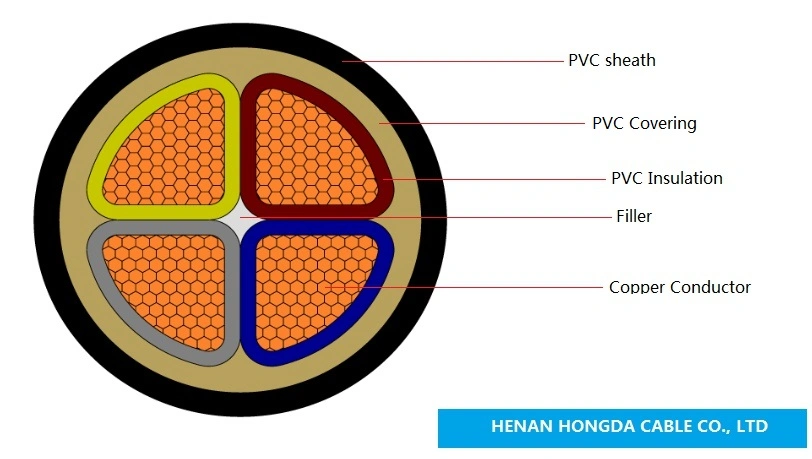

nyy cable Construction:
1 ..... solid (RE) or stranded (RM/SM) bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... PVC core covering or taping
4 ..... outer sheath of polyvinylchloride (PVC), black
nyy cable Information:
short circuit temperature on core (max. 5 sec.)
<=300 mm² --> 160°C
>300 mm² --> 140°C
nyy cable Standards:
DIN VDE 0276-603
HD 603 S1:1994 + A2:2003
DIN EN 60228 class 1 and 2 (construction)
HD 308 S2 (core identification)
nyy cable Technical data:
| Nominal voltage Uo/U | [V] | 600 / 1000 volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Bending radius | single-core style | x diameter | 15 |
| multi-core style | x diameter | 12 | |
| Flammability | standard | EN 60332-1-2 |
nyy cable Parameters:
| Number of cores and nominal cross section | Copper figure | Overall diameter appr. | Weight appr. | Current carrying capacity ground | Current carrying capacity air |
| mm2 | kg/km | mm | kg/km | A | A |
| 1 x 16 RE | 160,0 | 11 | 233,0 | 107 | 84 |
| 1 x 25 RM | 250,0 | 12 | 370,0 | 138 | 114 |
| 1 x 35 RM | 350,0 | 14 | 480,0 | 164 | 139 |
| 1 x 50 RM | 500,0 | 16 | 640,0 | 195 | 169 |
| 1 x 70 RM | 700,0 | 17 | 850,0 | 238 | 213 |
| 1 x 95 RM | 950,0 | 19 | 1.120,0 | 286 | 264 |
| 1 x 120 RM | 1.200,0 | 21 | 1.375,0 | 325 | 307 |
| 1 x 150 RM | 1.500,0 | 23 | 1.660,0 | 365 | 352 |
| 1 x 185 RM | 1.850,0 | 25 | 2.050,0 | 413 | 406 |
| 1 x 240 RM | 2.400,0 | 28 | 2.634,0 | 479 | 483 |
| 1 x 300 RM | 3.000,0 | 30 | 3.295,0 | 541 | 557 |
| 1 x 400 RM | 4.000,0 | 32 | 4.231,0 | 614 | 646 |
| 1 x 500 RM | 5.000,0 | 34 | 5.284,0 | 693 | 747 |
| 1 x 630 RM | 6.300,0 | 42 | 6.850,0 | 777 | 858 |
| 2 x 1,5 RE | 30,0 | 11 | 220,0 | 27 | 20 |
| 2 x 2,5 RE | 50,0 | 12 | 267,0 | 36 | 25 |
| 2 x 4 RE | 80,0 | 14 | 342,0 | 47 | 34 |
| 2 x 6 RE | 120,0 | 15 | 412,0 | 59 | 43 |
| 2 x 10 RE | 200,0 | 16 | 510,0 | 79 | 59 |
| 2 x 16 RM | 320,0 | 18 | 670,0 | 102 | 79 |
| 3 x 1,5 RE | 45,0 | 13 | 244,0 | 27 | 20 |
| 3 x 2,5 RE | 75,0 | 14 | 294,0 | 36 | 25 |
| 3 x 4 RE | 120,0 | 16 | 393,0 | 47 | 34 |
| 3 x 6 RE | 180,0 | 17 | 481,0 | 59 | 43 |
| 3 x 10 RE | 300,0 | 18 | 645,0 | 79 | 59 |
| 3 x 16 RE | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 16 RM | 480,0 | 20 | 872,0 | 102 | 79 |
| 3 x 25 RM | 750,0 | 25 | 1.350,0 | 133 | 106 |
| 3 x 35 SM | 1.050,0 | 25 | 1.460,0 | 159 | 129 |
| 3 x 50 SM | 1.500,0 | 29 | 1.750,0 | 188 | 157 |
| 3 x 70 SM | 2.100,0 | 32 | 2.400,0 | 232 | 199 |
| 3 x 95 SM | 2.850,0 | 35 | 3.560,0 | 280 | 246 |
| 3 x 120 SM | 3.600,0 | 38 | 4.310,0 | 318 | 285 |
| 3 x 150 SM | 4.500,0 | 42 | 5.310,0 | 359 | 326 |
| 3 x 185 SM | 5.550,0 | 47 | 6.630,0 | 406 | 374 |
| 3 x 240 SM | 7.200,0 | 53 | 8.480,0 | 473 | 445 |
| 3 x 25/16 RM/RE | 910,0 | 25 | 1.513,0 | 133 | 106 |
| 3 x 35/16 SM/RE | 1.210,0 | 27 | 1.804,0 | 159 | 129 |
| 3 x 50/25 SM/RM | 1.750,0 | 31 | 2.349,0 | 188 | 157 |
| 3 x 70/ 35 SM | 2.450,0 | 35 | 3.117,0 | 232 | 199 |
| 3 x 95/ 50 SM | 3.350,0 | 39 | 4.167,0 | 280 | 246 |
| 3 x 120/ 70 SM | 4.300,0 | 44 | 5.190,0 | 318 | 285 |
| 3 x 150/ 70 SM | 5.200,0 | 47 | 6.161,0 | 359 | 326 |
| 3 x 185/ 95 SM | 6.500,0 | 53 | 7.673,0 | 406 | 374 |
| 3 x 240/120 SM | 8.400,0 | 59 | 9.850,0 | 473 | 445 |
| 3 x 300/150 SM | 10.500,0 | 65 | 11.900,0 | 535 | 511 |
| 4 x 1,5 RE | 60,0 | 14 | 278,0 | 27 | 20 |
| 4 x 2,5 RE | 100,0 | 15 | 340,0 | 36 | 25 |
| 4 x 4 RE | 160,0 | 17 | 460,0 | 47 | 34 |
| 4 x 6 RE | 240,0 | 18 | 570,0 | 59 | 43 |
| 4 x 10 RE | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 10 RM | 400,0 | 20 | 775,0 | 79 | 59 |
| 4 x 16 RE | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 16 RM | 640,0 | 22 | 1.072,0 | 102 | 79 |
| 4 x 25 RM | 1.000,0 | 27 | 1.632,0 | 133 | 106 |
| 4 x 35 SM | 1.400,0 | 27 | 1.959,0 | 159 | 129 |
| 4 x 50 SM | 2.000,0 | 32 | 2.595,0 | 188 | 157 |
| 4 x 70 SM | 2.800,0 | 36 | 3.488,0 | 232 | 199 |
| 4 x 95 SM | 3.800,0 | 41 | 4.637,0 | 280 | 246 |
| 4 x 120 SM | 4.800,0 | 43 | 5.689,0 | 318 | 285 |
| 4 x 150 SM | 6.000,0 | 49 | 6.973,0 | 359 | 326 |
| 4 x 185 SM | 7.400,0 | 54 | 8.663,0 | 406 | 374 |
| 4 x 240 SM | 9.600,0 | 60 | 11.140,0 | 473 | 445 |
| 5 x 1,5 RE | 75,0 | 15 | 317,0 | 0 | 0 |
| 5 x 2,5 RE | 125,0 | 16 | 391,0 | 0 | 0 |
| 5 x 4 RE | 200,0 | 18 | 537,0 | 0 | 0 |
| 5 x 6 RE | 300,0 | 19 | 672,0 | 0 | 0 |
| 5 x 10 RE | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 10 RM | 500,0 | 21 | 921,0 | 0 | 0 |
| 5 x 16 RE | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 16 RM | 800,0 | 24 | 1.294,0 | 0 | 0 |
| 5 x 25 RM | 1.250,0 | 29 | 2.004,0 | 0 | 0 |
| 5 x 35 RM | 1.750,0 | 30 | 2.575,0 | 0 | 0 |
| 5 x 50 RM | 2.500,0 | 36 | 3.193,0 | 0 | 0 |
| 5 x 70 RM | 3.500,0 | 40 | 4.722,0 | 0 | 0 |
| 5 x 95 RM | 4.750,0 | 46 | 6.393,0 | 0 | 0 |
| 5 x 120 RM | 6.000,0 | 50 | 7.095,0 | 0 | 0 |
| 5 x 150 RM | 7.500,0 | 59 | 8.240,0 | 0 | 0 |
| 7 x 1,5 RE | 105,0 | 16 | 376,0 | 0 | 0 |
| 10 x 1,5 RE | 150,0 | 19 | 495,0 | 0 | 0 |
| 12 x 1,5 RE | 180,0 | 18 | 440,0 | 0 | 0 |
| 14 x 1,5 RE | 210,0 | 20 | 494,0 | 0 | 0 |
| 16 x 1,5 RE | 240,0 | 21 | 600,0 | 0 | 0 |
| 19 x 1,5 RE | 285,0 | 22 | 614,0 | 0 | 0 |
| 21 x 1,5 RE | 315,0 | 23 | 700,0 | 0 | 0 |
| 24 x 1,5 RE | 360,0 | 24 | 769,0 | 0 | 0 |
| 30 x 1,5 RE | 450,0 | 26 | 918,0 | 0 | 0 |
| 40 x 1,5 RE | 600,0 | 29 | 1.250,0 | 0 | 0 |
| 7 x 2,5 RE | 175,0 | 17 | 472,0 | 0 | 0 |
| 10 x 2,5 RE | 250,0 | 20 | 530,0 | 0 | 0 |
| 12 x 2,5 RE | 300,0 | 21 | 578,0 | 0 | 0 |
| 14 x 2,5 RE | 350,0 | 22 | 680,0 | 0 | 0 |
| 16 x 2,5 RE | 400,0 | 23 | 750,0 | 0 | 0 |
| 19 x 2,5 RE | 475,0 | 24 | 870,0 | 0 | 0 |
| 21 x 2,5 RE | 525,0 | 25 | 900,0 | 0 | 0 |
| 24 x 2,5 RE | 600,0 | 26 | 1.035,0 | 0 | 0 |
| 30 x 2,5 RE | 750,0 | 28 | 1.300,0 | 0 | 0 |
| 40 x 2,5 RE | 1.000,0 | 31 | 1.700,0 | 0 | 0 |
| 7 x 4 RE | 280,0 | 18 | 600,0 | 0 | 0 |
| 7 x 6 RE | 420,0 | 20 | 760,0 | 0 | 0 |
| 7 x 10 RE | 700,0 | 22 | 1.080,0 | 0 | 0 |
* The current carrying capacity of the cables depends on the number of cores loaded (see DIN VDE 0276-627)
