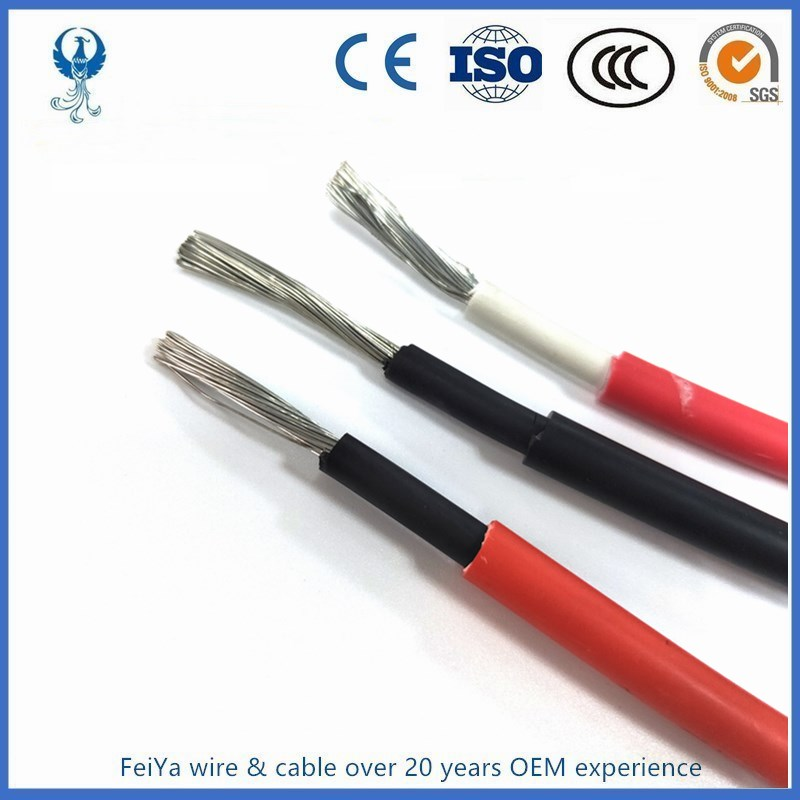

1X4mm2 ( 12AWG ) Solar Cable Red or Black PV Cable Wire Copper Conductor XLPE Jacket TUV Certifiction
High quality Solar cable PV1-F 1x4mm2 solar cable Description: Conductor : 99.99% copper, tinned UV resistance: EN60811-501 Insulation material : XLPE(XLPO) High voltage and High current Double walls insulation Temperature range : -40ºC~90ºC Halogen-free material: EN50525-1......
Send Inquiry
Product Description

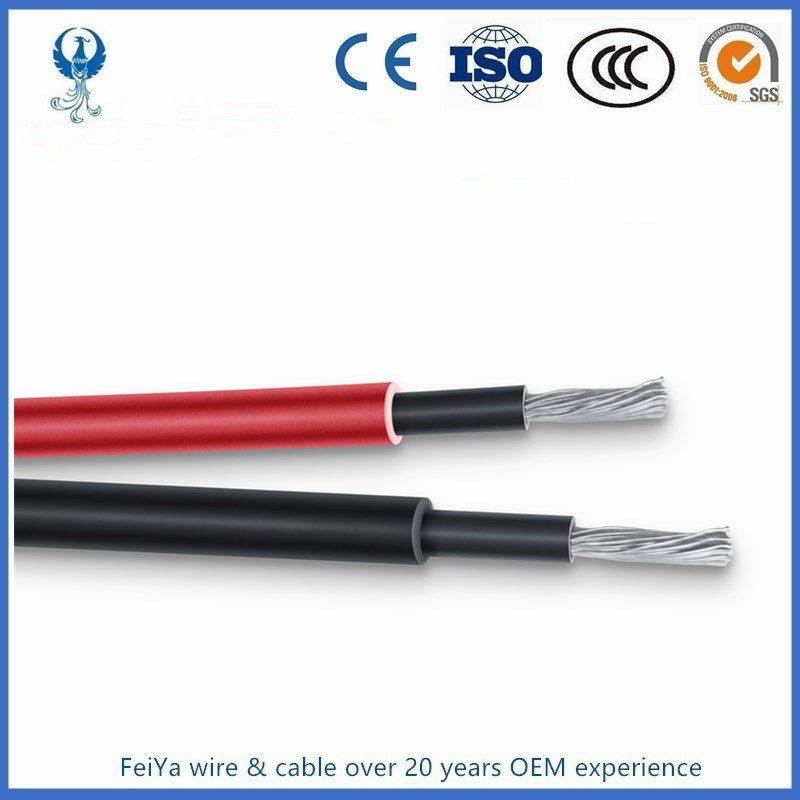

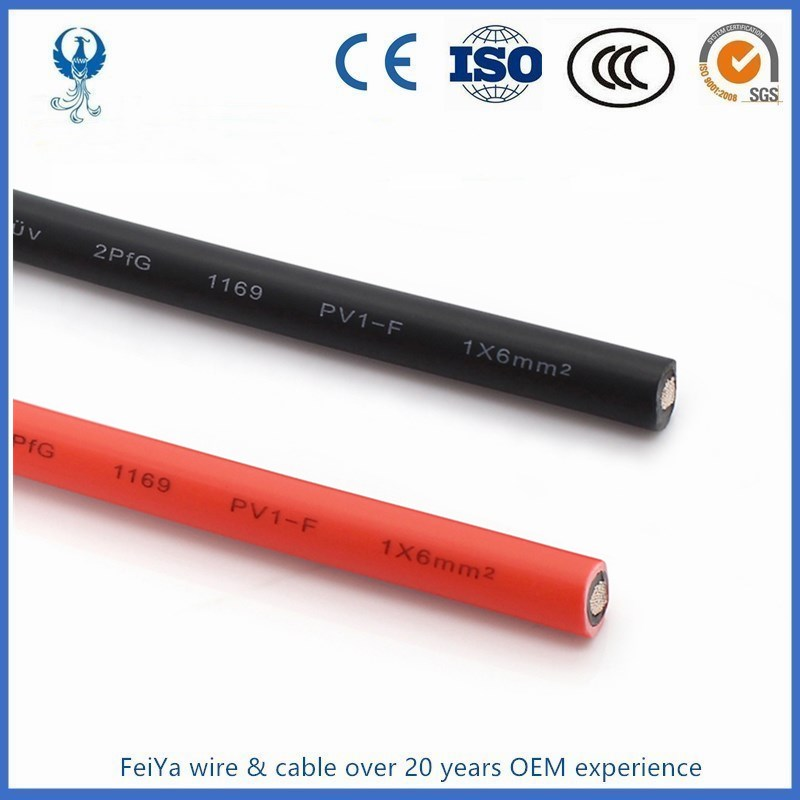

High quality Solar cable PV1-F 1x4mm2 solar cable
Description:

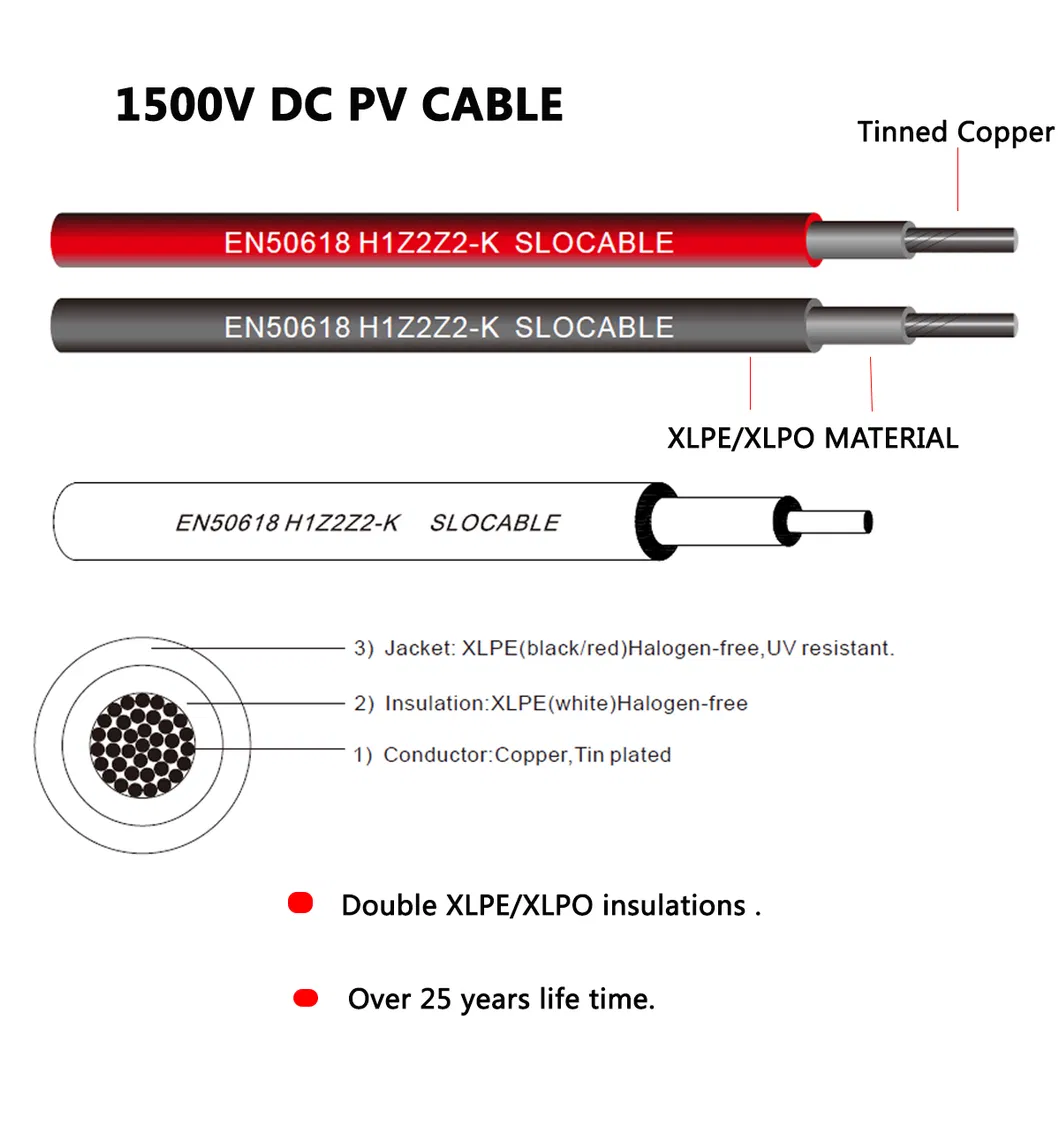

| Conductor : 99.99% copper, tinned | UV resistance: EN60811-501 |
| Insulation material : XLPE(XLPO) | High voltage and High current |
| Double walls insulation | Temperature range : -40ºC~90ºC |
| Halogen-free material: EN50525-1 | Color : Black / Red / Blue |
Flame test according to : DIN EN 50265-2-1 / U L1571(VW-1) | Smallest permisssible bending radius : 5xD |
Flame test: EN60332-1-2 | Smoke density: EN61034-2 |
Ozone resistance: EN50396 | Oil resistance: EN60811 |
Technical Data of single core solar cable:
| Size | Cross Section | Conductor Structure | Outer Diameter | Max. DC Resistance at 20ºC | Rated Voltage | Rated Current |
| mm2 | mm | mm | Ω/km | V | A | |
| 1x2.5mm2 | 2.5mm2 | 48xΦ0.25 | 5.1 | 8.06 | 1000/1500 | 30 |
| 1x4.0mm2 | 4.0mm2 | 56xΦ0.285 | 6.1 | 4.97 | 1000/1500 | 50 |
| 1x6.0mm2 | 6.0mm2 | 81xΦ0.3 | 6.4 | 3.52 | 1000/1500 | 70 |
| 1x10mm2 | 10mm2 | 74xΦ0.4 | 7.3 | 2.12 | 1000/1500 | 95 |

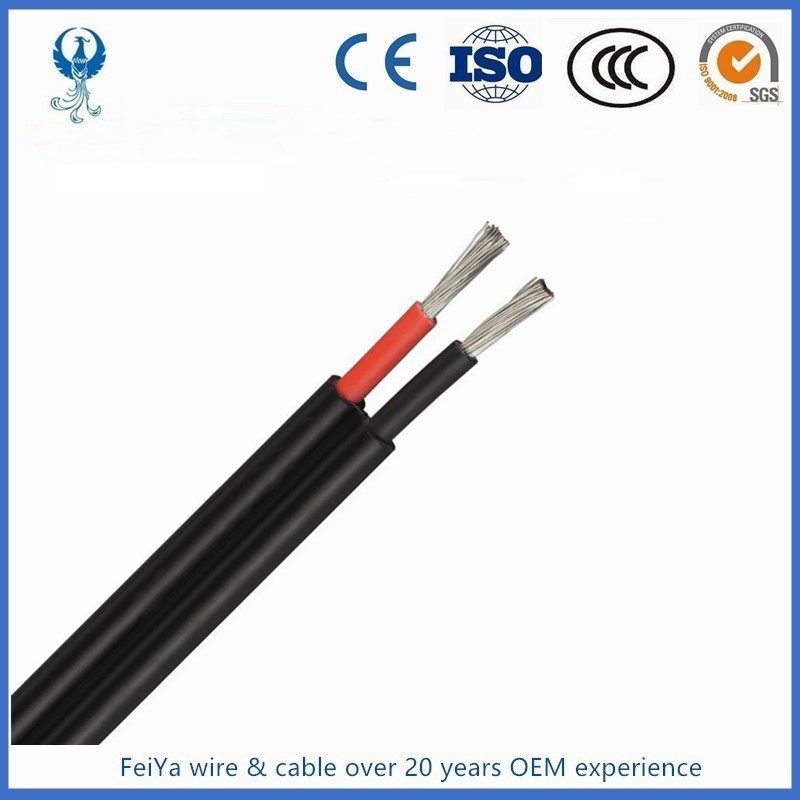

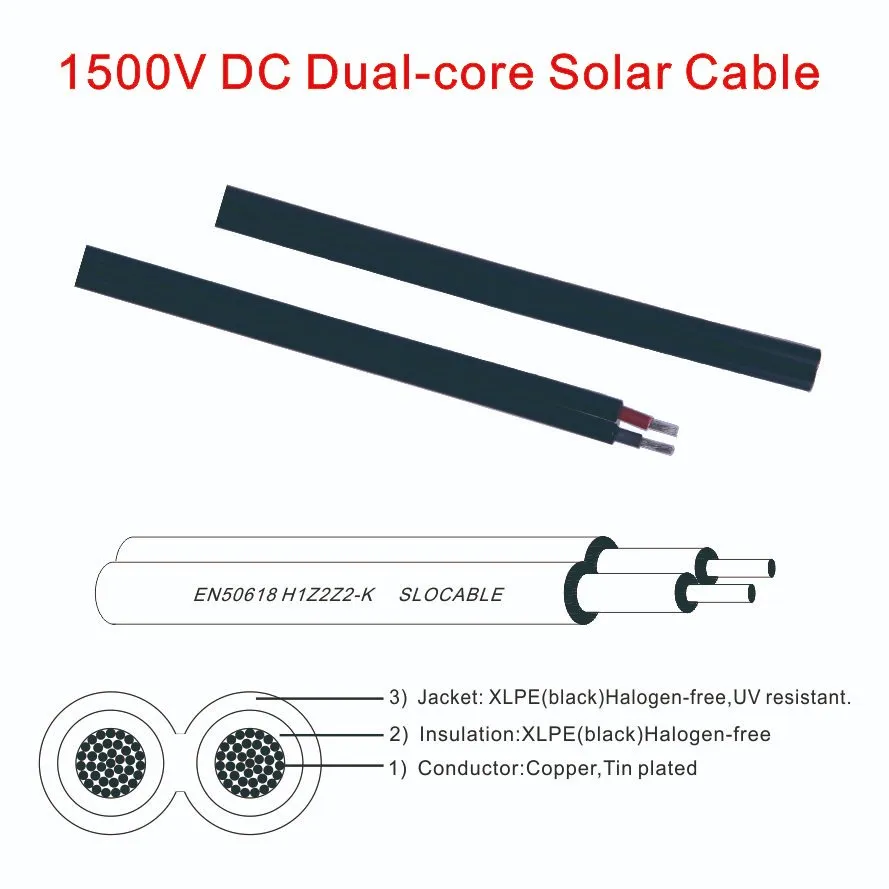

Technical Data of double core:
Size | Cross Section | Conductor Structure | Outer Diameter | Max. DC Resistance at 20ºC | Rated Voltage | Rated Current |
| mm² | mm | mm | Ω/km | V DC | A | |
| 2 x 2.5mm² | 2.5mm² | 49 x ∅0.25 | 5.4 X 10.9 | 8.06 | 1000/1500 | 30A |
| 2 x 4.0mm² | 4.0mm² | 56 x ∅0.285 | 6.1 X 12.3 | 4.97 | 1000/1500 | 50A |
| 2 x 6.0mm² | 6.0mm² | 78 x ∅0.30 | 6.4 X 12.9 | 3.52 | 1000/1500 | 70A |
Advantage:
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V,oil,greases,oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant,low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carring capacity
·TUV,CE approved
