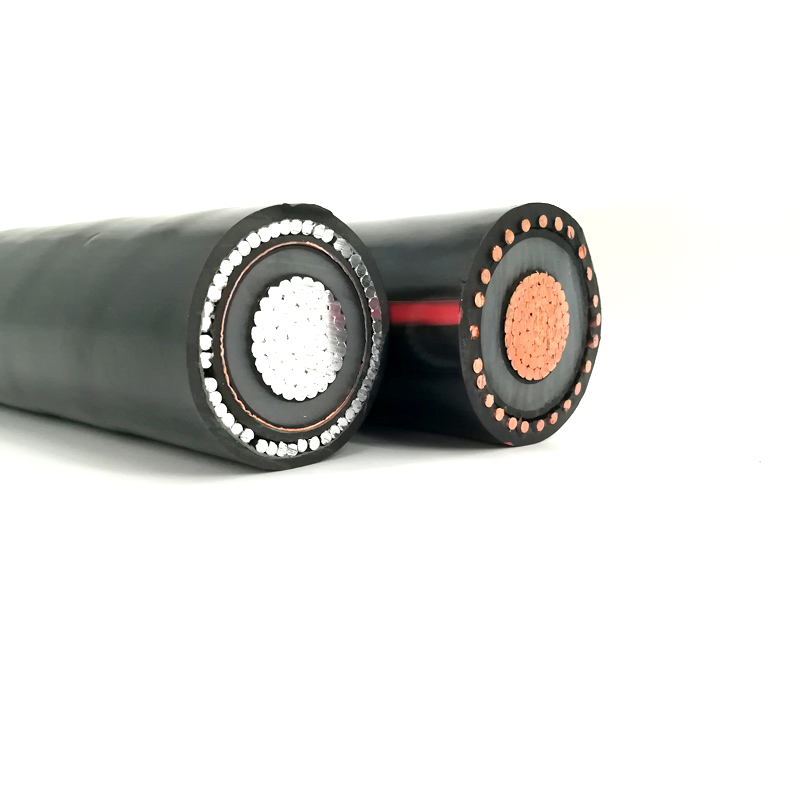

China 0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

Product Description

0.6/1KV Copper or Aluminum Conductor XLPE Insulated Electric Power Cable

1. Application

PVC insulated power cable is suitable for laying fixed in power transmission and distribution lines with A.C. 50HZ and rated voltage of 0.6/1kV.
XLPE insulated power cable has a number of advantages compared with paper insulated and PVC insulated cables. XLPE cable has high electric property, mechanical property, heat aging performance, environmental stress crack resistance, chemical corrosion resistance, and it also has simple structure, convenient operation and it is not restricted by laying in large difference of level. It can be applied in high temperature of 90 degree for a long time.

2. Standard
IEC 60502, IEC60332, IEC 60754

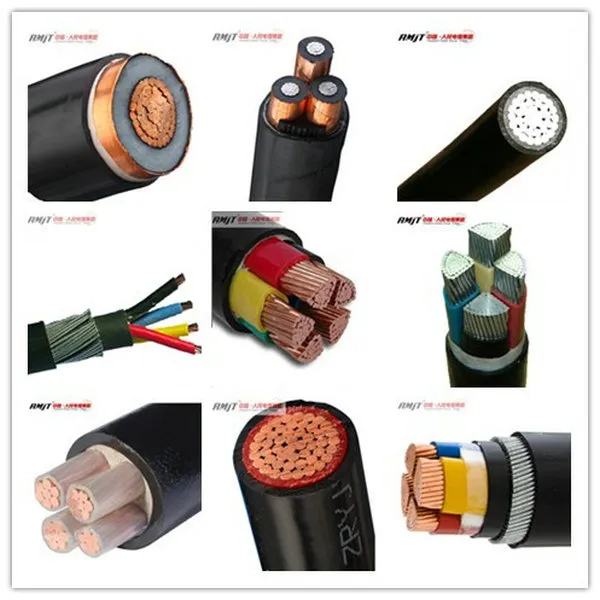

0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

3. Specification

1). Rated Voltage, No. of Core and Range of Sectional Area

Rated voltage (kv) Sectional area (mm2) No. of core	1st class	0.6/1	1.8/3	3.6/6	6/10	8.7/15	12/20	18/30	21/35
Rated voltage (kv) Sectional area (mm2) No. of core	2nd class	1/1	3/3	6/6	8.7/10	12/15	18/20	-	26/35
1 Core		1.5-800	25-800	25-1200	25-1200	35-1200	50-1200	50-1200	50-1200
2 Core		1.5-185	25-185
3 Core		1.5-400	25-400	25-400	25-400	35-400	50-400	50-400	50-400
4 Core		2.5-400	25-400
5 Core		2.5-400	25-400

2). DC resistance: conductor resistance of finished cable at 20ºC per kilometer is not more than the following values.

Nominal section area (mm²)	1.5	2.5	4	6	10	16	25	35	50	70	95	120	150	185	240	300	400	500	630	800
Copper core	12.1	7.41	4.61	3.08	1.83	1.15	0.727	0.524	0.387	0.268	0.193	0.153	0.124	0.099	0.0754	0.0601	0.047	0.0366	0.0283	0.0221
Aluminum core	18.1	12.1	7.41	4.61	3.08	1.91	1.2	0.868	0.641	0.443	0.32	0.253	0.206	0.164	0.125	0.1	0.778	0.0605	0.0469	0.0367

3). Voltage Test and Partial Discharge Test

Rate voltage Uo (kv) Item		0.6/1	1.8/3	3.6/6	6/6 6/10	8.7/10 8.7/15	12/20	18/20 18/30	21/35	26/35
Voltage	Test voltage	3.5	6.5	12.5	21	30.5	42	63	73.5	91
Voltage	Test time	5	5	5	5	5	5	5	5	5
Partial discharge test	Test voltage	-	-	6.2	10.4	15.1	20.8	31.1	36.3	45
Partial discharge test	Discharge capacity	-	-	10	10	10	10	10	10	10

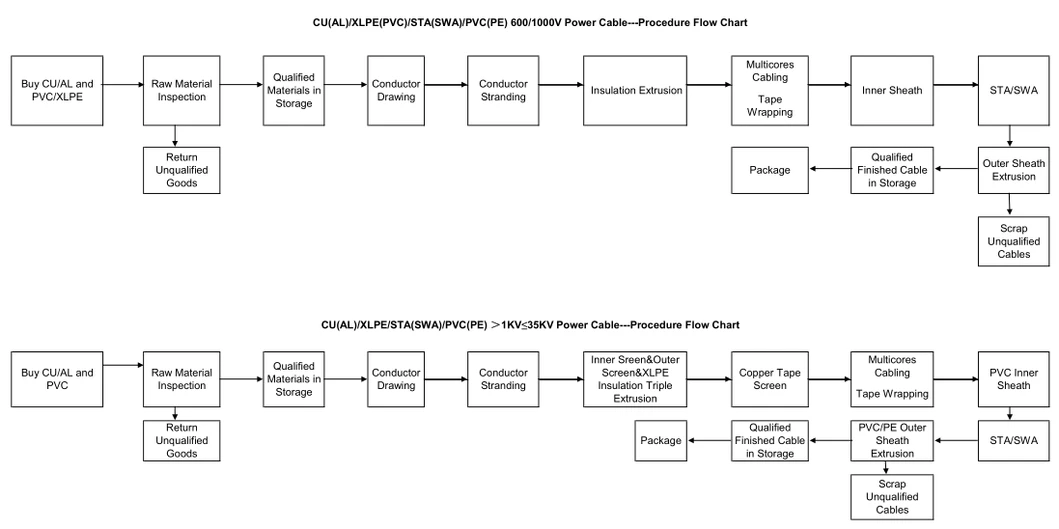

4. Production process
0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

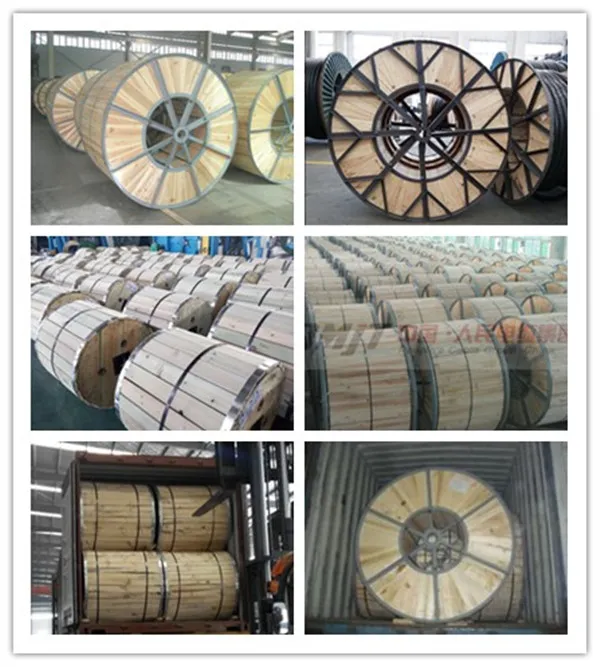

5. Package
0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

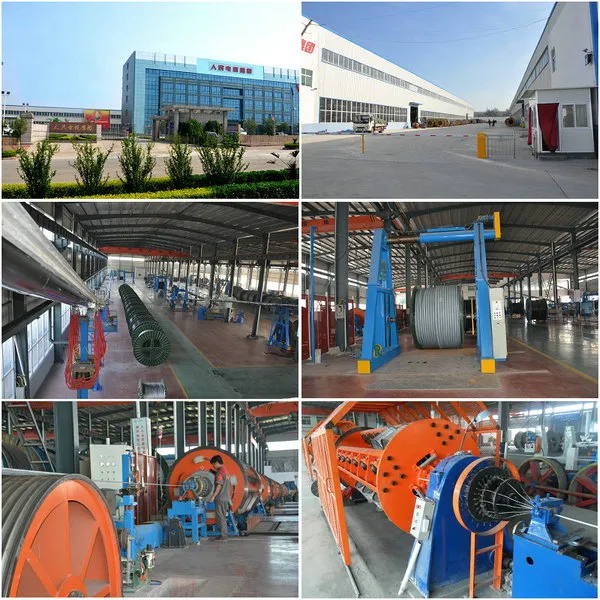

6. About us
People's Cable Group Co., Ltd. was founded in 2007, located in Zhengzhou Gongyi economic development zone. Our company has 2 factories (Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters.
0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

7. Certificate
As first rank of the cable supplier in China, we have obtained CCC, ISO9001, ISO14001, OHSAS certificates, passed the SGS and BV test, and our brand "RMJT" be given China famous brand.
0.6/1kv Low Voltage Copper Core XLPE Insulate Electric Power Cable

8. Customer Visit
We have a professional sales team with each of them has engaged in this job for 3-10 years, so that we can provide the comprehensive and professional technology for you. With the perfect quality and after sales service, till now we have exported to more than 80 countries, welcome to visit us and establish win-win establish relationship!
