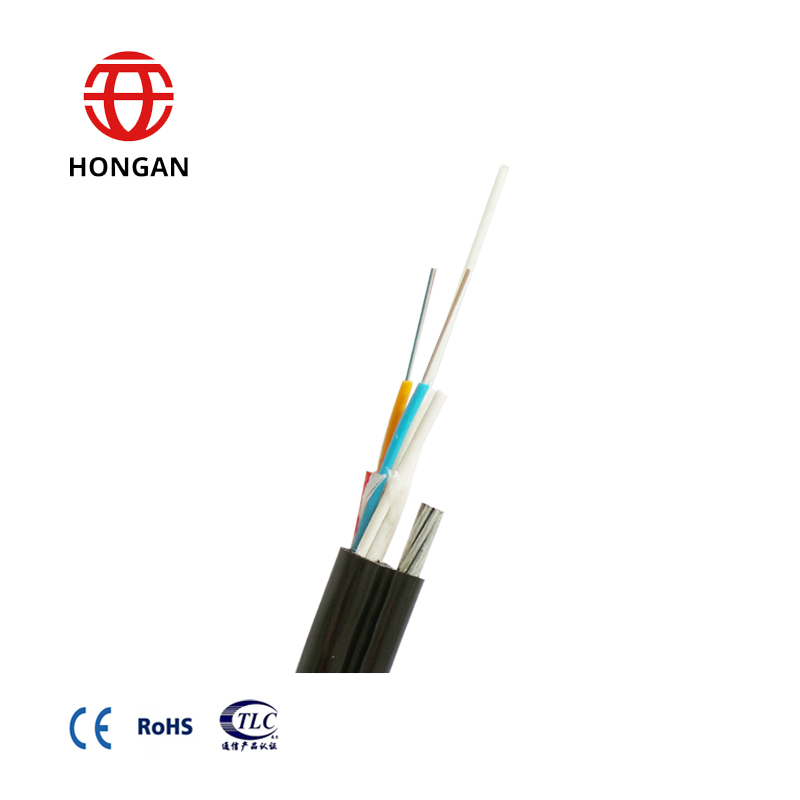

Single Mode Water- Blocking Aerial Optical Fiber Cable
Product Description GYTC8Y Fiber Optic Cable is 8-like type of fiber optic cable that is made of a high modulus plastic. You can get GYTC8Y Fiber Optic Cable in two different forms which include: single mode and Multimode fiber. This type of fiber is widely used in watery areas because it's a wa......
Send Inquiry
Product Description
Product Description

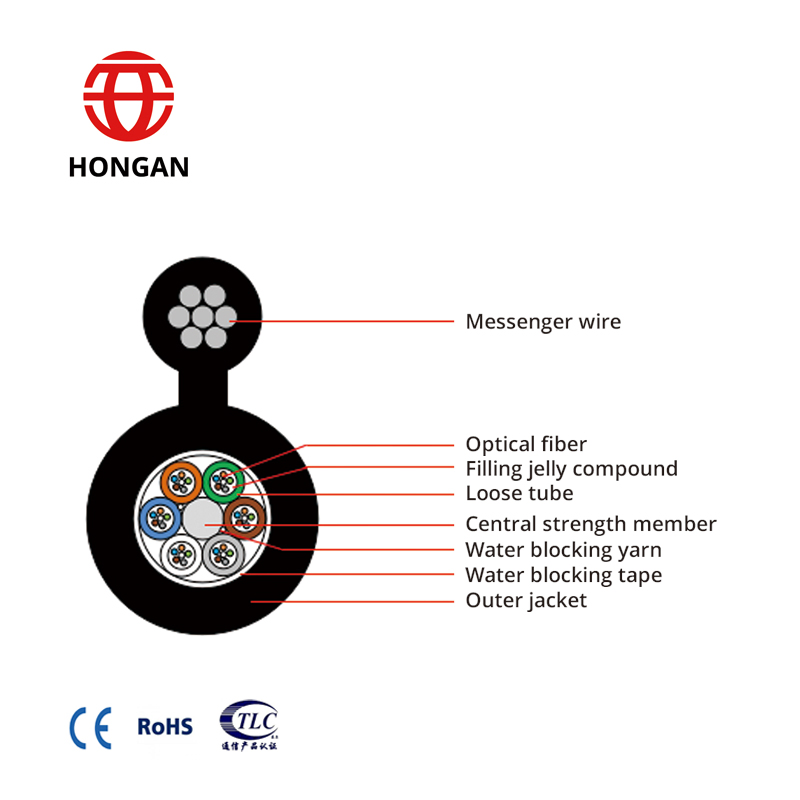

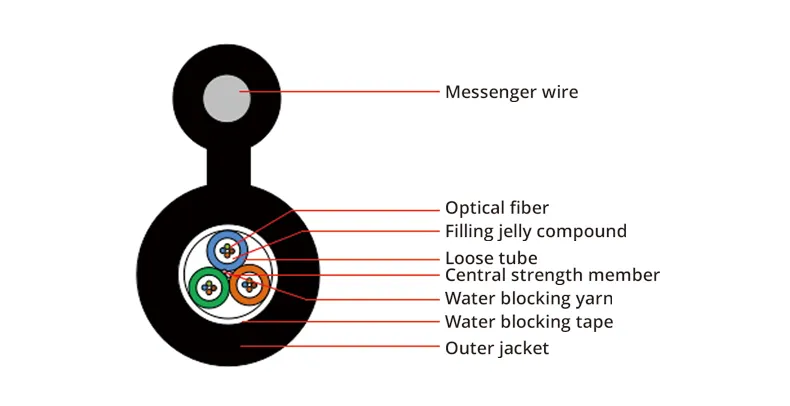

GYTC8Y Fiber Optic Cable is 8-like type of fiber optic cable that is made of a high modulus plastic. You can get GYTC8Y Fiber Optic Cable in two different forms which include: single mode and Multimode fiber. This type of fiber is widely used in watery areas because it's a water-resistant cable. Additionally, it has a messenger of steel wire that offers it the necessary support.
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
| 4 | 1+5 | 4 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
| 6 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
| 8 | 1+5 | 4 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
| 12 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 84 |
| 24 | 1+5 | 6 | 1.7±0.1 | 1.5/1.5 | 1.6±0.1 | 8.6 ±0.5/14.7 ±0.8 | 85 |
| 36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 8.9 ±0.5/15.1 ±0.8 | 92 |
| 48 | 1+5 | 12 | 2.0±0.1 | 1.5/1.5 | 1.6±0.1 | 9.2 ±0.5/15.4 ±0.8 | 94 |
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | FRP |
| Messenger wire | Thickness | 1.5±0.1mm |
| Diameter | 4.5±0.2mm | |
| Steel wire | 1.5mm | |
| Outer jacket | Material | MDPE |
| Outer jacket | Color | Black |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter | |
| Tensile performance | Short term | 3000N |
| Crush | Short term | 1000N/100mm |

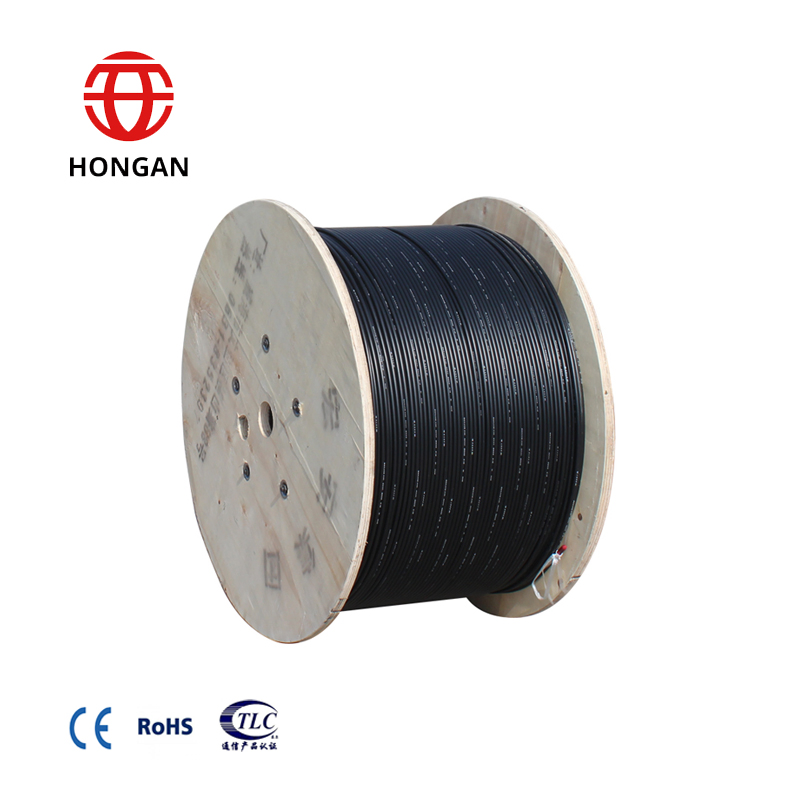

Detailed Image
Certificates
FAQ
| 1. Are you the real factory? |
| Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit. |
| 2. What is your fiber brand? |

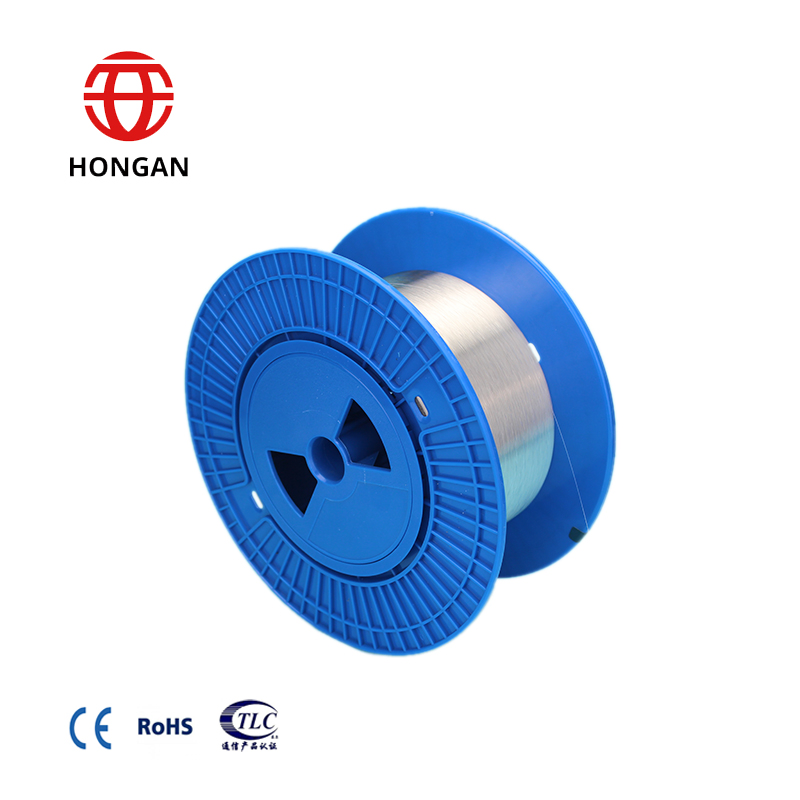

| Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands. |
| 3.What is your main products? |
| Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable. |
| 4.What is your payment term? |
| 30% in advance, 70% before delivery. |
