Product Description

RoHS Low Price OEM Opelink Crosslinking Fiber Optical Patchcord 0.9mm, 2.0mm, 3.0mm G652D, G657A1

Description:

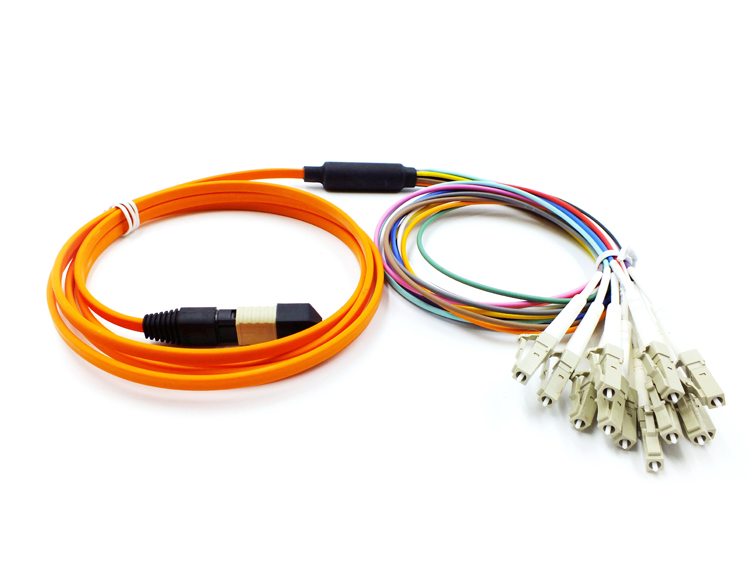

MTP/MPO-LC fanout patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.
RoHS Low Price OEM Opelink Crosslinking Fiber Optical Patchcord 0.9mm, 2.0mm, 3.0mm G652D, G657A1

RoHS Low Price OEM Opelink Crosslinking Fiber Optical Patchcord 0.9mm, 2.0mm, 3.0mm G652D, G657A1

Feature:

.Good durability
.Good exchangeability
.High temperature stability
.Complies with IEC-61754-7 and EIA/TIA-604-5

Applications:
.High density wiring system.
.Wiring in communication base station and distribution case.
.40G and 100G system, QSFP module.
.Data communication network
.Optical system access network
.Storage area network fiber channel

Optical Specification(MPO Connector):

Parameter		Singlemode Patchcord		Multimode Patchcord
Polishing Type		PC	APC	PC
Insertion loss(dB)	Max.	<=0.7dB	<=0.7dB	<=0.7dB
	Typical	<=0.35dB	<=0.35dB	<=0.35dB
Return loss(dB)		>=50dB	>=60dB	≥20dB
Operating temperature		-20ºC~75ºC
Storage Temperature		-40ºC~75ºC
500 mating cycles loss		I.L changed≤0.2dB
Durability		>1000 cycles

Optical Specifications(Other Connector):

Parameter	Singlemode Patchcord			Multimode Patchcord
Polishing Type	PC	UPC	APC	PC
Insertion loss(dB)	<=0.3dB,MTRJ<=0.5dB	<=0.3dB	<=0.3dB	<=0.3dB,MTRJ<=0.5dB
Return loss(dB)	>=45dB,MTRJ>=35dB	>=55dB	>=65dB
Operating temperature	-20ºC~75ºC
Storage Temperature	-40ºC~75ºC
100 mating cycles loss	I.L changed≤0.1dB
Durability	>1000 cycles

Ordering information:

Type	Fiber Core	Cable Type	Cable OD	Cable Material	Cable Color	Connector (A End -B End)	Patchcord Length
PT=Patchcord PY=Pigtail	S1=G652D S2= G657A1 M1=50/125 M2=62.5/125 M3=OM3 M4=OM4 XX=other	01=simplex 02=Duplex 03=Armoured 04=Distribution 05=Ribbon 06=breakout XX=other	01=OD 0.9mm 02=OD 2.0mm 03=OD 3.0mm XX=other	1=PVC(R) 2=PVC(P) 2=LSZH	01=Blue 02=Orange 03=Green 04=Brown 05=Slate 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12Color XX=other	01=SC 02=FC 03=ST 04=LC 05= E2000 06=SC/APC (Cone Type) 07= SC/APC (Step Type) 08= FC/APC (Cone Type ) 09= FC/APC (Step Type) 10=LC/APC 11=E2000/APC 12=MTRJ 13=MPO/PC 14=MPO/APC 15=D4 16=DIN 17=LX5 18=FDDI 00=None XX=other	005=0.5m 010=1.0m 020=2m 025=2.5m XXX=other

----------------------------------------------------FAQ---------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
