Optical Fiber Duplex LC Singlemode Fiber Cable Assembly Nsn Boot 90 Degree with Nokia Rrh Panel
Cable Diameter:7.0mmCable Jacket:LSZH,PE,TPU,UV ResistanceCable Length:1/3/5/10m Or CustomizedConnector:NSN LCFiber Count:DuplexFiber Mode:SM/MMHigh Light:waterproof cable assembly, fiber optic connector assembly NSN boot 90 Degree Duplex LC singlemode cable assemblies,FTTA outdoor waterproof connec......
Send Inquiry
Product Description
| Cable Diameter: | 7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Connector: | NSN LC |
| Fiber Count: | Duplex | Fiber Mode: | SM/MM |
| High Light: | waterproof cable assembly,fiber optic connector assembly | ||

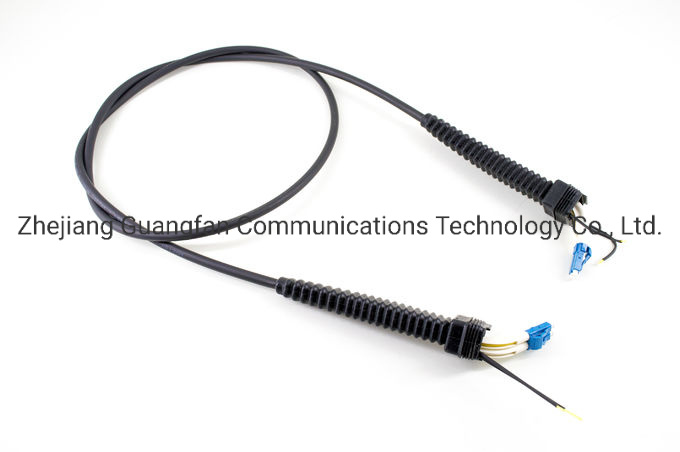

NSN boot 90 Degree Duplex LC singlemode cable assemblies,FTTA outdoor waterproof connector mating with Nokia RRH panel
The NSN boot LC patch cord is available with 90 degrees and straight duplex to connect the Nokia Simens RRH panels.The fiber cable has corrugated steel armored or non-armored for option with UV resistance jacket.
Application:
Harsh environments where chemicals, corrosive gases and liquids are commonplace
Inside and outside industrial plant and equipment that interface with industrial Ethernet networks
Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications
Mobile routers and internet hardware
Features:
Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism
IP68 protection, salt-mist proof, and EMI protection
High shock, vibration, and mechanical resistance
Broad temperature range and wide range of indoor and outdoor cables
Easy, reliable and cost-effective installation
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
Working temperature | -40 to + 85ºC | |||||
