Optical Fiber Duplex Ftta Cpri LC Nsn Boot Fiber Optic Patch Cable
Cable Diameter:5.5/7.0mmCable Jacket:LSZH,PE,TPU,UV ResistanceCable Length:1/3/5/10m Or CustomizedConnector:NSN LCFiber Count:DuplexFiber Mode:SM/MMHigh Light:fiber optic cable assembly, waterproof cable assembly FTTA CPRI LC duplex NSN boot fiber optic patch cable 4.8/7.0mm LSZH black for Nokia equ......
Send Inquiry
Product Description
| Cable Diameter: | 5.5/7.0mm | Cable Jacket: | LSZH,PE,TPU,UV Resistance |
|---|---|---|---|
| Cable Length: | 1/3/5/10m Or Customized | Connector: | NSN LC |
| Fiber Count: | Duplex | Fiber Mode: | SM/MM |
| High Light: | fiber optic cable assembly,waterproof cable assembly | ||

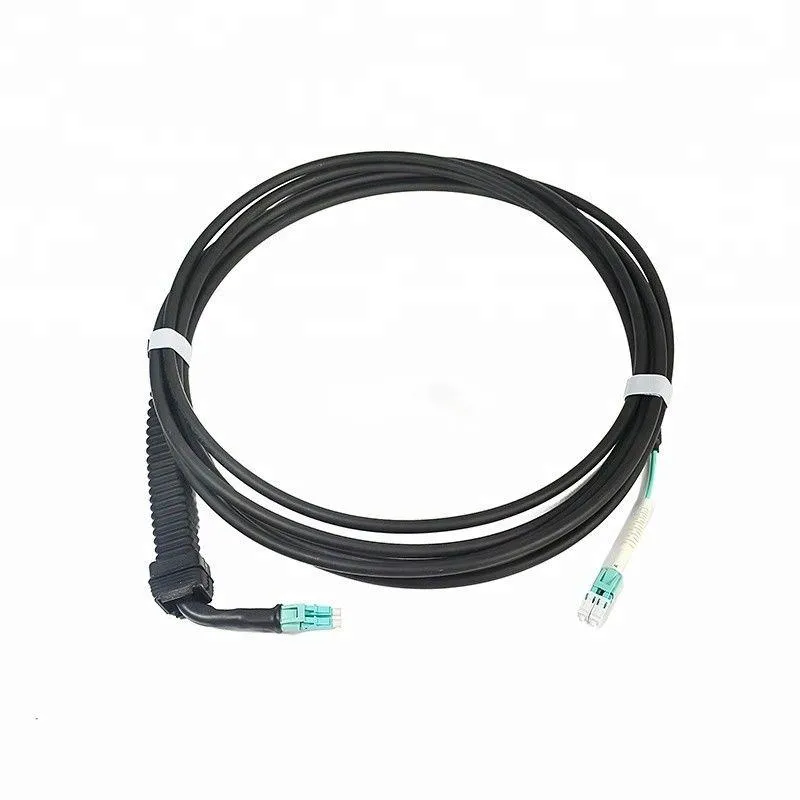

FTTA CPRI LC duplex NSN boot fiber optic patch cable 4.8/7.0mm LSZH black for Nokia equipment
The NSN boot LC patch cord is available with 90 degrees and straight duplex to connect the Nokia Simens RRH panels.The fiber cable has corrugated steel armored or non-armored for option with UV resistance jacket.
Features:
IP66 protection, salt-mist proof
FTTA feeder for all common RRU models and systems
Standard assemlies and customized lengths available with short leat time
Ruggedised design and installation proof
Available diameter: 5~8 mm
All cable contain rodent resistance
All cable assemblies, tested in factory
Application:
Outdoor FTTP, FTTA
Telecom networks;
CATV, LAN&WAN.
Broadband;
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
Working temperature | -40 to + 85ºC | |||||
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | PE bag |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs/day |
