China Optical Fiber 24 Fibers Single-Mode Single Armor Double Jackets Stranded Loose Tube FRP Strength Member Waterproof Outdoor Cable - GYFTY53

Product Description

GYFTY53 is an outdoor cable, it is suitable for installation in high voltage area, the frequent lightning area and anti electric field. It can also be used for duct and direct buried application.

GYFTY53 use Fiber Reinforced Plastic as central strength member to provides anti-electromagnetic interference property. It has good mechanical properties and resist to electromagnetic interference The armor structure helps to protect the cable from rat bite and moisture proof. Double-jacket structure make cable have nice properties of moisture resistance and crush resistance. A layer of water-blocking material is applied around the cable core to prevent water ingress.

Item Details

Fiber Count : 24 Fibers

Strength Member Materials: FRP

Fiber Type: Singlemode G.652B (Default)

Armor Layer: PSP

Outer Sheath: PE (Default)

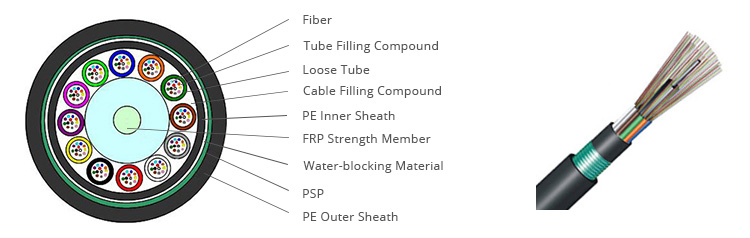

Cable Structure

Optical Fiber 24 Fibers Single-Mode Single Armor Double Jackets Stranded Loose Tube FRP Strength Member Waterproof Outdoor Cable - GYFTY53

Features

Good mechanical and temperature performance.
Special control of exceed length and layer stranding technology.
Low attenuation and dispersion.
Single armor and double sheath providing excellent crush resistance, water proof, and avoiding rat bite.
FRP (non-metallic) Strength Member ensures good anti-electromagnetic interference.
Stranded loose tube improves the tensile strength.
Water -blocking material enhances water-blocking & moisture-proof.
Friction reduction because the tube filling compound ensures a critical protection of the fiber.
Double sheath design enhancing the crushing performance, good moisture-resistance, ultra violet radiation resistant.

Application

Frequent lightning area and anti electric field : The subway, tunnel
Long-distance communication: Local trunk network & User network
Duct and direct buried application
Harsh environment

Cable Count	Out Sheath Diameter	Weight	Minimum Allowable Tensile Strength (N)	Minimum Allowable Crush Load (N/100mm)	Minimum Bending Radius (MM)	Storage Temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(ºC)
2-24	12.0	170.00	3000	1000	3000	1000	20D	10D	-40+60
26-42	12.0	175.00	3000	1000	3000	1000	20D	10D	-40+60
46-72	13.0	210.00	3000	1000	3000	1000	20D	10D	-40+60
74-96	15	240.00	3000	1000	3000	1000	20D	10D	-40+60
98-120	16.5	270.00	3000	1000	3000	1000	20D	10D	-40+60
122-144	18	300.00	3000	1000	3000	1000	20D	10D	-40+60

	G.652	50/125µm	62.5/125µm
Attenuation (+20°C) (dB/km)	@850nm		≤3.0	≤3.0
@1300nm		≤1.0	≤1.0
@1310nm	≤0.36
@1550nm	≤0.22
Bandwidth (Class A) (MHz·km)	@850nm		≥600	≥200
@1300nm		≥1200	≥600
Numerical Aperture		0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc (nm)	≤1260
