MPO St 12f Break out 0.9mm Patch Cord 10m
APPLICATIONS:CATVTelecommunication networksActive device terminationMetroLocal Area Networks (LANs)Data processing networksTest equipmentPremise installationsWide Area Networks (WANs)FEATURES:Low insertion loss and back reflection loss Good exchangeabilityGood Durability ......
Send Inquiry
Product Description
APPLICATIONS:
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS:
ORDERING OPTIONS:
Pictures:
Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:kocchina.en.made-in-china.com
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS:
| Single mode | Multimode | |
| Insertion Loss | Typical≤0.2dB, Maximum≤0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | ≥30 dB |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
ORDERING OPTIONS:
| Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
| Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
| Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
| Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | ||
| Green | Fan-out (6f) | |||||
| Gray | Fan-out (8f) | |||||
| Red | Fan-out (12f) | |||||
| White | Fan-out (24f) |

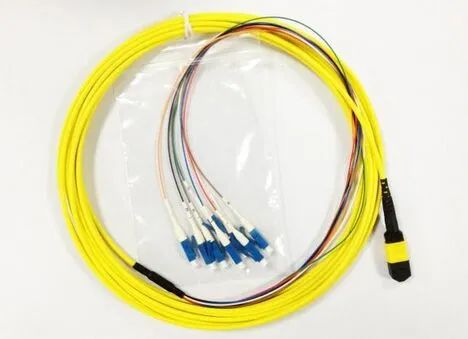

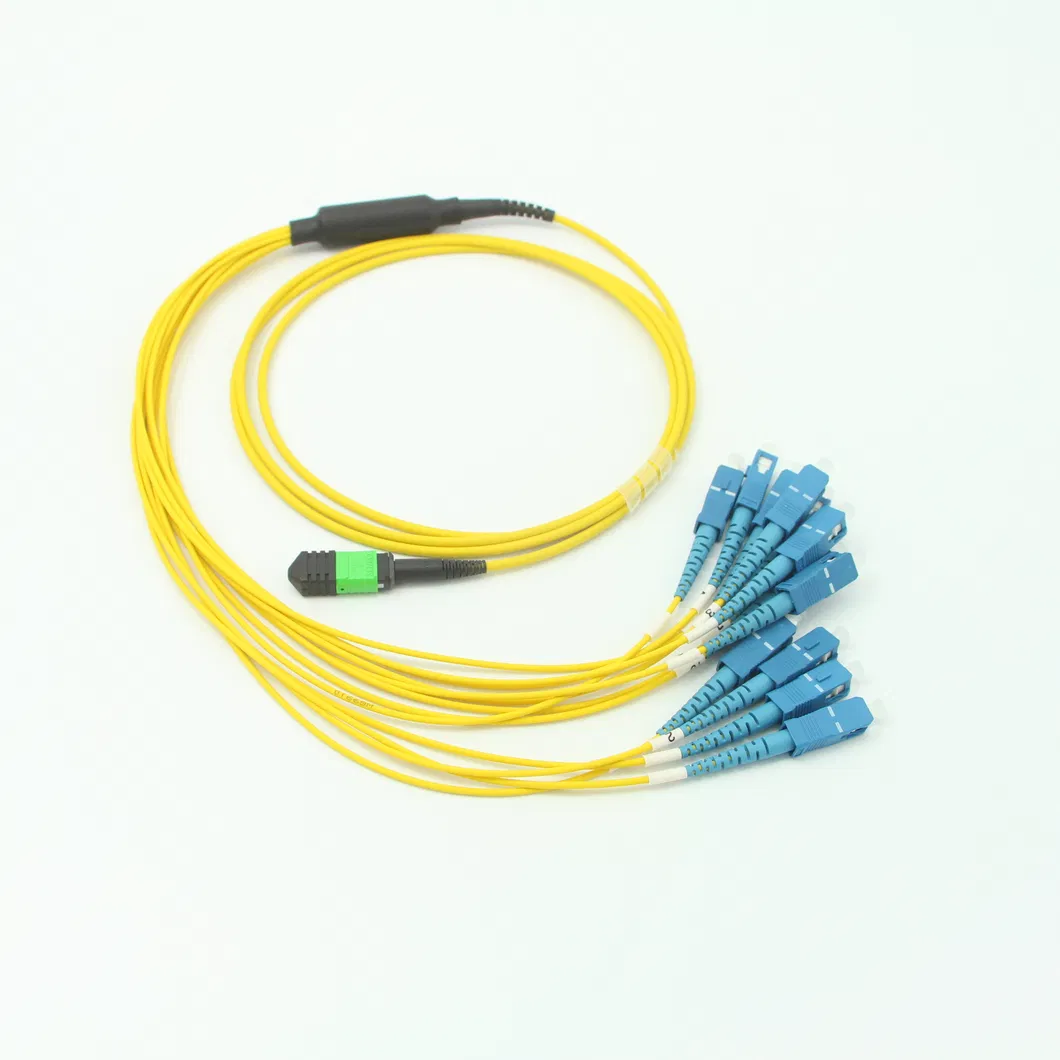

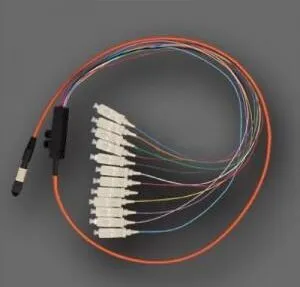

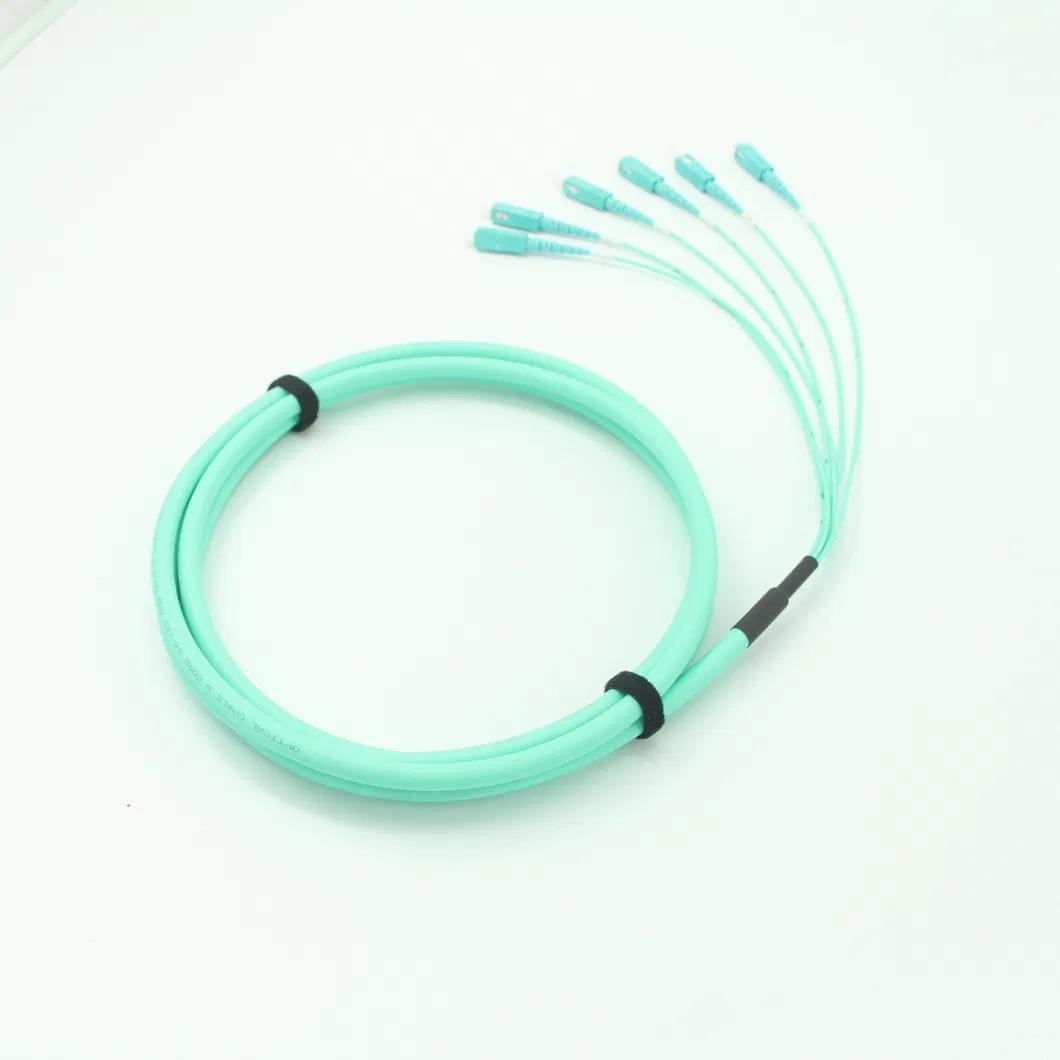

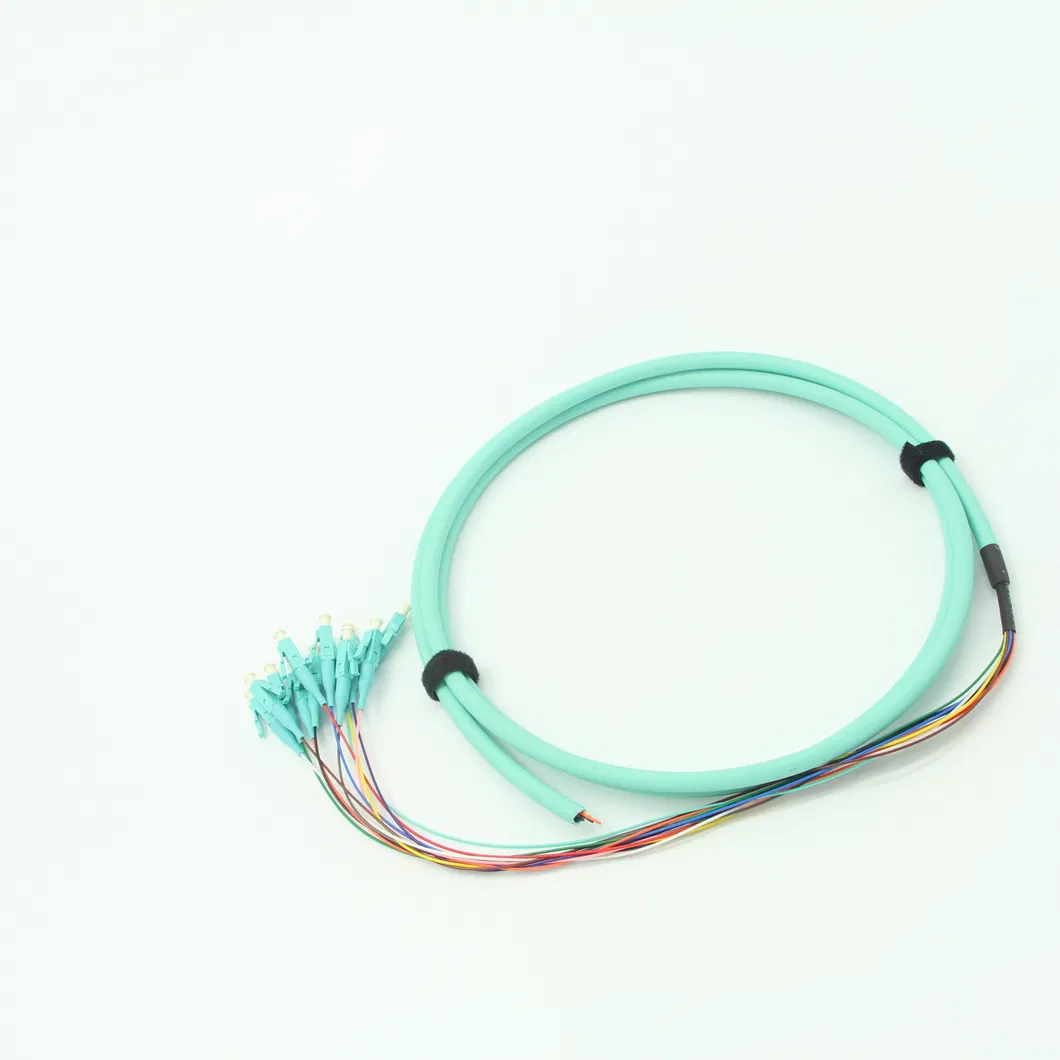

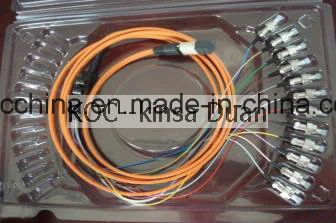

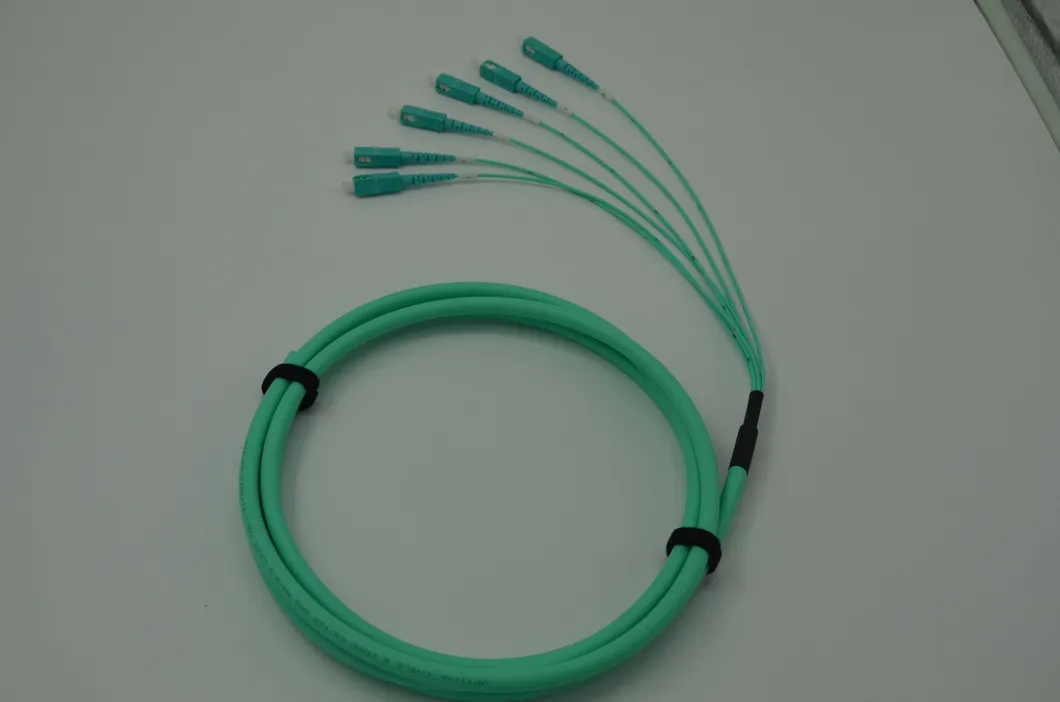

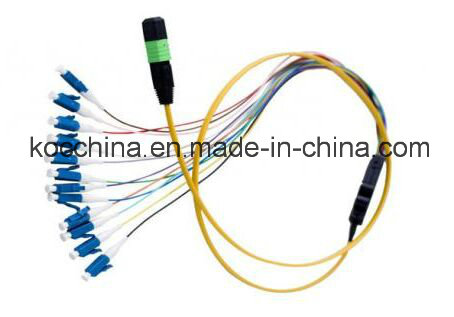

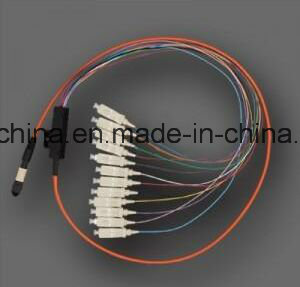

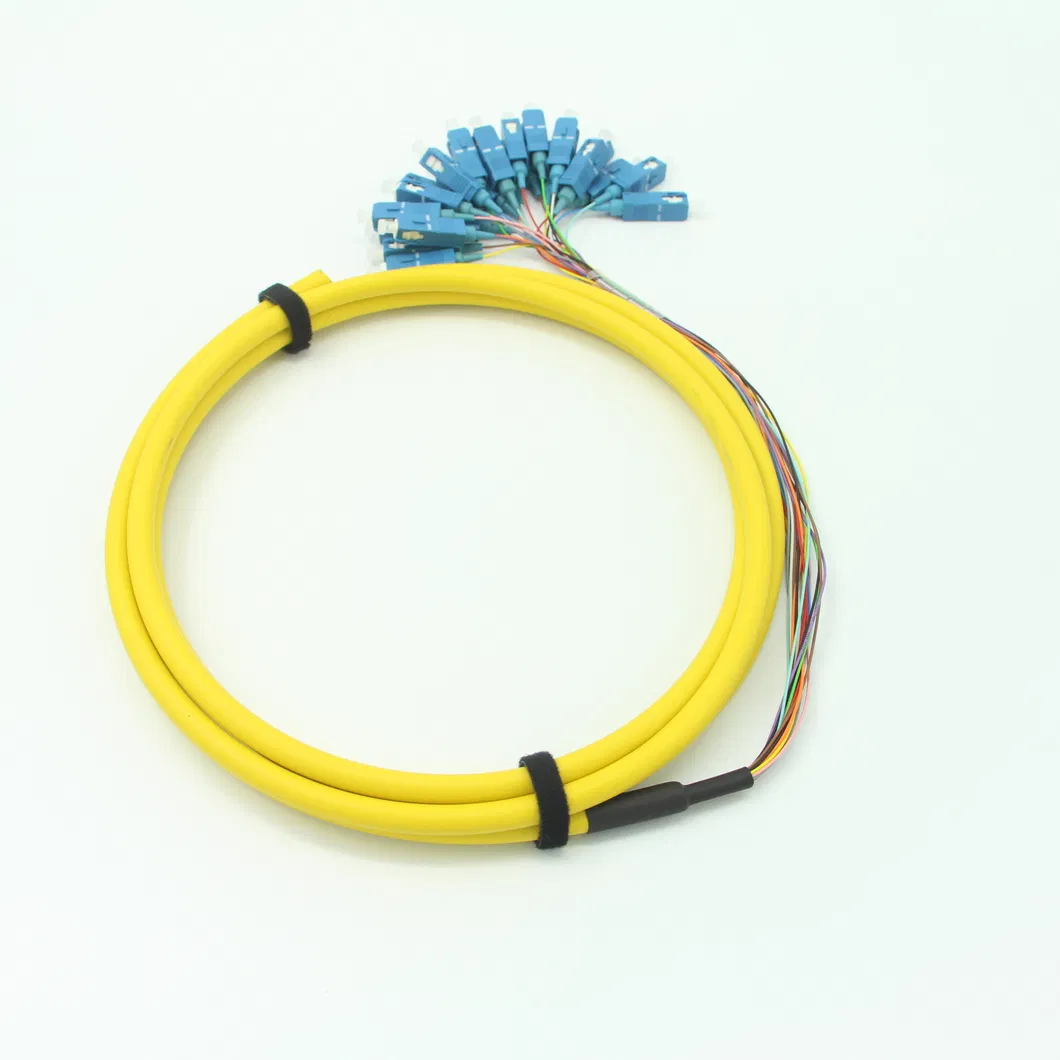

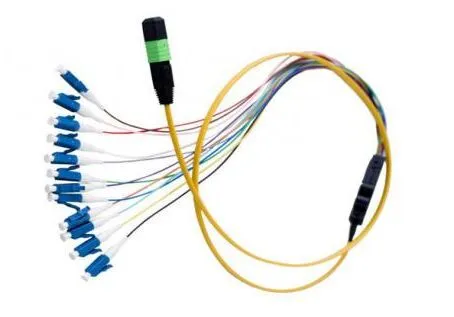

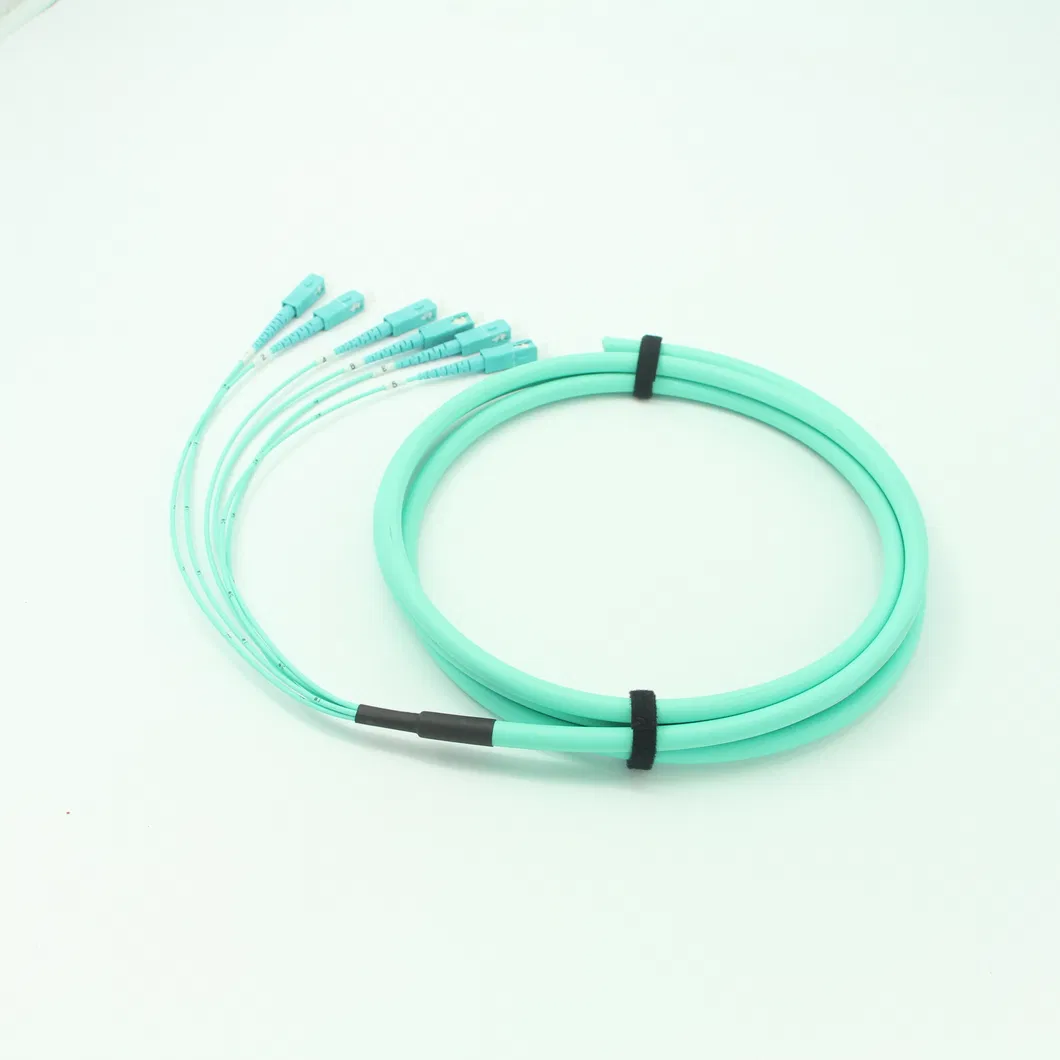

Pictures:
Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:kocchina.en.made-in-china.com
