Product Description

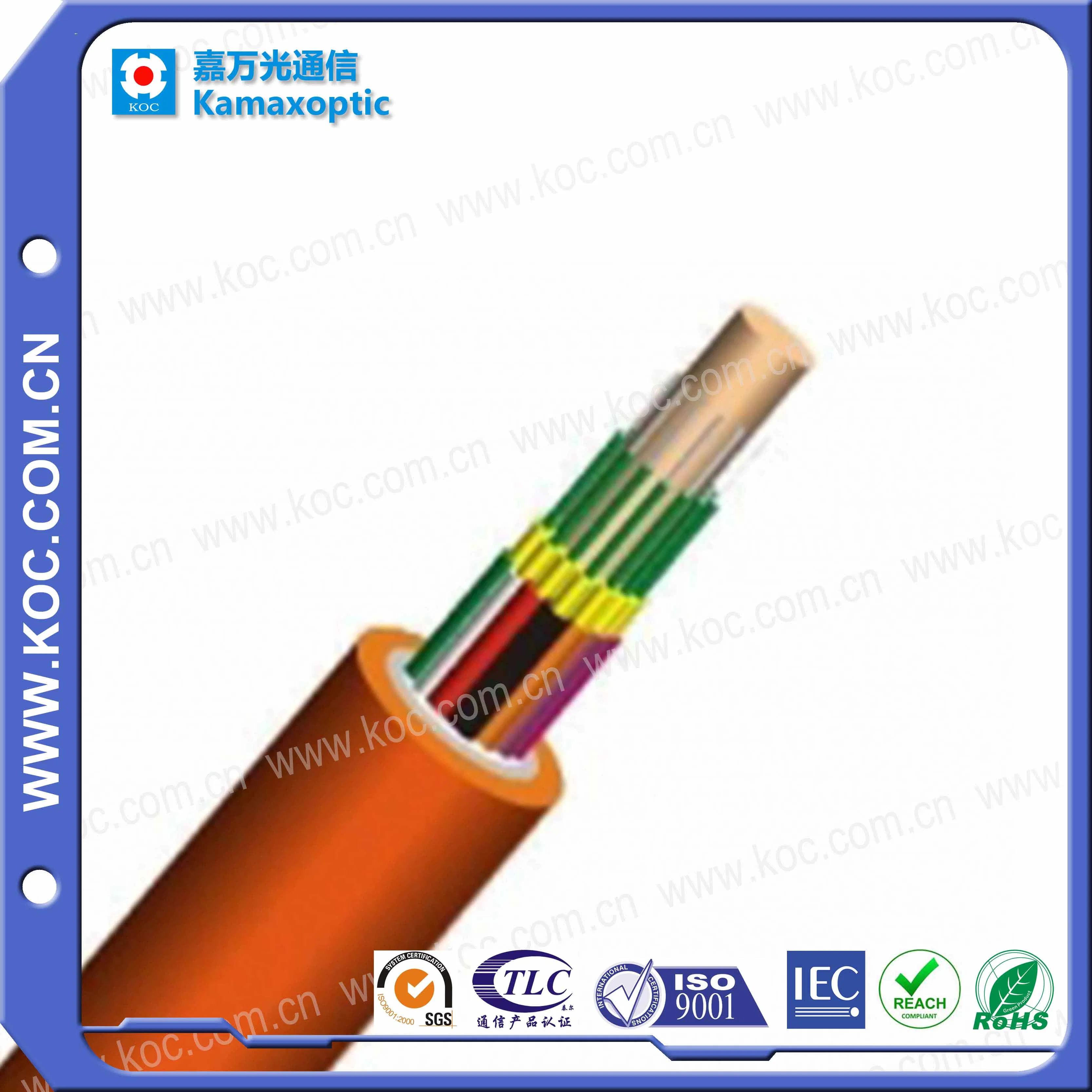

Multi-fiber Breakout Indoor Cable I
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application
Used in indoor cabling, especially used as breakout cable;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms ;
Used in pigtails and patch cords.
Specification
Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5H when G657 fiber is used.
Options
Fiber Type: G652,G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Fiber Count: Total number of fibers in the cable;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental thermoplatic polyurethane (TPU), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal diameter, or other contracted;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requirements.
Features
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients.
Application
Used in indoor cabling, especially used as breakout cable;
Used as access building cable;
Used as interconnect lines of equipments, and used in optical connections in optical communication equipment rooms ;
Used in pigtails and patch cords.
Specification
| Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile (N) | Crush (N/100mm) | Min. Bend Radius (mm) | Range of Temperature(ºC) | |||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 4 | 7.5 | 45 | 200 | 400 | 300 | 1000 | 20D | 10D | -20~+60 |
| 6 | 8.5 | 60 | 250 | 600 | 300 | 1000 | |||
| 8 | 10.0 | 91 | 300 | 800 | 300 | 1000 | |||
| 12 | 12.5 | 145 | 400 | 1000 | 300 | 1000 |
2. The cable dimension and weight are in accordance with tight-buffered fiber withφ0.9mm outer diameter;
3. D is outer diameter of the round cable;
4. The minimum bend radius (static) is 5H when G657 fiber is used.
Options
Fiber Type: G652,G655 or G657 single-mode fiber, A1a or A1b multi-mode fiber, or other types of fiber;
Fiber Count: Total number of fibers in the cable;
Jacket Material: Enviromental flame retardant polyvinylchloride (PVC), enviromental low smoke zero halogen flame retardant polyolefin (LSZH), enviromental halogen flame retardant polyolefin (ZRPO), enviromental thermoplatic polyurethane (TPU), or other contracted material;
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal diameter, or other contracted;
Delivery Length: 1km or 2km, or other contracted length;
Other Requirements: Other contracted special requirements.
