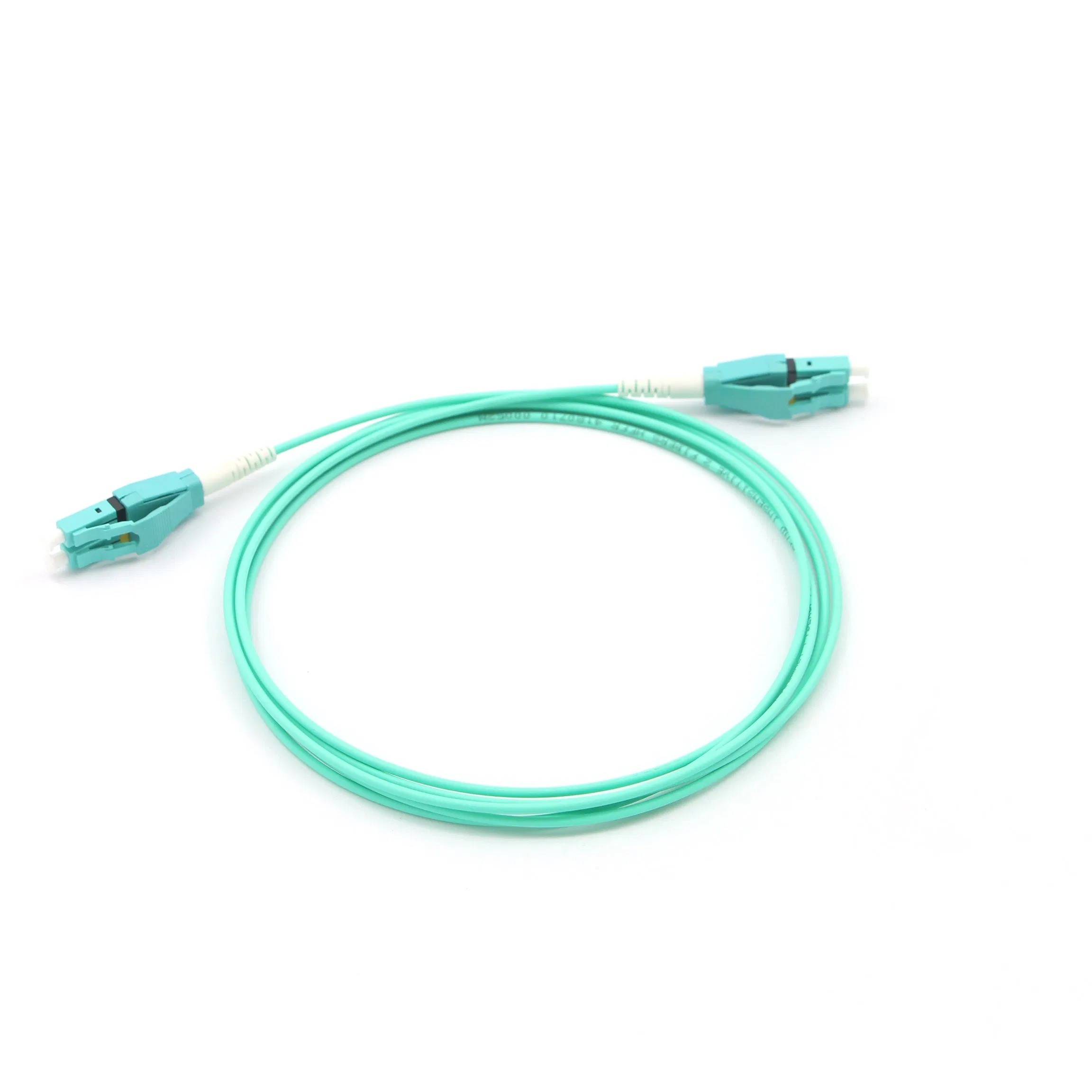

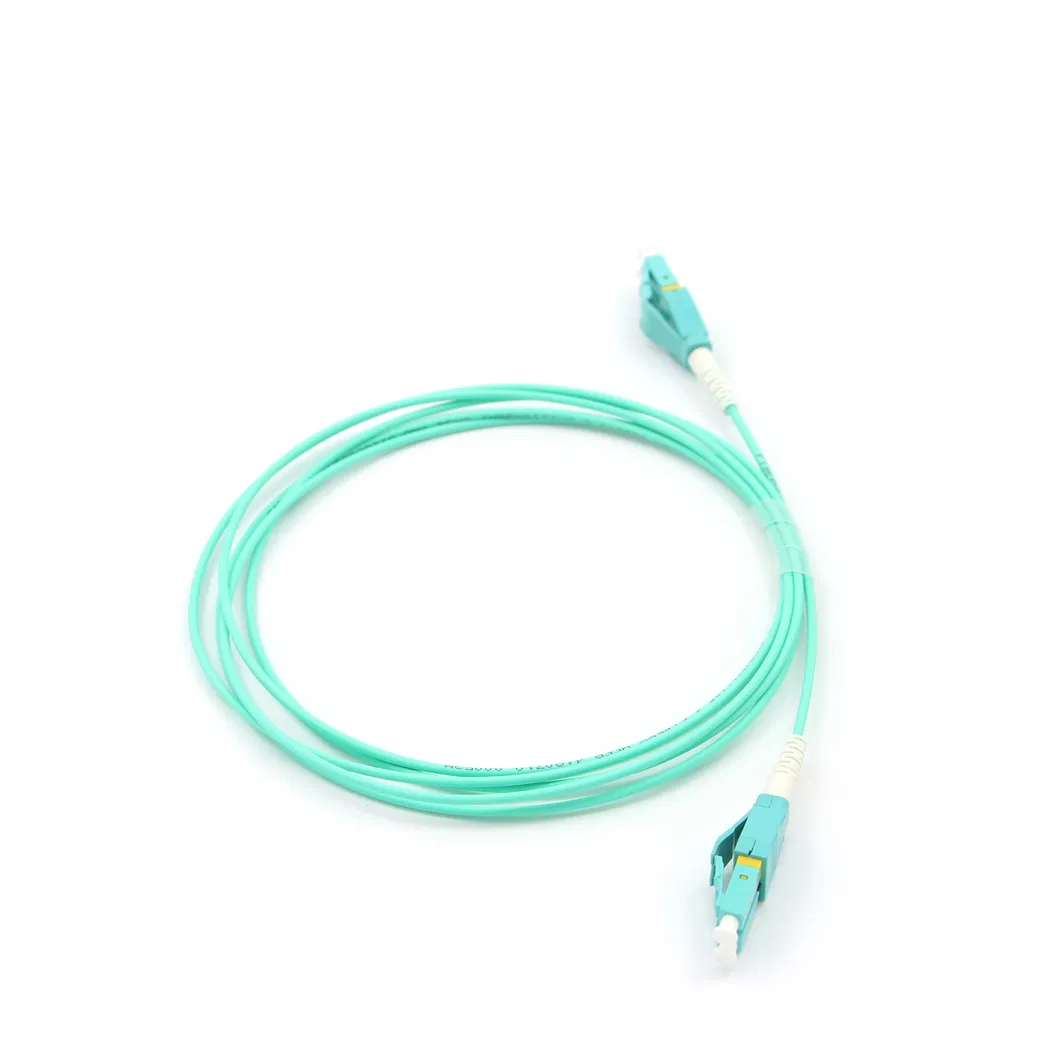

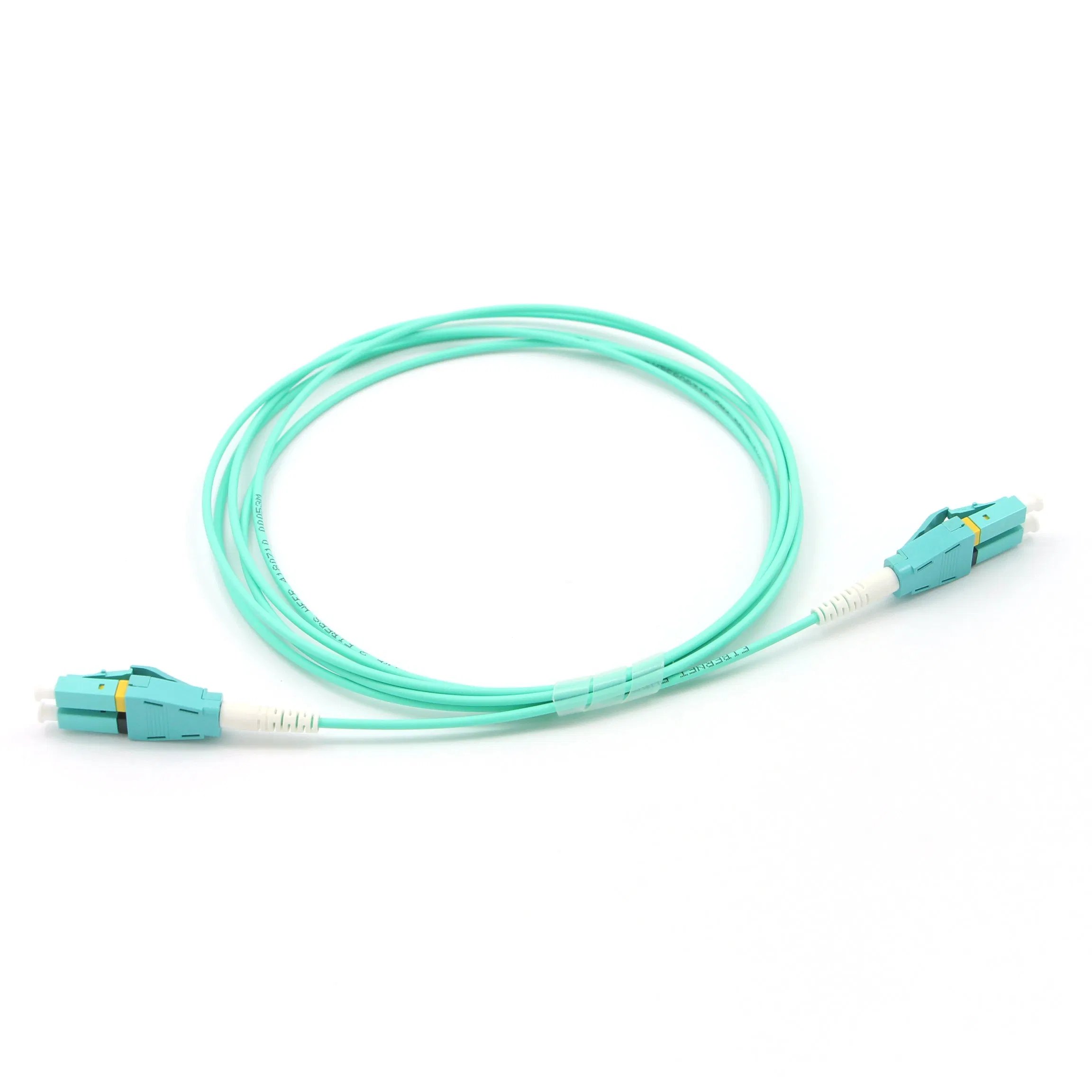

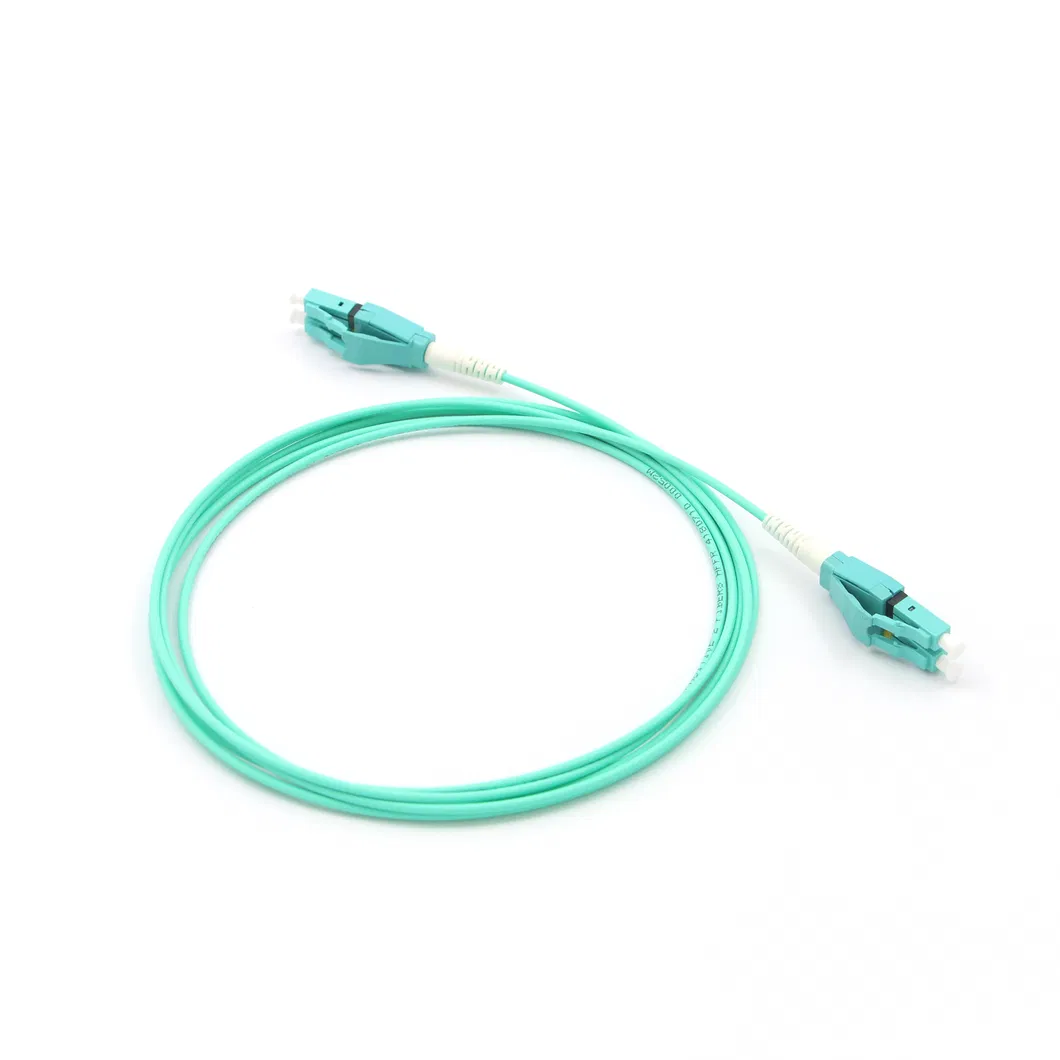

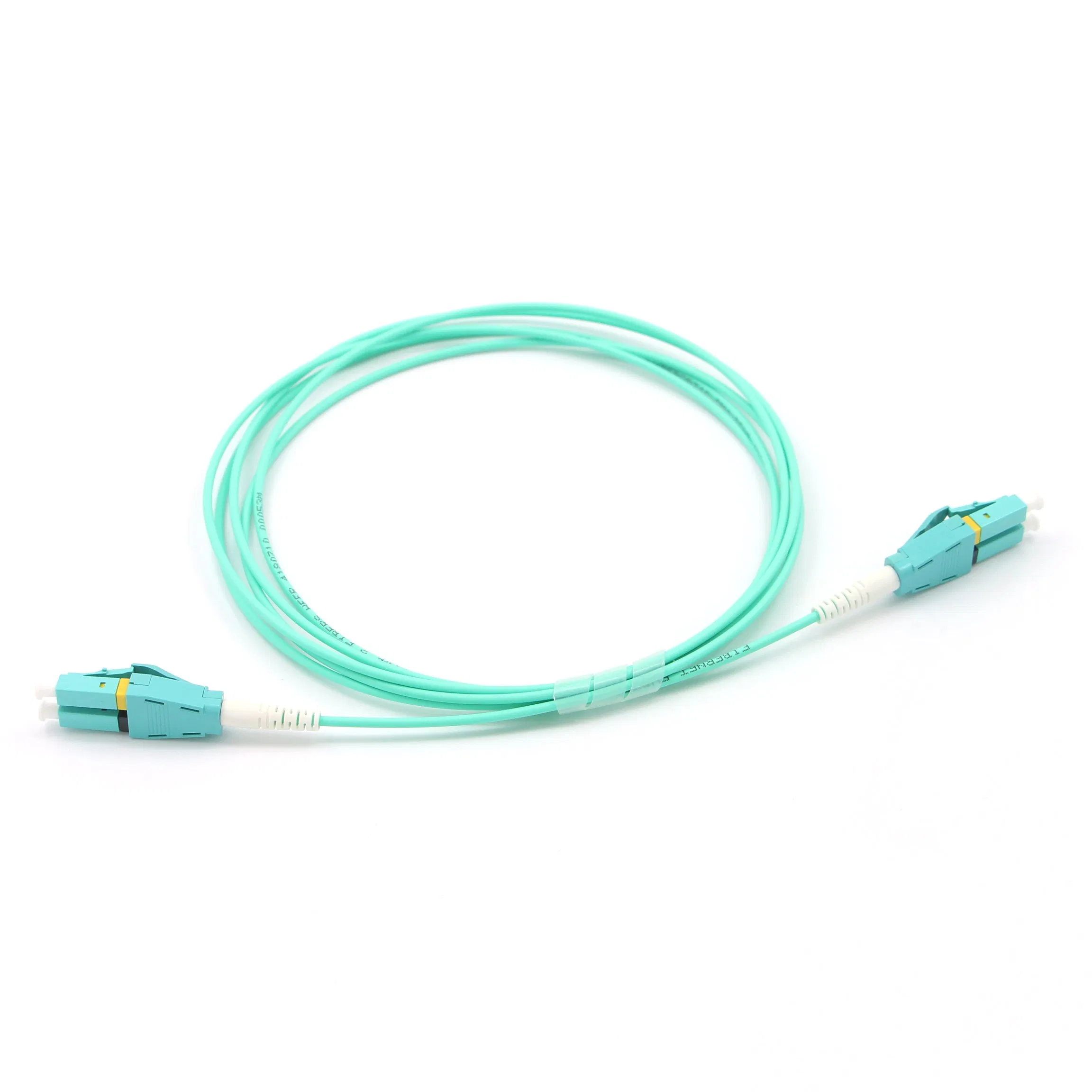

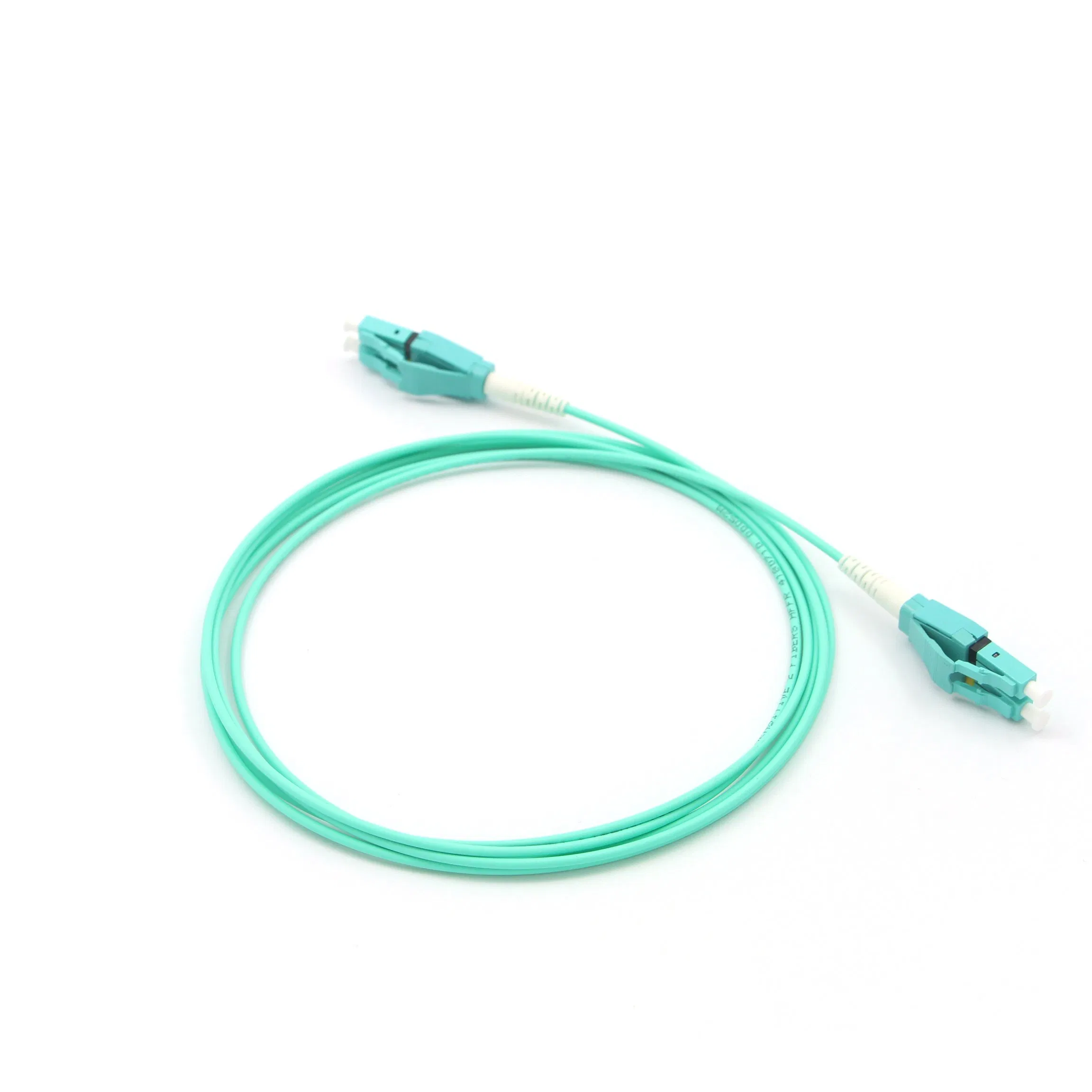

LC Uniboot Fiber Optic Patch Lead

Product Description

With 20 years history, KOC is a well-established brand popularly accepted in the world-wide market, especially in European and American countries. We are a professional manufacturer of most passive parts such as patch-cord, connector, adapter, attenuator,splitter, WDM serious. For more detail, please check on our website kocchina.en.made-in-china.com.

In case of need, please do not hesitate in contacting us.

APPLICATIONS
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)

FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS

	Single mode	Multimode
Insertion Loss	Typical≤0.2dB, Maximum≤0.3dB	≤0.25dB
Return Loss	≥50 dB (PC) ≥60 dB (APC)	≥30 dB
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

ORDERING OPTIONS

Connector Color	Boot (cable) Size	Boot Color	Fiber Type	Cable number	Application	Length
Beige	0.9mm	Beige	9/125μm (SM)	Simplex	PC	Customized
Blue	2.0mm	Black	50/125μm(MM)	Duplex	APC
Green	3.0mm	Blue	62.5/125μm(MM)	Fan-out (4f)
		Green		Fan-out (6f)
		Gray		Fan-out (8f)
		Red		Fan-out (12f)
		White		Fan-out (24f)
