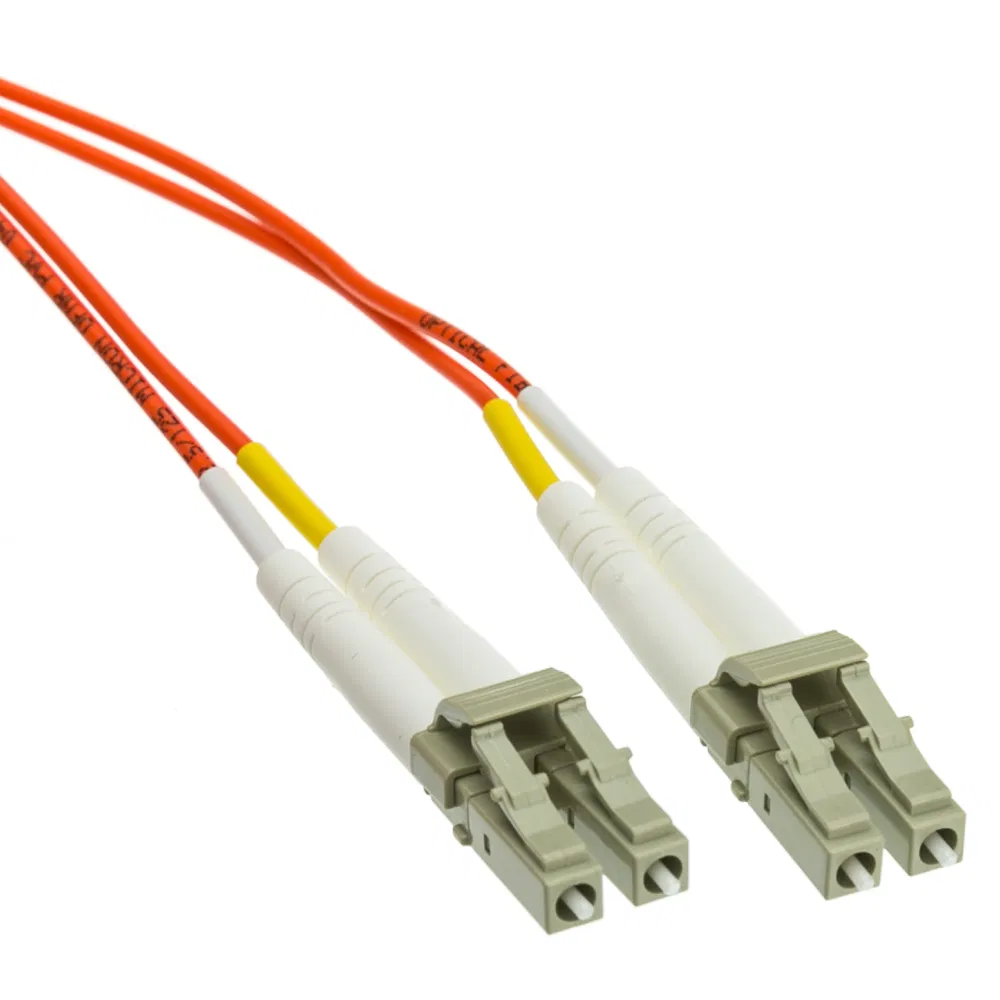

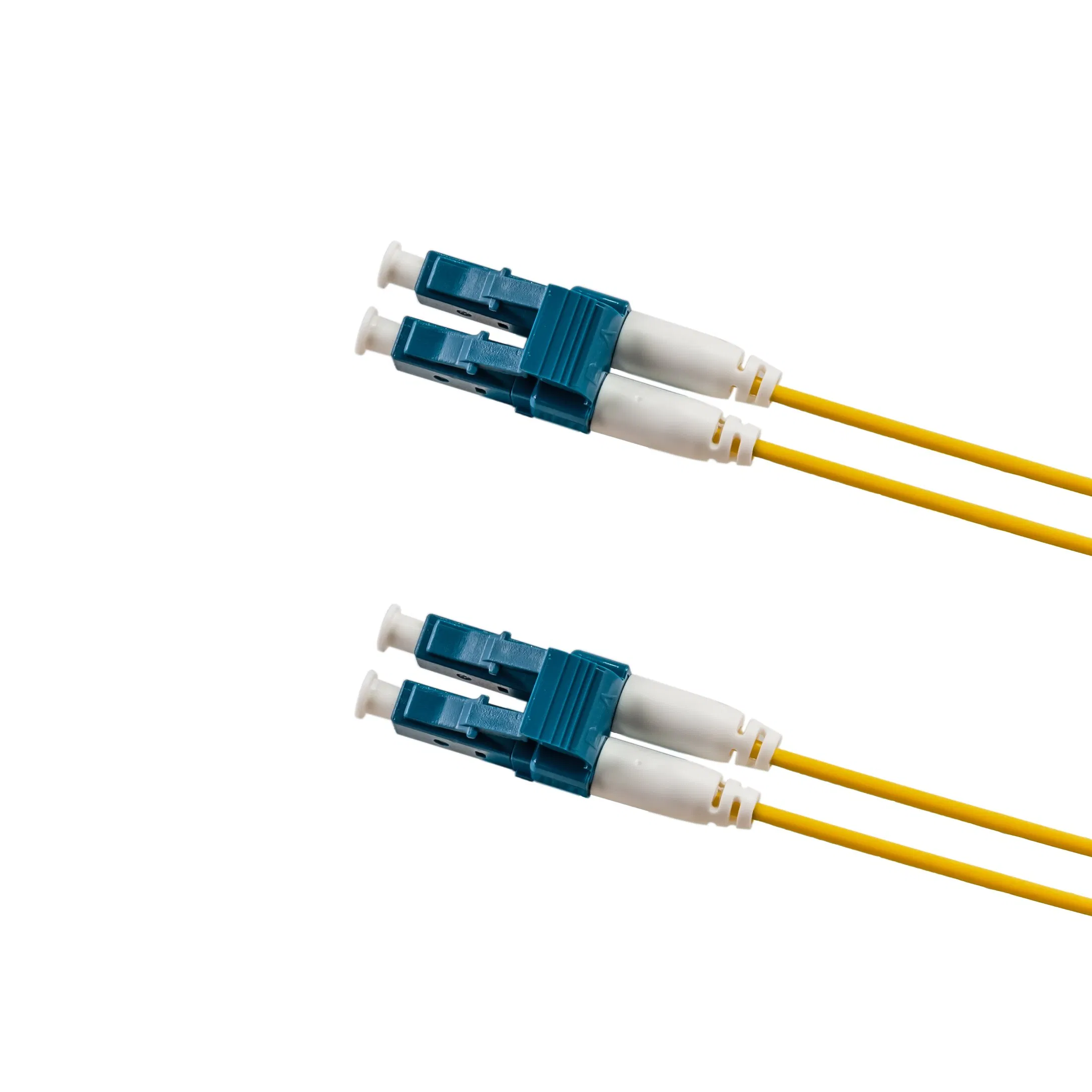

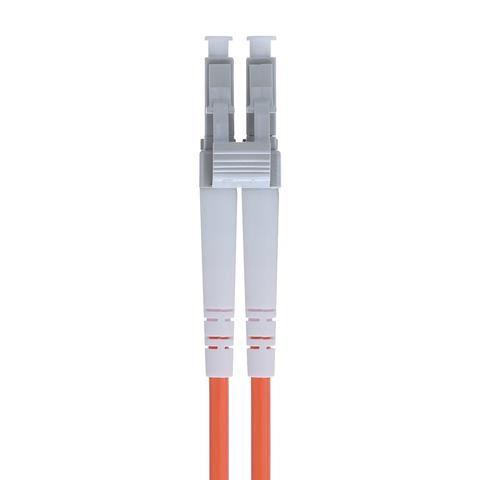

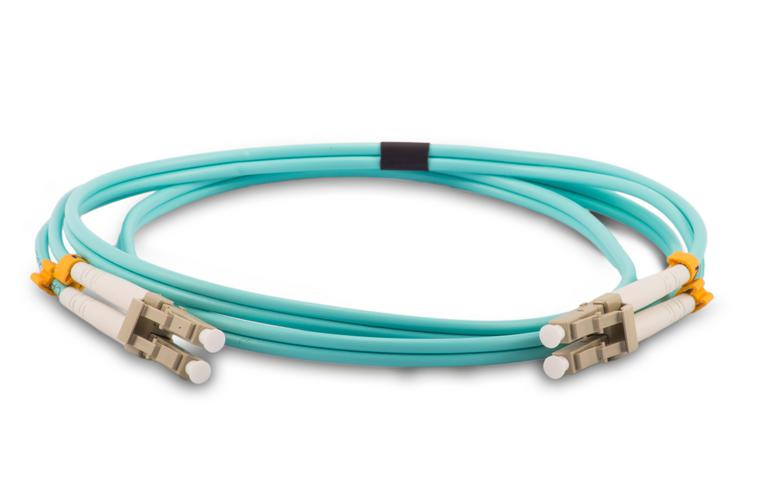

LC Duplex High Quality 3.0mm Fiber Optic Patch Cord/Jumper
Product description/ PRODUCTJacket material:OFNR,LSZH ,OFNPFiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.Connectors:¢0.9mm,¢2.0mm,¢3.0mmCompatible with ROHSProduct Description/ PRODUCTJacket material:OFNR,LSZH ,OFNPFiber patch cord structure:Simplex,Duplex,Bunch typ......
Send Inquiry
Product Description
Product description/ PRODUCT
★Jacket material:OFNR,LSZH ,OFNP
★Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
★Connectors:¢0.9mm,¢2.0mm,¢3.0mm
★Compatible with ROHS
Product Description/ PRODUCT
★Jacket material:OFNR,LSZH ,OFNP
★Fiber patch cord structure:Simplex,Duplex,Bunch type,Ribbon type.
★Connectors:¢0.9mm,¢2.0mm,¢3.0mm
★Compatible with ROHS
Technical parameter
| Characteristic | SM , MM | |||
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Operation temperature | -40~+80 | |||
Fiber Type/ PRODUCT
★Optional Fiber Cable can choose from:OS2,OM2,OM1,OM3,OM4
Packaging/ PRODUCT
★Polybags packing for each
★Packing with label
Technical Specifications/ PRODUCT
★Insertion Loss Rate Compatible with IEC 61300-3-4
★Return Loss Rate Compatible with IEC 61300-3-6
★End face Geometrical size
UPCcurvityradius :10 ~ 25mm APC curvityradius:5 ~ 12mm
Apex offset:0 ~ 50um Apex offset:0 ~ 50um
Fiber dent:+50 ~ -100 Fiber dent:+50 ~ -100
Environmental Technical Requirements/ PRODUCT
Transport & Storage environment: -40ºCto+85ºC
Operation environment: -20ºCto+75ºC
