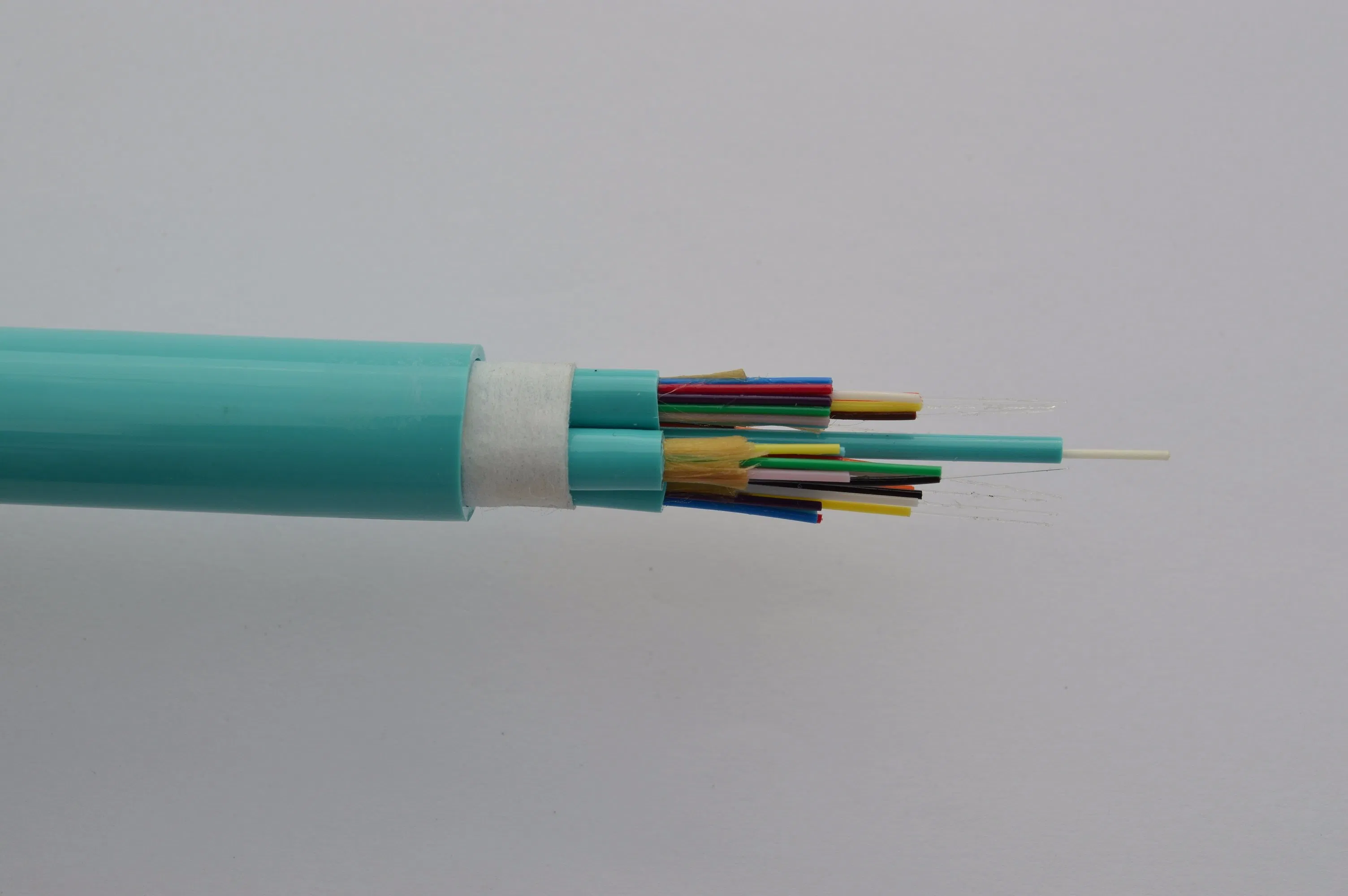

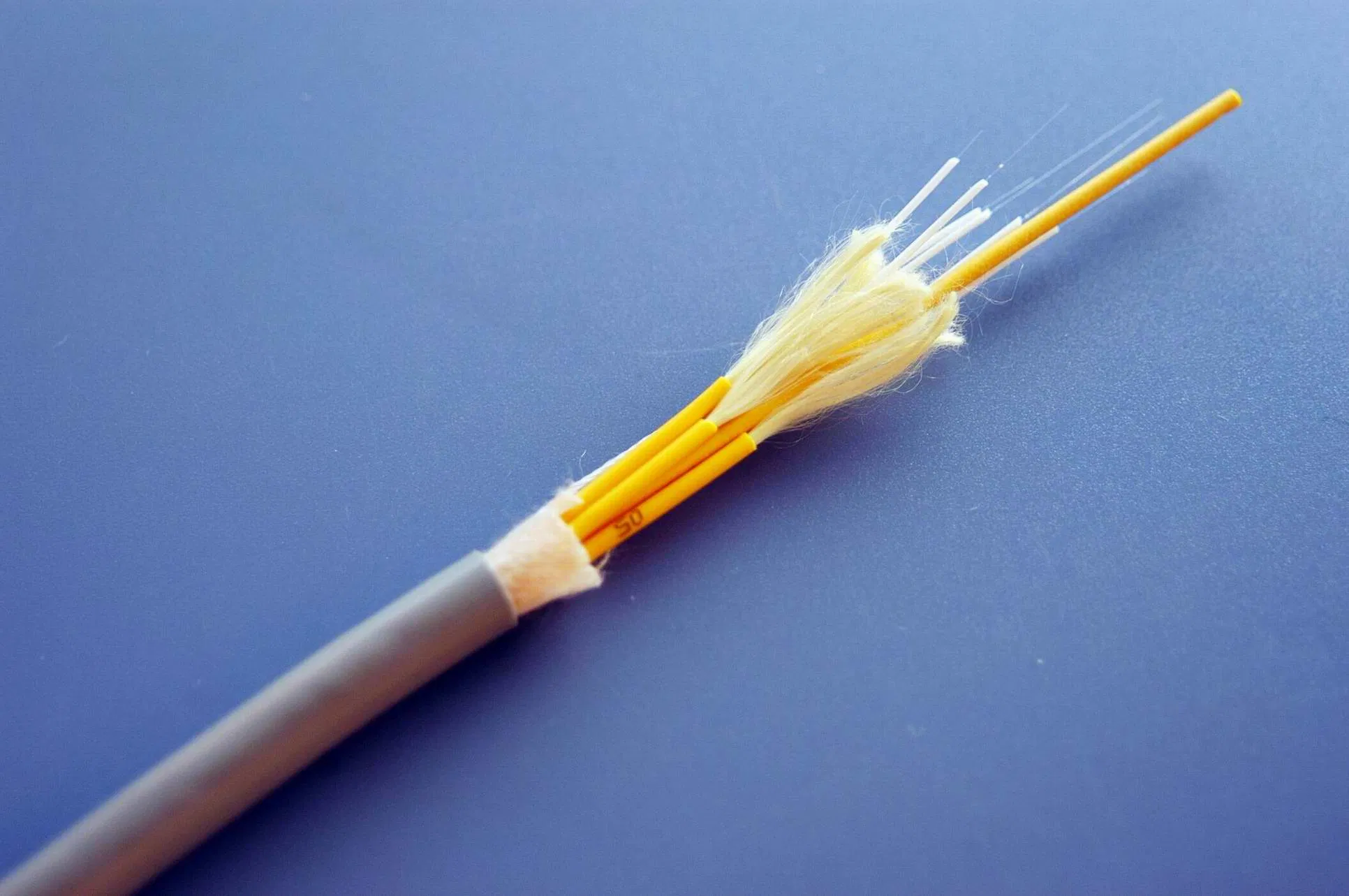

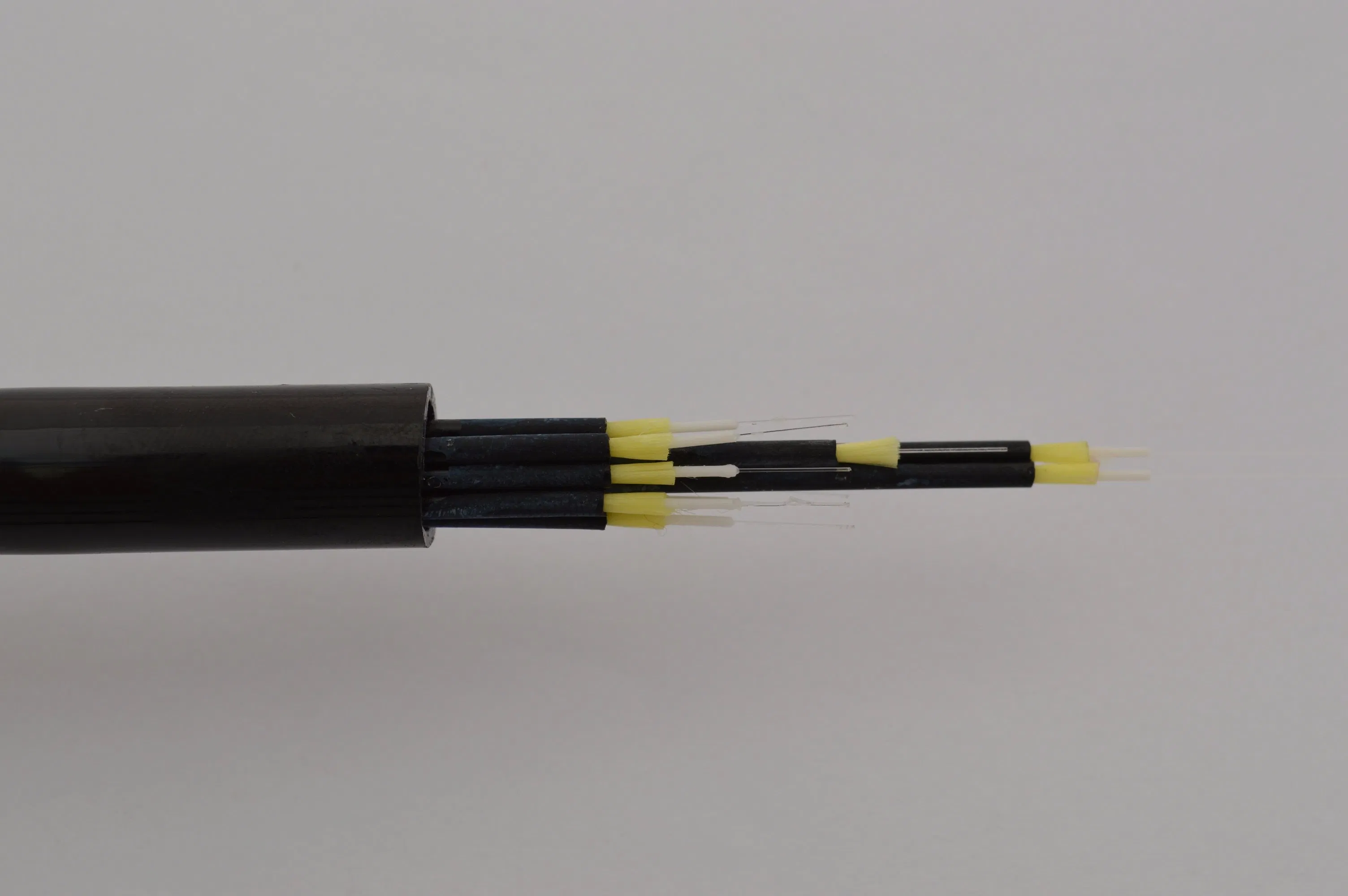

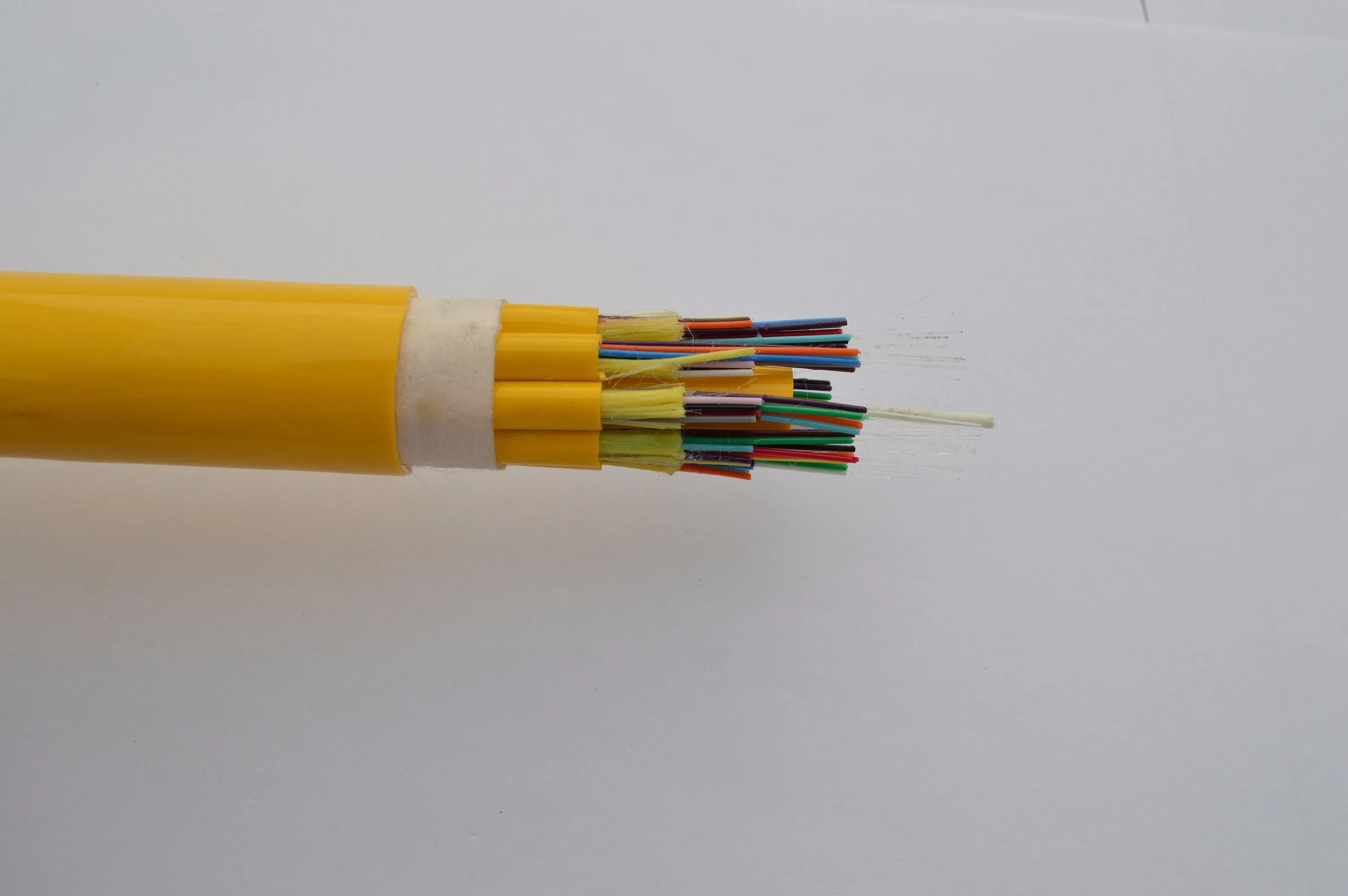

Indoor Breakout Optical Fiber Cable
Quick DetailsPlace of Origin: Zhejiang, China (Mainland)Brand Name: YUJINModel Number: SMType: Cat 1, Optical FiberNumber of Conductors: 6Application: TelecommunicationsPackaging & DeliveryPackaging Details: Each single length of optical cable should be reeled on fumigated wooden drum,and covere......
Send Inquiry
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YUJIN
Model Number: SM
Type: Cat 1, Optical Fiber
Number of Conductors: 6
Application: Telecommunications
Packaging & Delivery
Packaging Details: Each single length of optical cable should be reeled on fumigated wooden drum,and covered by plastic buffer sheet,then seeled by strong wooden battens
Delivery Detail: as to request
Specifications
Breakout Optical Fiber Cable
Cable element:simplex cable,simplex cable are stranded around the non-mellic central strength memb
Breakout Optical Fiber Cable
Geometical Characteristics
Mechanical Characteristics
Fiber
Transmission Charactrristics
Environmental Characteristics
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YUJIN
Model Number: SM
Type: Cat 1, Optical Fiber
Number of Conductors: 6
Application: Telecommunications
Packaging & Delivery
Packaging Details: Each single length of optical cable should be reeled on fumigated wooden drum,and covered by plastic buffer sheet,then seeled by strong wooden battens
Delivery Detail: as to request
Specifications
Breakout Optical Fiber Cable
Cable element:simplex cable,simplex cable are stranded around the non-mellic central strength memb
Breakout Optical Fiber Cable
Geometical Characteristics
| Break-out Cable type | 4 | 6 | 8 | 12 | 16 | 18 | 24 |
| Cable Diameter(mm) | 7.5 | 8.5 | 10 | 12.5 | 12.5 | 12.5 | 14.5 |
| Cable Weight(kg/km) | 45 | 62 | 84 | 138 | 150 | 158 | 202 |
| TBF Diamete(μm) | 900±50 | ||||||
| Max lood(NO) | Long term | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Short term | 600 | 600 | 600 | 600 | 600 | 600 | 600 | |
| Bending Radius(CM) | Dynamic | 20×DDCable Diameter | ||||||
| Static | 10×DDCable Diameter | |||||||
| Fiber type(core/cladding dimension) | 9/125,50/125,62.5/125 |
| SMF | 50/125 | 62.5/125 | |
| 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) | |
| Max Attenuation(dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| AVG Max Attenuation(dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
| Mini Bandwidth(MHZ·km) | --- | 400/400 | 160/500 |
| Storage Operating emperature | -20+60 |
