High Rate Single Mode MPO Jumper with Connector MPO-MPO 8/12/24 Fiber
Product Description High rate Single Mode MPO jumper with connector MPO-MPO 8/12/24 fiberTakfly MPO/MTP to MPO/MTP Patch Cable.It is a product designed for data center cable infrastructure, especially designed for 40G/100G network like 40G BASE-SR4 OR 100G BASE-SR10......
Send Inquiry
Product Description
Product Description

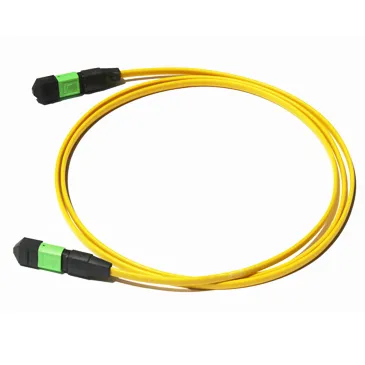

High rate Single Mode MPO jumper with connector MPO-MPO 8/12/24 fiber
Takfly MPO/MTP to MPO/MTP Patch Cable.It is a product designed for data center cable infrastructure, especially designed for 40G/100G network like 40G BASE-SR4 OR 100G BASE-SR10. This cable assembly with can be designed with 24 fiber cores in the MPO/MTP connectors on both side, or one end with 24 fibers in one end, in another end with 24 LC connectors.
Any question about mentioned above products,please leave me an inquiry or contact me directly.
High rate Single Mode MPO jumper with connector MPO-MPO 8/12/24 fiber
Takfly MPO/MTP to MPO/MTP Patch Cable.It is a product designed for data center cable infrastructure, especially designed for 40G/100G network like 40G BASE-SR4 OR 100G BASE-SR10. This cable assembly with can be designed with 24 fiber cores in the MPO/MTP connectors on both side, or one end with 24 fibers in one end, in another end with 24 LC connectors.
Feature
Specification
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.
- 100% tested, high quality and reliability
- Low insertion loss
- Support OM3, OM4, SM optic fiber
- Special specification available upon custom request
- Utilize MPO/MTP Connectors
- Rapid Deployment
- Factory terminated
- High density cable
- Optimized performance
- Compliant to directive 2002/95/EC (ROHS) and REACH SVHC
- MPO connector complies with IEC-61754-7& EIA/TIA-604 -5
- Data Center Infrastructure
- Optical system access network
- Storage Area Network- Fiber Channel
- 40G and 100Gbps Fiber Network
- High density architectures
Specification
| Fiber Type | Single Mode | Multi-mode | |
| Fiber Count | 8,12,24 Core | ||
| Standard Insertion Loss (dB) | ≤0.7 | ≤0.5 | |
| Low Insertion Loss(dB) | ≤0.35 | ≤0.35 | |
| Return Loss (dB) | ≥60 (APC) | ≥30 (PC) | |
| ≥50 (PC) | |||
| Tensile Strength (kgf) | 10 | ||
| Durability (dB) | ≤0.2 500 mating | ||
| Working Temperature (°C) | -40 ~ +85 | ||
| Testing Wavelength (nm) | 1310/1550 | 850 | |
| Fiber Type | Single Mode | Multi-mode | |
| Parameter | UPC | APC | UPC |
| Insertion Loss Maximum (dB) | ≤0.3 | ||
| Return Loss (dB) | ≥50 | ≥60 | ≥35 |
| Durability (dB) | ≤0.2 500 mating | ||
| Working Temperature (°C) | -40 ~ +85 | ||
| Testing Wavelength (nm) | 1310/1550 | 850 | |
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~5:30pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Any question about mentioned above products,please leave me an inquiry or contact me directly.
