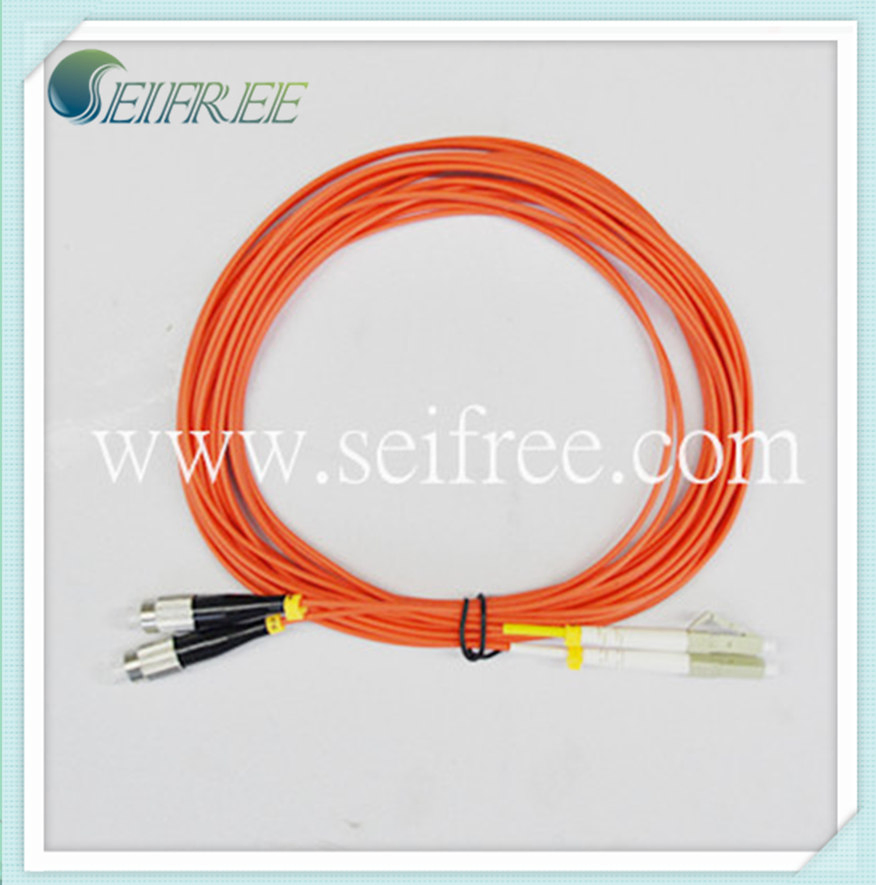

China Good Price Multi Mode Duplex Optical Fiber Patchcord

Product Description

Patch Cord
Patch Cord are important parts of optic network, we also call Optical Jumper Wire. They have same or different type connector which is installed on the end of fiber optic cable.

Applications                                                                                        Features
Optical Network Wiring                                                                      Low Excess Loss
Test Equipment                                                                                   High Return Loss
CATV System
Telecommunication network
FTTH/FTTX

Quick Details
Place of Origin: Wuhan, China(Mainland)                       Model: Simplex/Duplex/Quad
Sleeve: ceramic sleeve                                                    Leadtime: 2 weeks
Mode: single mode

Company Profile
Business type: Manufacturer
Main products: optical passive devices, including optical coupler/splitter, PLC splitter, Fused WDM,TWDM,CWDM,OADM,DWDM, isolator, circulator, patch cord, adaptor etc.

Ordering Information
SOFC-       -       -       -       -       -       -       -

Cable	First End	Second End	Fiber Type	Pigtail Dim.(mm)	Fan Out Length	Jacket Type	Length
1=1Fiber	FU(A)=FC/UPC(APC)	FU(A)=FC/UPC(APC)	H=Hi 780	09=Φ0.9	05=50cm	E=PE	05=50cm
2=2Fiber	SU(A)=SC/UPC(APC)	SU(A)=SC/UPC(APC)	F=Flex 1060	2=Φ2 mm	10=100cm	C=PVC	10=100cm
4=4Fiber			D=G652D	3=Φ3mm		H=LSZH
	LU(A)=LC/UPC(APC)	LU(A)=LC/UPC(APC)	A=G657A		20=200cm	A=Armored	20=200cm
R=Ribbon	X=Customization		B=G657B	X=Customization
			B=Bow -type
			OM1=62.5/125
			OM2=50/125
			OM3=50/125
			OM4=50/125

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/
