Description

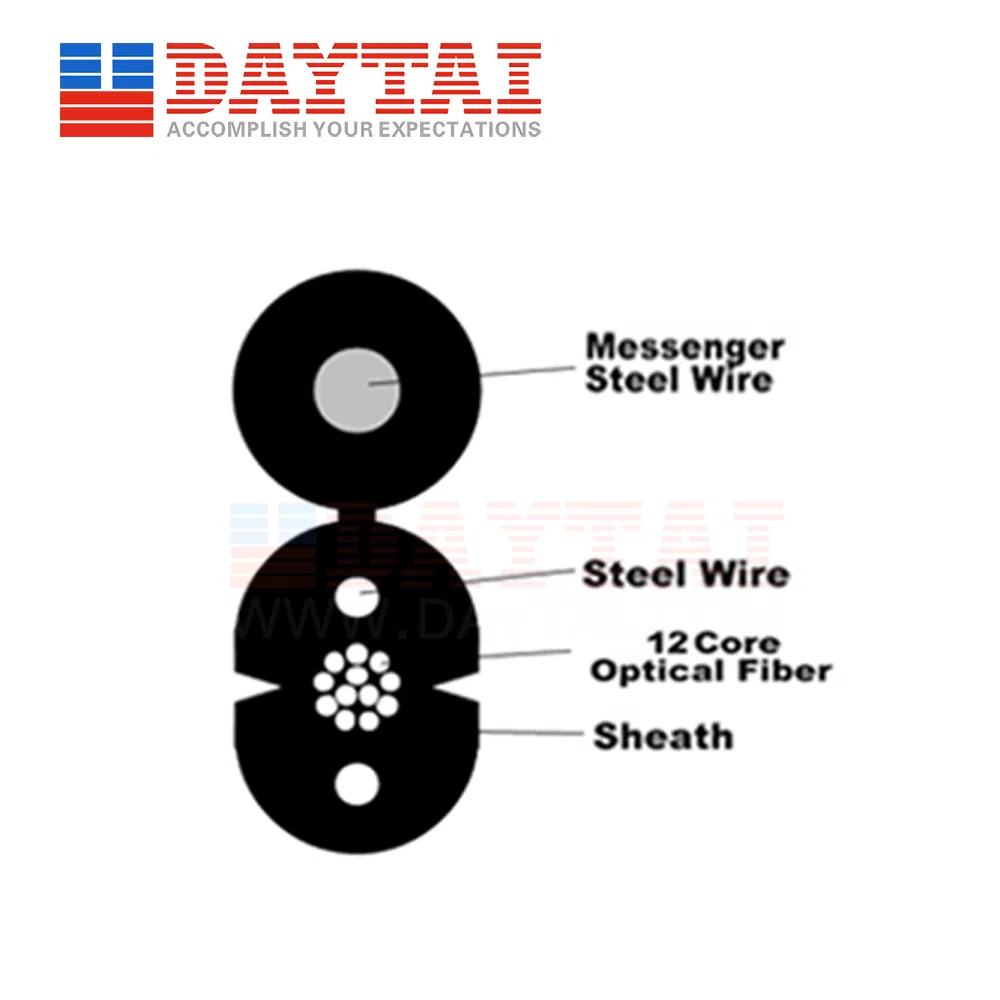

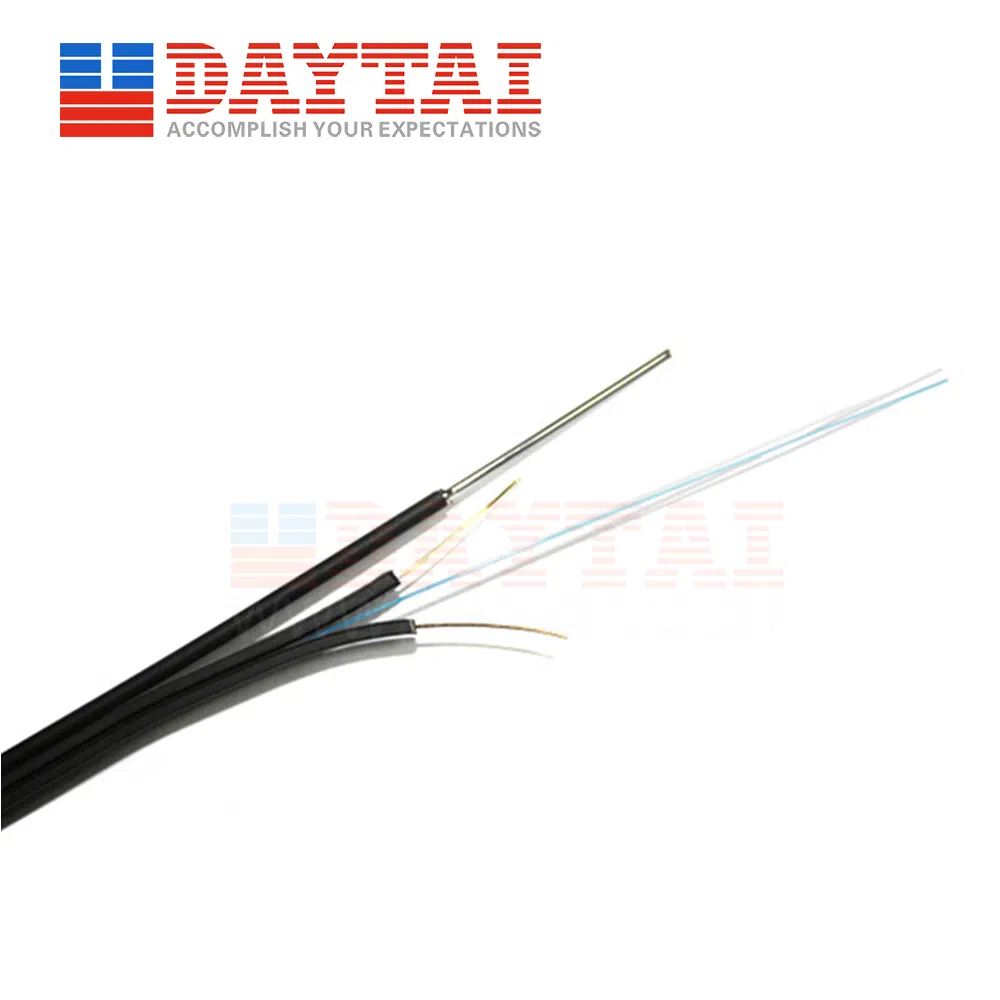

GJYXCH FTTH Drop Cable,12 Core G.657A1/A2 Fiber, Fiber Color: Blue, orange, green, brown, gray, white, red, black, yellow, violet, pink, aqua. Attenuation (dB/km): <= 0.4 at 1310nm, <= 0.3 at 1550nm, Short term tensile:600N, Crush resistance:2200N/100mm, Cable dimension: 6.8(±0.2)MM×2.8(±0.2)MM, Sheath material: LSZH, Sheath color: Black.
Product Performance
| Item | Technology parameter |
| Cable type | GJYXCH-12B6 |
| Cable specification | 6.8×2.8 |
| Fiber color | Blue, orange, green, brown, gray, white, red, black, yellow, violet, pink, aqua |
| Fiber type | 9/125 (G.657A2) |
| Sheath color | Black |
| Sheath material | LSZH |
| Cable dimension mm | 6.8(±0.2)×2.8(±0.2) |
| Cable weight Kg/km | Approx. 31.0 |
| Min. bending radius mm | 120 |
| Min. bending radius (Rip off the messenger wire) mm | 10 (Static) 25 (Dynamic) |
| Attenuation dB/km | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile N | 600 |
| Crush resistance N/100mm | 2200 |
| Operation temperature ºC | -20~+60 |
Note: the product is in accord with the instruction of EU RoHS
