G657A G. 652D 1 2 4core FTTH Drop Cable Optical Fiber

G657A G.652D 1 2 4Core Ftth Drop Cable Optical FiberDescription The 250um colored coating fiber is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The cable is completed with a black or color UV and flame resistant LSZH sheath.Product Constructi......

Send Inquiry

Product Description

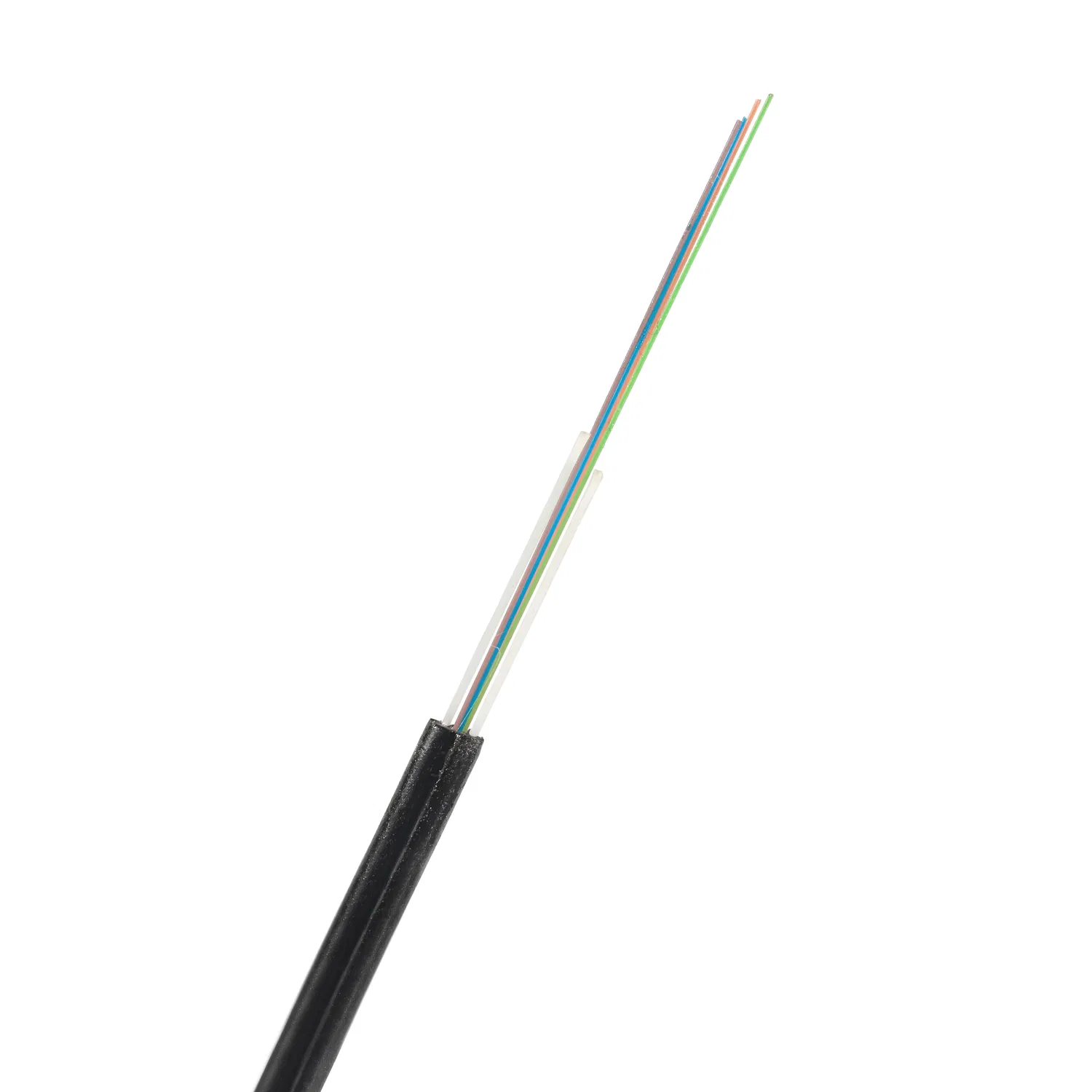

G657A G.652D 1 2 4Core Ftth Drop Cable Optical Fiber


Description

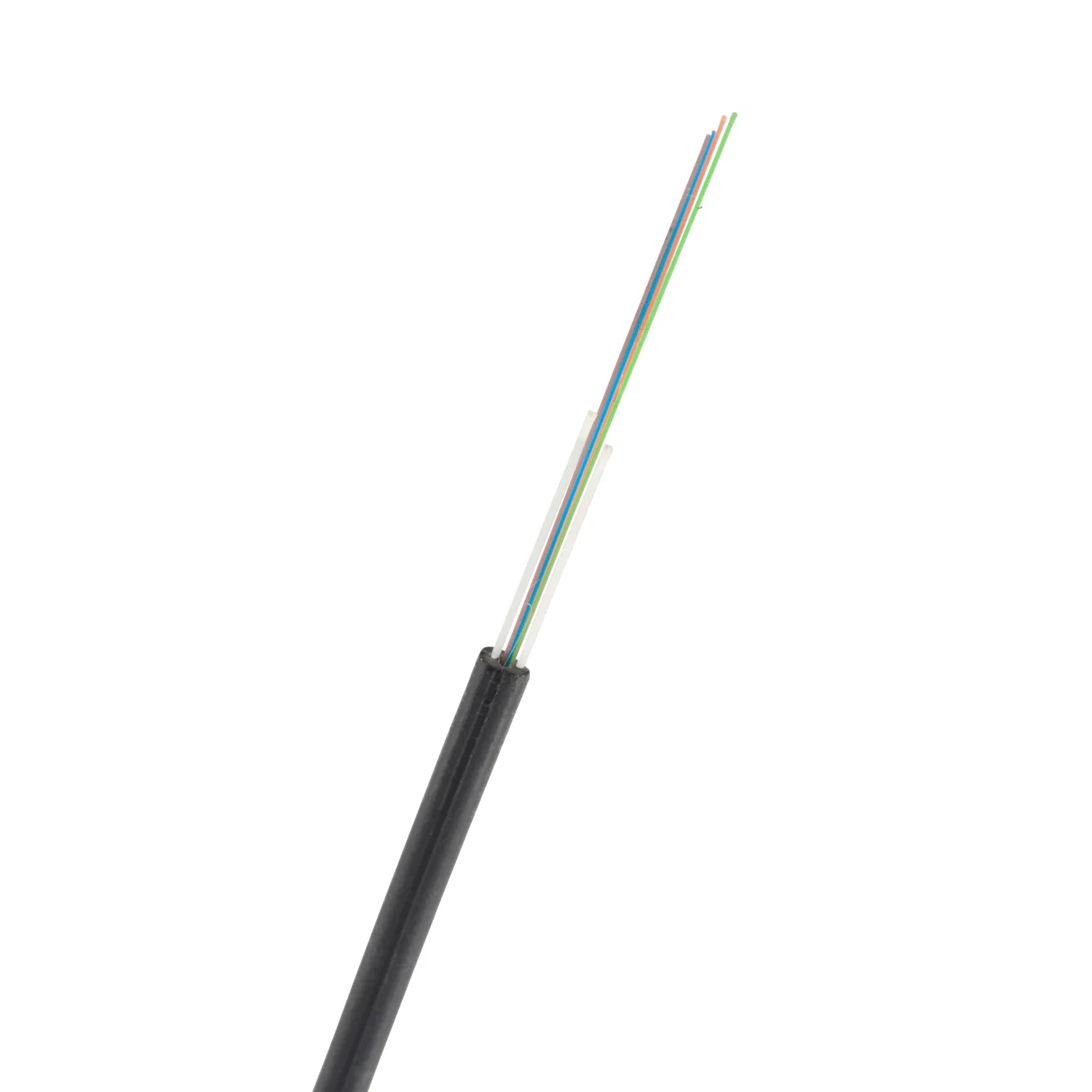

The 250um colored coating fiber is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The cable is completed with a black or color UV and flame resistant LSZH sheath.G657A G. 652D 1 2 4core FTTH Drop Cable Optical Fiber

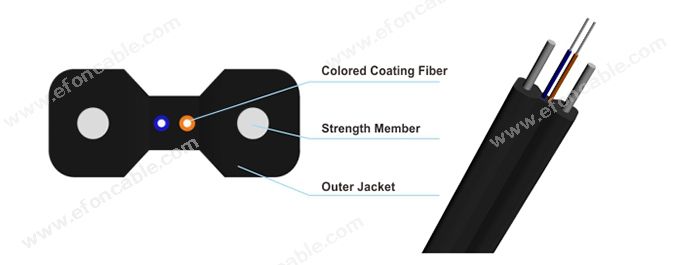

Product Construction:
Fiber:
1-4 fibers
250um colored coating fiber


Strength Member:
Steel wire or FRP (Fiber glass reinforced plastic)


Outer Jacket:
UV and flame resistant LSZH


Features:

  • Good UV and flame resistant.
  • Bow type flat structure.
  • Compact, soft, flexible, easy to install.

Applications:

  • Used as access building cable.
  • Used in indoor cabling, especially used for FTTH.



Options:

Fiber Type: G.652D, G.657A1 or G.657A2 single mode fiber



Optical Characteristics

Fiber Type             AttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link length Min Bending Radius
 Conditions 1310/1550nm 850/1300nm    850/1300nm      850nm     850nm
 Unit     dB/km    dB/km    MHZ.km     MHZ.km          m        mm
 G652D  0.36/0.22            16
 G657A1  0.36/0.22            10
 G657A2  0.36/0.22            7.5
 50/125    3.0/1.0     ≥500/500          30
 62.2/125    3.0/1.0     200/500          30
 OM3    3.0/1.0     ≥1500/500      ≥2000      ≥300        30
 OM4    3.0/1.0     ≥3500/500      ≥4700      ≥550        30
 B1-OM3    3.0/1.0    ≥1500/500      ≥2000      ≥300        7.5
 B1-OM4    3.0/1.0     ≥3500/500      ≥4700       ≥550        7.5




Structure and Technical Specification

  Fiber Count

   Cable Diameter

         (mm)

   Cable Weight

        (kg/km)


   Tensile Strength

       (N/100mm)

         Crush Resistance

                (N/100mm)

 Short Term Long Term   Short Term  Long Term
      1-4       3.0*2.0           9.0     80/200      40/100   1000/2200  500/1000

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

          more information.

         2.The cable core use the colored coating fiber of 250μm.

         3.The tensile and crush of the cable are accordance with the values in the table when the strength member of  FRP and Steel are use
