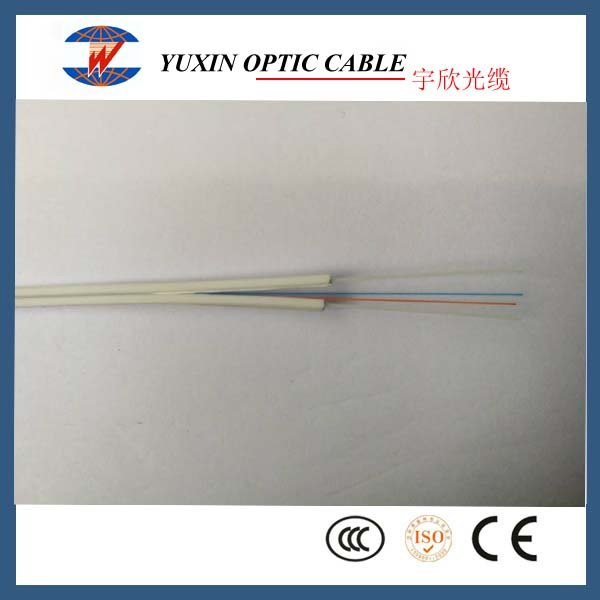

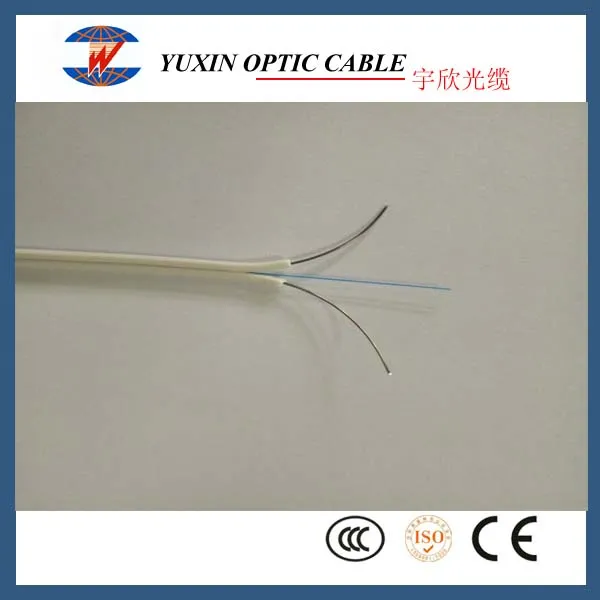

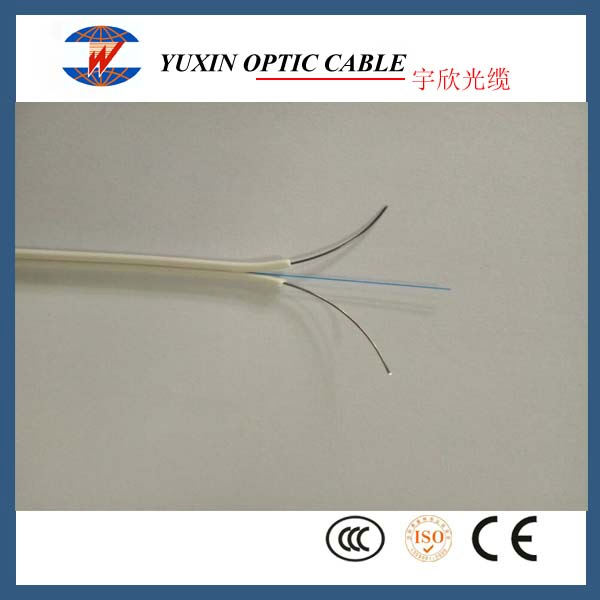

G. 652D G. 657A1 Single Mode Fiber Drop Cable
Quick DetailsPlace of Origin: Zhejiang, China (Mainland)Brand Name: YU JINModel Number: GJFXJBVType: Cat 1Number of Conductors: 2Application: TelecpmmunincationPackaging & DeliveryPackaging Details: each single length of optical cable should be reeled on fumigated wooden drum and covered by plas......
Send Inquiry
Product Description
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YU JIN
Model Number: GJFXJBV
Type: Cat 1
Number of Conductors: 2
Application: Telecpmmunincation
Packaging & Delivery
Packaging Details: each single length of optical cable should be reeled on fumigated wooden drum and covered by plastic bufffer sheet,then seeled by strong wooden battens.
Delivery Detail: as to request for FTTH optics cable
Specifications
FTTH Optics Cable
1.excellent quality and good price
2.quick deliver and good after service
FTTH Optics Cable
Description

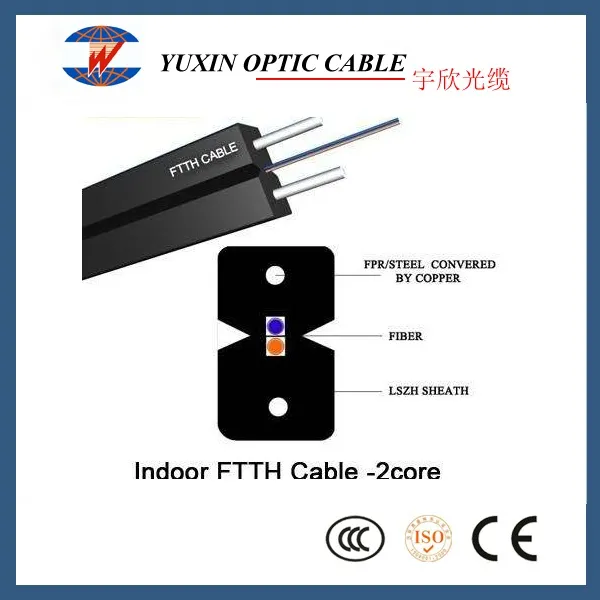

The optical fiber unit is positioned in the centre .Two parallel fiber reinforced plastics (FRP) are placed at the two sides. Then ,the cable is completed with a black or color LZSH sheath.
Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber ;
Simple structure , light weight and high practicability;
Novel flute design, easily strip and splice ,simplify the installation and maintenance;
Low smoke ,zero halogen and flame retardant sheath.
Optical Characteristics
Technical Parameters
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YU JIN
Model Number: GJFXJBV
Type: Cat 1
Number of Conductors: 2
Application: Telecpmmunincation
Packaging & Delivery
Packaging Details: each single length of optical cable should be reeled on fumigated wooden drum and covered by plastic bufffer sheet,then seeled by strong wooden battens.
Delivery Detail: as to request for FTTH optics cable
Specifications
FTTH Optics Cable
1.excellent quality and good price
2.quick deliver and good after service
FTTH Optics Cable
Description
The optical fiber unit is positioned in the centre .Two parallel fiber reinforced plastics (FRP) are placed at the two sides. Then ,the cable is completed with a black or color LZSH sheath.
Characteristics
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber ;
Simple structure , light weight and high practicability;
Novel flute design, easily strip and splice ,simplify the installation and maintenance;
Low smoke ,zero halogen and flame retardant sheath.
Optical Characteristics
| G652 | G655 | 50/125μm | 62.5/125μm | |||
| Attenuation(+20°C) | @850nm | ≤3.5dB/km | ≤3.5dB/km | |||
| @1300nm | ≤1.5dB/km | ≤1.5dB/km | ||||
| @1310nm | ≤0.45dB/km | ≤0.50dB/km | ||||
| @1500nm | ≤0.30dB/km | ≤0.50dB/km | ||||
| Bandwidth (Class A) | @850nm | ≥600MHz·km | ≥200MHz·km | |||
| @1300nm | ≥1200MHz·km | ≥600MHz·km | ||||
| Numerical Aperture | ||||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1450nm | ||||
Technical Parameters
| Cable Type | Fiber Count | Cable Size mm | Cable Weight kg/km | TensileStrength Long/ short Term | CrushResistance Long/ short Term | BendingRadiu Static/Dynamicmm |
| FTTH | 2 | (2.0±0.2)x (3.0±0.2) | 8.5 | 30//60 | 300/1000 | 15/30 |
