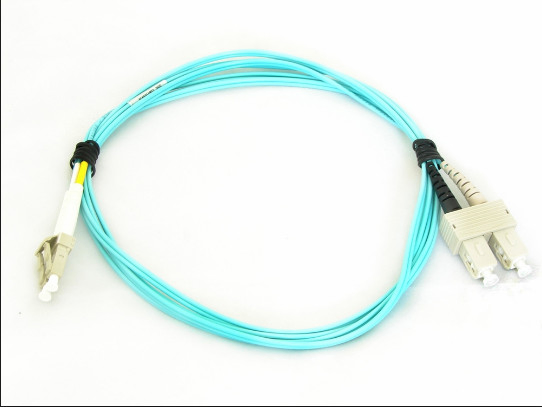

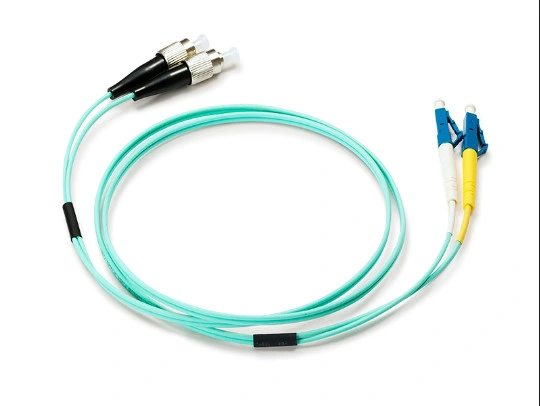

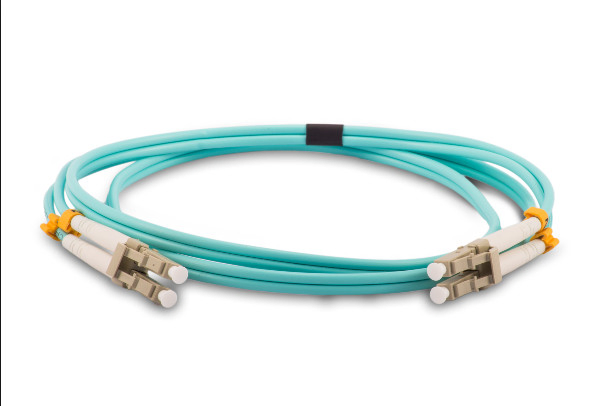

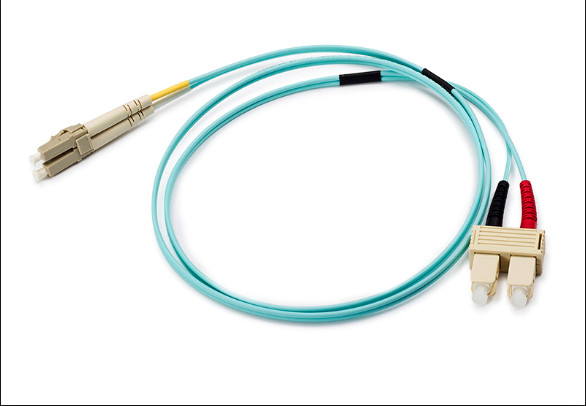

FC/LC/Sc/St Om3 Duplex Fiber Optic Patch Cord
LC/SC/FC/ST Duplex OM3 Multimode Fiber Optic Patch CableThe 50/125 micron OM3 multimode fiber optic cable is suitable for 10GBase-SR, 10GBase-LRM, Faster Ethernet and 40/100Gb applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables ......
Send Inquiry
Product Description
The 50/125 micron OM3 multimode fiber optic cable is suitable for 10GBase-SR, 10GBase-LRM, Faster Ethernet and 40/100Gb applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and cable is optically tested for insertion loss to ensure high quality.
SPECIFICATION:
| Connector Type | LC/SC/ST/FC | Polish Type | UPC to UPC |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | Duplex | Fiber Grade | G.651 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Minimum Bend Radius | 30mm | Cable Diameter | 2.0/0.9/3.0mm |
| Cable Jacket | PVC/LSZH/OFNP | Jacket Color | Aqua |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -40~75°C |
Product Highlights
1.Premium Performance Fiber Optic CableFiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms, fiber optic communication system, defense combat readiness, etc.
2.High Quality Fiber Optic Cable GuaranteeComprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
3.Packing & Labeling
This easy to take and well-protected fiber optical cable package has been labeled . Customized label or package solution are available on request.

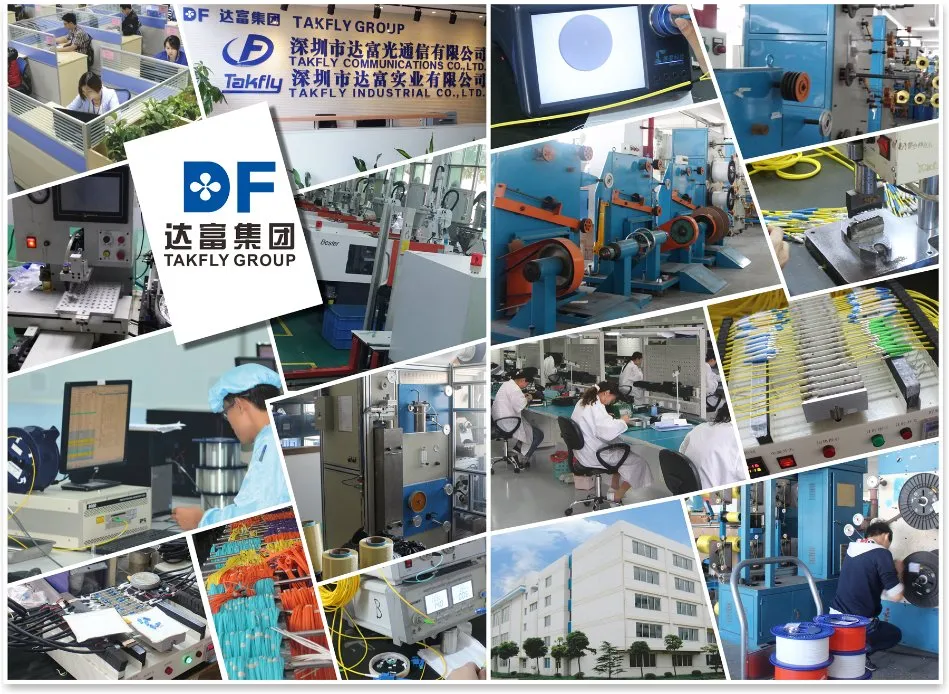

OUR FACTORY/ WORLDWIDE EXHIBITION/CERTIFICATE
