Factory Low Price Breakout Optical Fiber Cable 2 4 8 10 24 36 48 Cores Singlemode Indoor Cabling Fiber Optic Cable, Gjbfjv Multi-Fiber Optical Cable

Product Description

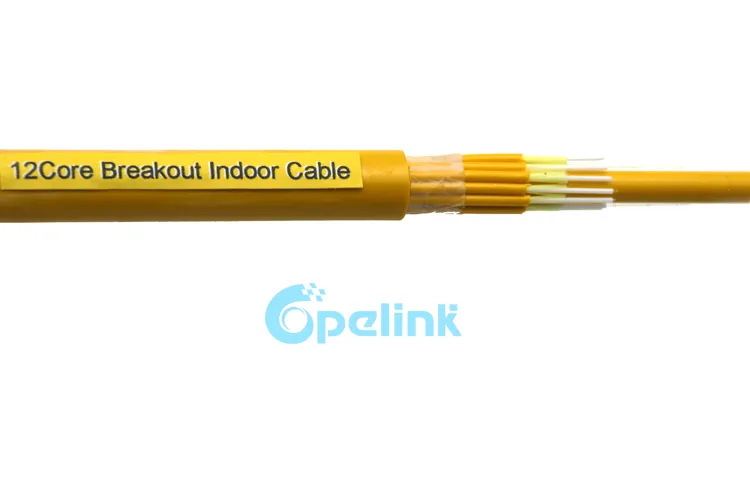

Singlemode Multi Purpose Breakout Optical Fiber Cable

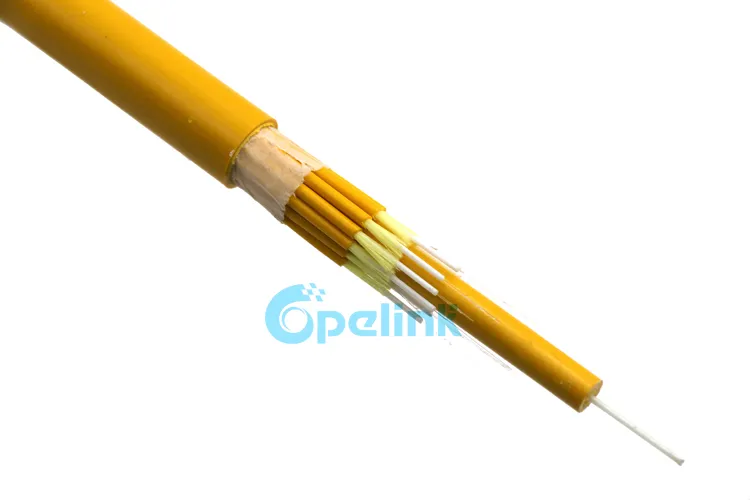

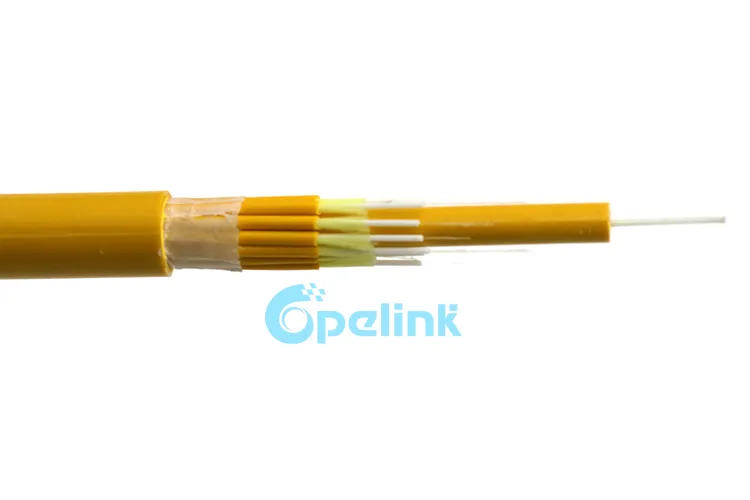

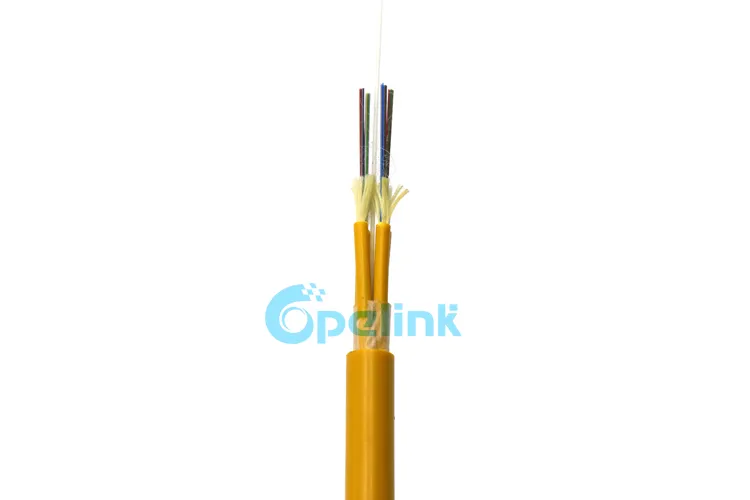

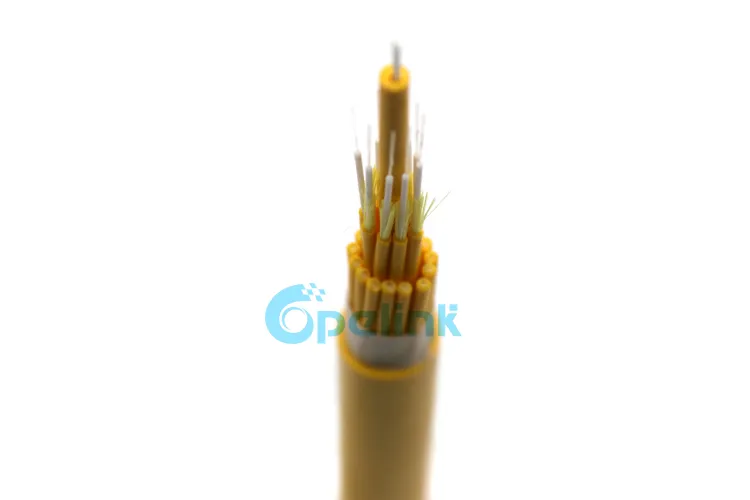

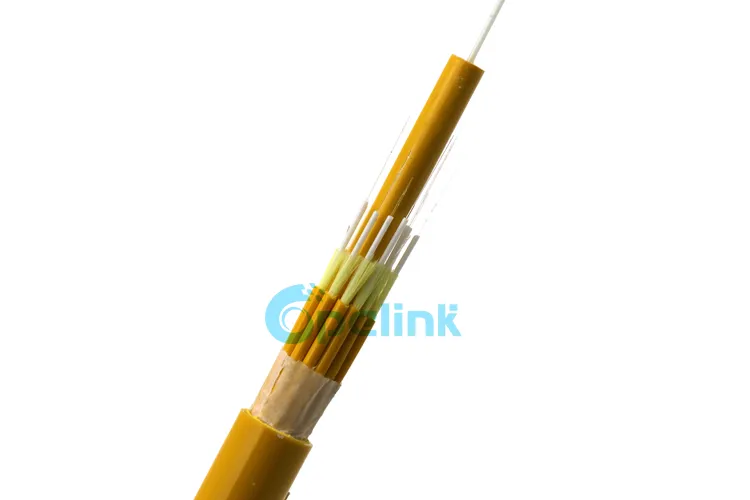

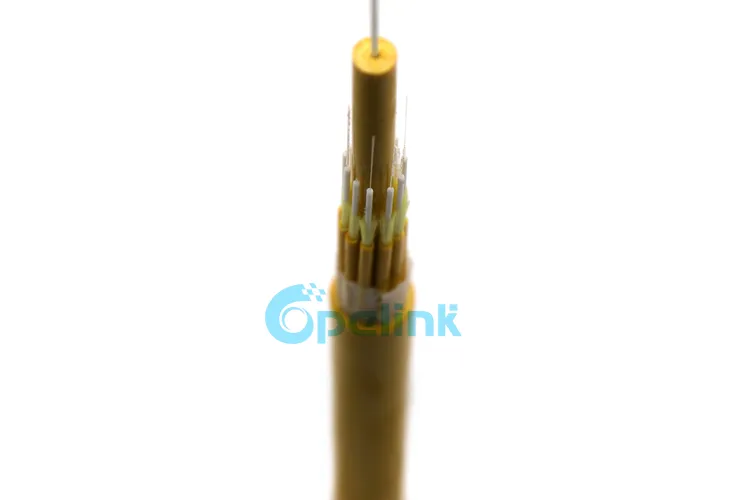

Singlemode Multi Purpose Breakout Fiber Optic Cable use simplex cable (900um tight buffer fiber, aramid yarn as strength member) as subunit . A FRP locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH jacket.

Factory Low Price Breakout Optical Fiber Cable 2 4 8 10 24 36 48 Cores Singlemode Indoor Cabling Fiber Optic Cable, Gjbfjv Multi-Fiber Optical Cable

Application:
Indoor level and vertical cabling, ceiling cabling, surface cabling etc.
Standard fiber core for direct splicing to connector and connecting to equipment
Can be used for the pigtail and patchcord

Features:
.Eachs simplex cable contains strength aramid yarn, high strength, good bending performance, no gel,
easy to be spliced and operated on.
.Each simplex with buffer design, independent strength member and sheath to prevent damage
from environmental and mechanical stress.
.Jacket's color varies according to the types of optical fibers(indoor use), black color is recommended
for outdoor use, options for other colors available upon request.
.Fiber Count is 2-48 cores, other numbers available upon request.
.Options available for PVC,LSZH or PE outer jacker, which is ultra-violet radiation resistant,
water-proof, mildew-proof, environmental stress endurable and with no acidic gas released to corrode
swithc room equipment.

Descriptions :
.Fiber Capacity: 2/4/6/8/12/16/24/48 Simplex 2.0mm Cable
.2.0 simplex optical fiber cable
.Central strength member: FRP
.Outer jacket: LSZH/PVC

Fiber Characteristics:single mode fiber

Item	Unit	Specification
Attenuation	dB/km	1310nm≤0.4 1550nm≤0.3
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0
Zero dispersion wavelength	Nm	1300~1324
Zero dispersion slope	Ps/nm.km	≤0.095
Fiber cutoff wavelength	Nm	≤1260
Mode field diameter	Um	9.2±0.5
Mode field concertricity	Um	<=0.8
Cladding diameter	um	125±1.0
Cladding non-circularity	%	≤1.0
Coating/cladding concertricity error	Um	≤12.5
Coating diameter	um	245±10
bending,dependence induced attenuation	1550nm, 1turns,32mm diameter 100rums,60mm diameter	≤0.5 db
Proof test	kpsi	≥100

Mechanical Parameters:

Fiber account	OD(mm)	Nominal Weight(kg/km)	Max.Tension (N)		Max. Crushing Resistance (N/100 )
			Short-term	Long-term	Short-term	Long-term
2	7.5+-0.5	50	400	120	1000	300
4	7.5+-0.5	51	400	120	1000	300
6	9.0+-0.5	68	700	200	1000	300
8	10.5+-0.5	88	800	250	1000	300
10	11.5+-0.5	102	1000	300	1000	300
12	12.5+-0.5	128	1200	400	1000	300
16	13.0+-0.5	168	1200	400	1000	300
24	15.5+-0.5	198	1200	400	1000	300
48	20+-0.5	246	1800	600	1000	300

-----------------------------------------------------FAQ------------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
