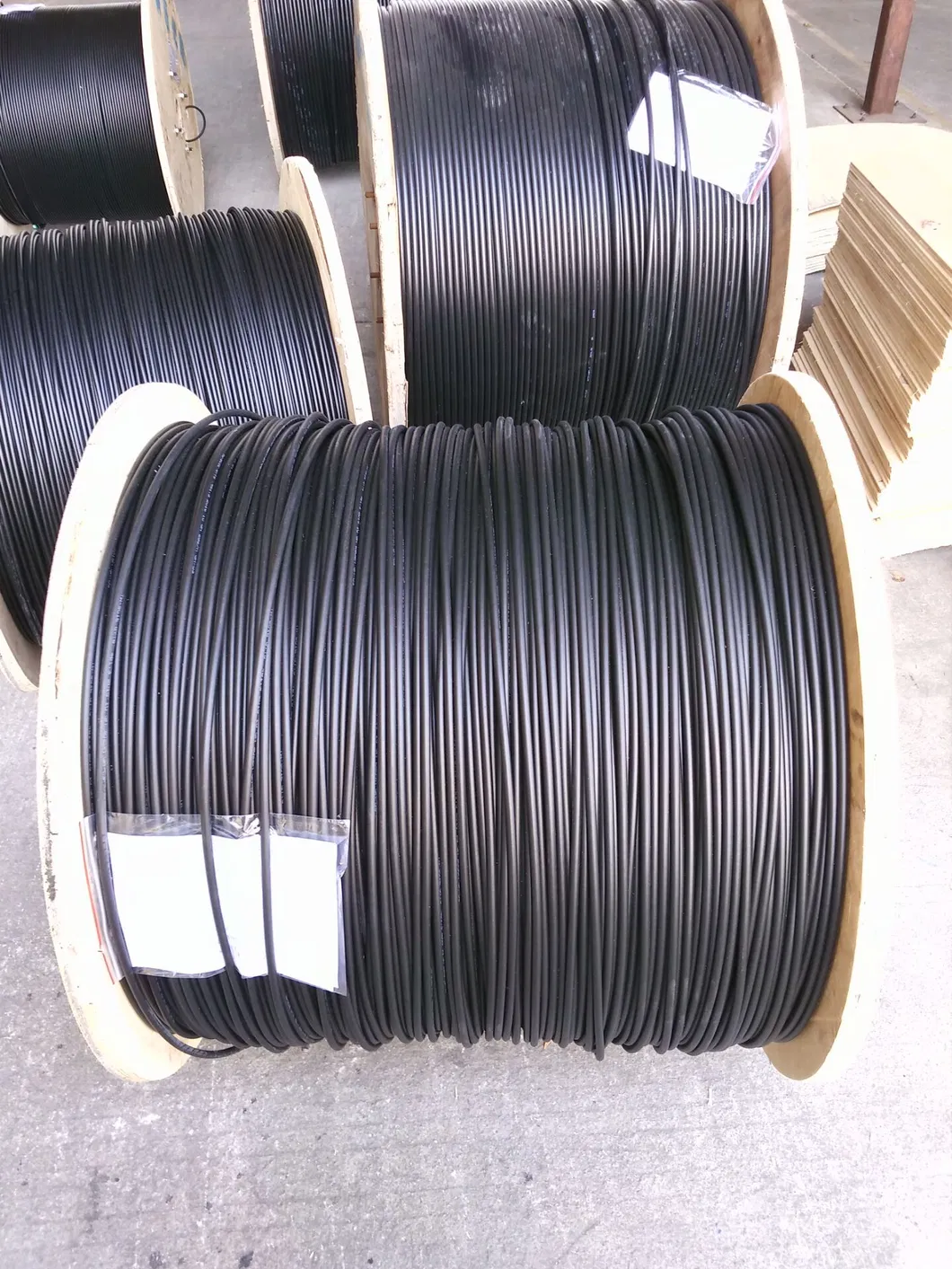

Central Aerial Fiber Optic Cable Steel Wire Strengthen Loose Tube Fiber Outdoor Cable 2- 12c GYXTW

Product Description

Central Aerial Fiber Optic Cable Steel Wire Strengthen Loose Tube Fiber Outdoor Cable 4-12C GYXTW

Central Aerial Fiber Optic Cable Steel Wire Strengthen Loose Tube Fiber Outdoor Cable 2-12c GYXTW

Central Aerial Fiber Optic Cable Steel Wire Strengthen , Loose Tube Fiber Cable

Product Description

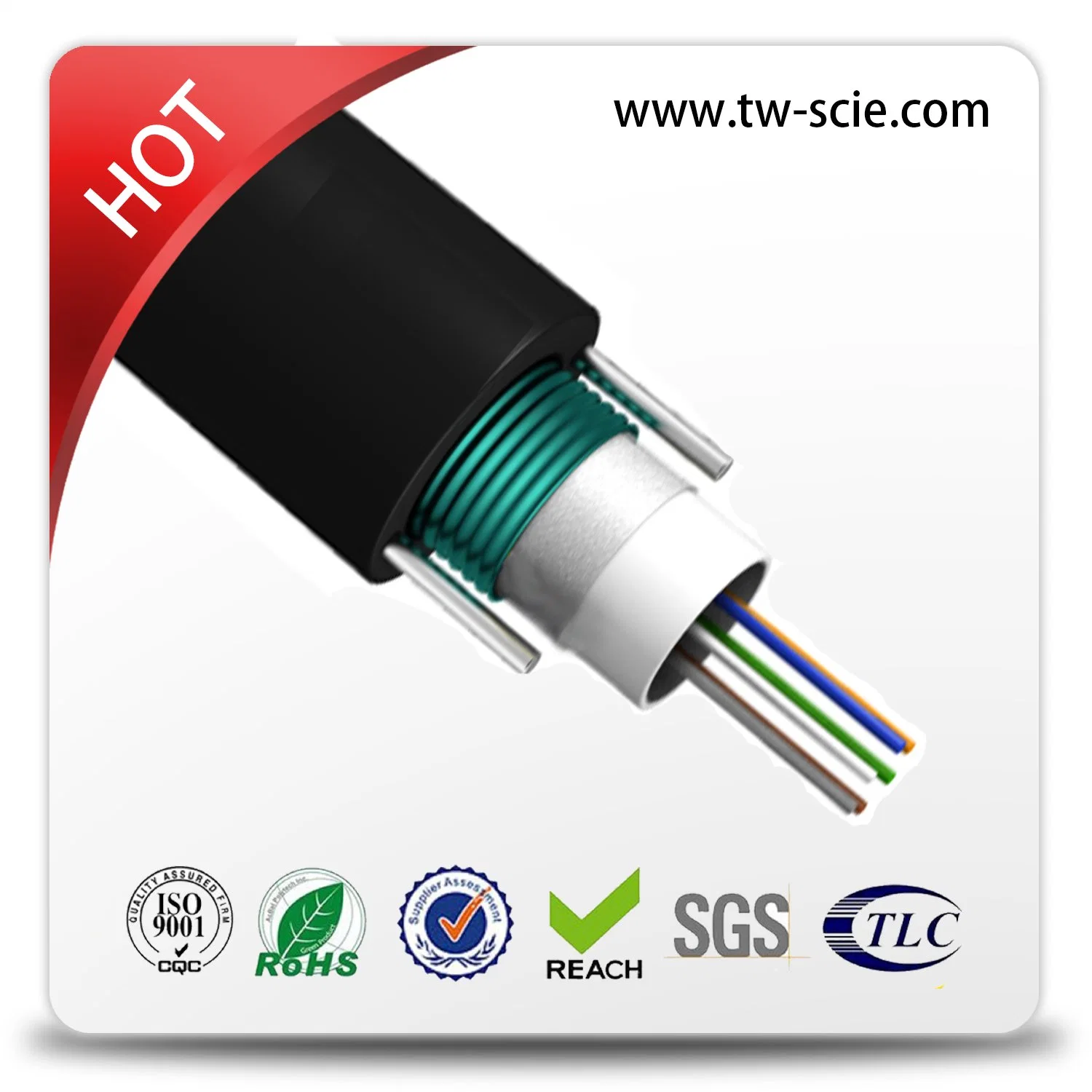

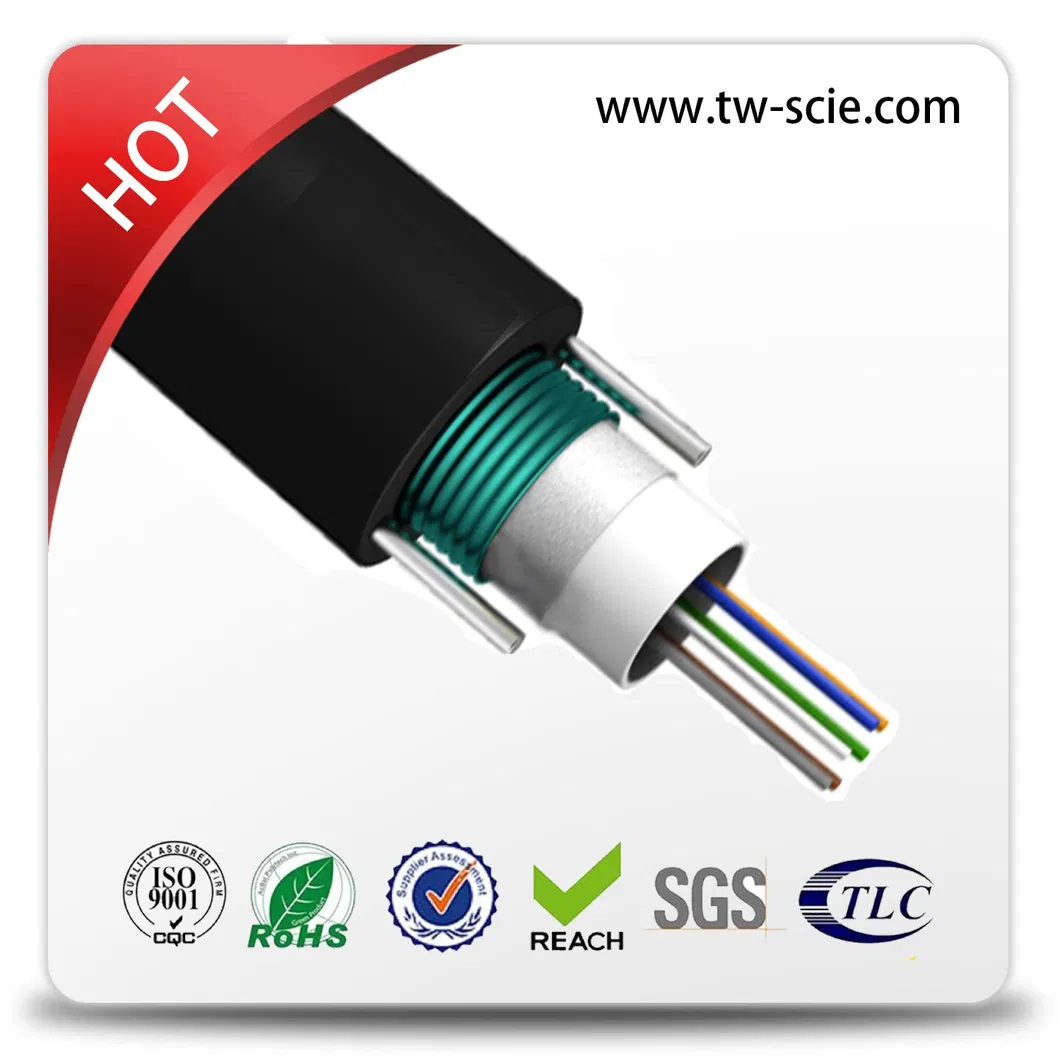

Cable Description
1. Central loose tube outdoor cable GYXTW which is the most popular with our life.

2. The tubes are filled with water-resistant filling compound.

3. The tube is wrapped with a layer of PE longitudinally.

4. Between the PE and the loose tube, water-blocking material keep the cable compact and waterblocking.

5. Two parallel steel wires are placed at the two sides of the steel tape.

6. The cable is completed with a polyethylene (PE) sheath.

Application
1. Outdoor aerial and direct-buried distribution.
2. Long distance and local area network communication.

Characteristics
1. Steel-wire parallel member.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.

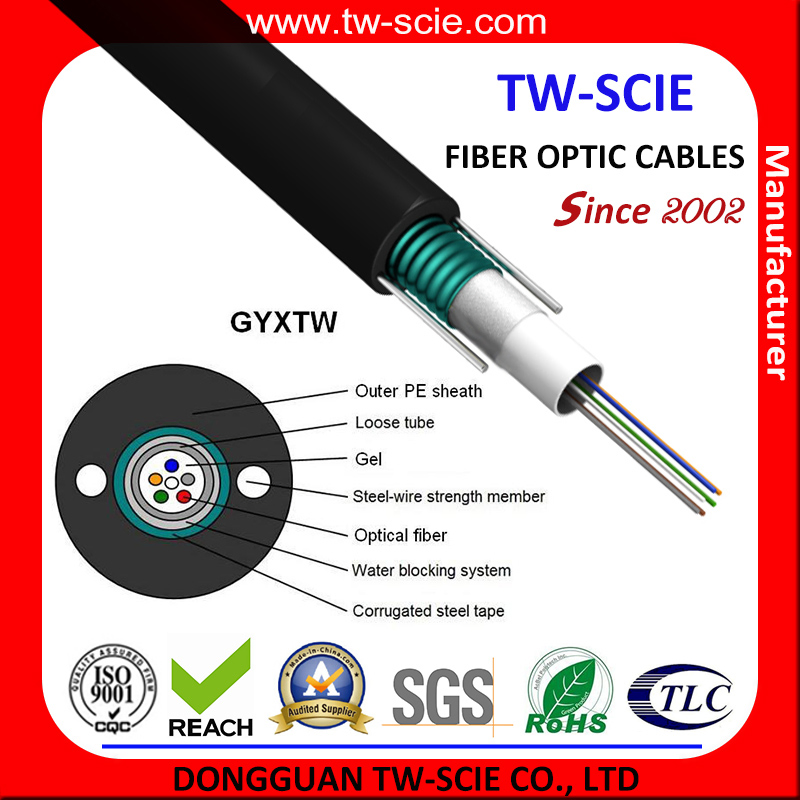

Cable construction details :

Items			Description
Number of fiber			2-12cores
Fiber	type		G652D/G657A/OM1/OM2/OM3/OM4
	diameter		250µm
Strength member	materia		Steel wire


Outer sheath	material		PE
	diameter		8±0.2mm
Cable size (Height * width)			750750560
Cable weight			78KG±1KG
Installation Temperature range(ºC)			-20+60
Operation and transport temperature(ºC)			-40+70
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	600
Min allowable Tensile Strength(N)		Short term	1500
Crush Load (N/100mm)		Long term	300
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	>=400	>=160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	>=800	>=500
Zero dispersion wavelength		nm	1300-1324	>=1302, ≤1322	----	----	>= 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	>= 1180, ≤1330	>=1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----
