CATV FTTH Mini Optical Receiver Node

Product Description

Product Summary

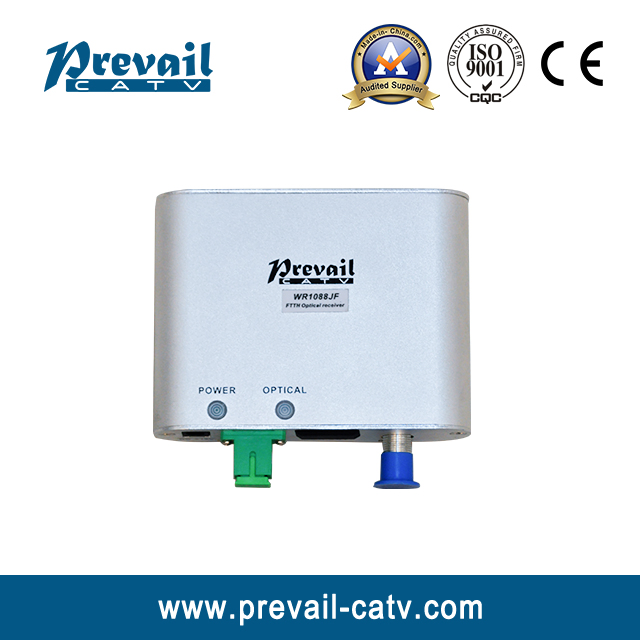

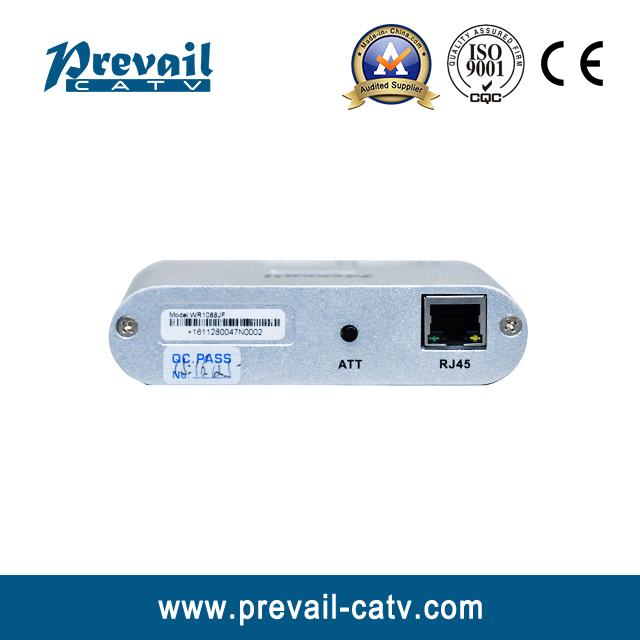

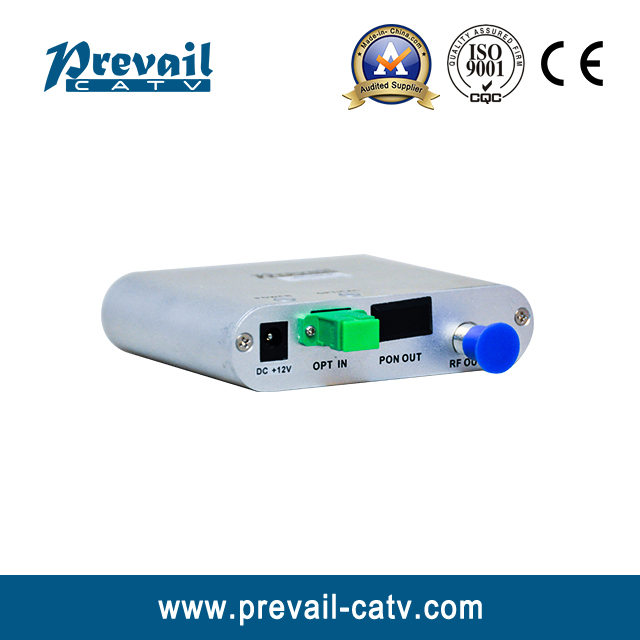

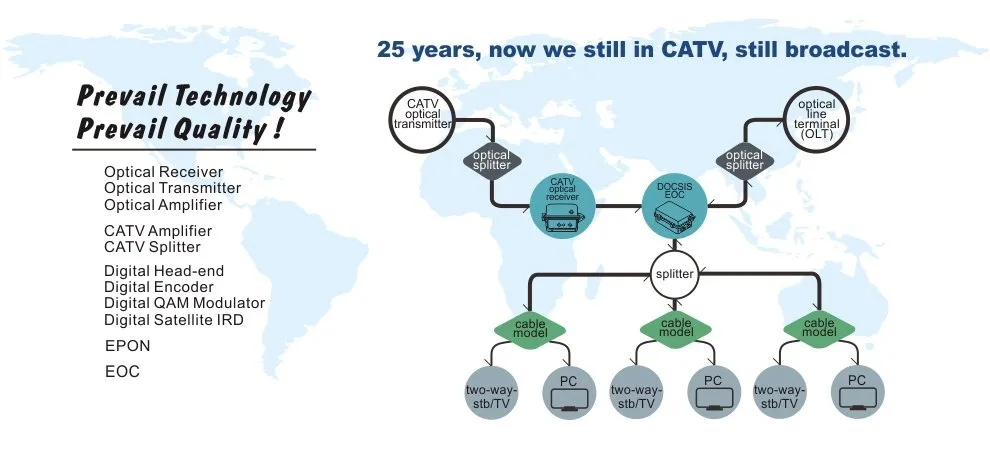

WR1088JF series optical receiver is a featured product which is specially designed for FTTH--Fiber to the Home network structure. With small housing, compact and reasonable internal circuit structure and excellent performance indicators. It is the first choice for residential area and home fiber optic network.
There are three models optional:
WR1088JF-NC: The RFTV operating wavelength is 1100 ~ 1600nm.
WR1088JF-WF: Built-in optical signal filter, the RFTV operating wavelength is 1550nm.
WR1088JF-WD: Built-in CWDM, RFTV operating wavelength is 1550nm. Pass 1310/1490nm wavelength. Can be connected with EPON, GPON and ONU.

Performance Characteristics

Adopt low noise GaAs amplifier device.
MCU control optical AGC, independent adjustable output.

5V DC voltage power supply, low power consumption.
Built-in the Ethernet transponder, support remote network management (optional).

Technique Parameter

Item	Unit	Technical Parameter
Optical Parameters
Optical Receiving Power	dBm	-18 ~ 0
AGC Range	dBm	-12 ~ -3
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC or specified by the user
Fiber Type		Single Mode
Link Performance
C/N	dB	≥ 47	@Pin= -6dBm, Pout= 82dBμV, 84CH PAL-D, OMI=3.8%
C/CTB	dB	≥ 65
C/CSO	dB	≥ 60
MER	dB	>32	@Pin= -15dBm, 96CH DIGTAL 64QAM
		>29	@Pin= -18dBm, 96CH DIGTAL 64QAM
RF Parameters
Frequency Range	MHz	45~1003
Flatness in Band	dB	±0.75
Output Level	dBμV	≥ 82 (AGC: @-12~ -3dBm)
Output ATT range	dB	0~20
Output Return Loss	dB	≥ 16
Output Impedance	Ω	75
Consumption	W	<1.6
Operating Temperature	ºC	-20-+55
Dimension	mm	10810027
