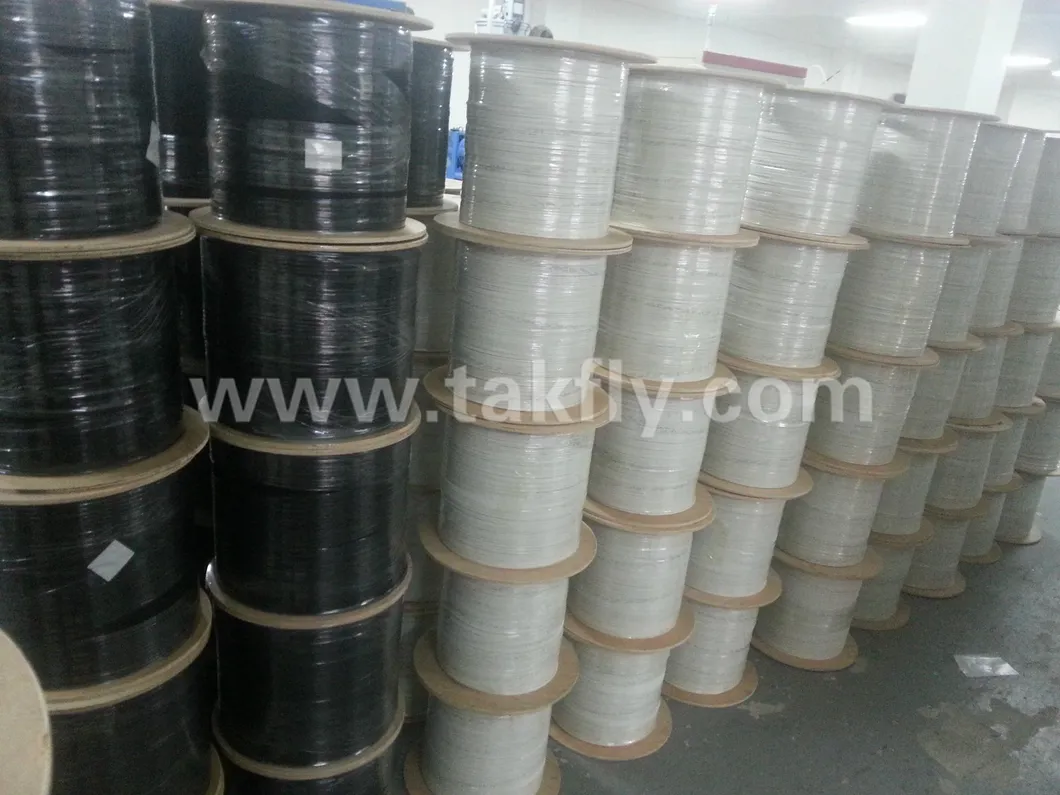

Anatel G657A Fiber Optic Cable 1core 2 Core 4 Core FTTH Drop Cable
Description:

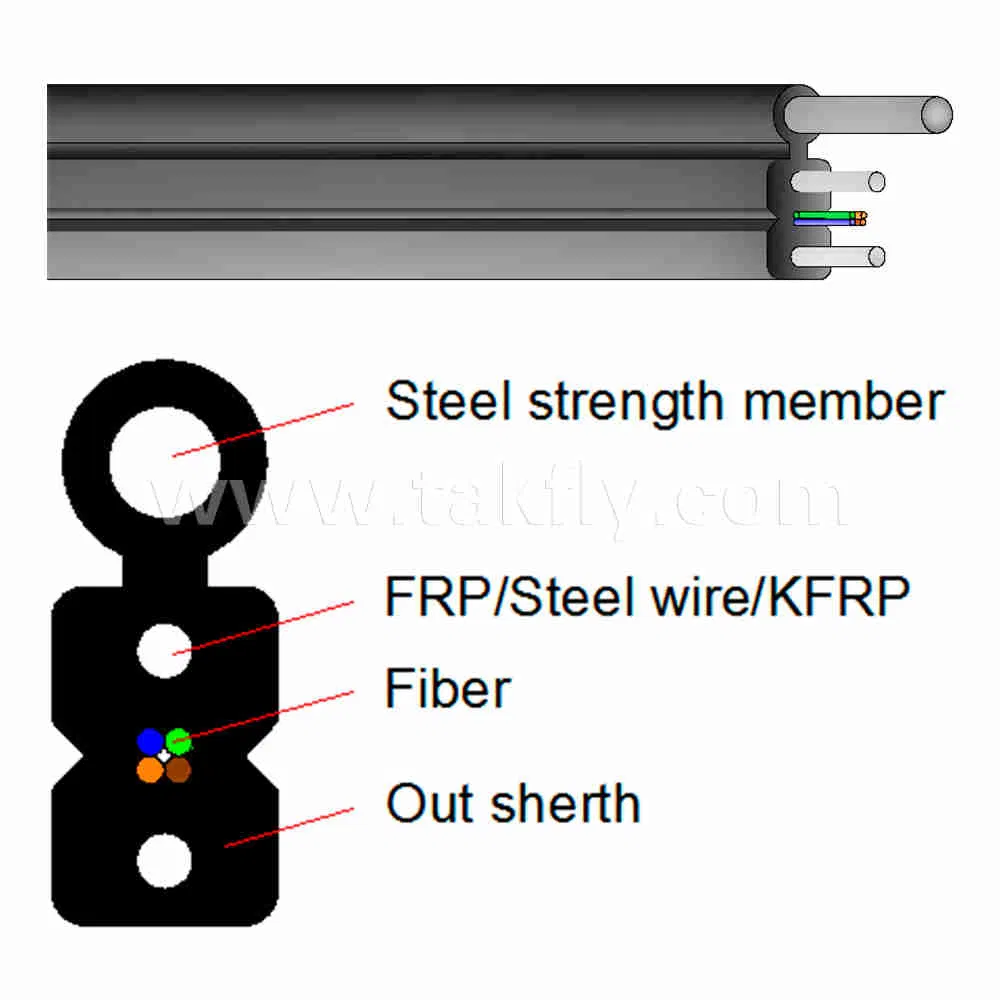

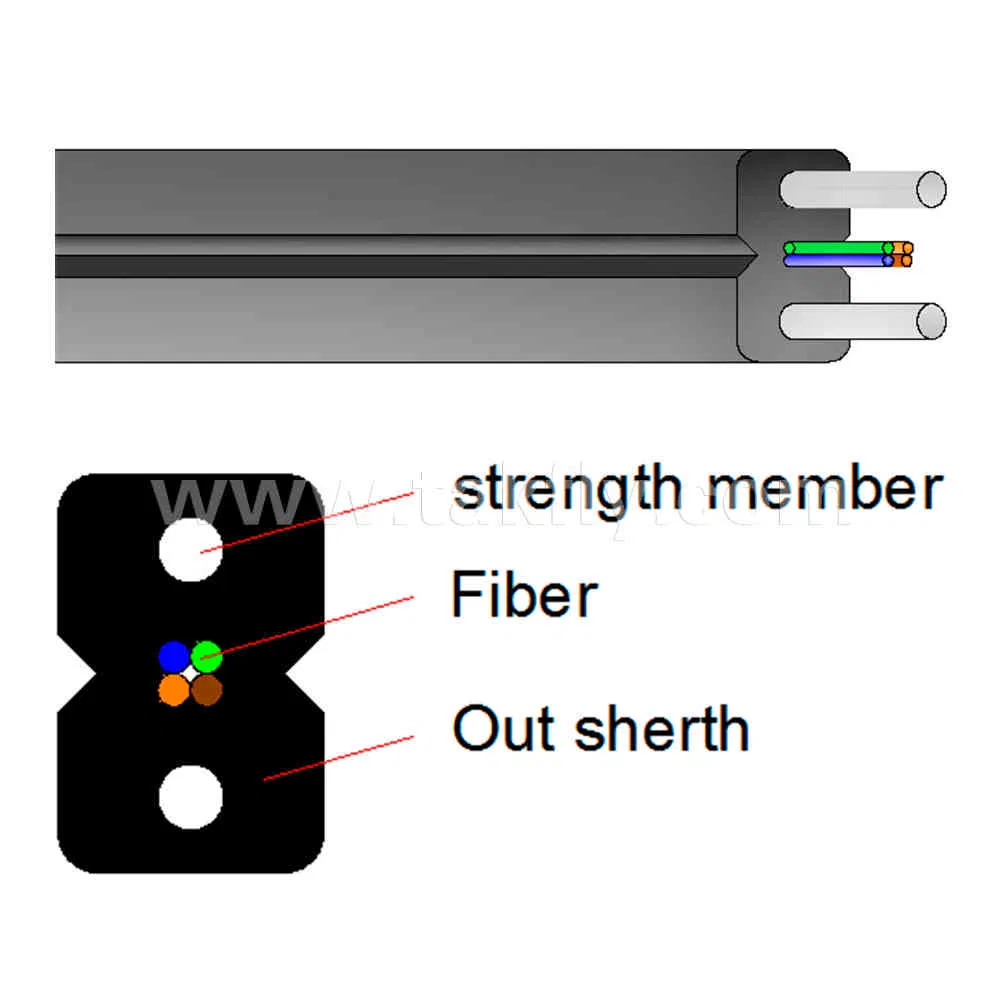

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
Characteristics:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Simple structure, light weight and high practicability;
Low smoke, zero halogen and flame retardant sheath.
Application:
Adopted to indoor distribution;
Suitable for aerial, pipeline laying method
As FTTH cable,for indoor horizontal and vertical cabling
Technical Data:
| Item | Contents | Value |
| Central strength member | material | FRP/KFRP/steel wire |
| diameter | 0.5mm | |
| Outer sheath | material | LSZH |
| Thickness | 0.5mm |
| Cable type | Diameter (mm) | Weight (Kg/km) | Max.Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (ºC) | |
| Long/Short Term | Long/Short Term | Dynamic | Static | ||||
| GJXH-1~4 | 2.0*3.0 | 10.5 | 40/80 | 500/1000 | 20D | 10D | -40~+70 |
| GJXFH-1~4 | 2.0*3.0 | 9 | |||||
For any question, please feel free to contact us. Your inquiry is expected! Warmly welcome you to inquiry us for this product!
Cable Mechanical characteristic:
