Aerial Factory Price Loose Tube 2-48 Optical Fiber Cable

Specifications

GYXTY

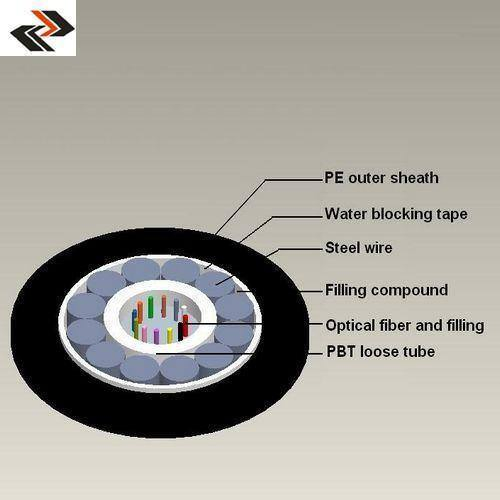

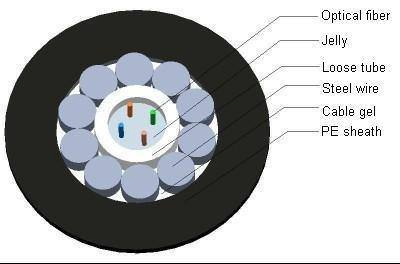

Metal Strength member, Central tube type, gelly filled, Steel wire armored,outer PE sheath , Outerdoor optical fiber cable for telecommunication

Technical characteristics:

     Selected high quality optical fiber ensure the optical fiber cable have good transmission properties

     The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties

     Very strict material and manufacturing control guarantees stable product quality.

     Total cross-section water-resistant structure make cable has an excellent properties of moisture resistance

     Special jelly filled in the loose tube provides the fibers with critical protection

     Steel wire armored ensure cable mechanical property in tensile strength and crush resistance

     Small in size, light in weight and excellent bending properties , tube in the center benefits in operation

Quantity of fibers

2~48

Promised tension (N)

Long-term 600

Short-term1500

Promised pulling tension (N100/mm)

Long-term300

Short-term1000

Min bend radius(mm)

Long-term 12.5D

Short-term 25D

Operating temperature (oC)

-40~+60

The way

Direct buried
