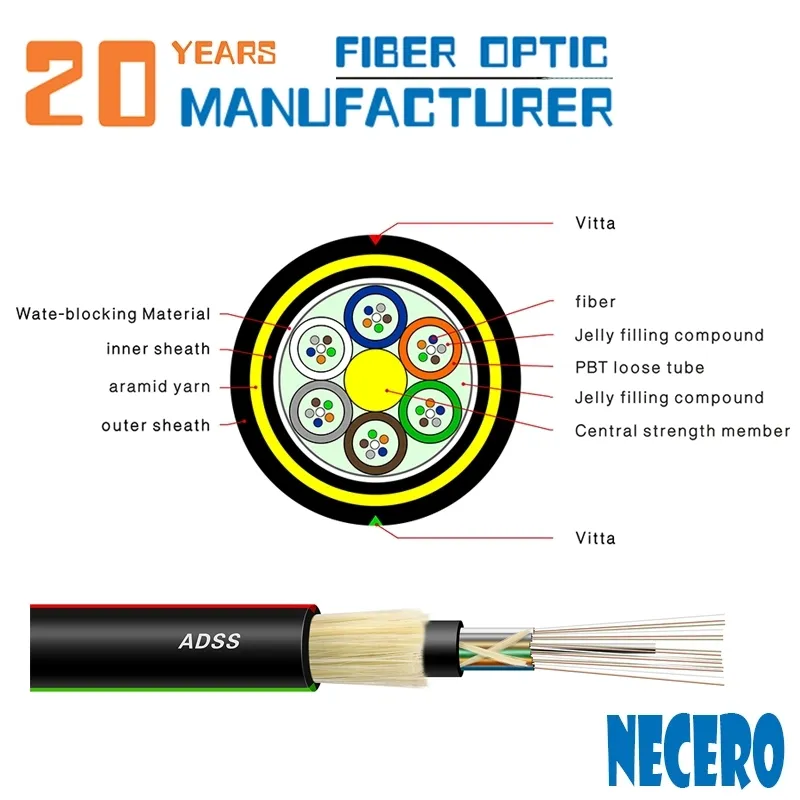

ADSS All Dielectric Self-Supporting Loose Tube 12c 8 Core Singlemode Aramid Yarns Fiber Optic Cable GYXTW Fiber Cable
ADSS All Dielectric Self-supporting Loose Tube 12c 8 Core Singlemode Aramid Yarns Fiber Optic Cable GYXTW Fiber Cable48 core anti-tracking optical fiberWe are 20 years fiber optic cable manufacturer.Welcome to go to the factory tour!Send message to us can get free samples. G.652G.65550/125&......
Send Inquiry
Product Description
ADSS All Dielectric Self-supporting Loose Tube 12c 8 Core Singlemode Aramid Yarns Fiber Optic Cable GYXTW Fiber Cable
48 core anti-tracking optical fiber
We are 20 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation (+20) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
|
| |
