Home > Products > Optical Fiber > Accessories Huawei Optical Fiber Cable From China FTTH Communication Cable
Accessories Huawei Optical Fiber Cable From China FTTH Communication Cable
CharacteristicsFeatureSM , MMSM , MM Type of connectorMPO/MTP 12f/24fFC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 Diameter(mm)2.0/3.0/3.6 etc0.9,2.0,3.0 PolishMM UPCMM APCSM UPCSM APCMM UPCMM APCSM UPCSM APC Insert Loss≤0.35dB≤0.35dB≤0.35dB≤0.35dB≤0.3dB≤0.3dB≤0.3......
Send Inquiry
Product Description
Characteristics
If you need IL≤0.25dB, IL≤0.2dB, IL≤0.15dB, FCJ OPTO TECH can offer it as well. Contact us!
Description

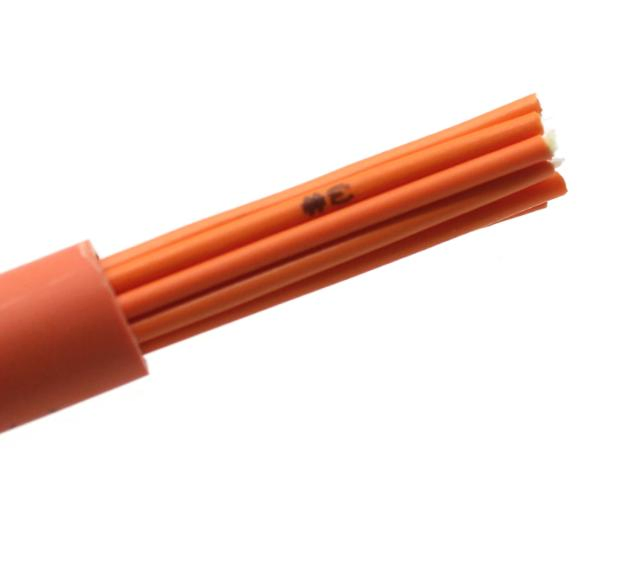

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP) are placed at the two sides. Then the cable is completed with a black or colored LSZH sheath.
Characteristics
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Optical Characteristics
Technical Parameters
Storage/Operating Temperature : -20ºC to + 60ºC
Features
Low insertion loss and high return loss;
Reliable optical performance;
Convenient on-site installation;
Quick installation and easy operation
Low cost.

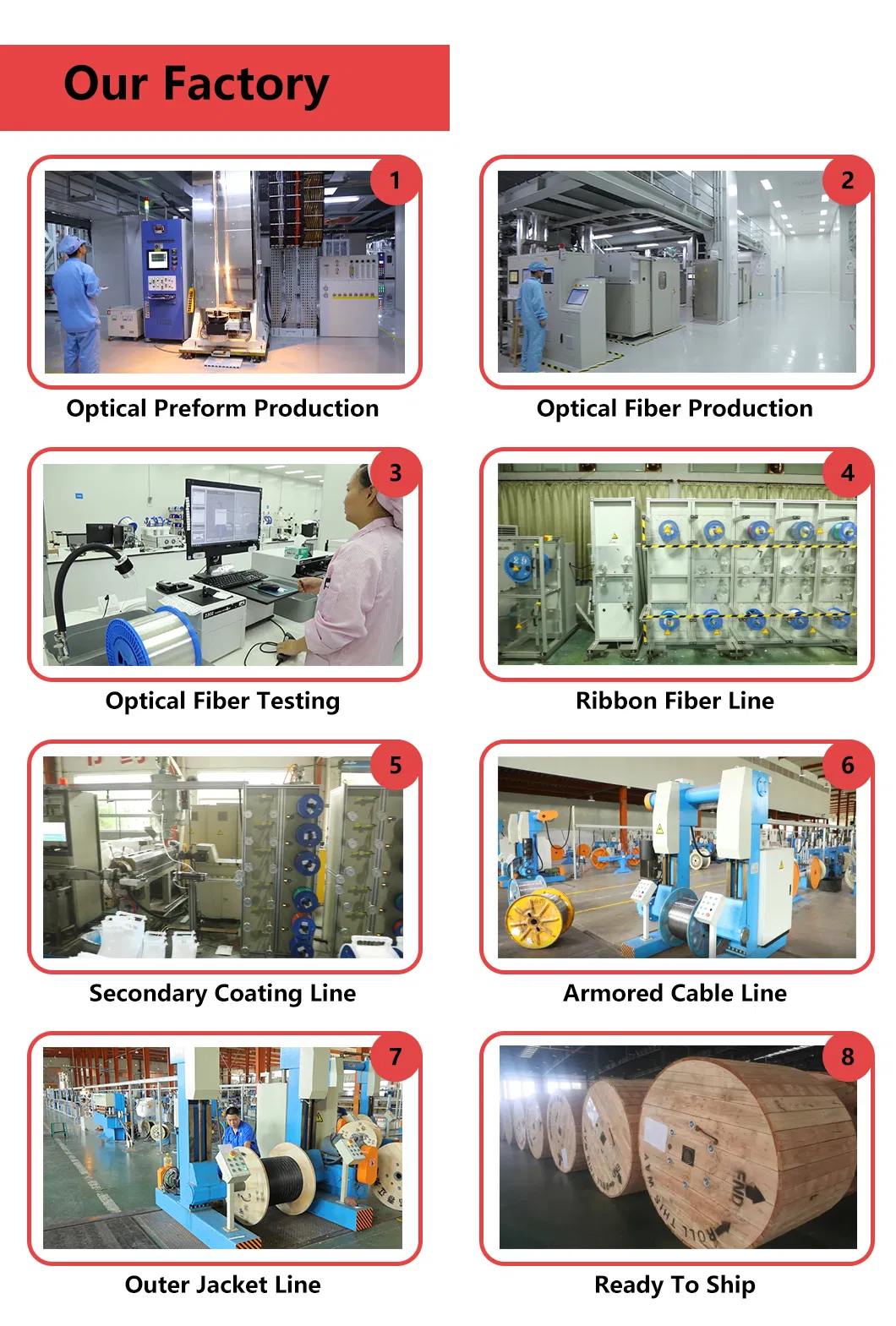

Zhejiang Fuchunjiang Optoelectronic Technology Co., Ltd. is the core subsidiary of the "information and communication" industry of Fuchunjiang Group, one of the top 500 private enterprises in China. The company was founded in 1992 and is a the national high-tech enterprises that specializes in research and development, production and sales of all kinds of single-mode optical fiber, optical cable, passive optical component and accessories. The first HYYV local telephone cable in Hangzhou and the first communication optical cable in Zhejiang province were born in our company.
The company is headquartered in Fuyang District, Hangzhou City, Zhejiang Province, with a registered capital of 300 million yuan. Headquarter covers an area of nearly 13.4 hectare and has construction area of more than 100,000 square meters. The company has nearly 1,000 employees with a strong team of professional and technical personnel. The company's products are widely used in China Mobile, China Telecom, China Unicom, National radio and television, SGCC, National defense engineering and railway, subway, highway, airport, oil field and other key projects. Meanwhile our products have been applied in Shanghai, Zhejiang, Jiangsu, Anhui, other Yangtze River Delta region and the Pearl River Delta region market of China Telecom, China Unicom, China Mobile. We have participated in the supply of optical cables for domestic key high-speed railway lines and urban subway lines, etc., and exported to Europe, America, Africa and Asia and other countries and regions. Our products have been well received by customers at home and abroad. The company has been awarded as one of the top 100 electronic information enterprises in China, one of the top 10 innovative enterprises in China's information industry, and one of the top 10 optical communication enterprises with the most comprehensive competitiveness.
In 2017, Zhejiang Fuchunjiang photoelectric technology co., LTD. established a wholly-owned subsidiary, which is specialized in the R&D and production of optical preform and optical fiber. The company adopts advanced VAD+OVD process technology, mainly manufacturing to the G.652, G.654 and G.657 series and other special applications of optical preform and optical fiber products.
As a professional manufacturer of communication products, Fuchunjiang photoelectric technology co., LTD. has a complete coverage of optical fiber, cable, optical components industry chain. It has the annual output of 600 tons of optical fiber preform, 30 million kilometers optical fiber, all kinds of communication cable 20 million Fk, 1 million kilometers butterfly drop cable, 10 million (sets)all kinds of passive component.
| Feature | SM , MM | SM , MM | ||||||
| Type of connector | MPO/MTP 12f/24f | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | ||||||
| Diameter(mm) | 2.0/3.0/3.6 etc | 0.9,2.0,3.0 | ||||||
| Polish | MM UPC | MM APC | SM UPC | SM APC | MM UPC | MM APC | SM UPC | SM APC |
| Insert Loss | ≤0.35dB | ≤0.35dB | ≤0.35dB | ≤0.35dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥25dB | ≥25dB | ≥50dB | ≥60dB | ≥25dB | ≥50dB | ≥60dB | |
| Exchangeability | ≤0.2dB | ≤0.2dB | ||||||
| Repeatability | ≤0.2dB | ≤0.2dB | ||||||
| temperature range(ºC) | -40~+85 | -40~+85 | ||||||
If you need IL≤0.25dB, IL≤0.2dB, IL≤0.15dB, FCJ OPTO TECH can offer it as well. Contact us!
Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP/KFRP) are placed at the two sides. Then the cable is completed with a black or colored LSZH sheath.
Characteristics
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| @850nm | ≤3.5 dB/km | ≤3.5 dB/km | |||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
Technical Parameters
| Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.2)×(3.0±0.2) | 8 | 40/80 | 500/1000 | 20/40 |
| 2 | (2.0±0.2)×(3.0±0.2) | 8 | 40/80 | 500/1000 | 20/40 |
| 4 | (2.0±0.2)×(3.0±0.2) | 8 | 40/80 | 500/1000 | 20/40 |
| 6 | (2.5±0.2)×(4.0±0.2) | 8.5 | 40/80 | 500/1000 | 20/40 |
| 8 | (2.5±0.2)×(4.0±0.2) | 9.0 | 40/80 | 500/1000 | 20/40 |
| 12 | (3.0±0.2)×(4.0±0.2) | 9.7 | 40/80 | 500/1000 | 20/40 |
Features
Low insertion loss and high return loss;
Reliable optical performance;
Convenient on-site installation;
Quick installation and easy operation
Low cost.
Zhejiang Fuchunjiang Optoelectronic Technology Co., Ltd. is the core subsidiary of the "information and communication" industry of Fuchunjiang Group, one of the top 500 private enterprises in China. The company was founded in 1992 and is a the national high-tech enterprises that specializes in research and development, production and sales of all kinds of single-mode optical fiber, optical cable, passive optical component and accessories. The first HYYV local telephone cable in Hangzhou and the first communication optical cable in Zhejiang province were born in our company.
The company is headquartered in Fuyang District, Hangzhou City, Zhejiang Province, with a registered capital of 300 million yuan. Headquarter covers an area of nearly 13.4 hectare and has construction area of more than 100,000 square meters. The company has nearly 1,000 employees with a strong team of professional and technical personnel. The company's products are widely used in China Mobile, China Telecom, China Unicom, National radio and television, SGCC, National defense engineering and railway, subway, highway, airport, oil field and other key projects. Meanwhile our products have been applied in Shanghai, Zhejiang, Jiangsu, Anhui, other Yangtze River Delta region and the Pearl River Delta region market of China Telecom, China Unicom, China Mobile. We have participated in the supply of optical cables for domestic key high-speed railway lines and urban subway lines, etc., and exported to Europe, America, Africa and Asia and other countries and regions. Our products have been well received by customers at home and abroad. The company has been awarded as one of the top 100 electronic information enterprises in China, one of the top 10 innovative enterprises in China's information industry, and one of the top 10 optical communication enterprises with the most comprehensive competitiveness.
In 2017, Zhejiang Fuchunjiang photoelectric technology co., LTD. established a wholly-owned subsidiary, which is specialized in the R&D and production of optical preform and optical fiber. The company adopts advanced VAD+OVD process technology, mainly manufacturing to the G.652, G.654 and G.657 series and other special applications of optical preform and optical fiber products.
As a professional manufacturer of communication products, Fuchunjiang photoelectric technology co., LTD. has a complete coverage of optical fiber, cable, optical components industry chain. It has the annual output of 600 tons of optical fiber preform, 30 million kilometers optical fiber, all kinds of communication cable 20 million Fk, 1 million kilometers butterfly drop cable, 10 million (sets)all kinds of passive component.
