Product Description

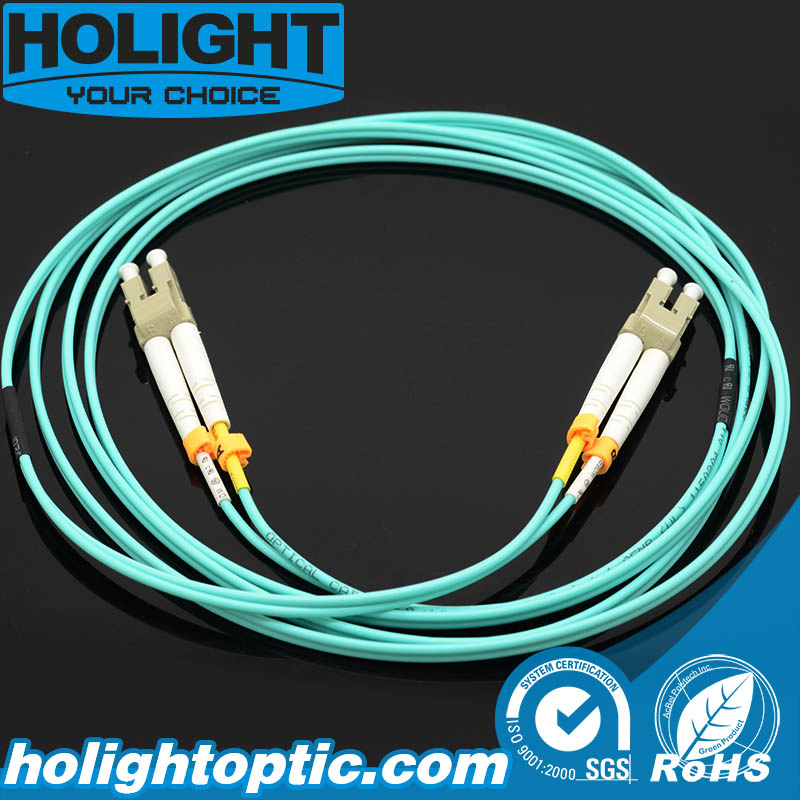

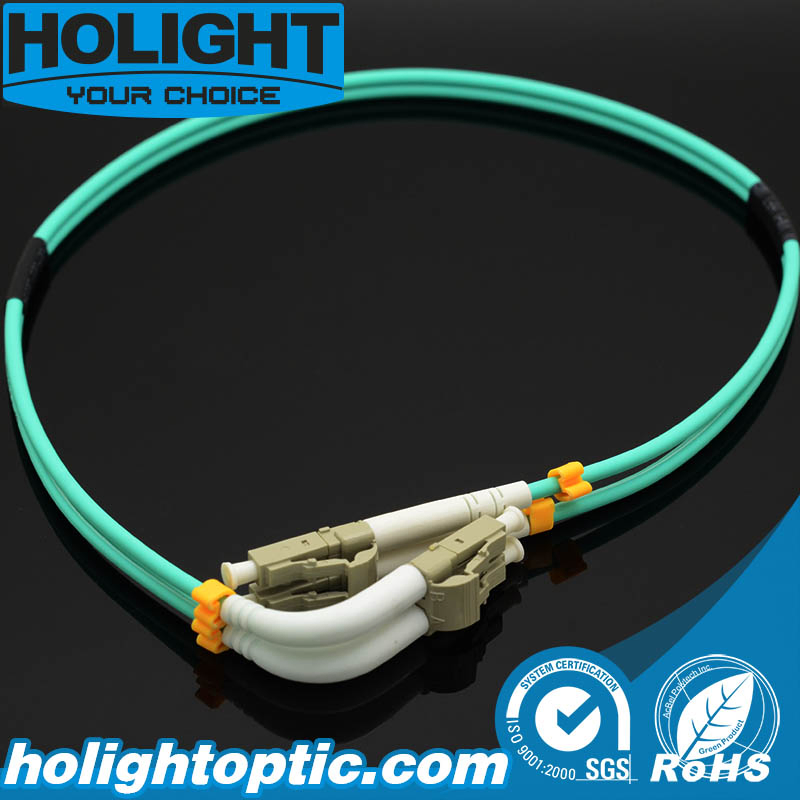

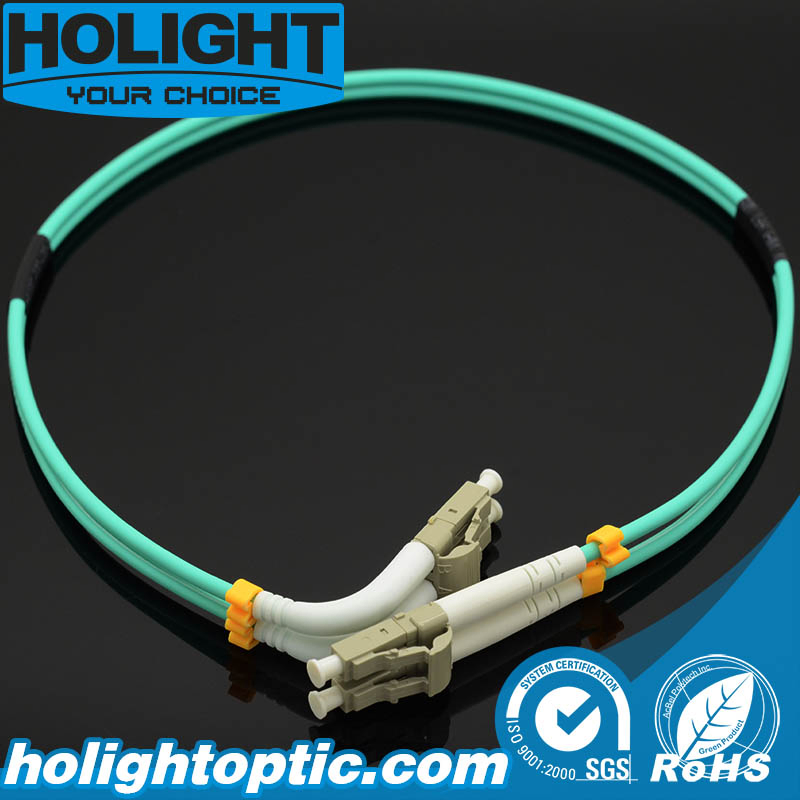

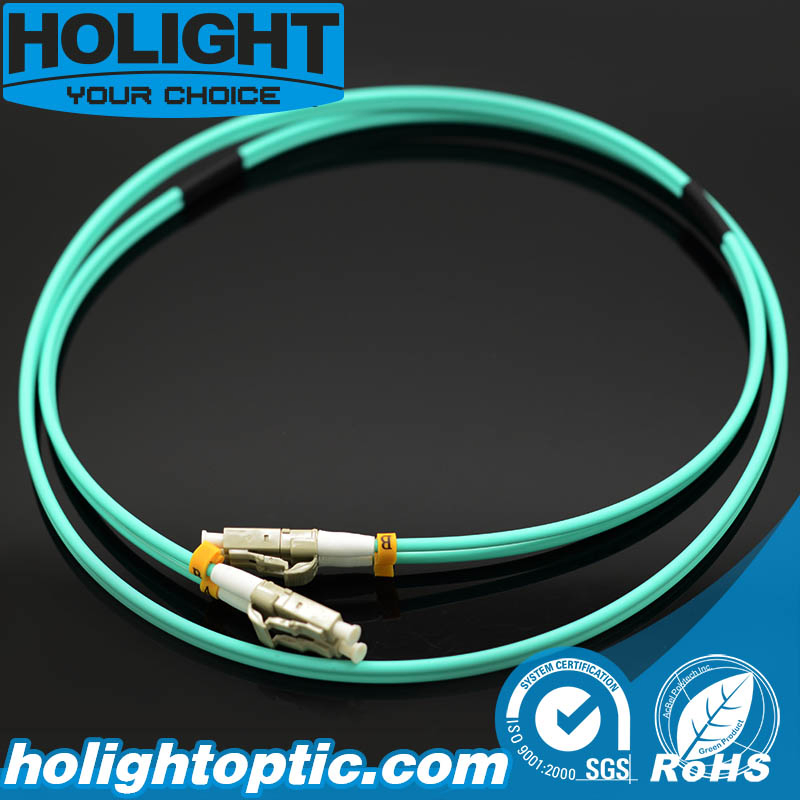

3mm 50/125um mm Dx LC Upc to LC Upc Om3 LSZH Jacket Fiber Cable

DESCRIPTION

High Quality and Cost-effective 50/125μm OM3 Multimode Fiber Optic Cable

The 50/125um OM3 multimode fiber optic cable is suitable for 10GBase-SR, 10GBase-LRM, Faster Ethernet and 40/100Gb applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant and cable is optically tested for insertion loss to ensure high quality.

HOLIGHT also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Connector	LC to LC	Jacket OD	3.0mm
Fiber Mode	50/125μm OM3	Jacket Color	Aqua
Polish	UPC to UPC	Wavelength	850/1300nm
Fiber Type	Duplex	Jacket Material	LSZH / PVC / OFNP
Insertion loss	≤0.3dB	Attenuation at 850nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300nm	1.0 dB/km
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Polarity	A(Tx) to B(Rx)	Minimum Bend Radius	30 mm

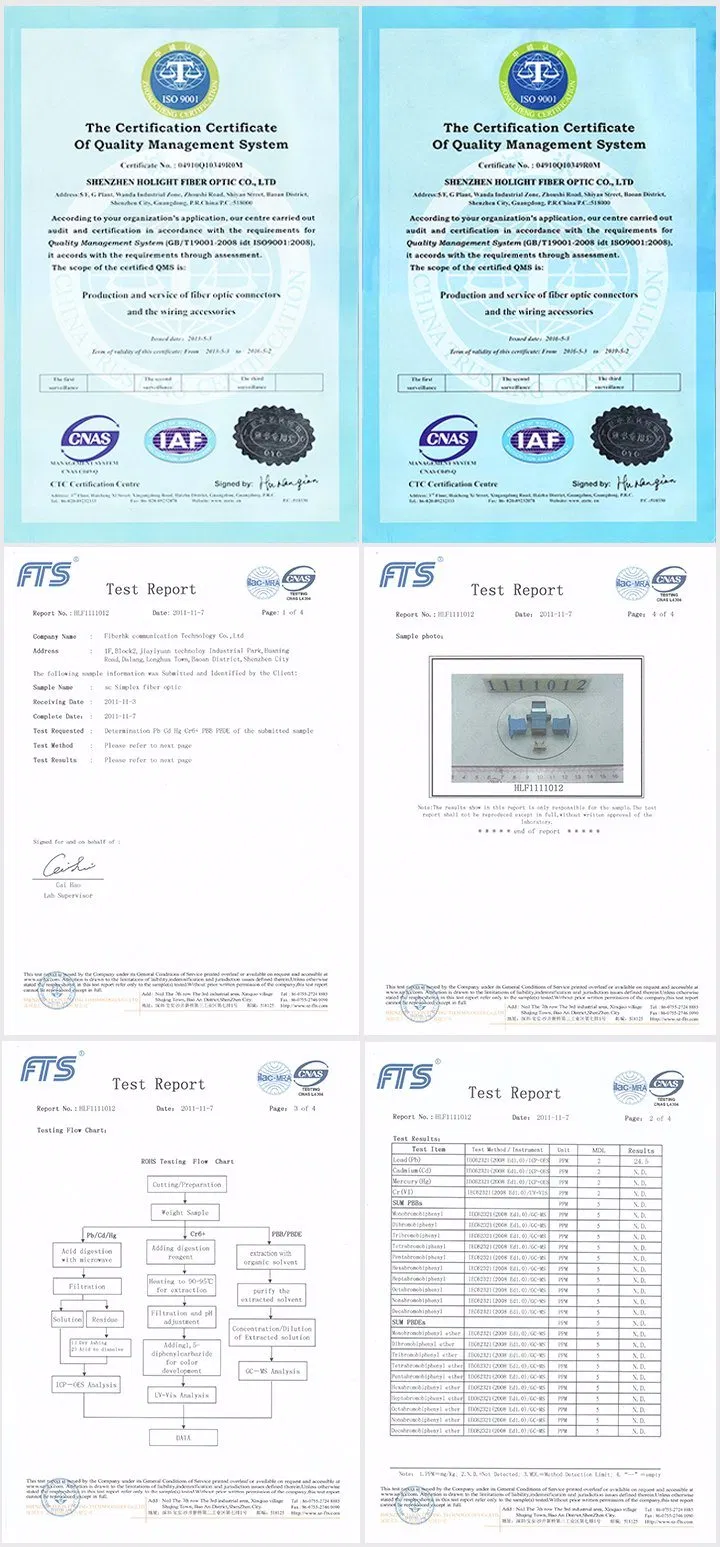

Quality Certification

Quality and standards are the foundation of HOLIGHT. We are dedicated to providing customers with the outstanding, standards-compliant products and services.
HOLIGHT has passed many quality system verification, like CE, RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Please Note: Each fiber patch cable is 100% optically inspected and tested for insertion loss before you receive it.

PRODUCT HIGHLIGHTS

Industry Standard Flammability Rating OFNR (Riser) Jacket Fiber Optic Cable

The industry standard duplex fiber connector meets EIA/TIA 604-2 with ceramic ferrule for high speed cabling networks.

Zirconia Ceramic Ferrule Optimum IL and RL
