2.0mm Sc-LC Single Mode G652D Duplex Fiber Optical Fiber Jumper Cable

Product Description

2.0mm SC-LC Single Mode G652D Duplex fiber Optical Fiber Jumper Cable

1.Product Description

Fiber Optic Patch cords are mainly applied in optics communications field, such as FTTH, FTTX, LAN, WAN, network, broadband, etc. As the basic equipment of optic communication, fiber optic patch cord are in great demand in the market, especially in developed countries. With the expansion of FTTH, the use of patch cords will be in an increasing trend. Patch cord, just like a connector, link one equipment to the other one. According to the type of connector, patch cord can be divided into FC, ST, SC, LC, or hybrid connector patch cord.

Takfly's SC/UPC-LC/UPC SM G652D DUAL Fiber Optic Patch cords have passed ISO9001: 2008, RoHS, CE, etc. verifications. The quality is compatible with high standard. No complaints is one of our aims. Takfly is worth your trust. And we hope that our products can help you win good reputation and market share.

2.Features

1.Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard;
2.Connector type standard: IEC61574 series;
3.Low Insertion Loss : IEC 61300-3-4, IL≤0.20dB;
4.High Return Loss: IEC61300-3-6; RL≥60dB;
5.Flammability:IEC60332-1Repeat Plug feature is good, good interchangeability;
6.Ceramic Ferrule, high-density docking, concentricity ≤0.5Can provide general PVC or LSZH cable cable;

3.Parameter

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.15dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40ºC~+75ºC
Storage Temperature		-40ºC~+75ºC

4.Order Information

CODE	CONNECTOR	CABLE SIZE	FIBER TYPE	CABLE TYPE	FIGURE
H02	1.SM Simplex 2.MM Simplex 3.APC Simplex 4.SM Duplex 5.MM Duplex 6.APC Duplex	1. 0.9 2. 2.0 3. 3.0	1.9/125 2.OM3 3.50/125 4.62.5/125	1.Yellow PVC 2.Orange PVC 3.White PVC 4.Yellow LSZH 5.Orange LSZH 6.White LSZH	1.Blue 2.Beige 3.Green 4.Black 5.Blue and Yellow 6.Red and Black

5.Fiber cable performance specifications

Fiber type	Min. Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km

Fiber type	Single mode: (1)9/125-G652D (2)9/125-G655 (3)9/125-G657A,,G657A2
Fiber type	Multimode: (4)50/125-OM2 (5)62.5/125-OM1 (6)50/125-OM3 (7)OM4
Fiber	YOFC, CORNING, OFS
Connector1	FC,LC,SC,ST.MU, MTRJ, E2000 SMA
Polishing	UPC,APC
Connector2	FC,LC,SC,ST.MU, MTRJ, E2000 SMA
Polishing	UPC,APC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,2.0mm, 3.0mm
Cable jacket	PVC,LSZH, OFNR, OFNP
length(M)	0.3m,1m,2m,5m,10m,25m,50m,100m (custom)

Here I'm willing to show you more information regarding our fiber optic patch cord.
1.All materials we use for fiber optic patch cord are environmental and imported from foreign country. At this stage, they had got CE, RoHS, FCC, Reach and EN50575 approved;
2.Low insert loss, the min insert loss of simple mode can reach to 1dB and Muti-mode can reach to 0.15dB;
3.High return loss, the max return loss is much more than 55dB and Muti-mode is much more than 35dB;
4.Good repetition, Additional Loss≤0.1dB and Reture Loss Variability<5dB;
5.Temperature Stability(-45ºC~85ºC);
6.Durability>1000 times;
7.Assemble with tricyclic ceramic ferrule;
8.All item are 100% inspected before shipment;

6.Application

1.Telecommunications;
2.CATV;
3.LAN, MAN, WAN;
4.Test &Measurement;
5.Military industry;
6.Medical;

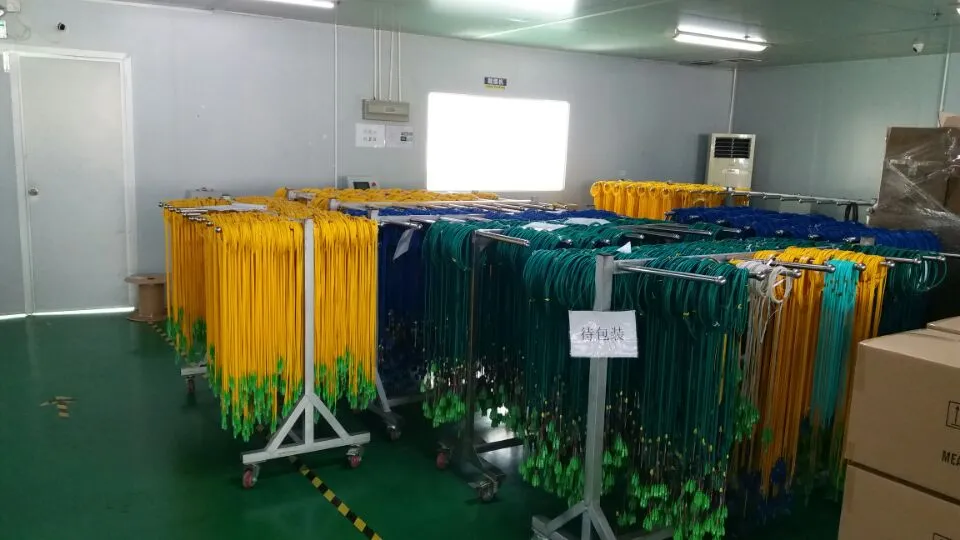

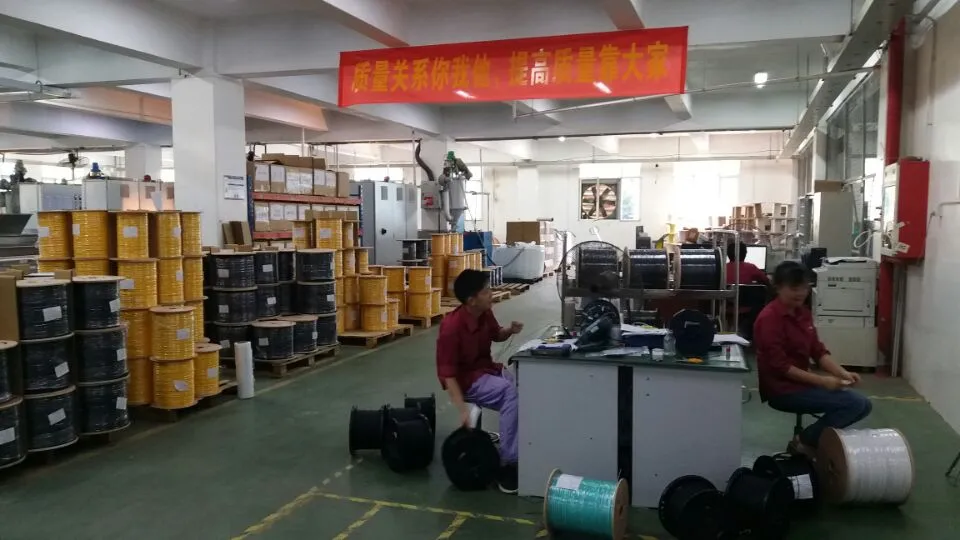

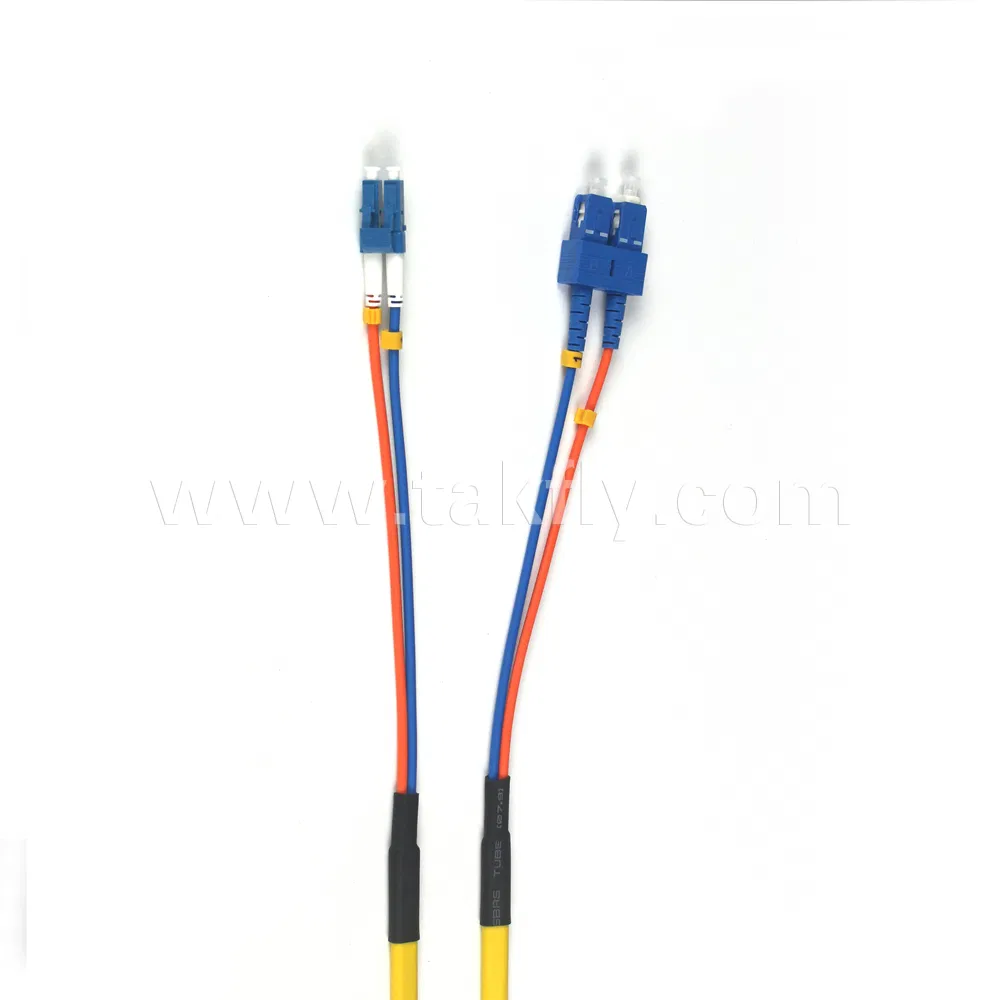

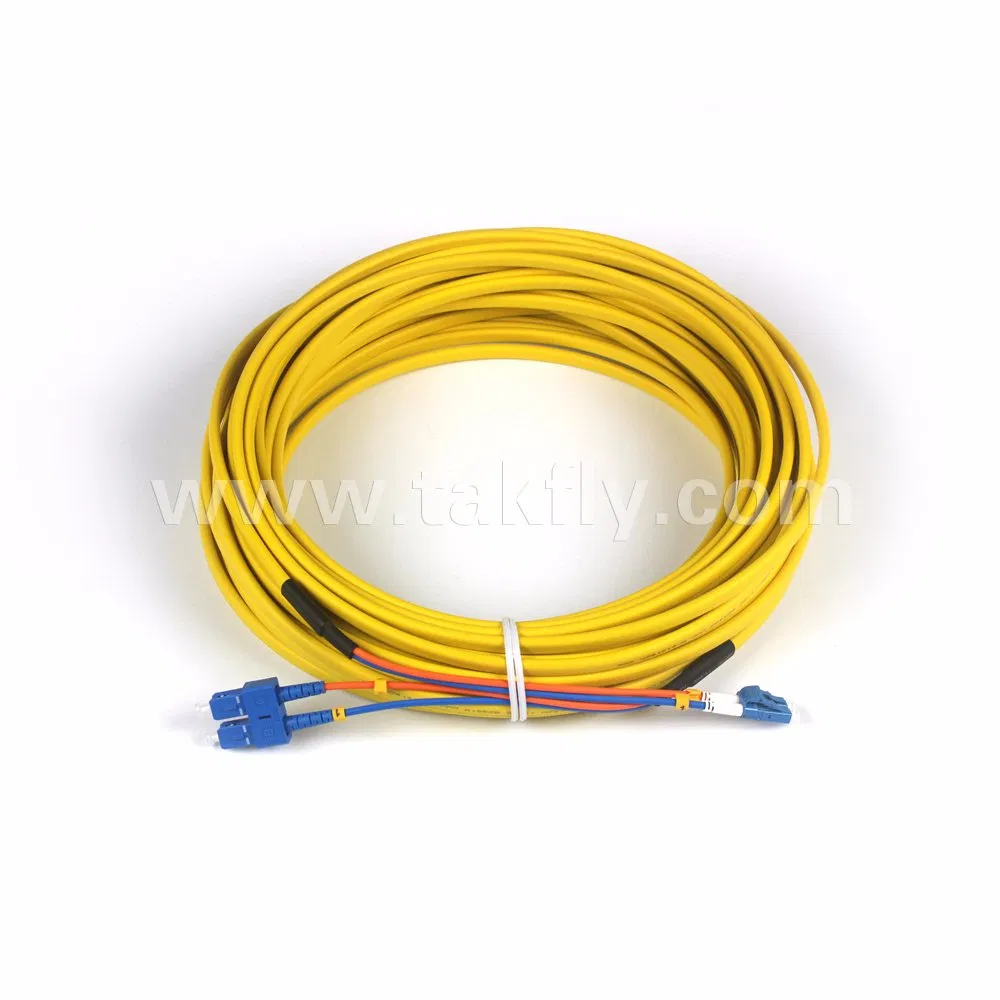

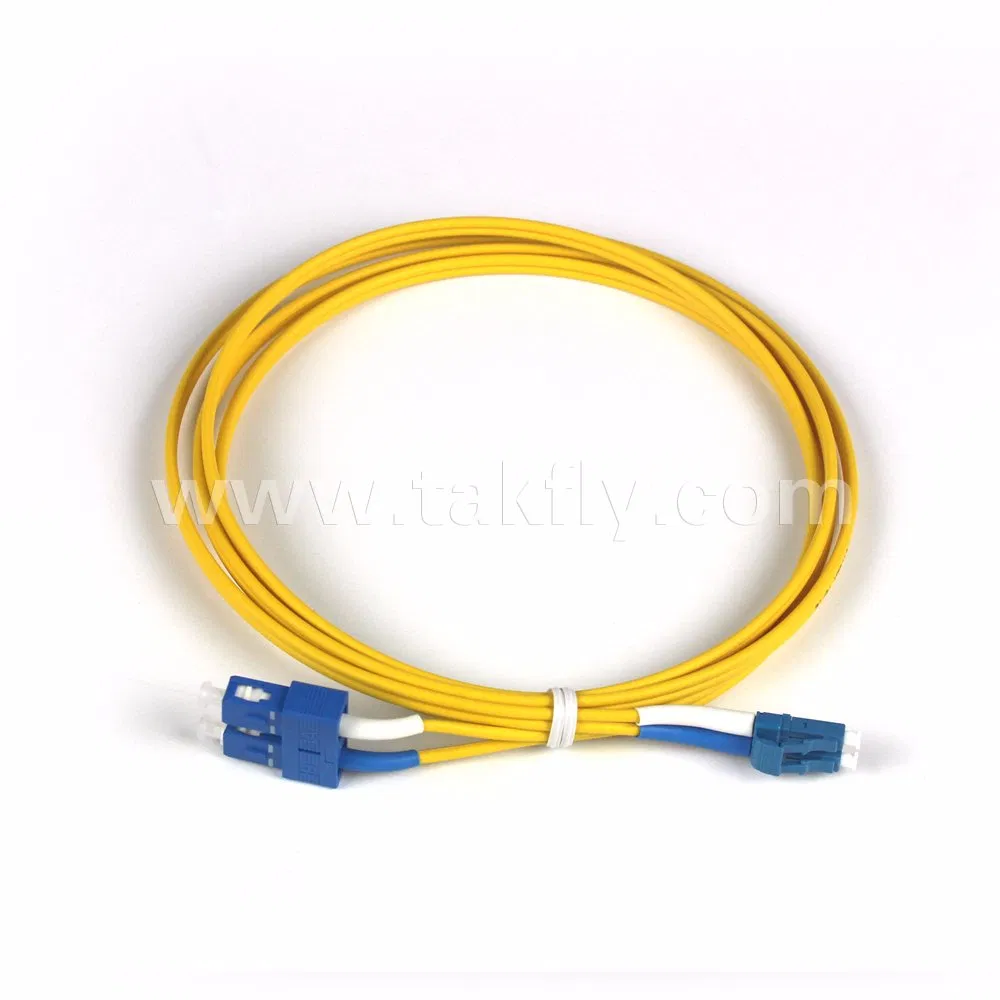

7.Item and Company images
