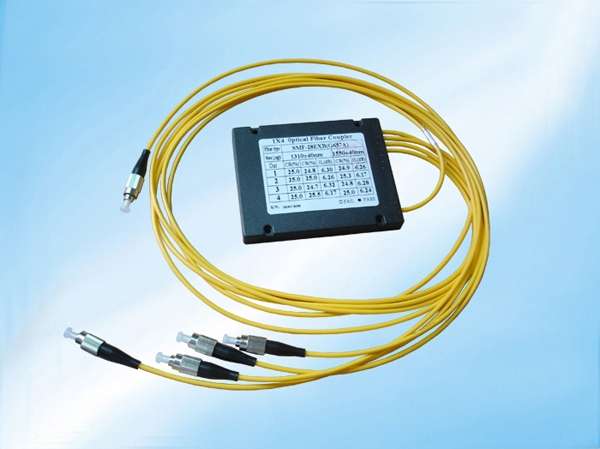

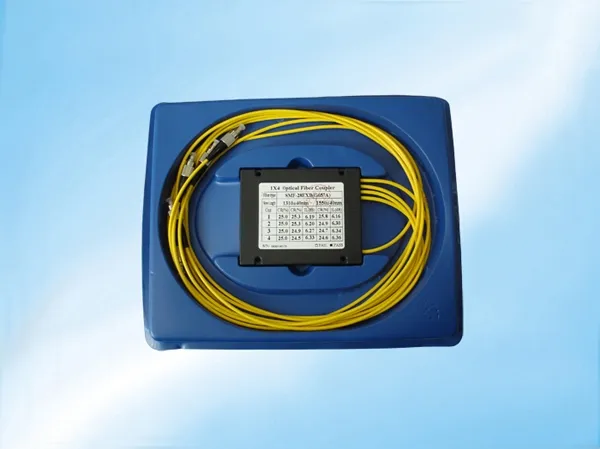

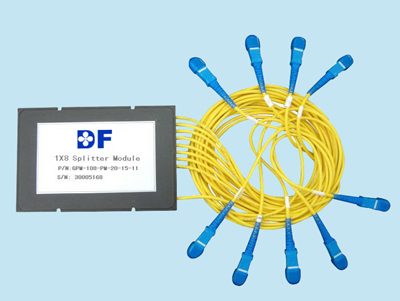

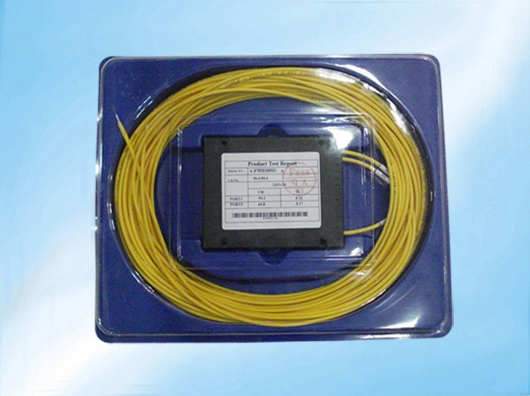

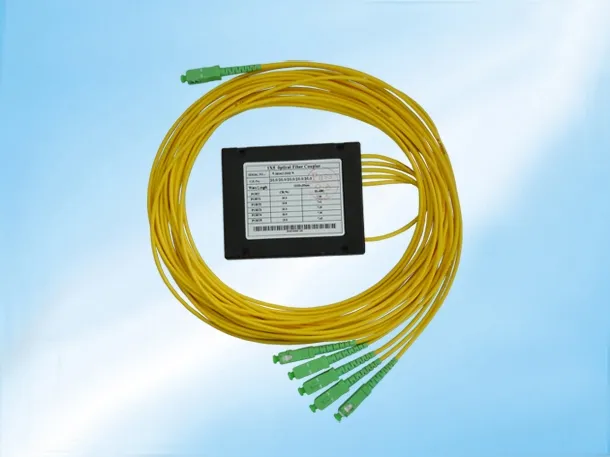

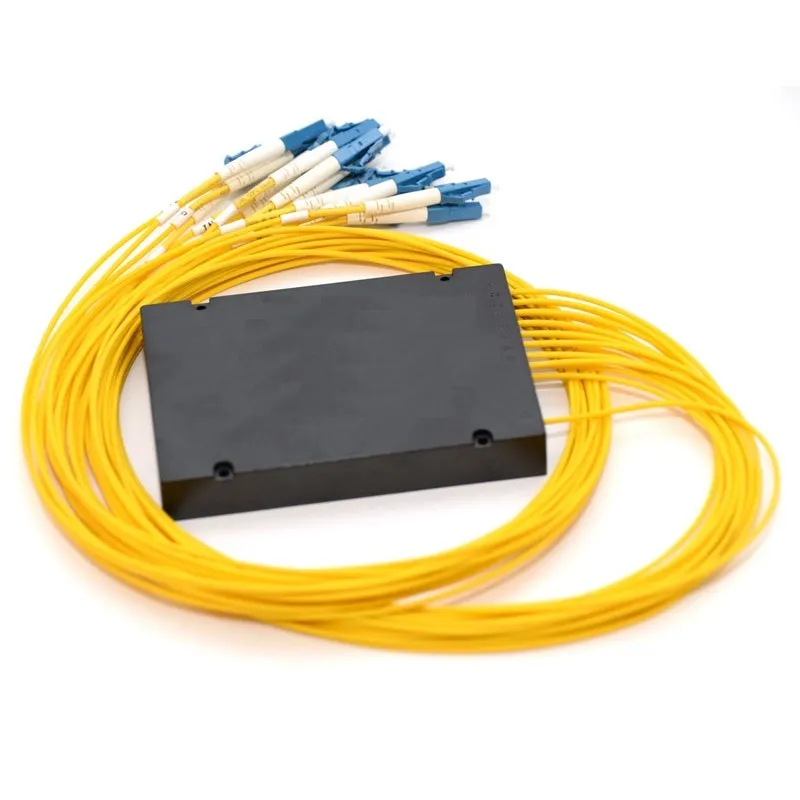

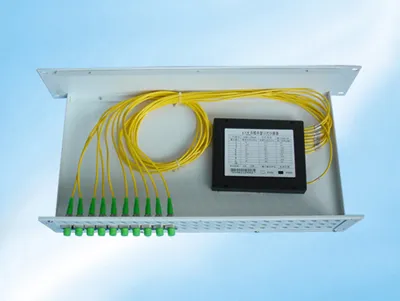

1xn 2xn Packaged ABS Plastic Box Fiber Optic PLC Splitter

Product Description

1xN 2xN Packaged ABS Plastic Box Fiber Optic PLC Splitter

Description:
Planar lightwave circuit (PLC) splitter is a type of optical power management device.
It is based on the planar optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.

Takfly provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features:
1. Low Insertion loss
2. Low Polarization Dependent Loss
3. High Return Loss
4. High Channel Counts Available
5. Uniform Power Splitting
6. Compact Design
7. Wide Wavelength Range
8. Large Operating Temperature Range
9. Excellent Environmental & Mechanical Stability
10. Qualified Under Telcordia GR-1221 and GR-1209

Applications:
1. FTTx (FTTB, FTTH, FTTC,FTTP,FTTN)
2. Analog/Digital Passive Optical Networks (PON)
3. Local Area Networks (LAN)
4. Cable Television (CATV) Systems
5. Test Equipments

Compliance:
--Telcordia GR-1209
--Telcordia GR-1221
1xn 2xn Packaged ABS Plastic Box Fiber Optic PLC Splitter

1×N PLC Splitter Specifications:
(Measured at room temperature and excludes connector loss)

Port Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	SMF-28e or customer specified
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	Typical	3.6	6.8	10.2	13.3	16.2	20.5
	Max	4.0	7.4	10.5	13.5	16.9	21.0
Loss Uniformity (dB)	Max	0.5	0.7	1.0	1.4	1.8	2.0
Return Loss (dB)	Min	55	55	55	55	55	55
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.8	0.5	0.8
Temperature Dependent Loss (-40~85 ºC) (dB)	Max	0.5	0.5	0.5	0.8	0.8	1
Operating Temperature (ºC)	-40~+85
Storage Temperature (ºC)	-40~+85
Packaging Size (mm)	Fan-Out	60x7x4	60x7x4	60x7x4	60x12x4	80x20x6	80x20x6

Remark:The above IL is for the PLC Splitter without connectors,for the PLC Splitter with connectors, the above IL should add 0.3dB each for APC connector,0.2dB each for UPC connector.

2×N PLC splitter Specifications:
(Measured at room temperature and excludes connector loss)

Port Configuration		2x2	2x4	2x8	2x16	2x32	2x64
Fiber Type	SMF-28e or customer specified
Operating Wavelength (nm)	1260~1650
Insertion Loss (dB)	Typical	3.8	7.4	10.8	14.2	17	21
Insertion Loss (dB)	Max	4.2	7.8	11.2	14.6	17.9	21.5
Loss Uniformity (dB)	Max	1.0	1.4	1.5	2	2.5	2.5
Return Loss (dB)	Min	50	50	50	50	50	50
Polarization Dependent Loss(dB)	Max	0.2	0.2	0.4	0.4	0.4	0.5
Directivity (dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.8	0.8	0.8	0.8	0.8	1
Temperature Dependent Loss (-40~85 ºC) (dB)	Max		0.5	0.5	0.8	0.8	1
Operating Temperature (ºC)	-40~+85
Storage Temperature (ºC)	-40~+85
Packaging Size (mm)	Fan-Out		60x7x4	80x12x4	80x12x4	80x20x6

Remark:The above IL is for the PLC Splitter without connectors,for the PLC Splitter with connectors, the above IL should add 0.3dB each for APC connector,0.2dB each for UPC connector.

Environmental Conditions:

Operating Temperature	ºC	-40~+85'
Storage Temperature	ºC	-40~+85
Operating Humidity	%RH	≤93
Storage Humidity	%RH	≤93

Ordering Information:

Structure	Package Type	Pigtail In	Pigtail Out	Connector	Fiber Core	Pigtail Length	Package

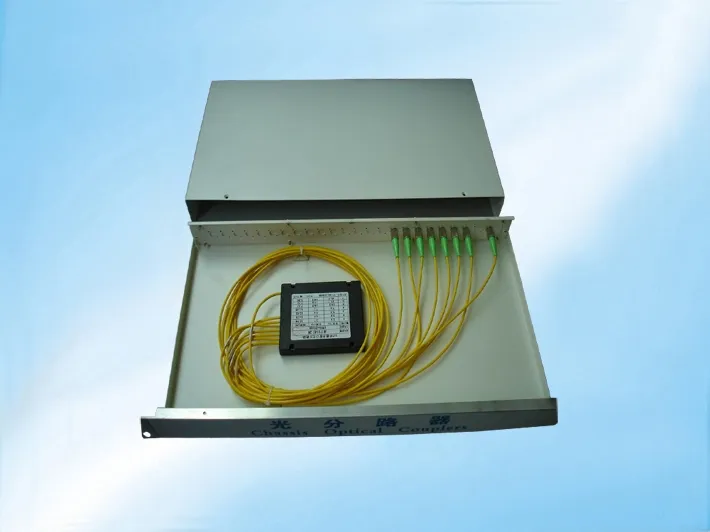

1002=1X2 1004=1X4 1032=1X32 1064=1x64 2002=2X2 2004=2X4 2008=2X8 2032=2X32 2064=2X64 xxxx=other	M= Miniature Package B= Box package R= Rack Mount P= Blade Package	B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other	B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other	SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX=other	S1=G652D S2= G657A1 M5=50/125 M6=62.5/125 M3=OM3 M4=OM4 XX=other	0.5M=0.5M 10M=10M XXX=other	S1,S2...S12 01,02,03,04 U,G,X
