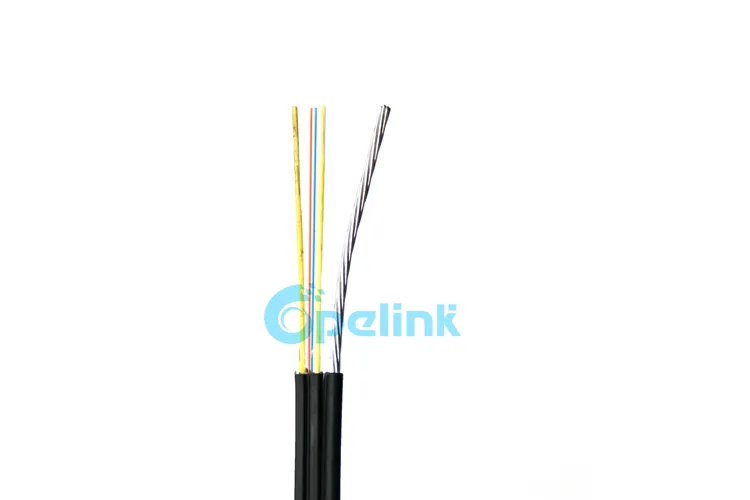

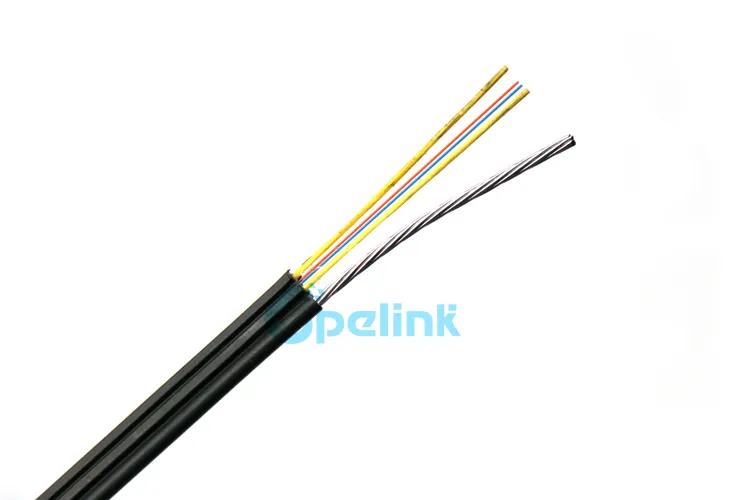

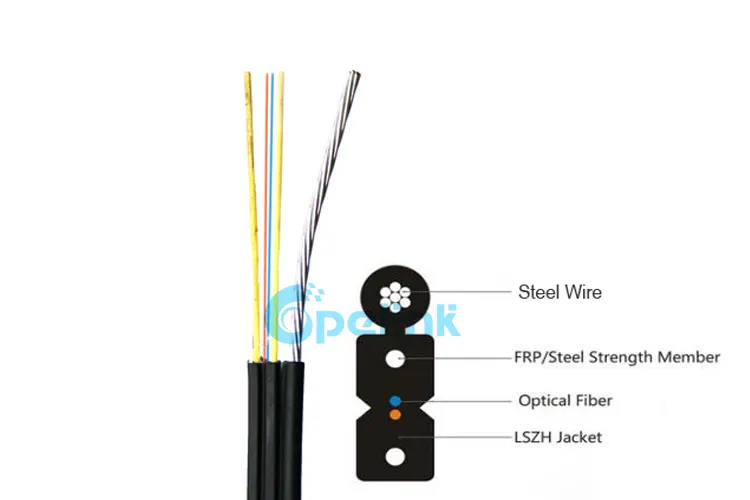

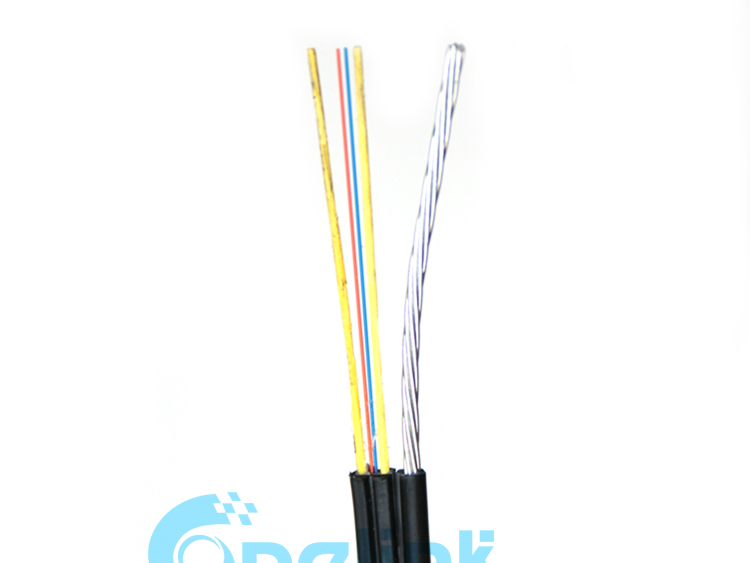

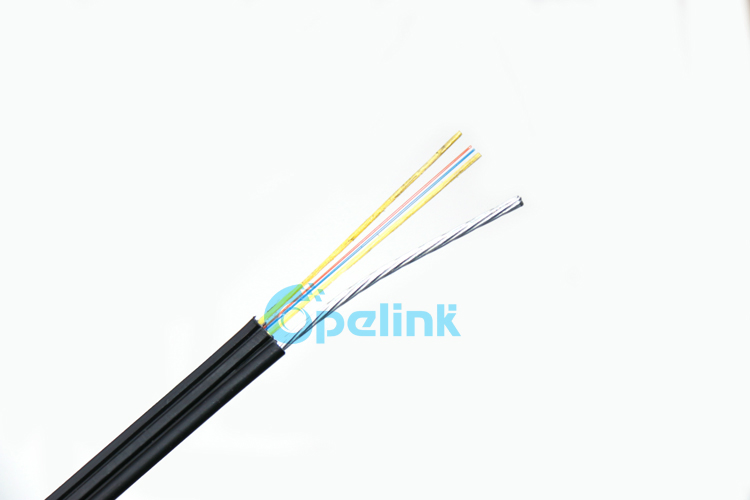

China 1/2/4core Bare Fibers Singlemode G657A1/G657A2, Metal Strength Member, FTTH Self-Supporting Bow-Type Stranded Steel Type Drop Fiber Optic Cable Gjyxch/GJYXFCH

Product Description

FTTH Self-Supporting Bow-Type Stranded Steel Type Drop Fiber Optic Cable Gjyxch/GJYXFCH

1/2/4core Bare Fibers Singlemode G657A1/G657A2, Metal Strength Member, FTTH Self-Supporting Bow-Type Stranded Steel Type Drop Fiber Optic Cable Gjyxch/GJYXFCH

Feartures:

Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation and low cost of installation.

Application:
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling under carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial cable)
to indoor;

Technical Parameters:

Outer diameter(mm)		5.2x2.0(2)	6.0x2.0(4)
Nominal Weight(kg/km)		20.0	21
Crush Resistance (N/100mm)Long/Short term		300 1000	300 1000
Tensile Strength(N) Long/Short term		200 600	200 600
Min.Bending Radius(mm)	Dynamic	30H
	static	15H
Temperature Range		-20ºC-70ºC

Order Information:

Fiber Core	Fiber Type	Count	Cable OD	reinforcer	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other	S=simplex Z=zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.96.0mm 05=1.93.1mm 06=4.27.6mm 07=9.0mm 08=11.2mm 09=4.07.0mm XX=other	1=Kevlar 2=FRP 3=Armoured steel tape 4=Steel wire 5= Armoured steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate , 06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other
