Product Description

FTTH Drop Cable

Description:

FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables, and it's ideal for indoor cabling, end users directly cabling, and access network.

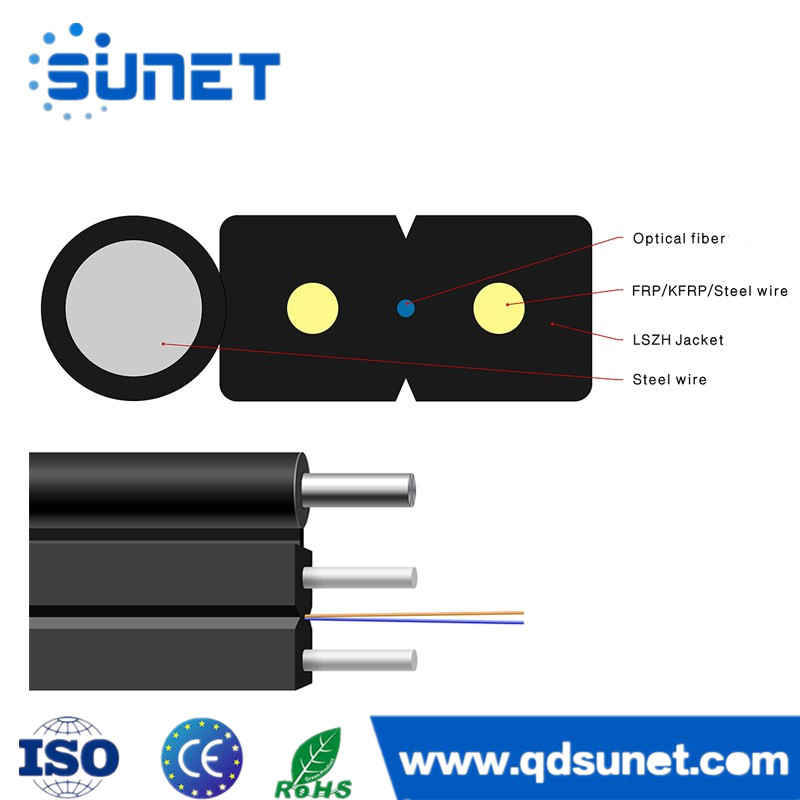

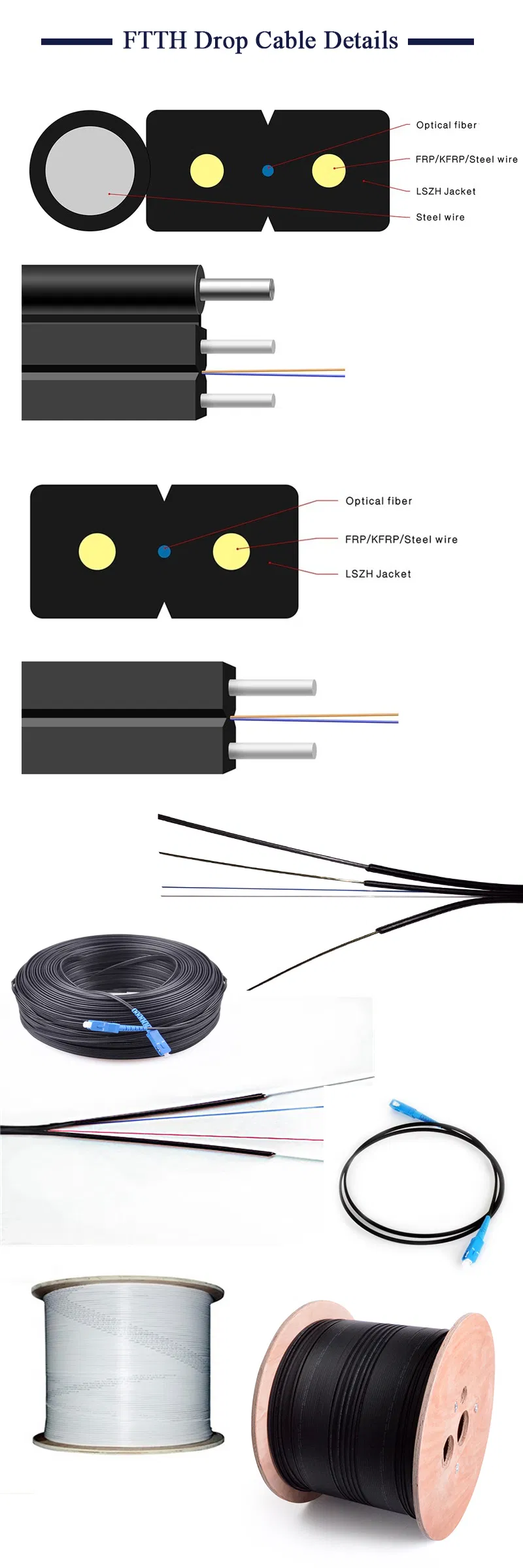

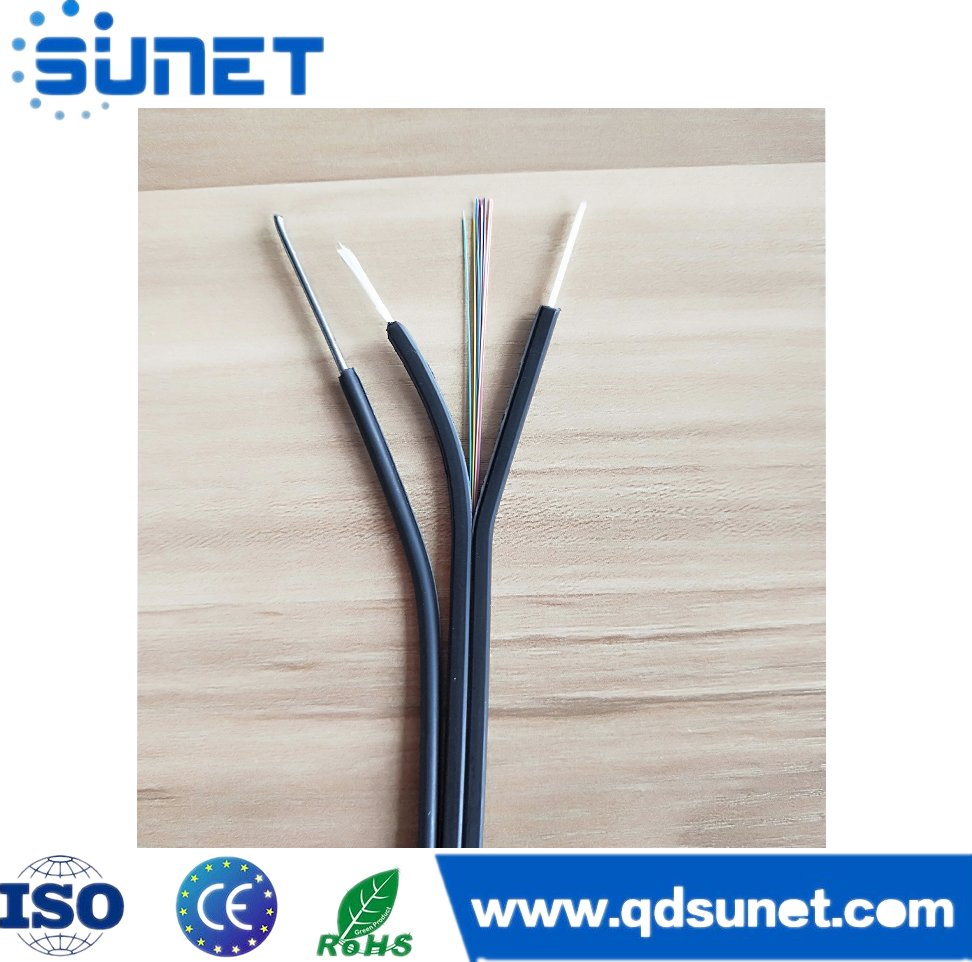

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A ).The cable is protected by a dielectric strength member, suitable for direct aerial installationinto the houses in FTTH projects.

Feature:

Indoor Drop Cable

•Same function of the common indoor fiber cables.
•Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.

Outdoor Drop Cable

Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
Meet the requirement of thunder-proof, anti-rodent or waterproof.
Good to use for fiber to the home last mile solution.

Application:

Indoor Drop Cable

Local Area Network (LAN).
Used end users directly cabling.
FTTH (fiber to the home) indoor cabling and distribution (video, audio and data signals).

Outdoor Drop Cable

Outdoor aerial application.
Used in the FTTH projects.
High speed optical routes in building.

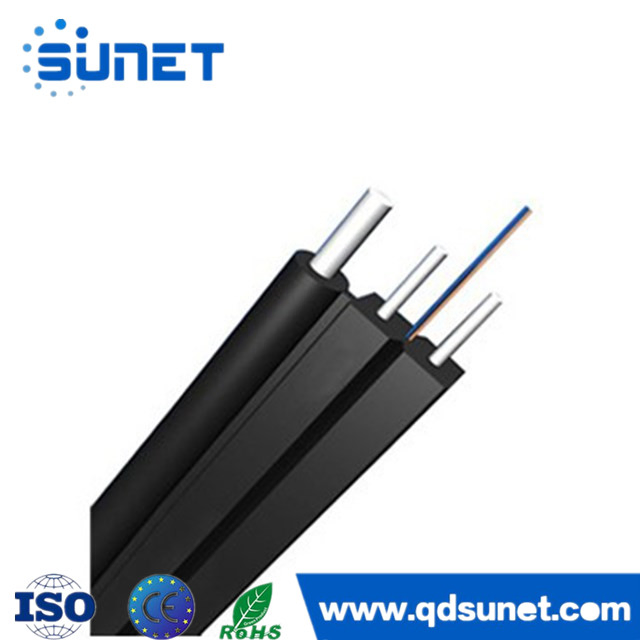

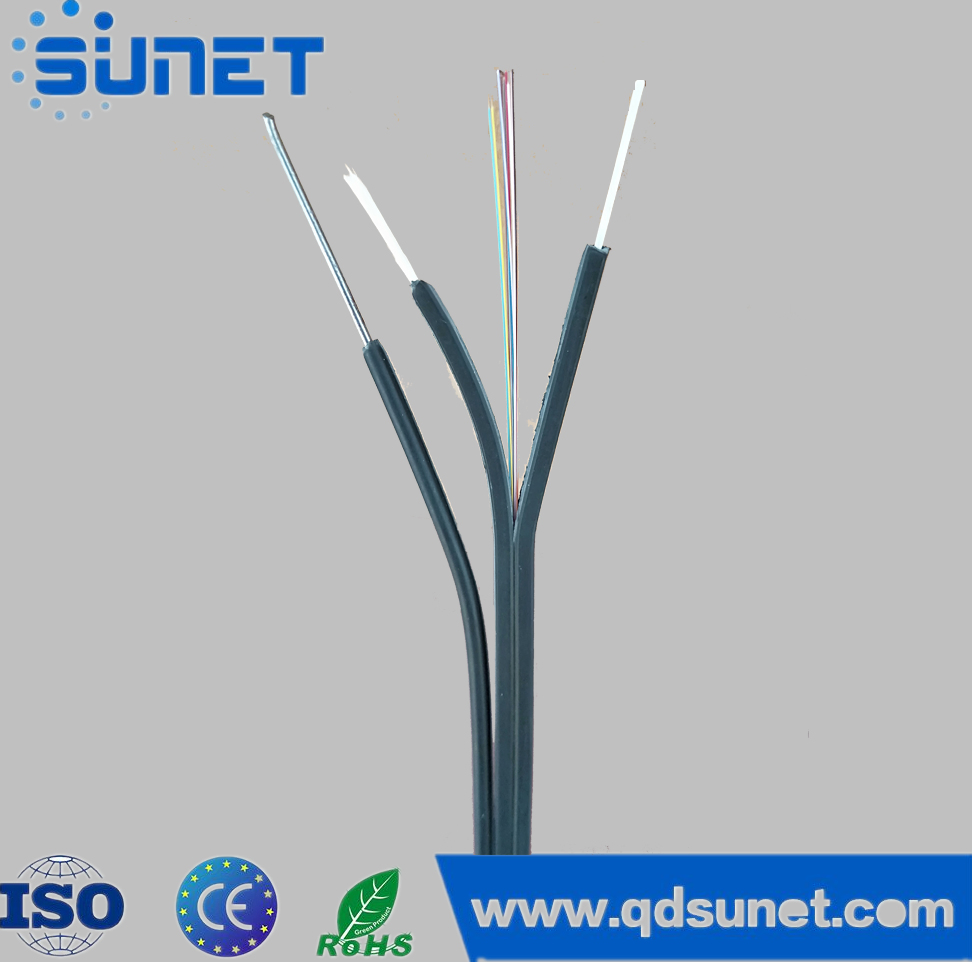

1-12 Fiber Gjyxch Self-Supporting Messenger Type Outdoor FTTH Drop Cable

Cable type	OD (mm)	Nominal Weight (kg/km)	Tensile Strength (N)		Crush Resistance (N/100MM)		Bending Radius (mm)
Cable type	OD (mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GJXFH-1Xn	(2.0±0.1)*(3.0±0.1)	7. 5	200	100	1000	500	20D	15D
GJXFH-2Xn	(2.0±0.1)*(3.0±0.1)	7. 5	200	100	1000	500	20D	15D
GJXFH-3Xn	(2.0±0.1)*(3.0±0.1)	7. 5	200	100	1000	500	20D	15D
GJXFH-4Xn	(2.0±0.1)*(3.0±0.1)	7. 5	200	100	1000	500	20D	15D
Storage/Working temperature (°C)			-20-60

Cable type	OD(mm)	Nominal Weight (kg/km)	Tensile Strength (N)		Crush Resistance (N/100MM)		Bending Radius (mm)
Cable type	OD(mm)	Nominal Weight (kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GJYXFH-1Xn	(2.0±0.1)*(6.2±0.3)	23. 6	600	300	2200	1000	20D	15D
GJYXFH-2Xn	(2.0±0.1)*(6.2±0.3)	23. 6	600	300	2200	1000	20D	15D
GJYXFH-3Xn	(2.0±0.1)*(6.2±0.3)	23. 6	600	300	2200	1000	20D	15D
GJYXFH-4Xn	(2.0±0.1)*(6.2±0.3)	23. 6	600	300	2200	1000	20D	15D
Storage/Working temperature (°C)			-20~ + 60

Note: Xn is fiber optic model and D is the diameter of optical cable.
