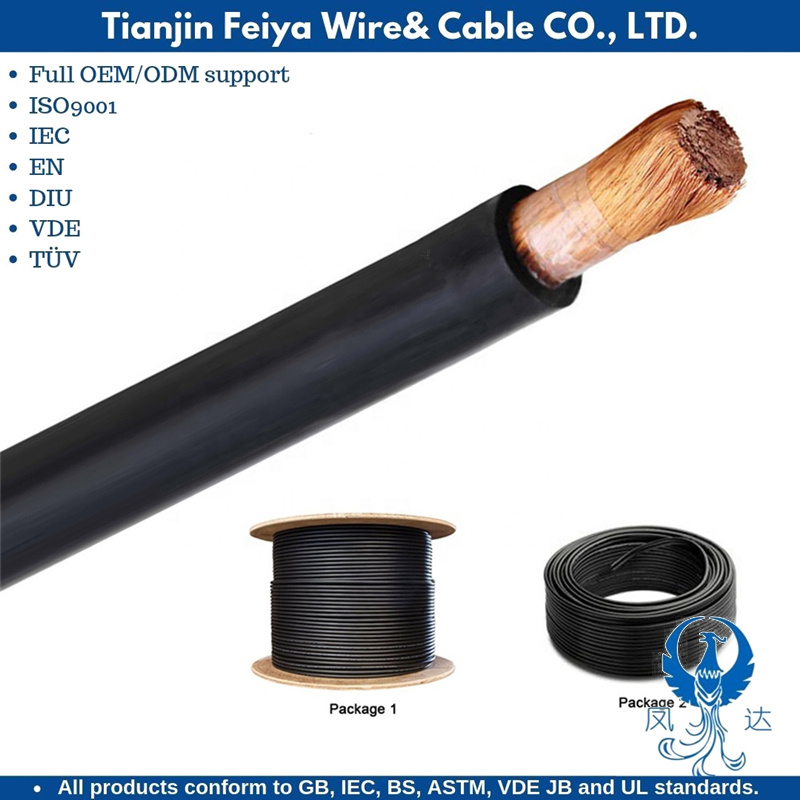

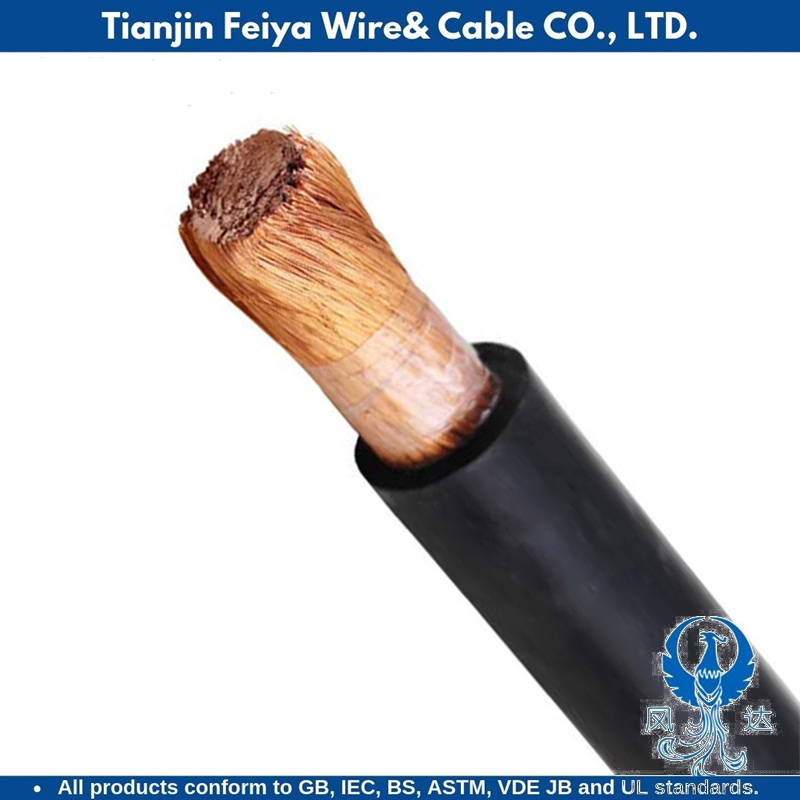

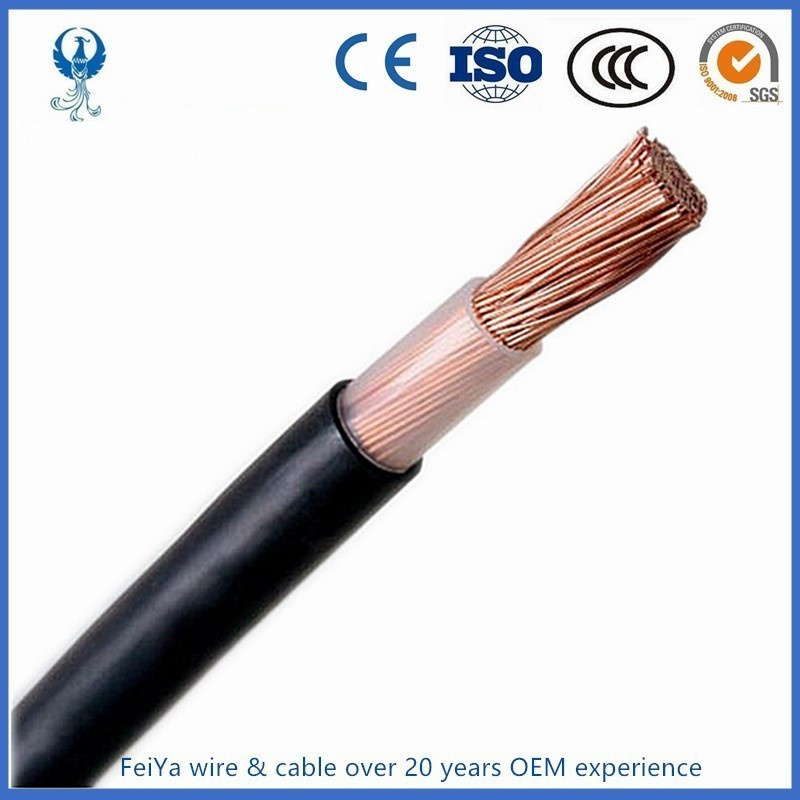

Welding Rubber Cable H01n2-D/E Rubber Sheath Cable Electric Cable Wire Waterproof Rubber Cable
Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available. Application and DescriptionThese cables are used as a connection between the welding generator, the hand-electrode and the work p......
Send Inquiry

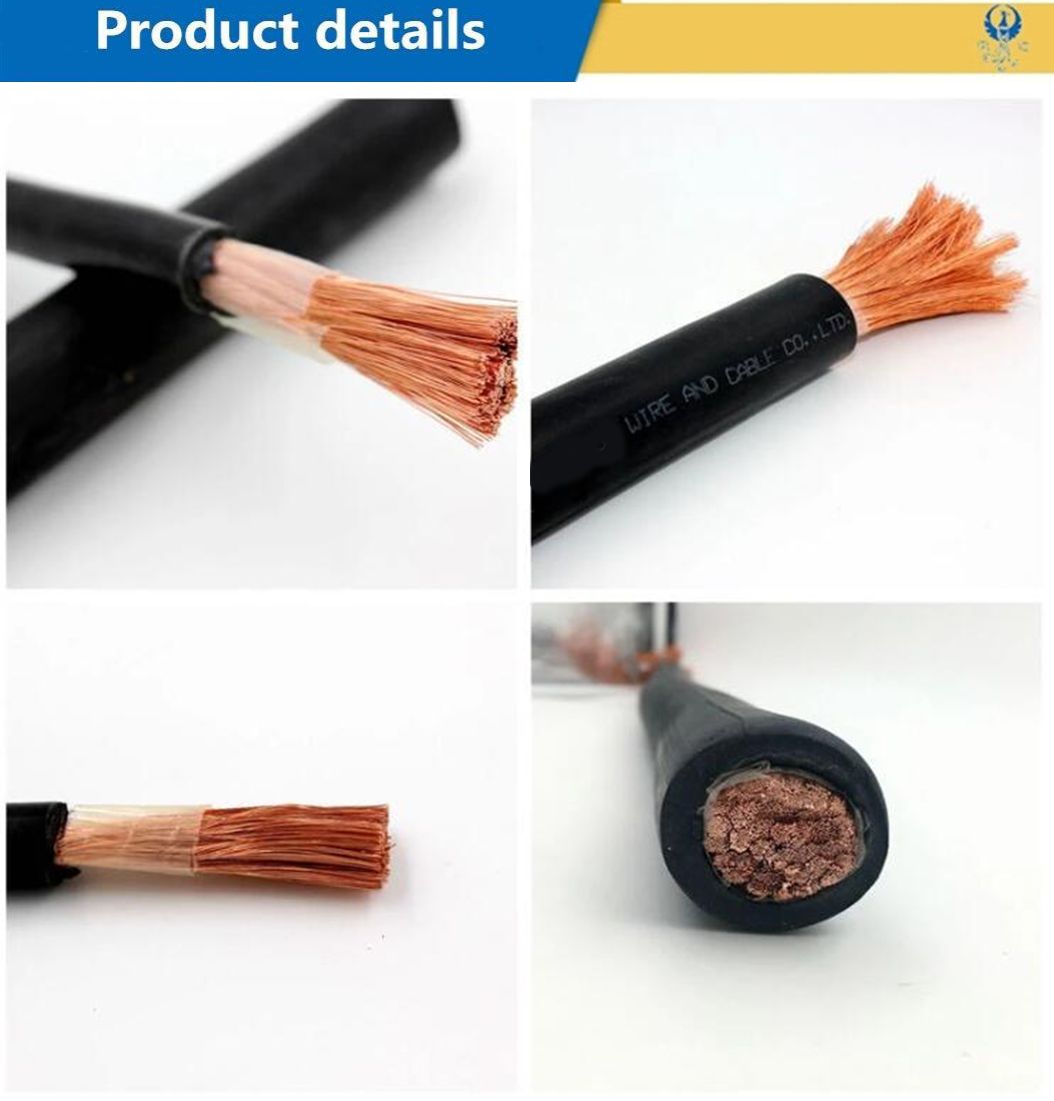

Product Description
| Introduction | |
| 1 | Can be customized according to requirements. |
| 2 | Independent brand recruitment agency. |
| 3 | High quality, ISO 9001, CCC, CE, RoHS certified. |
| 4 | ODM&OEM is available. |
Application and Description
These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc.
These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols.
These cables are also ideal for outside installation in dry, moist and wet areas.
Standard and Approval
- <HAR> HD22.6 S2
- VDE-0282 Part-6
- IEC 60332.3
- IEC 60754.1
- UNEL 35368
- CEI 20-22 II
- CEI 20-38
- CE low voltage directive 73/23/EEC & 93/68/EEC
- ROHS compliant
Technical Characteristics
| WORKING VOLTAGE | 100/100 volts |
|---|---|
| TEST VOLTAGE | 1000 volts |
| FLEXING BENDING RADIUS | 12.0 x Ø |
| FIXED BENDING RADIUS | 7.5 x Ø |
| FLEXING TEMPERATURE | -25 ºC to +80 ºC |
| FIXED TEMPERATURE | -40 ºC to +80 ºC |
| FLAME RETARDANT | IEC 60332.1 |

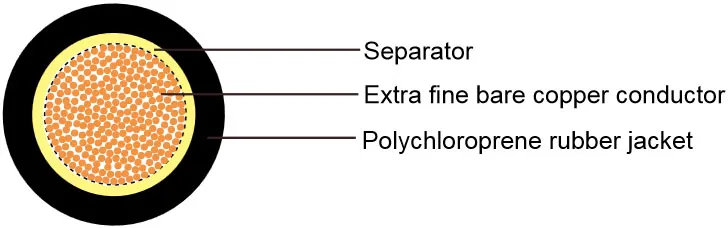

Cable Parameter
CABLES WITH STANDARD AND APPROVAL FLEXIBILITY
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|---|
| # X MM² | MM | MM | KG/KM | KG/KM | |
| 8(320/32) | 1 x 10 | 2.0 | 7.7-9.7 | 96 | 135 |
| 6(512/32) | 1 x 16 | 2.0 | 8.8-11.0 | 154 | 205 |
| 4(800/32) | 1 x 25 | 2.0 | 10.1-12.7 | 240 | 302 |
| 2(1120/32) | 1 x 35 | 2.0 | 11.4-14.2 | 336 | 420 |
| 1(1600/32) | 1 x 50 | 2.2 | 13.2-16.5 | 480 | 586 |
| 2/0(2240/32) | 1 x 70 | 2.4 | 15.3-19.2 | 672 | 798 |
| 3/0(3024/32) | 1 x 95 | 2.6 | 17.1-21.4 | 912 | 1015 |
| 4/0(614/24) | 1 x 120 | 2.8 | 19.2-24.0 | 1152 | 1310 |
| 300MCM(765/24) | 1 x 150 | 3.0 | 21.2-26.4 | 1440 | 1620 |
| 350MCM(944/24) | 1 x 185 | 3.2 | 23.1-28.9 | 1776 | 1916 |
| 500MCM(1225/24) | 1 x 240 | 3.4 | 25.0-29.5 | 2304 | 2540 |
CABLES WITH EXTREME HIGH FLEXIBILITY
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|---|
| # X MM² | MM | MM | KG/KM | KG/KM | |
| 8(566/35) | 1 x 10 | 1.2 | 6.2-7.8 | 96 | 119 |
| 6(903/35) | 1 x 16 | 1.2 | 7.3-9.1 | 154 | 181 |
| 4(1407/35) | 1 x 25 | 1.2 | 8.6-10.8 | 240 | 270 |
| 2(1974/35) | 1 x 35 | 1.2 | 9.8-12.3 | 336 | 363 |
| 1(2830/35) | 1 x 50 | 1.5 | 11.9-14.8 | 480 | 528 |
| 2/0(3952/35) | 1 x 70 | 1.8 | 13.6-17.0 | 672 | 716 |
| 3/0(5370/35) | 1 x 95 | 1.8 | 15.6-19.5 | 912 | 1012 |
| 4/0(3819/32) | 1 x 120 | 1.8 | 17.2-21.6 | 1152 | 1190 |
| 300MCM(4788/32) | 1 x 150 | 1.8 | 18.8-23.5 | 1440 | 1305 |
| 500MCM(5852/32) | 1 x 185 | 1.8 | 20.4-25.5 | 1776 | 1511 |
