Vsf /Hvsf 0.75mm2 PVC Insulated Single Core Copper Wire for Power Supply Cord
VSF/HVSF 0.75mm2 PVC Insulated Single Core Copper Wire For Power Supply CordRated temperature:VSF:60ºC/HVSF: 75ºCRated voltage:300VReference standard:JIS C 3306Stranded bare copper conductor 0.5~2.0mm2PVC insulation , comply with ROHS environmental standardPasses JIS C3305-4.26.2(b......
Send Inquiry
Product Description

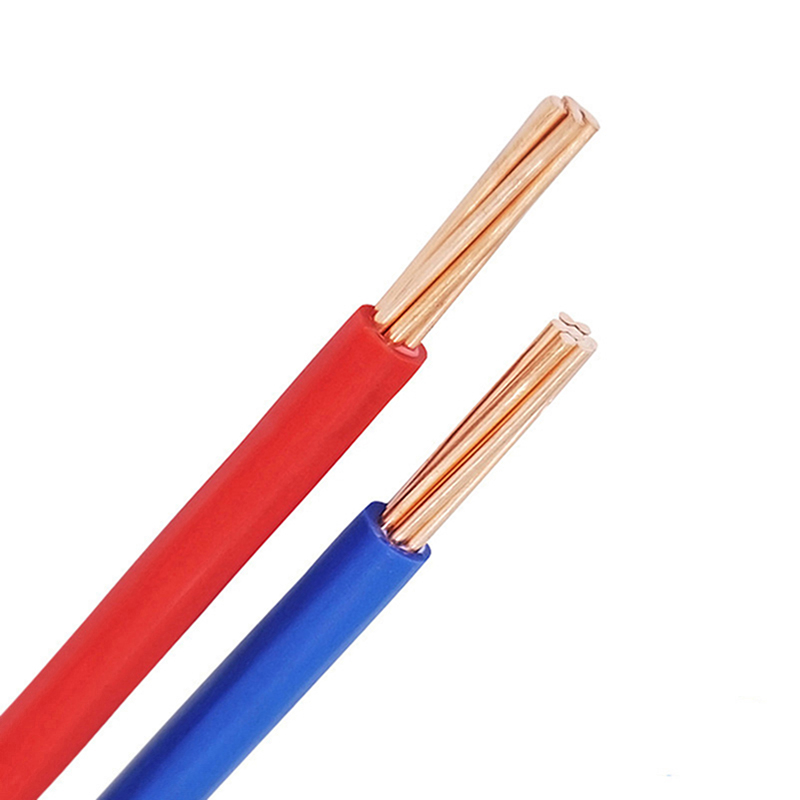

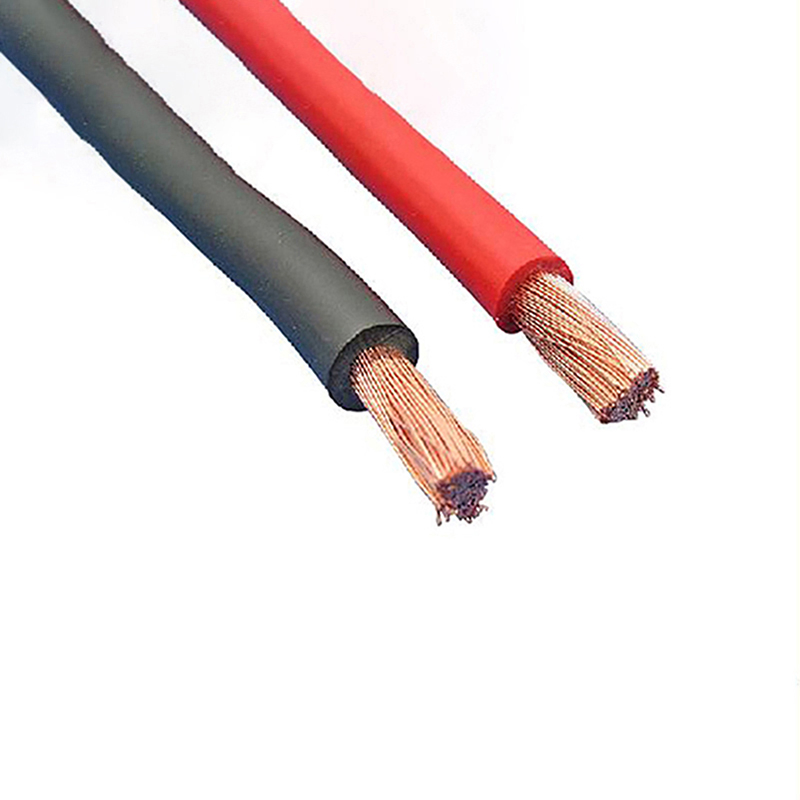

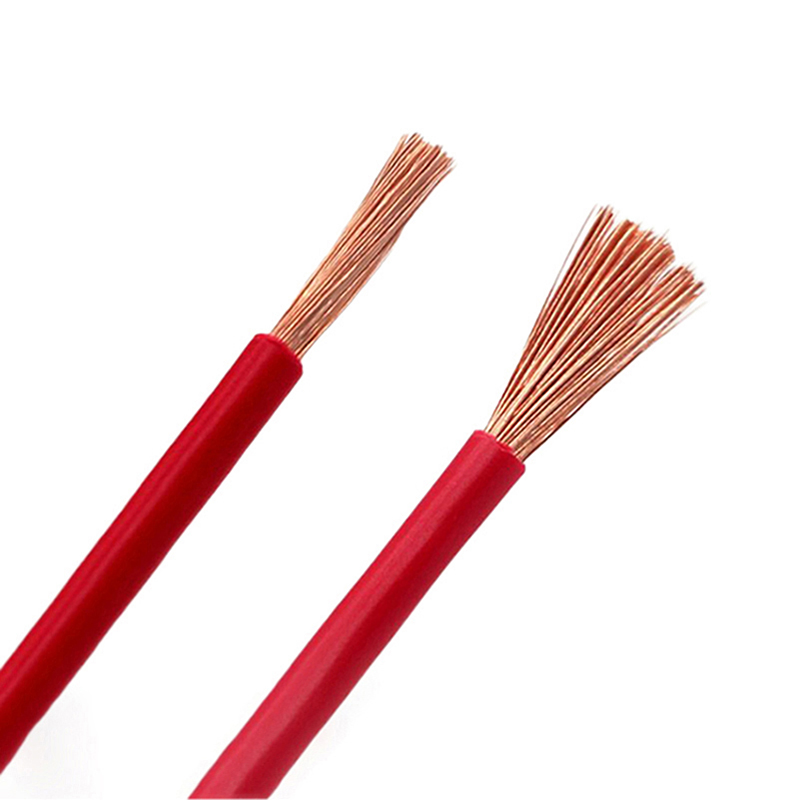

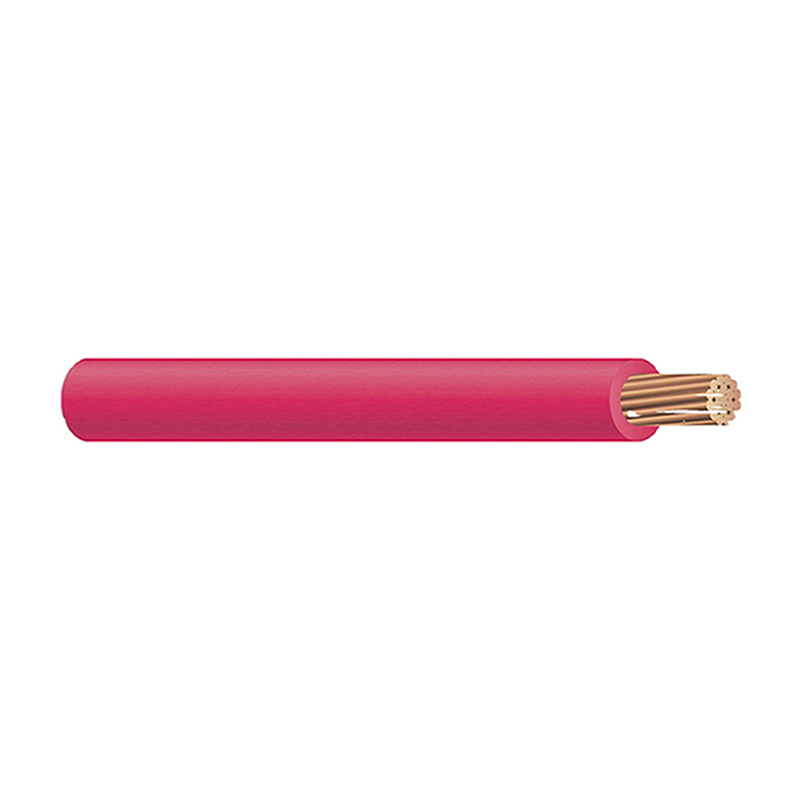

VSF/HVSF 0.75mm2 PVC Insulated Single Core Copper Wire For Power Supply Cord
★Rated temperature:VSF:60ºC/HVSF: 75ºC
★Rated voltage:300V
★Reference standard:JIS C 3306
★Stranded bare copper conductor 0.5~2.0mm2
★PVC insulation , comply with ROHS environmental standard
★Passes JIS C3305-4.26.2(b) flame test
★Uniform insulation thickness to ensure easy stripping and cutting
★For general purpose use for power supply cord
| Conductor | Finished product | Maximum Resistance at 20ºC | ||
| Cross Sectional Area | NO.of Cond | Insulation Thick. | Outside Thick. | |
| mm2 | No./mm | mm | mm | Ω/mm |
| 0.5 | 20/0.18 | 0.8 | 2.5 | 36.7 |
| 0.75 | 30/0.18 | 0.8 | 2.7 | 24.4 |
| 1.25 | 50/0.18 | 0.8 | 3.1 | 14.7 |
| 2 | 37/0.26 | 0.8 | 3.5 | 9.5 |
