UL3304 10kv 200 Degree Celcius Silicone Rubber Fiberglass Braid Wire
UL3304 10kv 200 Degree Celcius Silicone Rubber Fiberglass Braid WireDescriptionName: 200deg.C silicone insulated fiberglass braided AGRP wireModel No.:( UL3071 UL3074 UL3075 UL3122 UL3304)Size:24AWG~16AWGFeatureRating temp:150deg.C,200deg.CRating voltage:300V,600VConductor: Nickel Copper, Tinned Cop......
Send Inquiry
Product Description

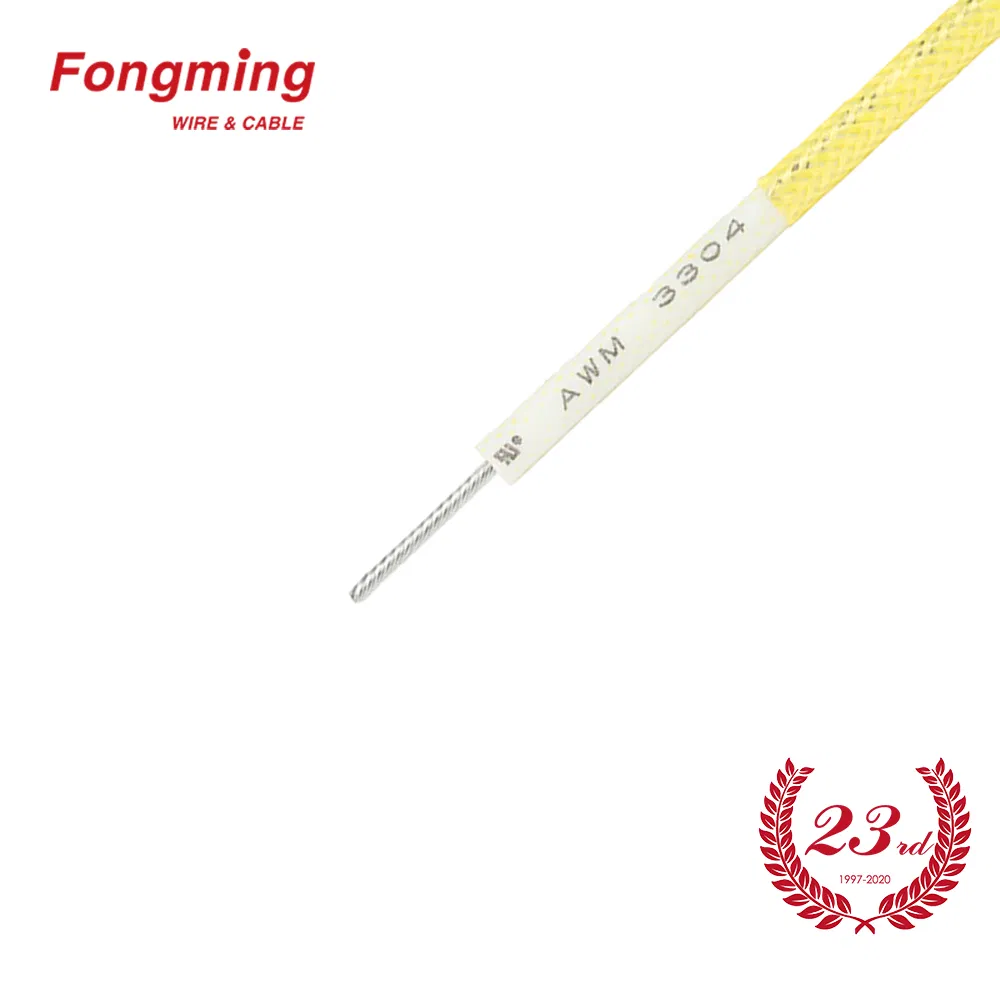

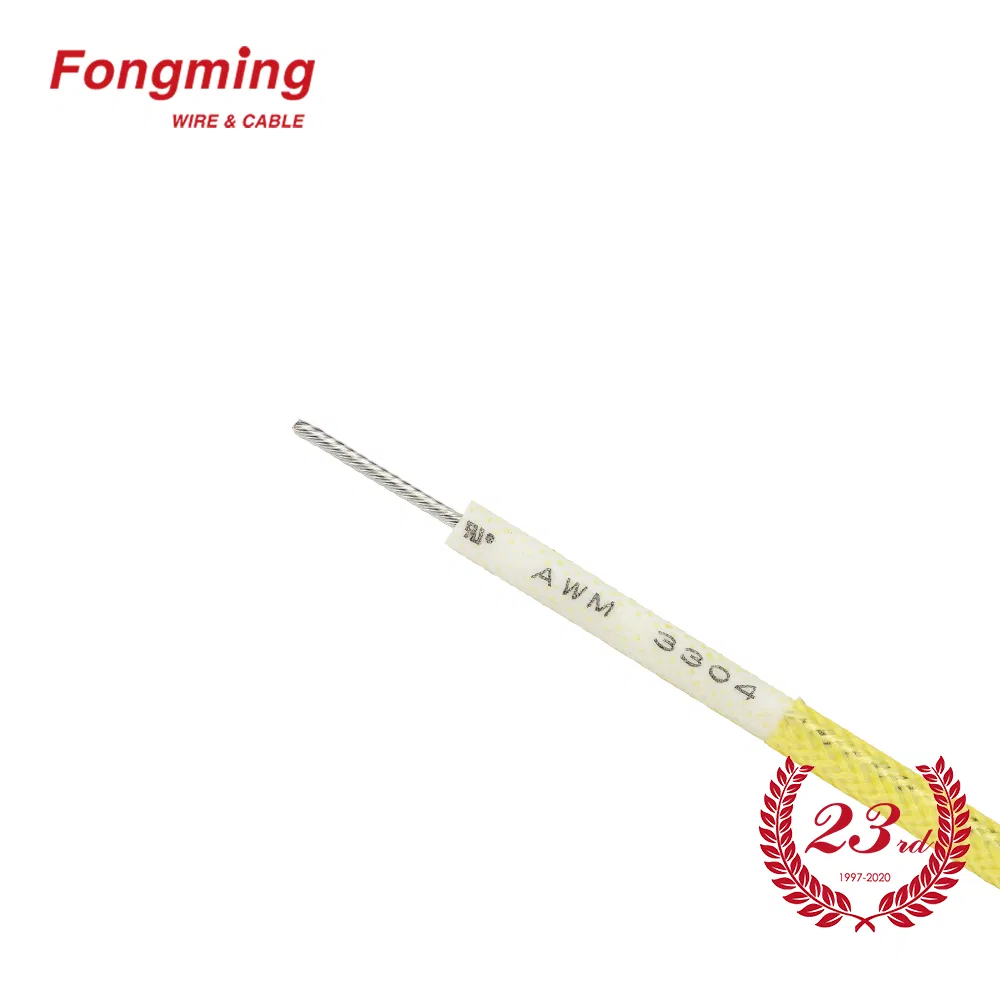

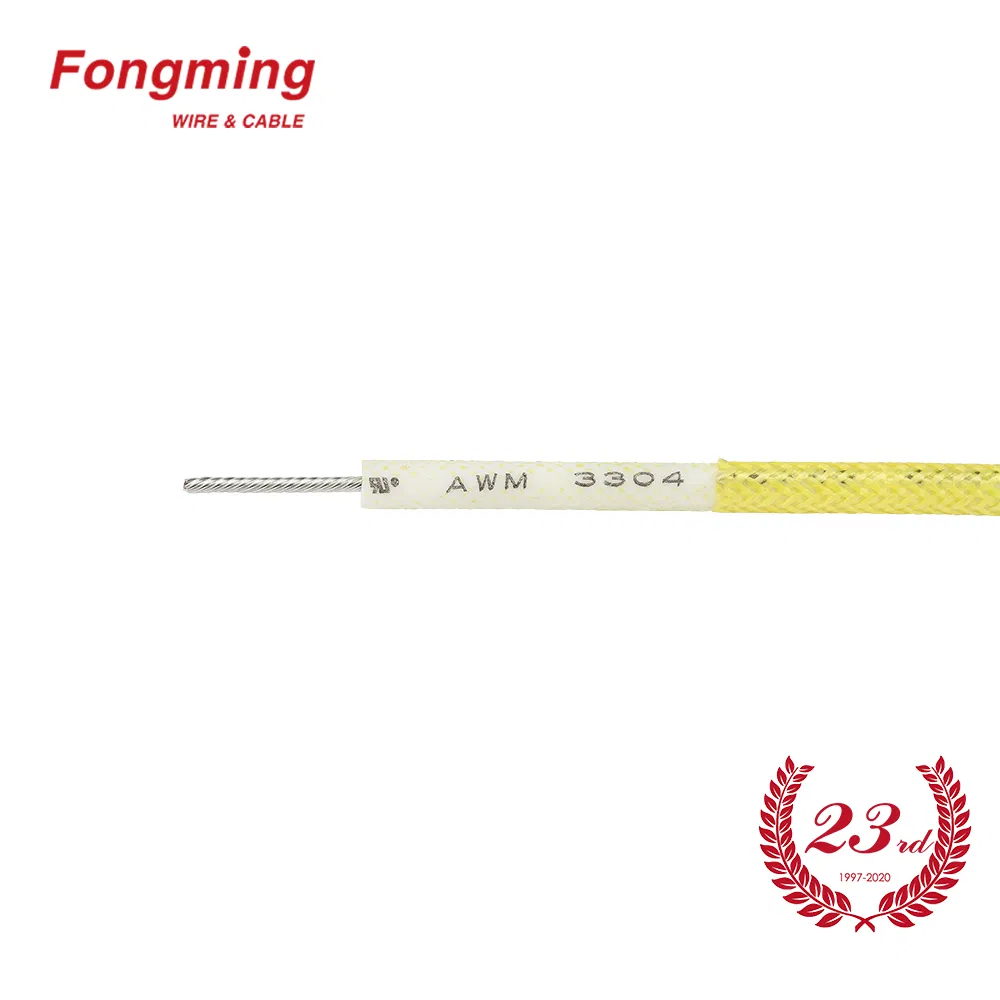

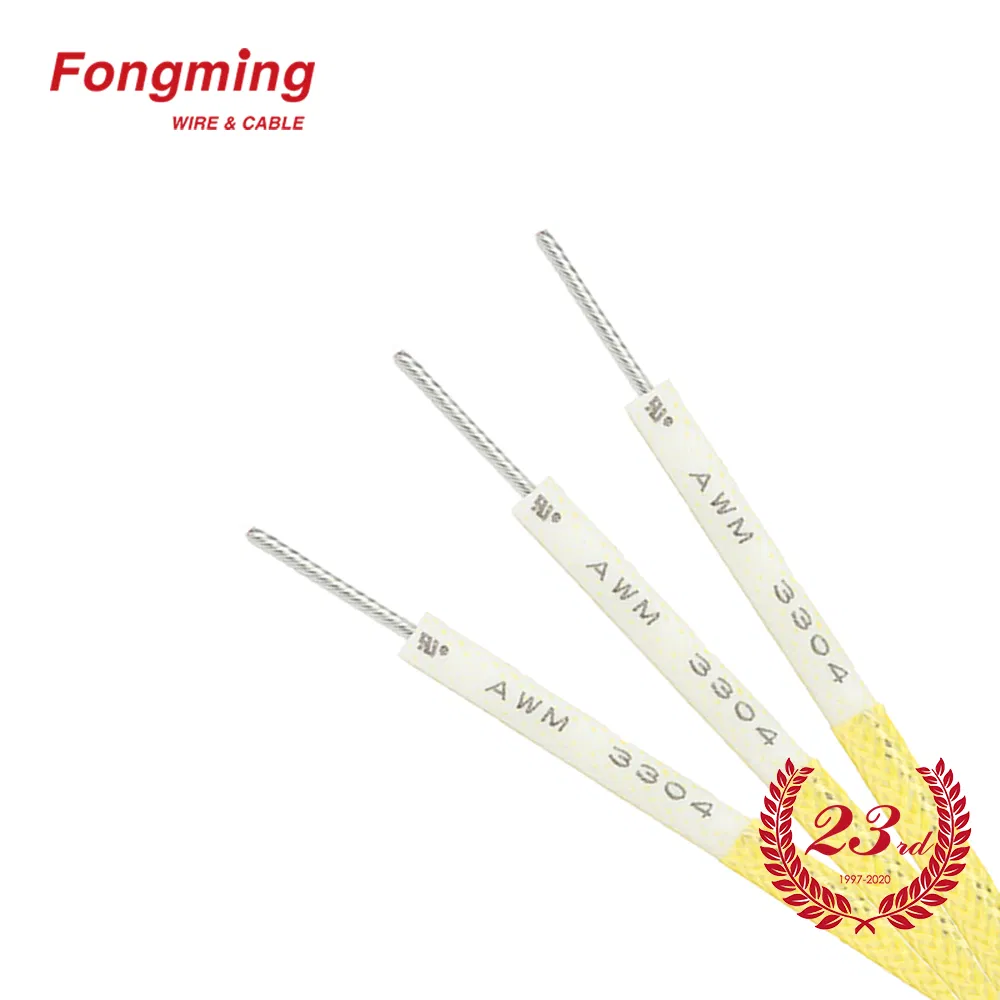

UL3304 10kv 200 Degree Celcius Silicone Rubber Fiberglass Braid Wire
Description
Name: 200deg.C silicone insulated fiberglass braided AGRP wire
Model No.:( UL3071 UL3074 UL3075 UL3122 UL3304)
Size:24AWG~16AWG
Feature
Rating temp:150deg.C,200deg.C
Rating voltage:300V,600V

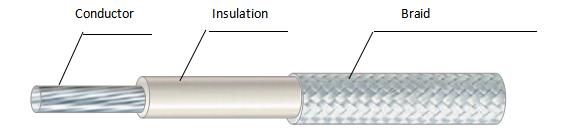

Conductor: Nickel Copper, Tinned Copper
Insulation: Extruded Silicone Rubber
Out covering: braided fiberglass with high temperature finish
Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.

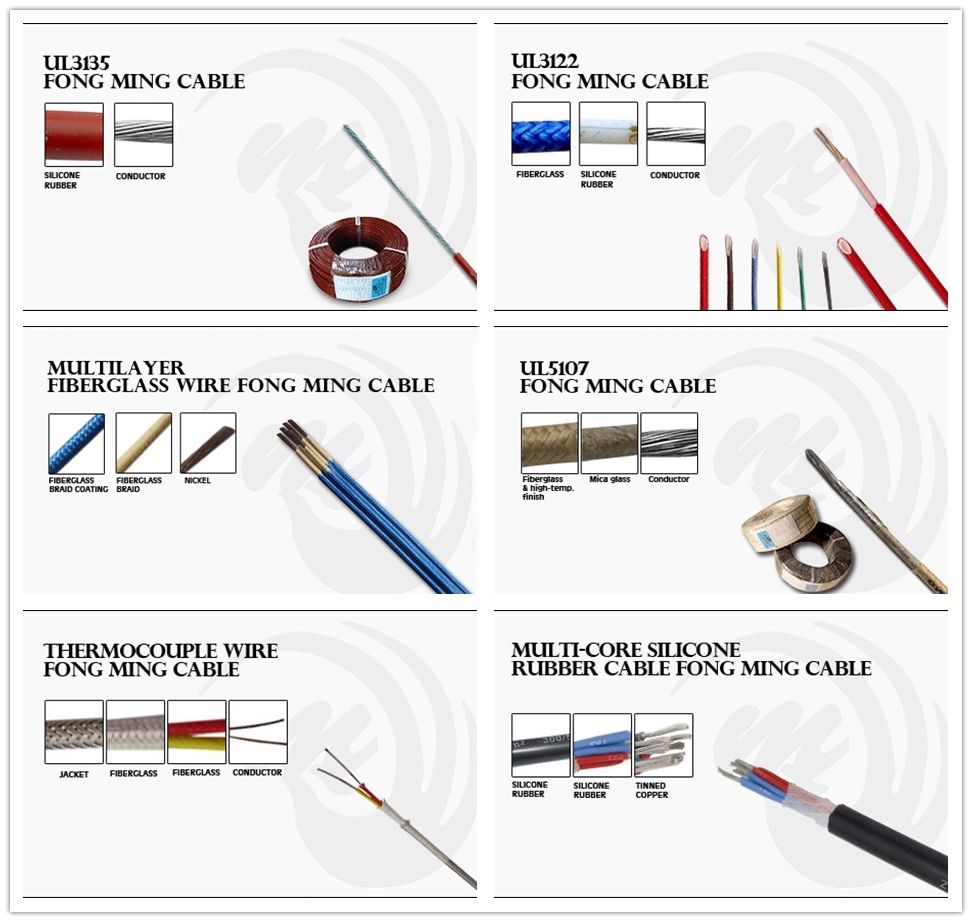

Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Description
Name: 200deg.C silicone insulated fiberglass braided AGRP wire
Model No.:( UL3071 UL3074 UL3075 UL3122 UL3304)
Size:24AWG~16AWG
Feature
Rating temp:150deg.C,200deg.C
Rating voltage:300V,600V
Conductor: Nickel Copper, Tinned Copper
Insulation: Extruded Silicone Rubber
Out covering: braided fiberglass with high temperature finish
Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.
| Size (AWG) | Conductor Construction (mm) | Insulation thickness (mm) | Braid Thickness (mm) | Diameter(mm) | Max.Resistance Ω/KM (At 20ºC) |
| 22 | 17/0.16 | >=1.0 | 0.18 | 3.2±0.1 | 59.4 |
| 20 | 26/0.16 | 3.4±0.1 | 37.4 | ||
| 18 | 16/0.254 | 3.6±0.1 | 23.5 | ||
| 16 | 26/0.254 | 4.0±0.1 | 14.6 | ||
| 14 | 41/0.254 | 4.3±0.1 | 8.96 | ||
| 12 | 65/0.254 | 4.9±0.2 | 5.64 |
