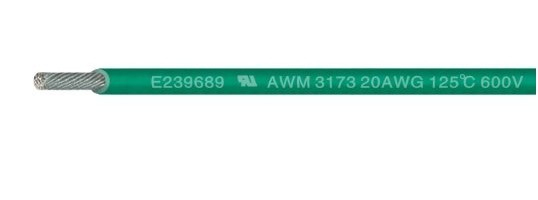

UL3173 Series of Cross-Linked XLPE Insulated Wire
Wuxi Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union. Our products including silicon rubber wires and cables, FSG silicon extruded and glassfiber b......
Send Inquiry
Product Description
Wuxi Yuanda Electrical Material Co., Ltd. is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.
Our products including silicon rubber wires and cables, FSG silicon extruded and glassfiber braided sleeves, HST silicon extruded and glassfiber braided sleevings, SRG silicon extruded and glassfiber braided sleevings,SR silicon sleeves as well as other silicon rubber items are widely used for aviation, metallurgy,petroleum, electronic instruments, meters, household apparatus, transformers and motors.
Technical Data:
1. Nominal Voltage: 600V
2. Temperature Range: 125C
3.Testing Voltage: 6000V
4. Conductor: 26-10AWG Bare Copper or Tinned Copper
5. Insulator: XLPE
6. Colors: White, Blue, Red, Black, Brown, Yellow, Green
7. Use:Inner fixed wires for Home Electric appliances, Lightings, Electronic equipment
| Conductor | Insulation |
Resistance 20°c Ω/km |
||||
|
Spec AWG |
Conductor construction No./φmm |
Diameter (mm) |
Nominal thickness (mm) |
Nominal outer diameter (mm) |
Max outer diameter (mm) |
|
| 26 | 7/0.16 | 0.48 | 0.76 | 2.00 | 2.2 | 139.76 |
| 24 | 7/0.20 | 0.60 | 0.76 | 2.12 | 2.3 | 88.36 |
| 22 | 7/0.254 | 0.78 | 0.76 | 2.30 | 2.5 | 60.16 |
| 20 | 7/0.32 | 0.96 | 0.76 | 2.48 | 2.7 | 38.58 |
| 18 | 16/0.254 | 1.20 | 0.76 | 2.72 | 3.0 | 22.98 |
| 16 | 26/0.254 | 1.50 | 0.76 | 3.02 | 3.3 | 15.06 |
| 14 | 41/0.254 | 1.90 | 0.76 | 3.42 | 3.8 | 9.59 |
| 12 | 65/0.254 | 2.40 | 0.76 | 3.92 | 4.3 | 6.07 |
| 10 | 65/0.32 | 3.0 | 0.76 | 4.52 | 5.0 | 3.73 |
