UL3135 12AWG 14AWG 16AWG 18AWG 600V High Temperature Silicone Rubber Insulated Electrical Lead Wire
UL3135 12AWG 14AWG 16AWG 18AWG 600V High Temperature Silicone Rubber Insulated Electrical Lead WireDescriptionName:UL3135 heat resisting 24awg silicone rubber insulation wireModel No.: AWM 3135Size: 26 AWG~12AWGFeatureRatings: -60ºC~+200ºC, 600VConductor: Nickel Copper, Tinned Cop......
Send Inquiry
Product Description
Description
Name:UL3135 heat resisting 24awg silicone rubber insulation wire
Model No.: AWM 3135
Size: 26 AWG~12AWG
Feature
Ratings: -60ºC~+200ºC, 600V
Conductor: Nickel Copper, Tinned Copper,

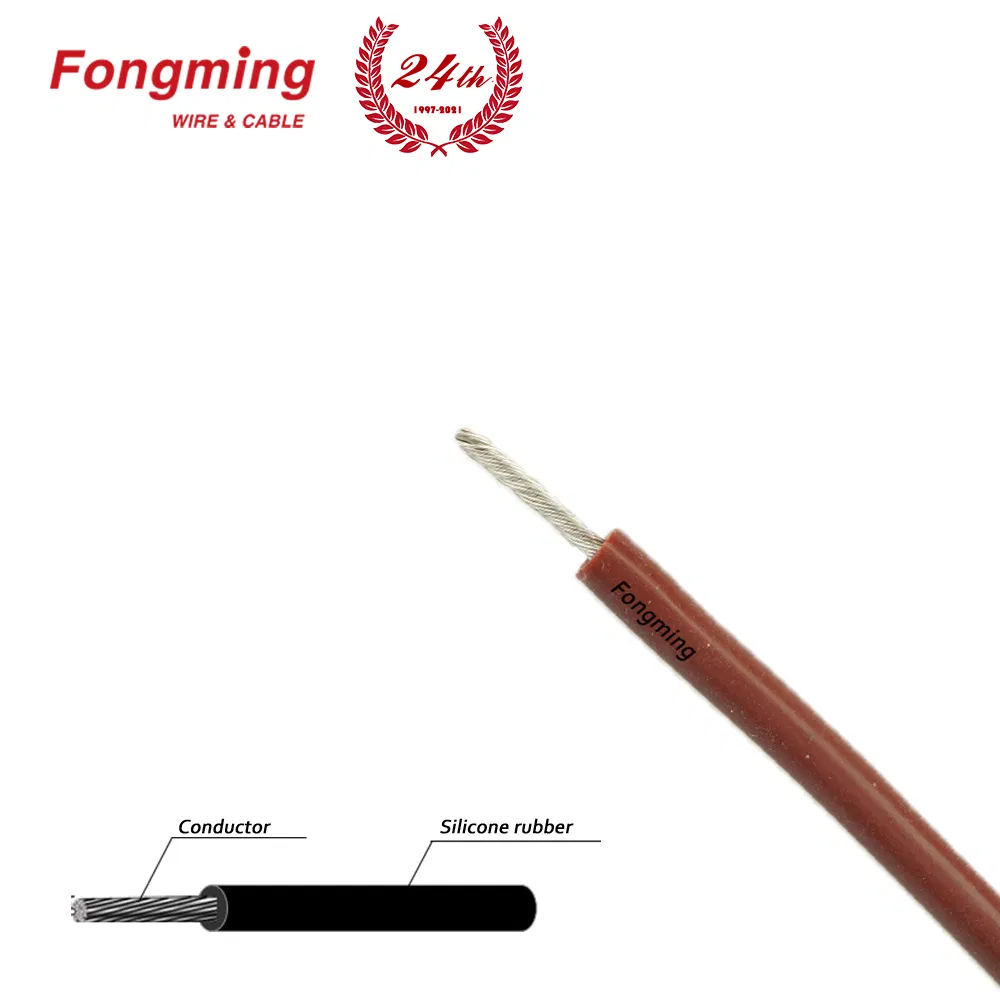

Insulation: Extruded Silicone Rubber
Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.
Specification
| Size | Conductor Structure (No./mm) | Insulation Thickness (mm) | Diameter (mm) | Max. Conductor Resistance (20ºC) (Ω/km) |
| 26 | 7/0.16 | ≥0.76 | 2.1±0.2 | 150 |
| 24 | 7/0.20 | 2.2±0.2 | 94.2 | |
| 22 | 7/0.254 | 2.4±0.2 | 59.4 | |
| 20 | 7/0.32 | 2.5±0.2 | 37.4 | |
| 18 | 16/0.254 | 2.8±0.2 | 23.5 | |
| 16 | 26/0.254 | 3.1±0.2 | 14.6 | |
| 14 | 41/0.254 | 3.6±0.2 | 8.96 | |
| 12 | 65/0.254 | 4.1±0.2 | 5.64 |
Packaging&Shipping

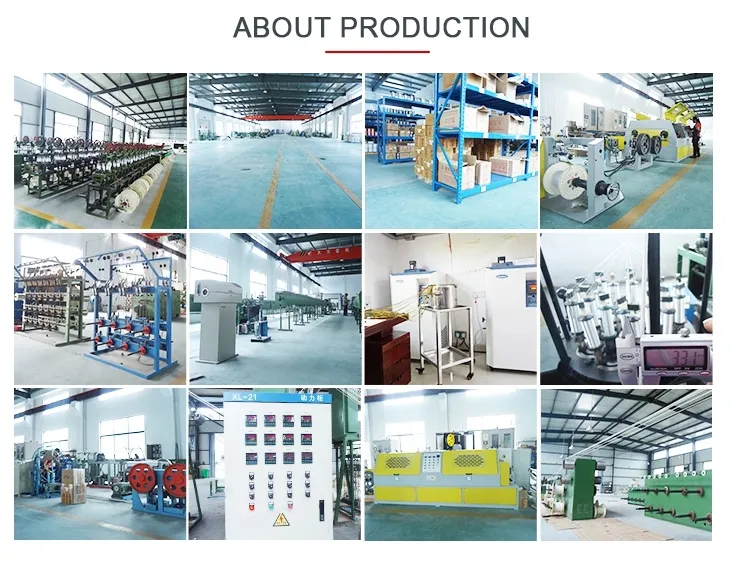

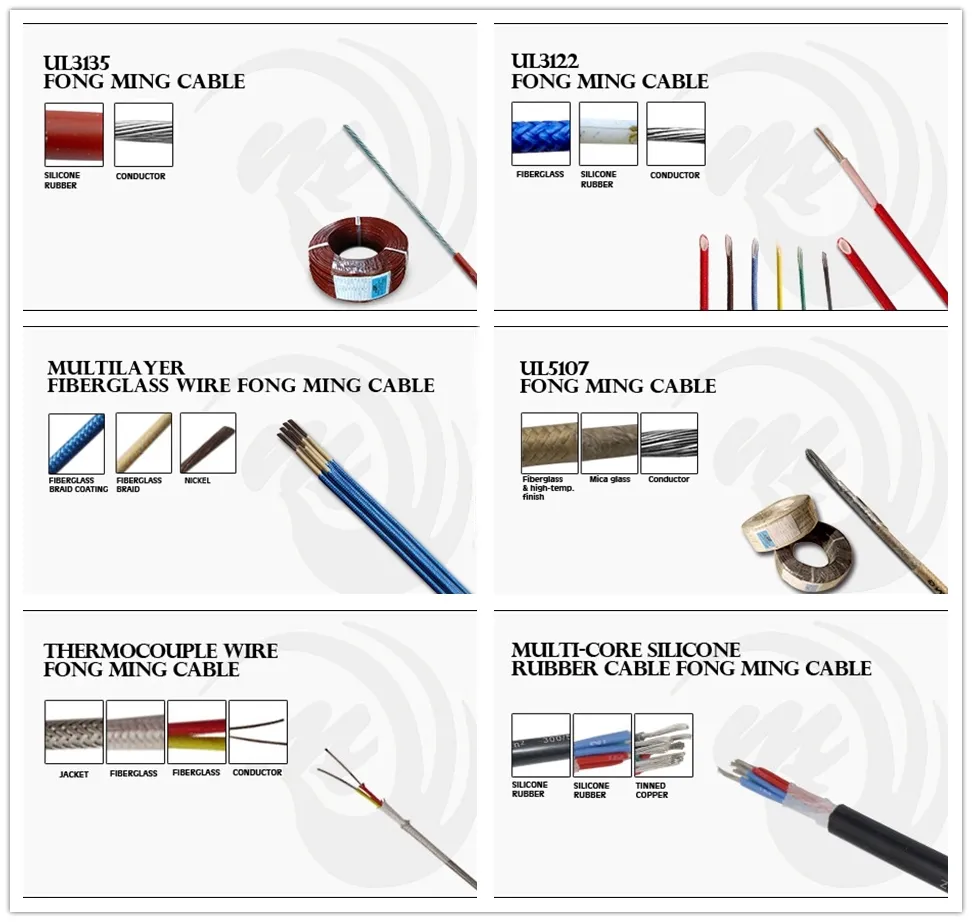

Certificates Transport & Payment  Packing: 305m per roll or spool, carton packing or add wooden pads. Shipping: tansport bysea or by air. As the customers requirements. Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port. Company Information   Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc. We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Hot Sale  FAQ 1. Why the price is so low? You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
3.Can I get some samples?
4. Can you make the products with my design? Yes. customization is welcome . | |||||||||||||
Company Information
| Factory Size (Sq.meters): | 25,000-30,000 square meters |
| Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
| Number of Production Lines: | 7 |
| Number of R&D Staff: | 21 - 30 People |
| Number of QC Staff: | 21 - 30 People |
| Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Certificates
UL, CE, CCC, RoHS, VDE, CSA, SGS, ISO etc. certificates are well received.
Hot Sale
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
