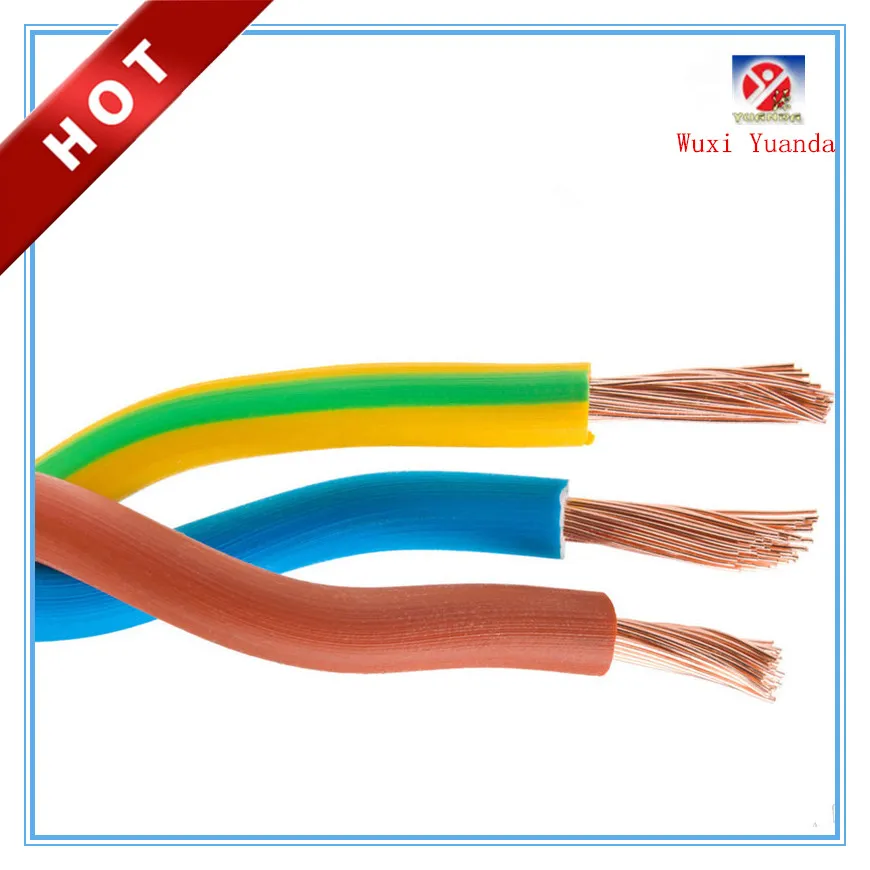

UL3123 Flexible Home Appliances Used Silicone Rubber Cable

Product Description

Wuxi Yuanda Electrical Material Co., Ltd. Is an ISO9001 certified manufacturer, whose main products have won approval of UL, VDE, CSA and CCC and ROHS Environmental Protection Instruction of European Union.

UL3123 Flexible Home Appliances Used Silicone Rubber Cable

Technical Data:

Nominal Voltage: 300V
Temperature Range: -60 ° C ~+150° C
Testing Voltage: 2000V

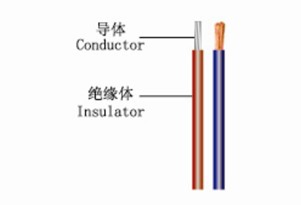

Conductor: Bare Copper or Tinned Copper
Insulator: Silicone Rubber
Colours: White-Blue-Red-Black-Brown-Yellow-Green-Transparent-Yellow/Green
Use: Inner fixed wires for Home electric Appliances, lightings, electronic equipment.
Certificate No.: E216252 CSA229260

Specification:

Conductor			Insulation			Electrical characteristic
Spec AWG	Conductor construction No./ φmm	Diameter (mm)	Nominal thickness (mm)	Nominal outer diameter (mm)	Max outer diameter (mm)	Resistance 20ºC Ω/km	Permissible ampacity 20ºC-AMR
30	7/0.10	0.3	0.78	1.9	2.1	364.0	1.27
28	7/0.12	0.36	0.78	1.95	2.15	252.0	2.02
26	7/0.16	0.48	0.78	2.05	2.25	143.0	3.22
24	7/0.20	0.6	0.78	2.2	2.4	92.0	5.15
22	7/0.25	0.75	0.78	2.35	2.55	56.8	8.73
20	7/0.31	0.93	0.78	2.5	2.8	40.1	13.87
18	7/0.395	1.19	0.78	2.8	3.01	23.0	22.02
16	7/0.495	1.49	0.78	3.1	3.4	14.6	35.04
