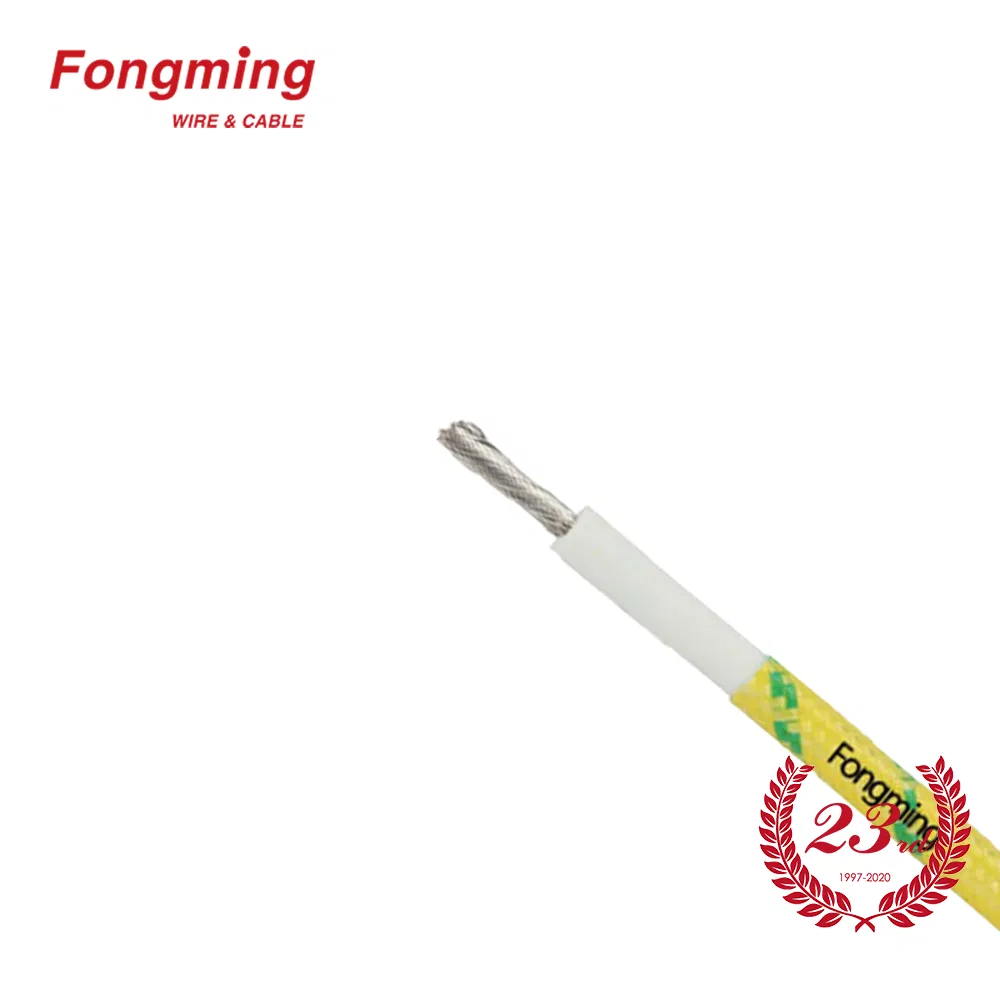

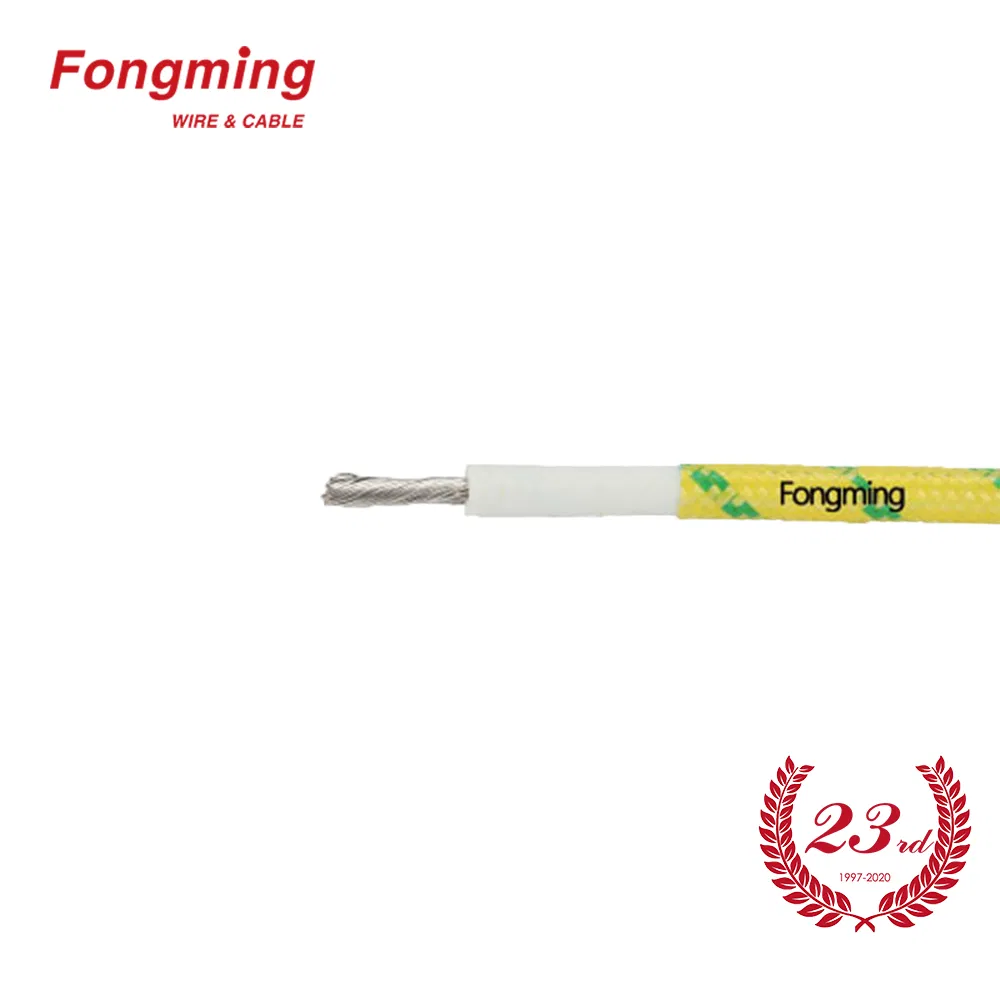

UL3075 600V 200c 16AWG Silicone Rubber Insulation Fiberglass Braided Wire
UL3071,UL3074,UL3075 Silicone Fiberglass Braid wire Description Name:Silicone Fiberglass Braid wire Model:AWM 3071, 3074, 3075 Size:18~10AWG Feature Ratings Voltage:60......
Send Inquiry
Product Description
UL3071,UL3074,UL3075 Silicone Fiberglass Braid wire
Description
Name:Silicone Fiberglass Braid wire
Model:AWM 3071, 3074, 3075
Size:18~10AWG
Feature
Ratings Voltage:600V
Rated temperature: 200ºC

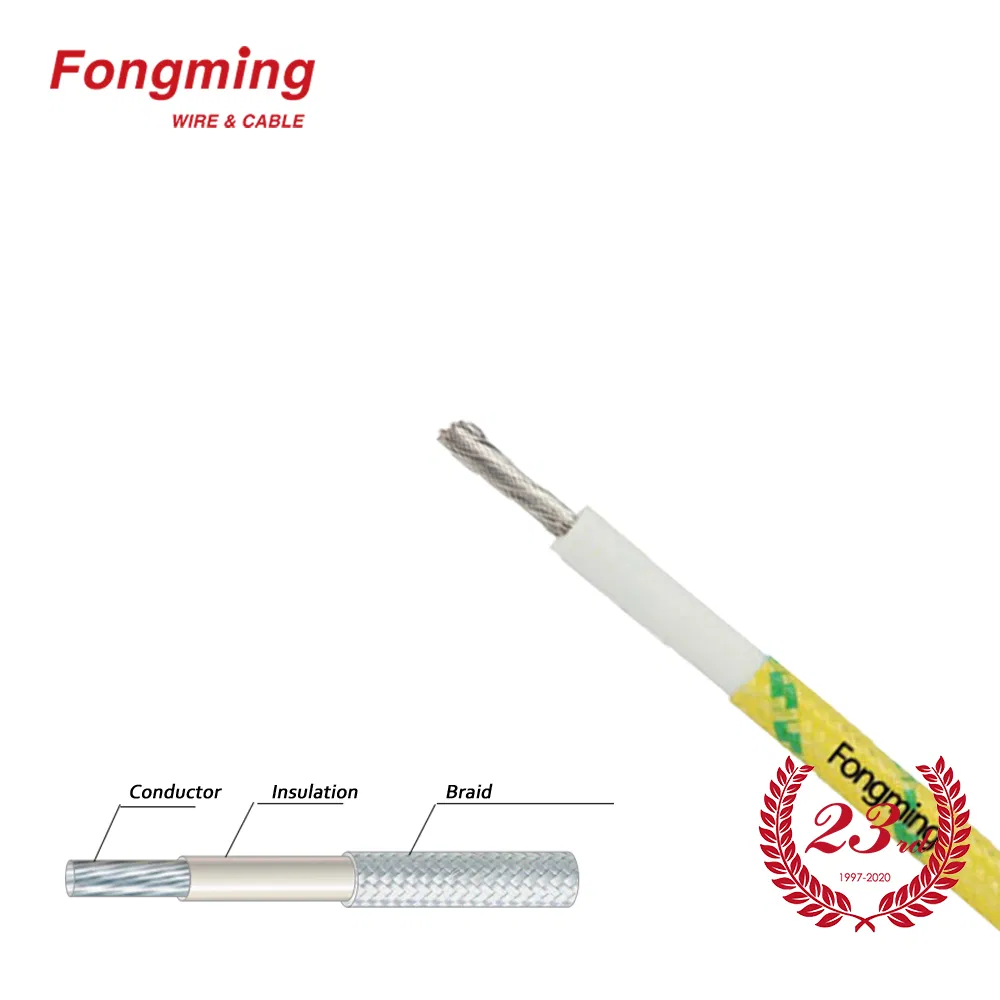

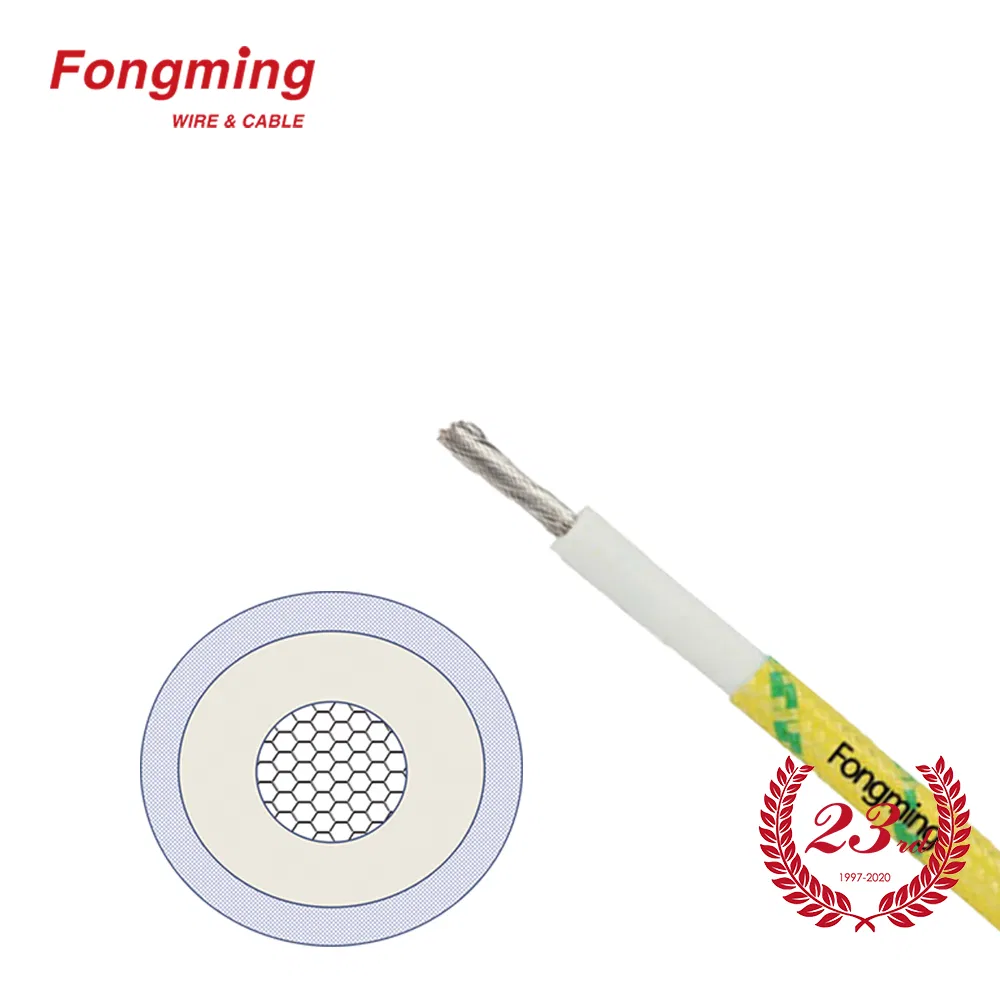

Structure
Conductor:Tinned copper
Insulation:Silicone and Fiberglass braid with High Temperature Finish
Standard:UL758,UL1581
Hot Products
Certificates
Company Information
Transport&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
Description
Name:Silicone Fiberglass Braid wire
Model:AWM 3071, 3074, 3075
Size:18~10AWG
Feature
Ratings Voltage:600V
Rated temperature: 200ºC
Structure
Conductor:Tinned copper
Insulation:Silicone and Fiberglass braid with High Temperature Finish
Standard:UL758,UL1581
| Conductor | Insulation | ||||
| Style | Size (AWG) | Conductor Structure (No./mm) | Nominal Thickness (mm ) | Braid Thickness (mm) | Nominal Diameter (mm) |
| 3071 | 18 | 16/0.254 | ≥0.76 | ≥0.2 | 3.2±0.1 |
| 16 | 26/0.254 | 3.5±0.1 | |||
| 14 | 41/0.254 | 3.9±0.1 | |||
| 3074 | 12 | 65/0.254 | ≥0.76 | ≥0.2 | 4.5±0.2 |
| 3075 | 10 | 103/0.254 | ≥1.14 | ≥0.25 | 6.0±0.2 |
