UL2468 AWG26 Standard Ribbon Flat Electrical Wire
UL2468 awg26 standard ribbon flat electrical wireRated temperature:80ºCRated voltage:300VAccording to:UL Subject758,UL1581,C22.2Solid or stranded,tinned or bare copper conductor 32--16AWG PVC insulationPasses UL VW-1&CSA FT1 vertical flame testUniform insulation thickness of wire to ens......
Send Inquiry
Product Description

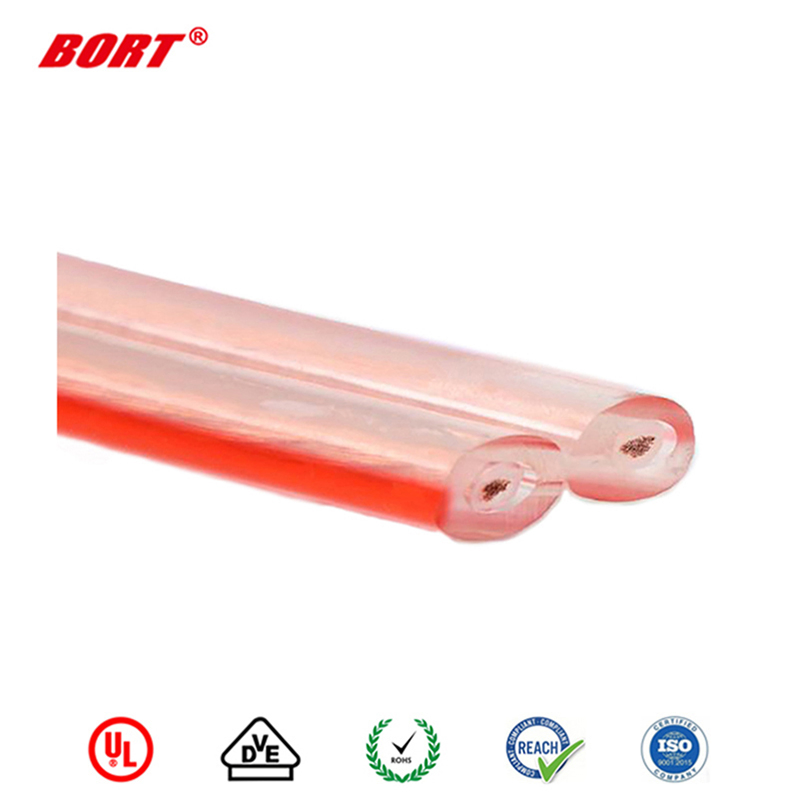

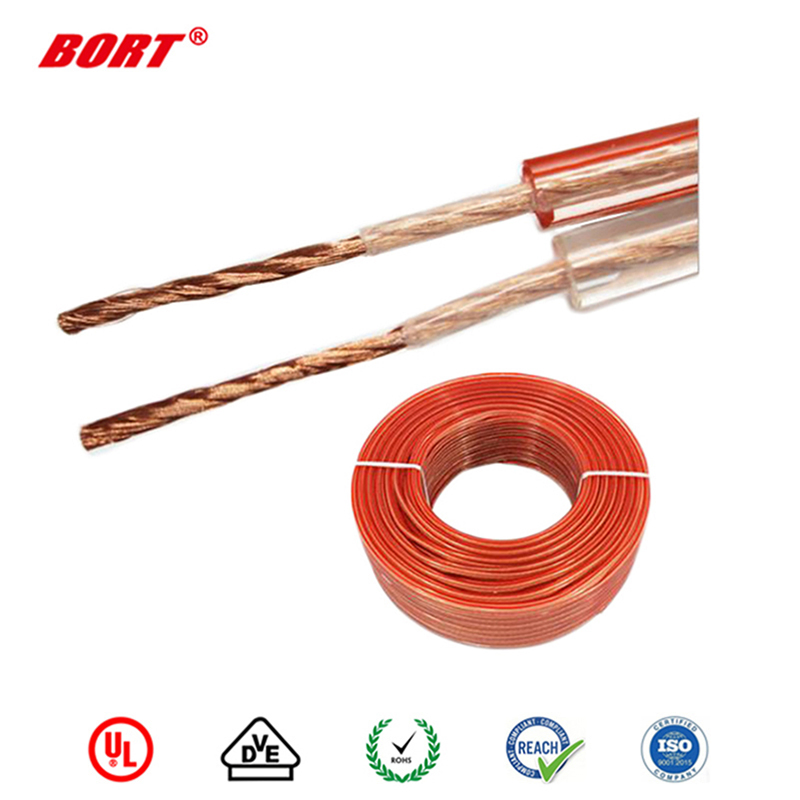

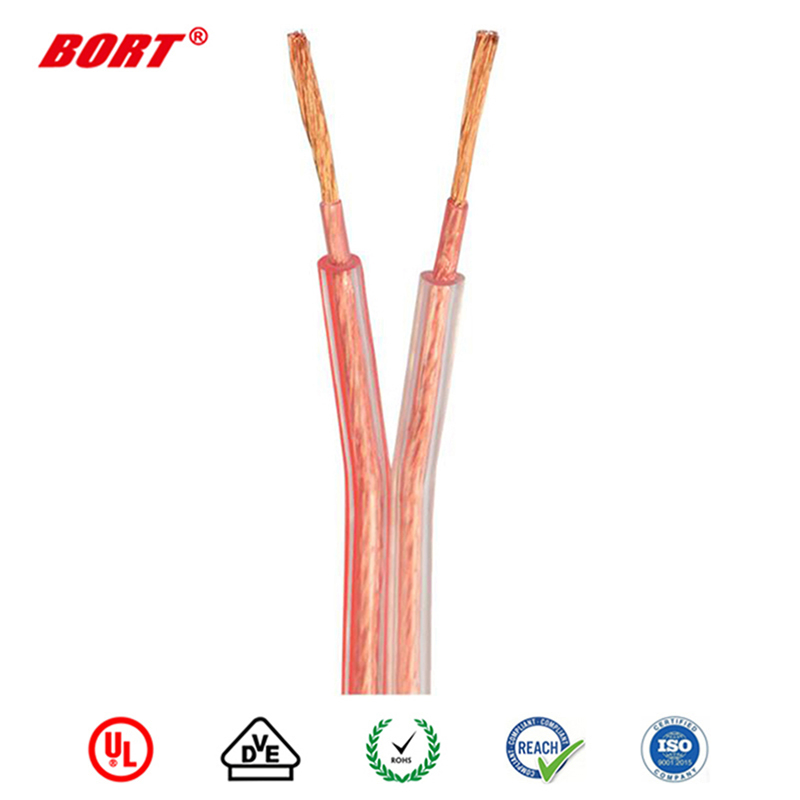

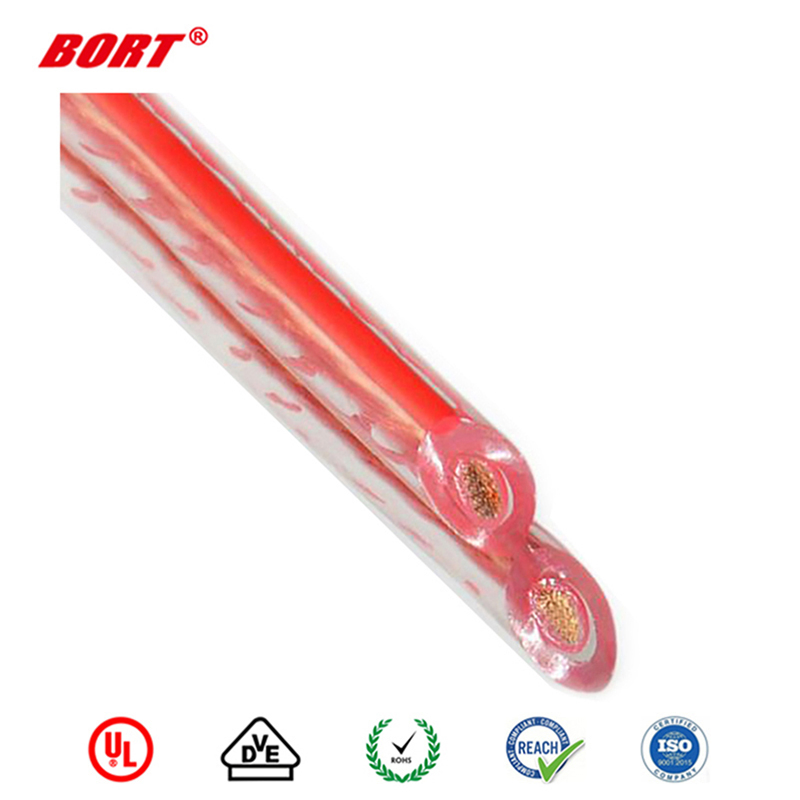

UL2468 awg26 standard ribbon flat electrical wire
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 32--16AWG
★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance
Product standard
Our products Application Areas:
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 6 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 32--16AWG
★PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For general purpose internal wiring of appliance
Product standard
| Conductor | Finished Products | Maximum Resistance at 20ºC | |||
| AWG/NO.OFCOND | Cond No. | Insulation Avg. Thick. | Outside Dia. | Packing | |
| /mm | mm | mm | m/r | Ω/mm | |
| 30×2C | 7/0.1 | 0.45 | 1.20×2.50 | 610 | 354.33 |
| 28×2C | 7/0.127 | 0.45 | 1.30×2.70 | 610 | 223.75 |
| 26×2C | 7/0.16 | 0.45 | 1.40×2.90 | 610 | 139.76 |
| 24×2C | 11/0.16 | 0.45 | 1.50×3.10 | 610 | 88.36 |
| 22×2C | 17/0.16 | 0.45 | 1.70×3.50 | 610 | 60.16 |
| 20×2C | 21/0.178 | 0.45 | 1.90×3.90 | 305 | 38.58 |
| 18×2C | 34/0.178 | 0.45 | 2.10×4.30 | 305 | 22.98 |
| 16×2C | 26/0.254 | 0.45 | 2.40×4.90 | 305 | 15.06 |
Our products Application Areas:
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 6 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
