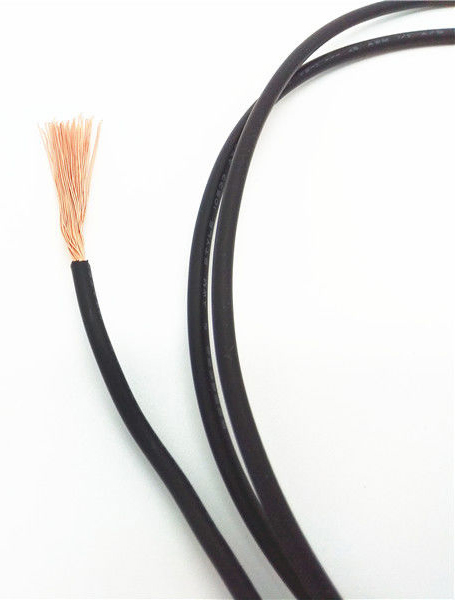

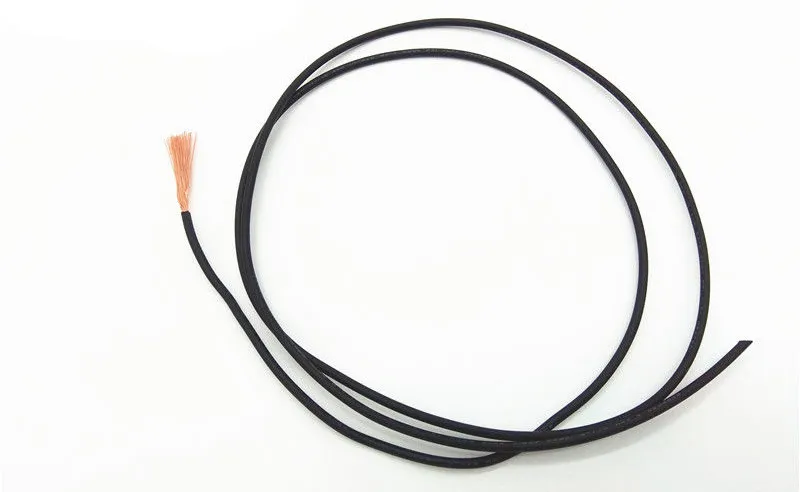

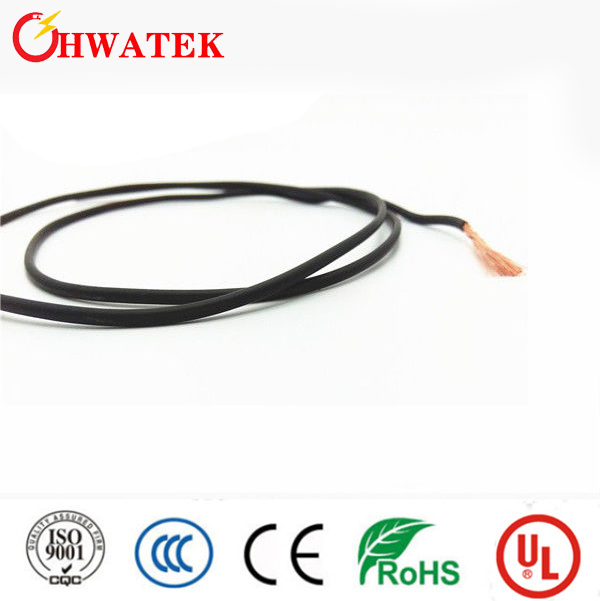

UL1569 Single Conductor Wire with Extruded Insulation

Product Description

Construction
Conductor : Solid or Stranded
Insulation: PVC

Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature:105ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 deg C or 80 deg C Oil
Voltage withstand test:AC 3.5kV/1mi
Printing :E258652 AWM STYLE 1013 AWGXX 90ºC 600V VW-1 ---c AWM I A/B 90ºC 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

Specifications

Part NO.	Size (AWG)	Tinned copper stranded			Insulation(SR-PVC)
Part NO.	Size (AWG)	Construction	Dia. (mm)	Resistance (Ω/km)	Avg. thick. (mm)	Min. thick. (mm)	Outer Dia. (mm)
HT1201595	30	7/0.10	0.30	381	0.38	0.33	1.10±0.05
HT1201596	28	7/0.127	0.38	239	0.38	0.33	1.20±0.05
HT1201597	26	7/0.16	0.48	150	0.38	0.33	1.30±0.05
HT1201598	24	11/0.16	0.61	94.2	0.38	0.33	1.40±0.05
HT1201599	22	17/0.16	0.76	59.4	0.38	0.33	1.60±0.10
HT1201600	20	26/0.16	0.94	36.7	0.38	0.33	1.80±0.10
HT1201601	18	41/0.16	1.18	23.2	0.38	0.33	2.00±0.10
HT1201602	16	26/0.254	1.50	14.6	0.38	0.33	2.40±0.10

Company Profiles

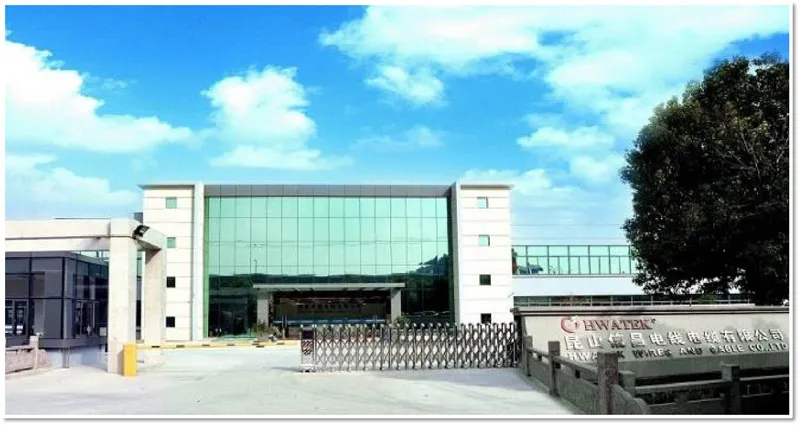

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.

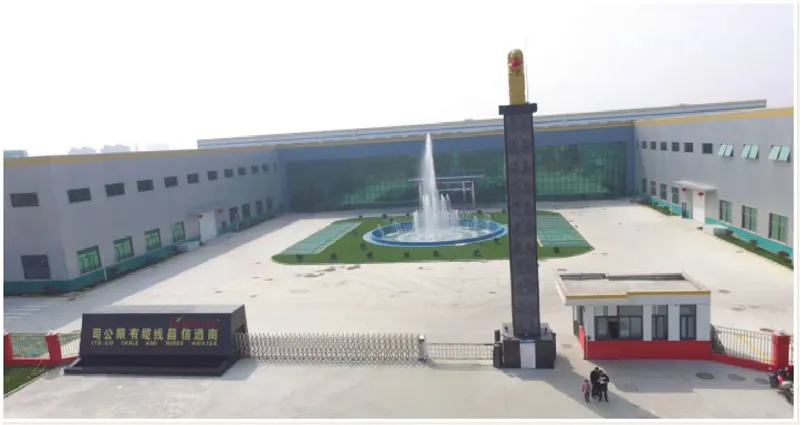

In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.

Multi-Pair Flexible Braiding Shield PU Jacket Cable

Certificates

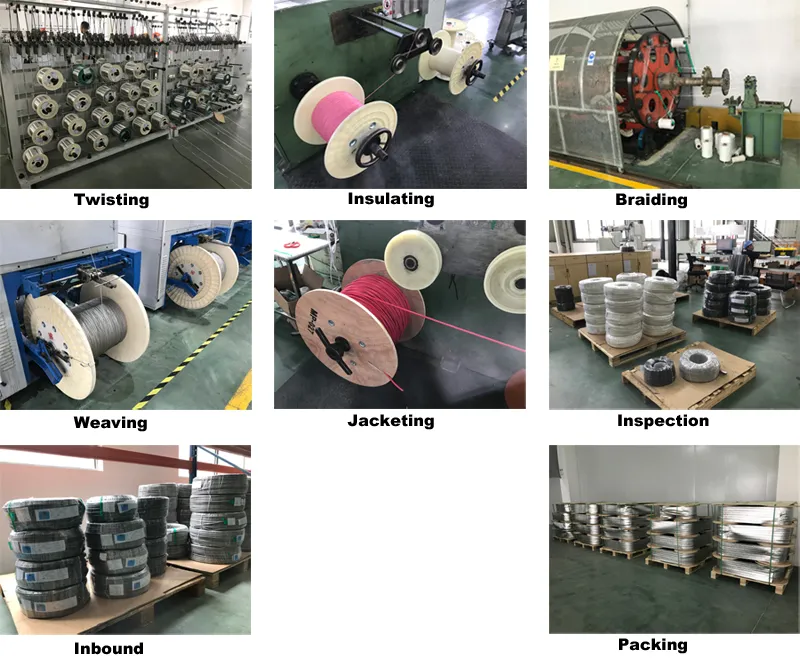

Production Progress
Shipping
FAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
