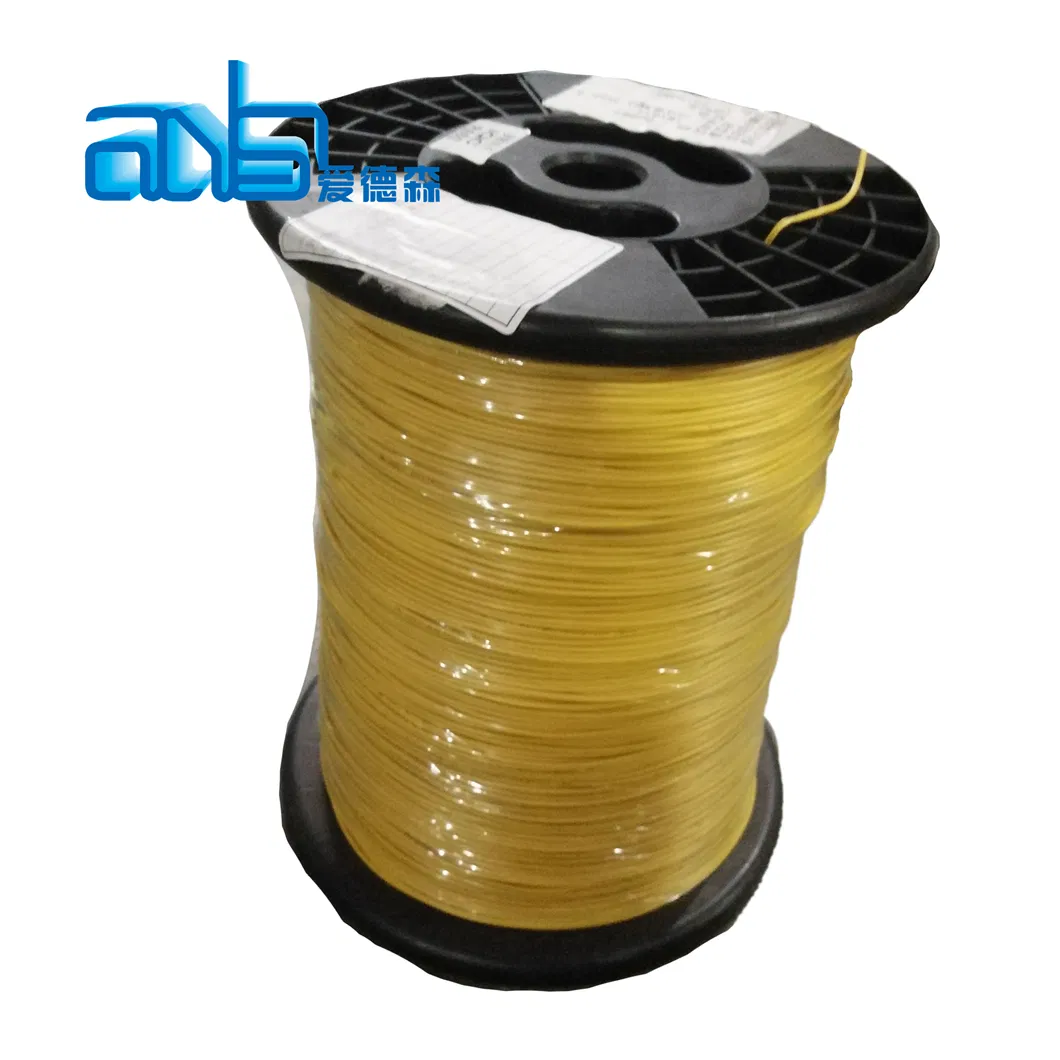

UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

Product Description

Product Description

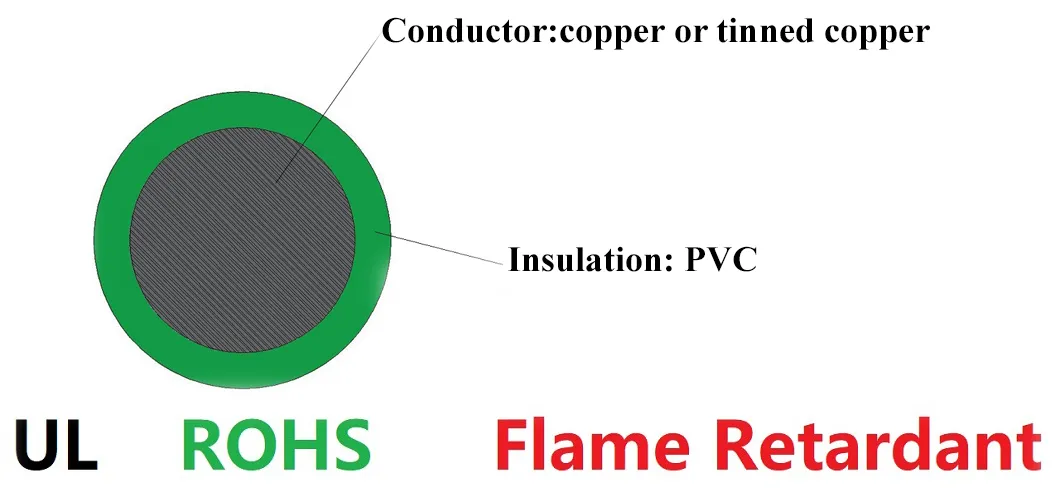

Style 1569 Single Conductor with extruded insulation

Rating: 80, 90 or 105 deg C, 300 Vac, Horizontal flame.
Conductor: 30 AWG - 2 AWG, solid or stranded.
Insulation: Extruded PVC.
Covering: Optional, Extruded PVC, 9 mils minimum average thickness, 8 mils minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. Tag may also indicate the following, "600 Volts Peak for Electronic Use Only."

UL TYPE	Gauge (AWG)	Construction (no/mm)	conductor outer diameter (mm)	insulation thickness (mm)	wire O.D (mm)	Max Cond. resistance (Ω/km ,20ºC	packing
UL TYPE	Gauge (AWG)	Construction (no/mm)	conductor outer diameter (mm)	insulation thickness (mm)	wire O.D (mm)	Max Cond. resistance (Ω/km ,20ºC	FT/ROLL	METER/ROLL
1569	30	1/0.254	0.25	0.4	1.05	361
	30	7/0.1	0.3	0.4	1.1	381	2000	610
	28	1/0.32	0.32	0.39	1.1	227
		7/0.127	0.38	0.41	1.2	239
		7/0.127 OS-1	0.38	0.41	1.2	239
	26	1/0.404	0.4	0.43	1.25	143
		7/0.16	0.48	0.41	1.3	150
		7/0.16 OS-1	0.48	0.41	1.3	150
	24	1/0.511	0.51	0.42	1.35	89.3
		11/0.16	0.61	0.4	1.4	94.2
		7/0.2 OS-1	0.6	0.41	1.4	94.2
	22	1/0.643	0.64	0.43	1.5	56.4
		17/0.16	0.76	0.42	1.6	59.4
		7/0.254 OS-1	0.76	0.42	1.6	59.4
	20	1/0.813	0.81	0.42	1.65	35.2
		26/0.16	0.94	0.43	1.8	36.7
		7/0.32 OS-1	0.96	0.42	1.8	36.7
	18	1/1.024	1.02	0.41	1.85	22.2	1000	305
		41/0.16	1.18	0.46	2.1	23.2
		7/0.404 OS-1	1.2	0.45	2.1	23.2
	16	1/1.129	1.29	0.46	2.2	14
	16	26/0.254	1.49	0.46	2.4	14.6
	14	1/1.6	1.6	0.45	2.5	8.78
	14	41/0.254	1.88	0.41	2.7	8.96
	12	65/0.254	2.36	0.42	3.2	5.64
	10	7/15/0.254	3.42	0.44	5.05	3.54

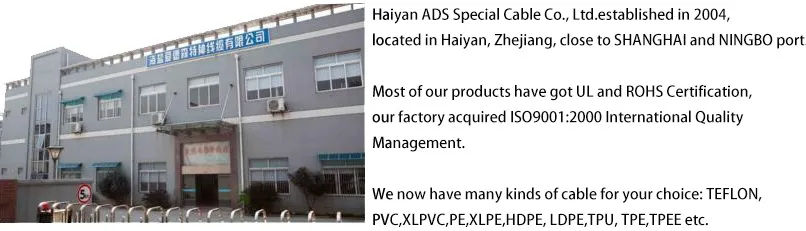

Company Introduction
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

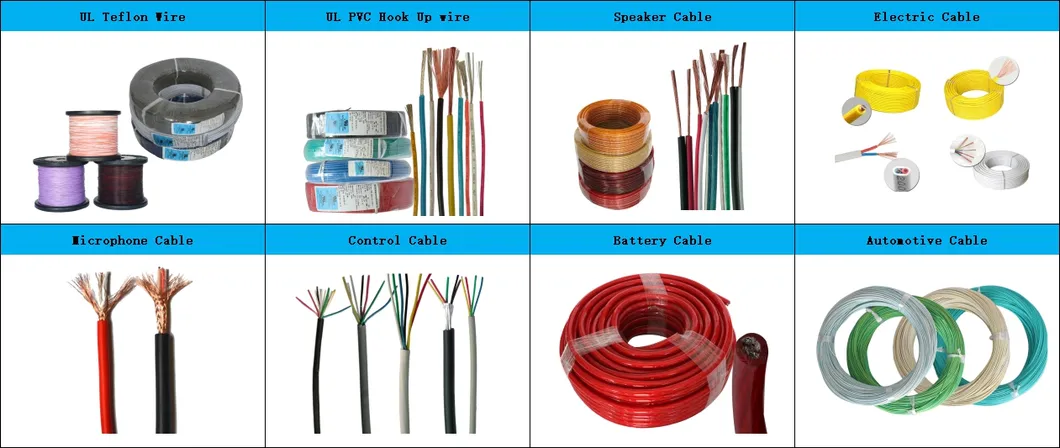

Our Main Product

UL List
E363968

Ul cables
Teflon Wire
1330	1332	10518		10064		10588		1371		1375		1589
1723	1886	1331		1333		1591		1592		1887		1901
Single-conductor, thermoplastic insulation.
1007	1032	1185		1284		1571		1283		1672		1569
1015	10198	10070
Multiple-conductor, thermoplastic insulation.
2464	2468	2725		20276		2835
Single-conductor, thermoset insulation.
3271	3321
Automotive Wires
German Standard
FLR2X-B	FLRY11Y/FLR4G11Y		FLRY-A		FLRY-B		FLRYW-A		FLRYW-B		FLRYY/FLR4GY
China Standard
QB-A/B/C/D	QFR		QVR		QVR-105
Japan Standard
AV	AVS		AVSS		AVSSX/AESSX			AVX/AEX		CAVS
America Standard
GPT	GXL		HDT		SXL			TWP		TXL

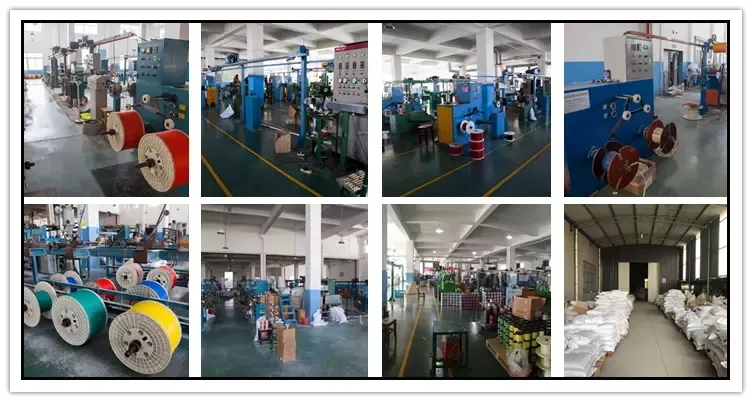

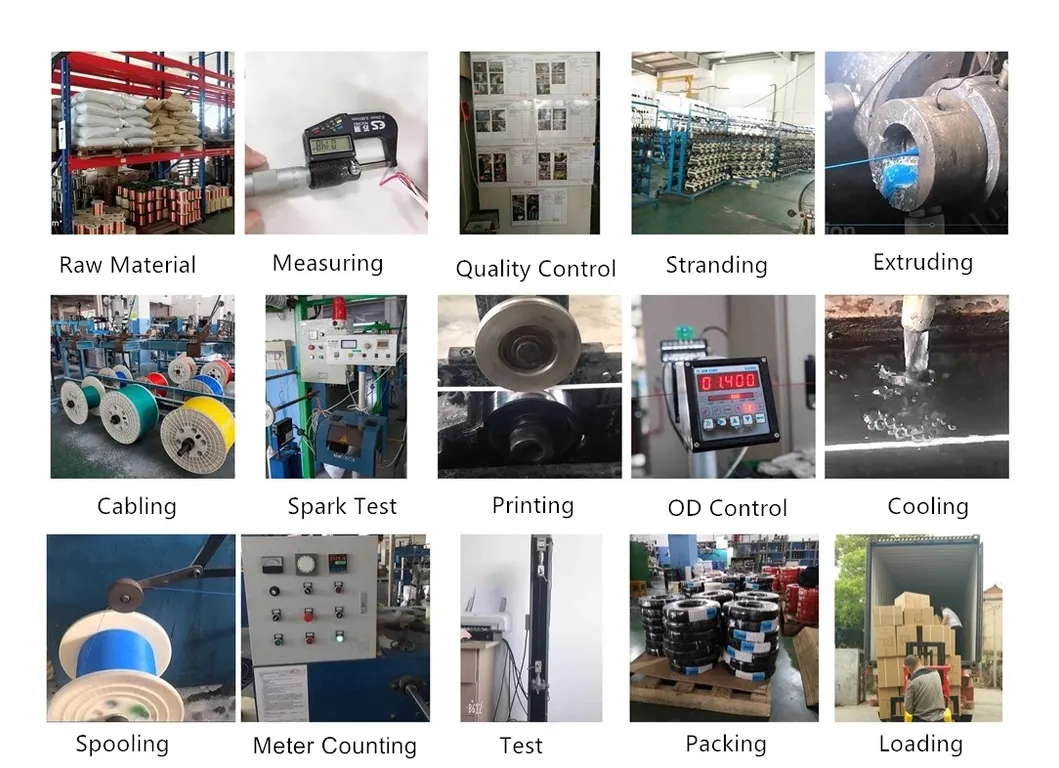

Production Process
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

Exhibition
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

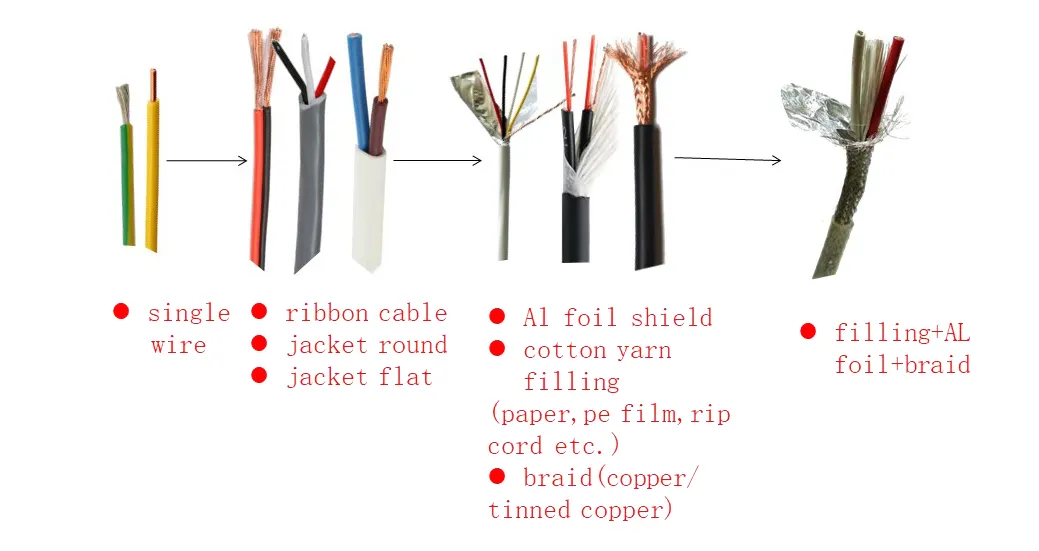

What construction of cables we can make
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

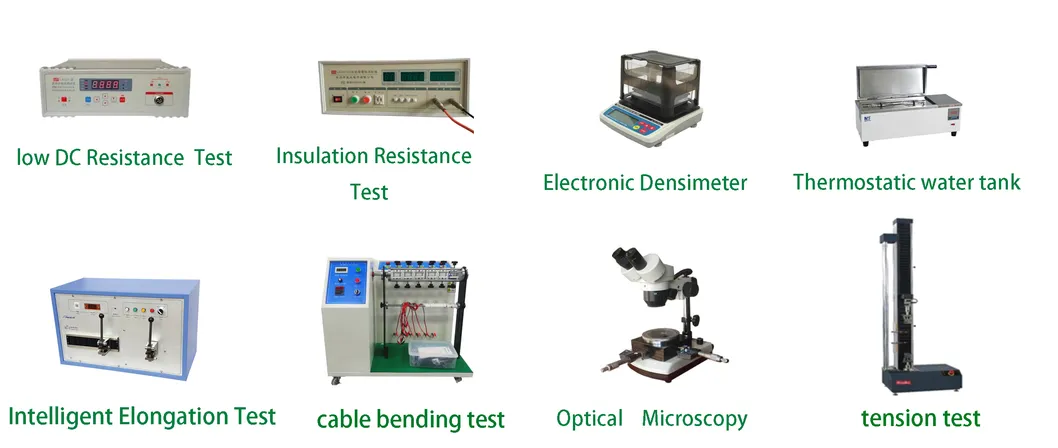

Test Equipment
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

Certificate
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

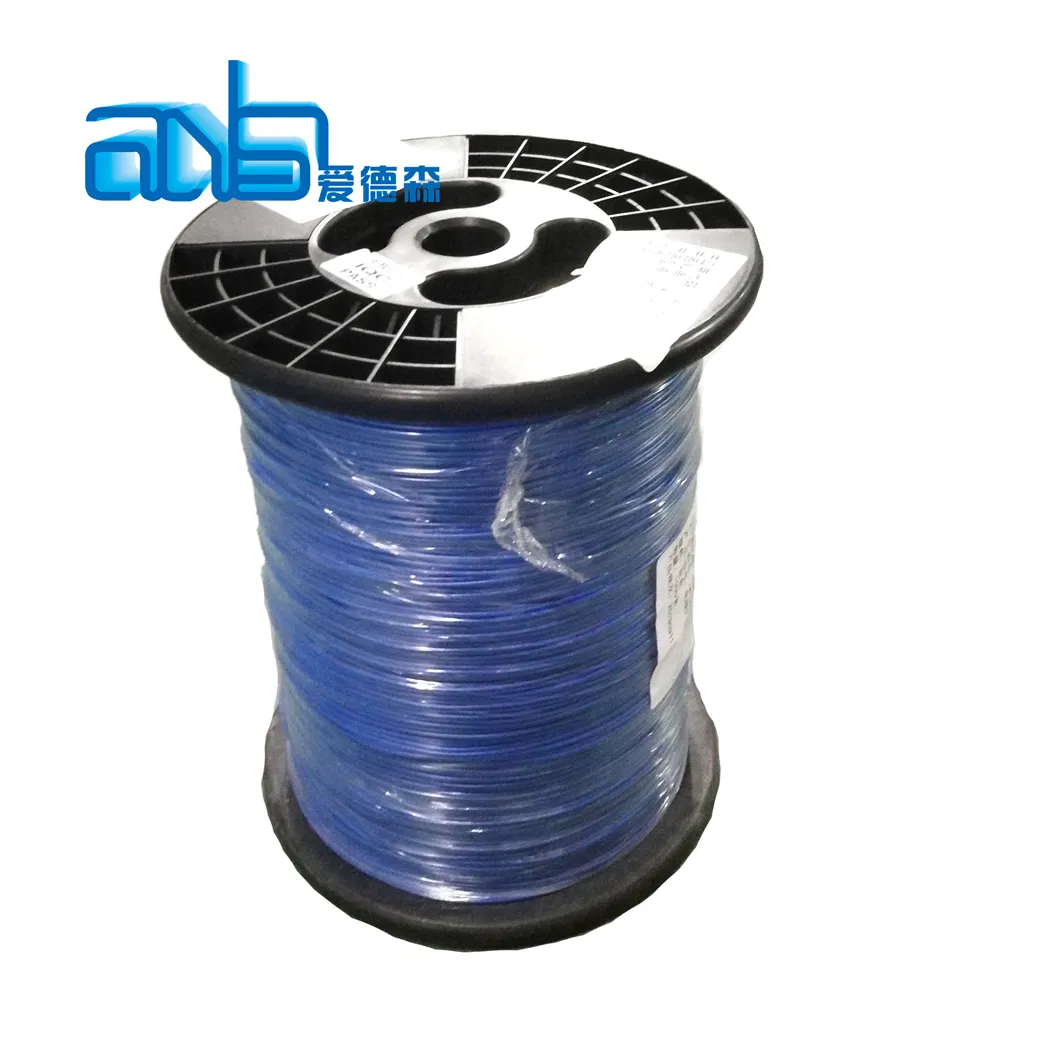

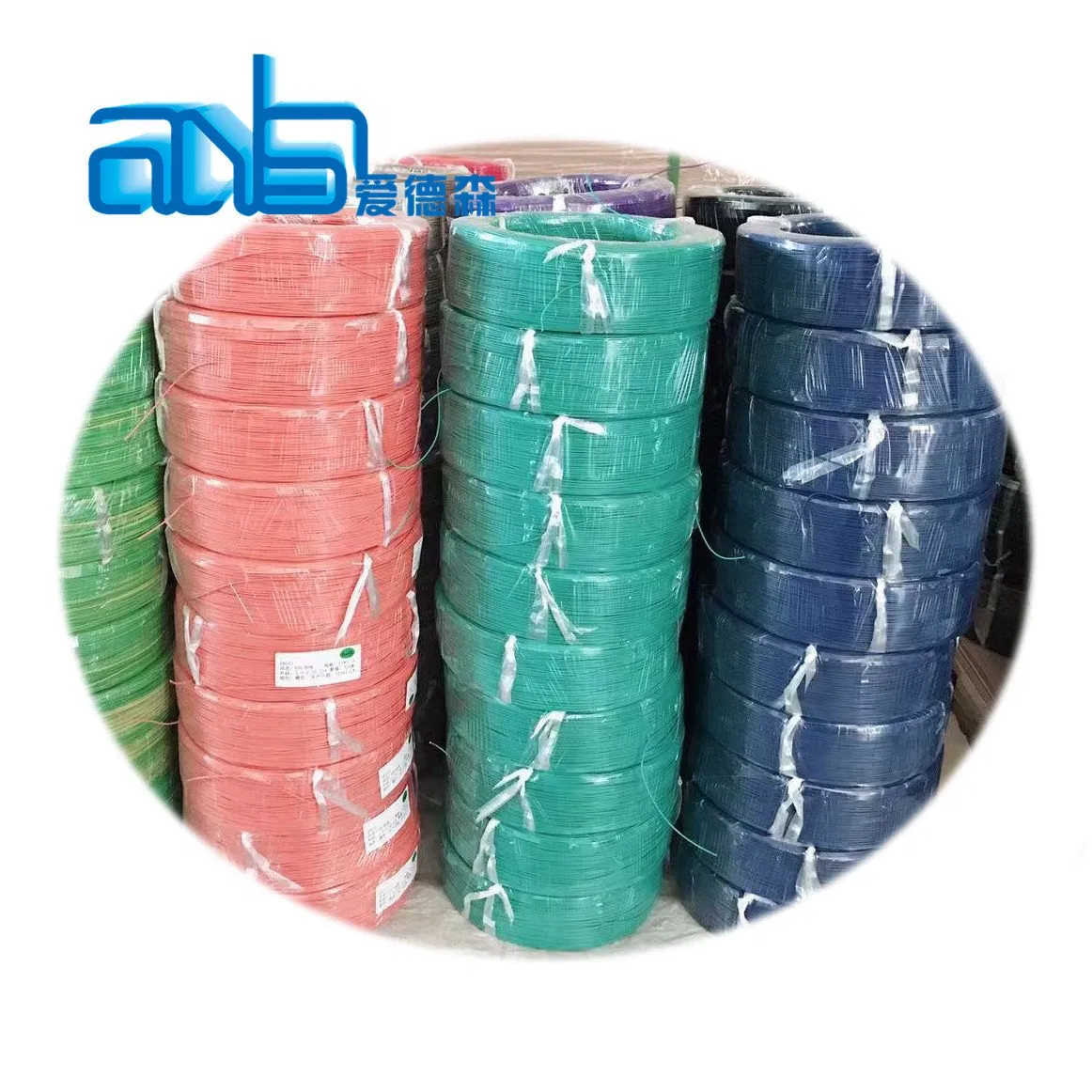

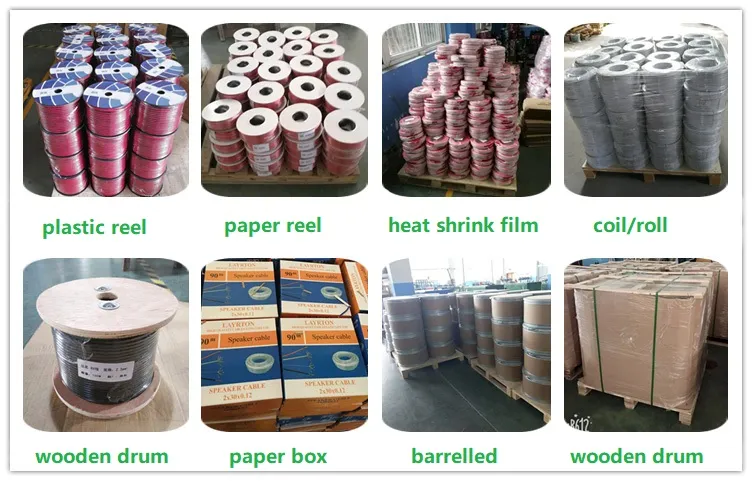

Packing
UL1569 PVC 24AWG 300V Flame VW-1 Home Appliance Wiring

FAQ
1. Q; Are you factory or trading company?
A: We are factory has more than 10 years manufacturing experiences.

2.Q: What certifications do you have?
A: We have UL1330,UL1332,UL1007,UL1015,UL1571,UL1569,UL1672,UL2464 and ROHS

3.Q: Where is your factory located ?
A: Building1-2(No.88 Huxi Street), Shiquan Town, Haiyan County, Zhejiang, China

4 : Q: How can I get some samples?
A: If we have in stock, within 10 meters, it is free. Or we will charge sample fee.

5 : Q: Are samples free shipping?
A: Sorry, it should be on customer side.

6: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.

7: Q:What about the lead time for mass production?
A:Honestly, it depends on the order quantity.

8: Q:Isthis wire in stock?
A:Pls check with our sales. orders quantity reach 6100m/size/color can arrange production.
