UL1185 Shielded 4 Conductor Guitar Circuit Wire Hook up Wire
Product SpecificationColor: ul1185 single core tinned copper braid shielded cable1.Rated temperature:80ºC2.Rated voltage:300V3.Reference standard:UL758,UL1581,CSA C22.2No.210.24.Solid or stranded ,tinned or bare copper conductor 30~16AWG5.PVC insulation, comply with ROHS environmental sta......
Send Inquiry
Product Description
Product Specification
Color:

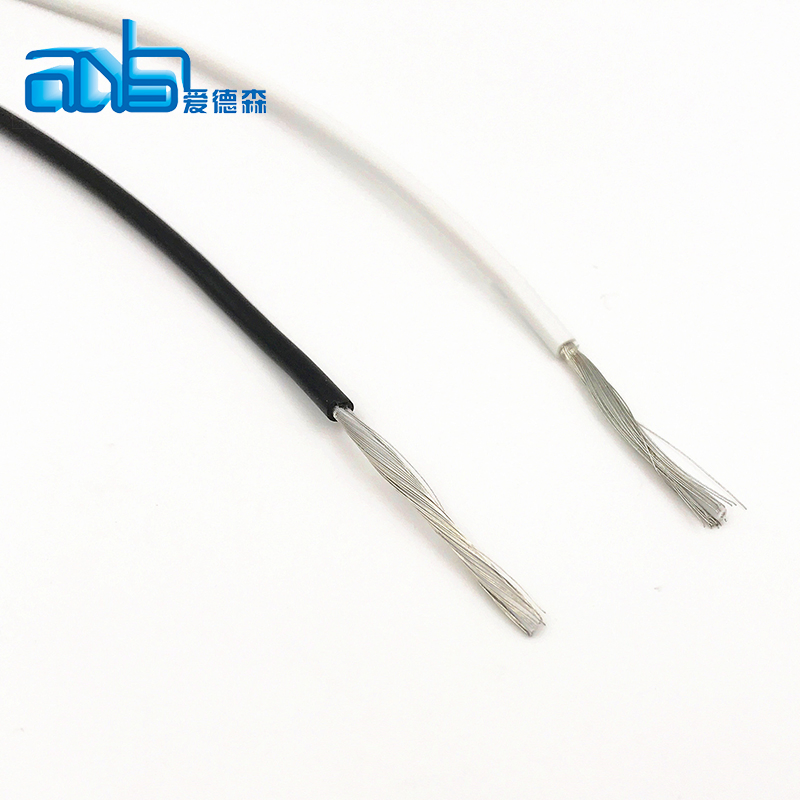

ul1185 single core tinned copper braid shielded cable
1.Rated temperature:80ºC
2.Rated voltage:300V
3.Reference standard:UL758,UL1581,CSA C22.2No.210.2
4.Solid or stranded ,tinned or bare copper conductor 30~16AWG
5.PVC insulation, comply with ROHS environmental standard
6.PVC jacket , comply with ROHS environmental standard Tinned or bare copper wire spiral shield
7.Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
8.Uniform insulation thickness to ensure easy stripping and cutting
9.For general purpose internal wiring of appliance

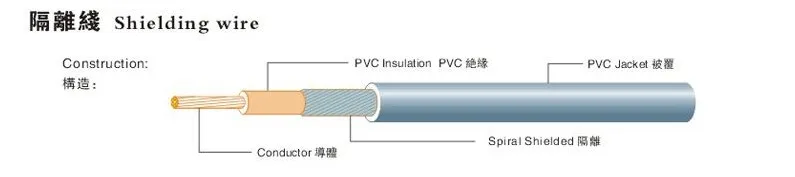

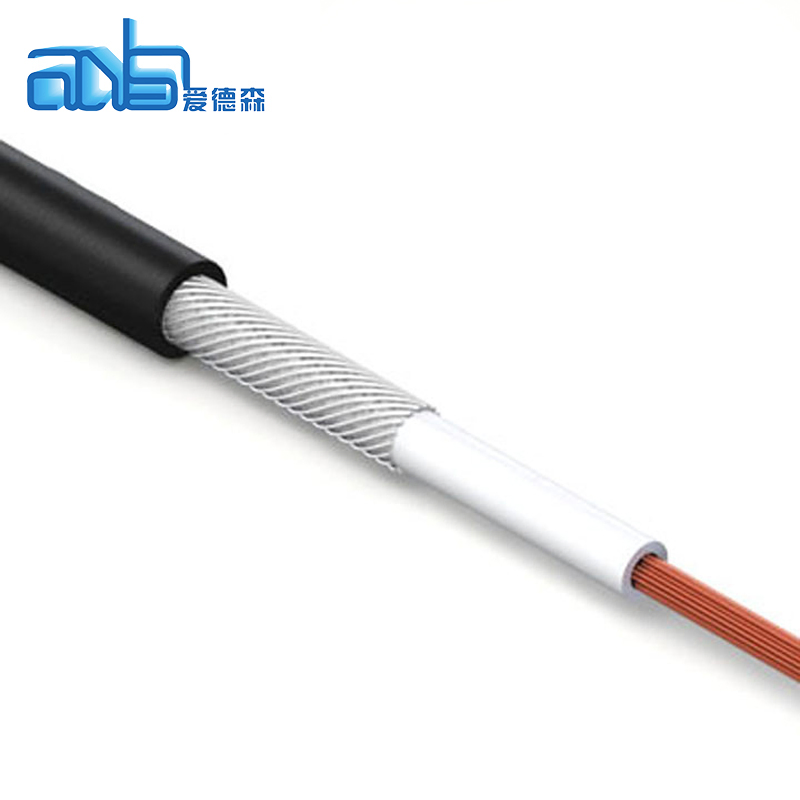

CABLE CONSTRUCTION
OEM Specification Are Also Welcome!

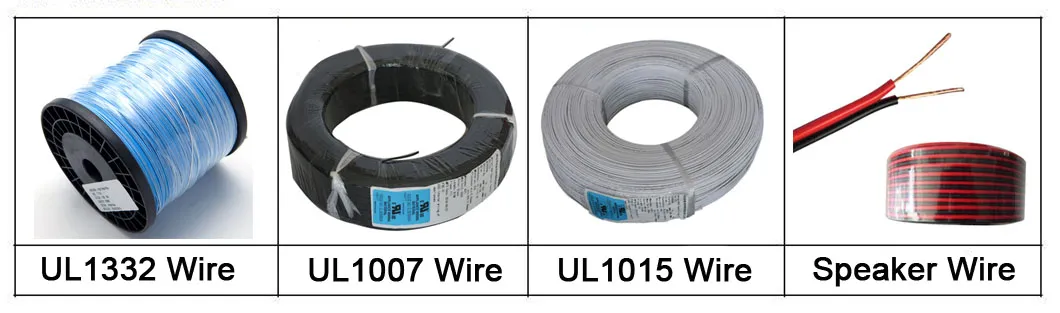

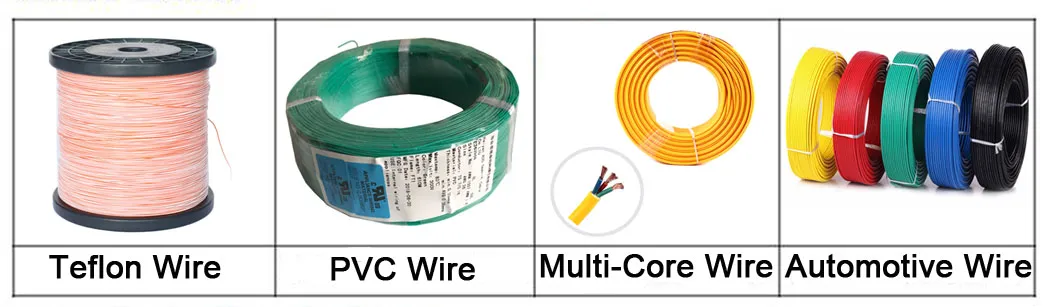

Main Product
More Product Please See Below:
1.Speaker Cable

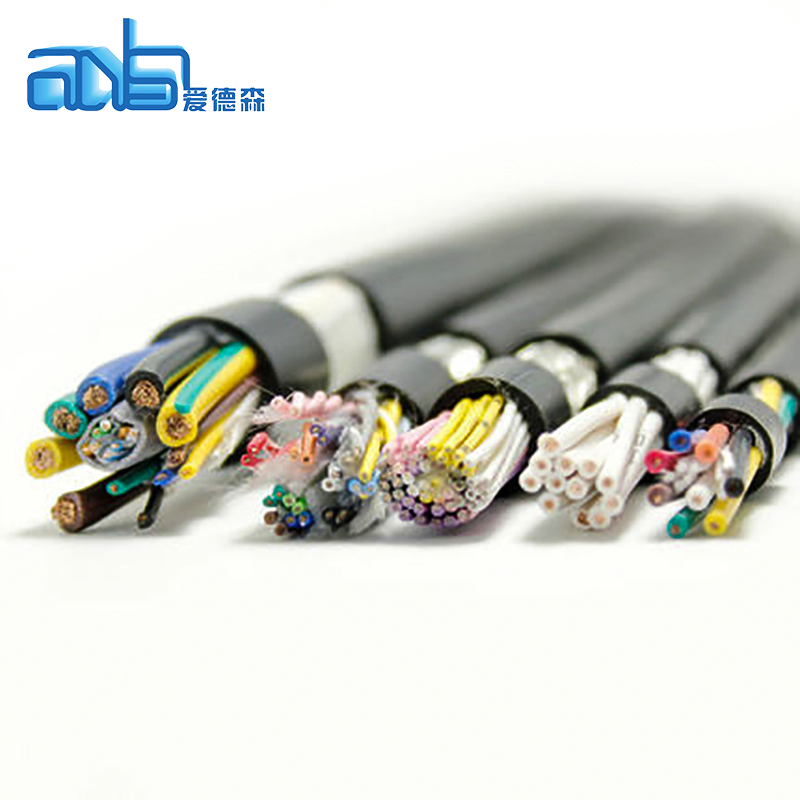

2.Control Cable
3.Shielded Cable
4.Microphone Cable
5.Battery Cable
Hot Product

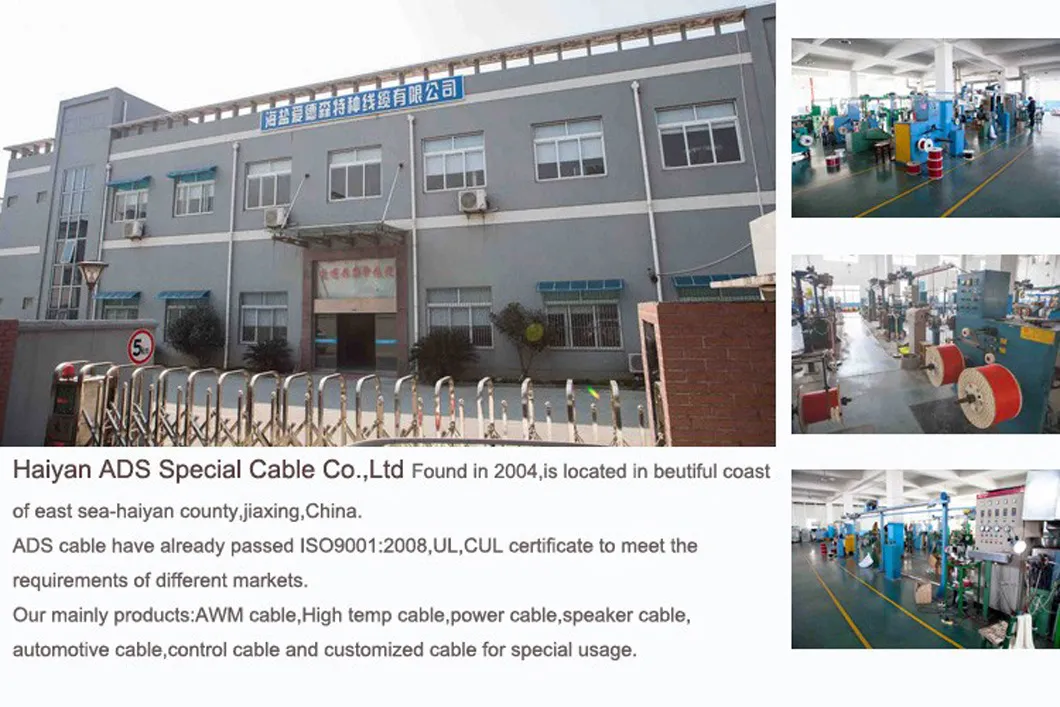

Company Intruction
Certification

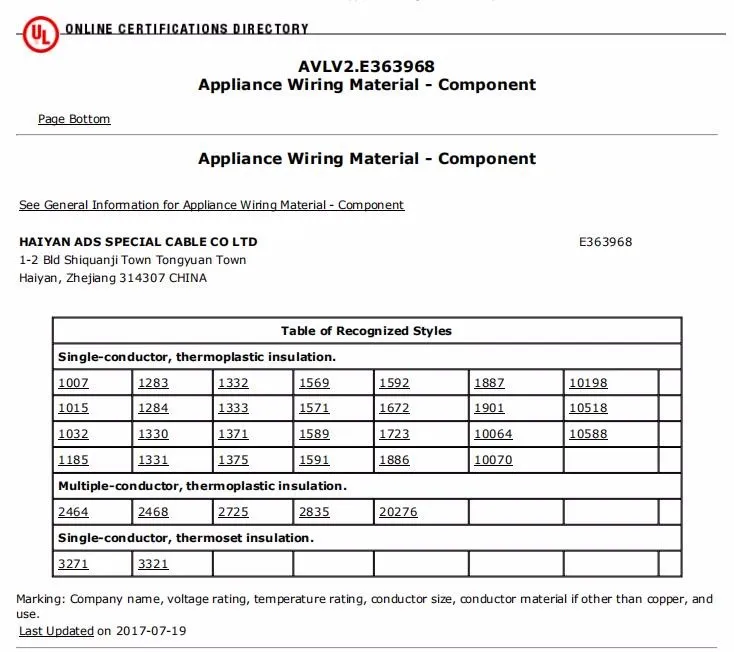

UL Certification
More Test report (Rohs,Reach,Flame Retardant),Pls contact us

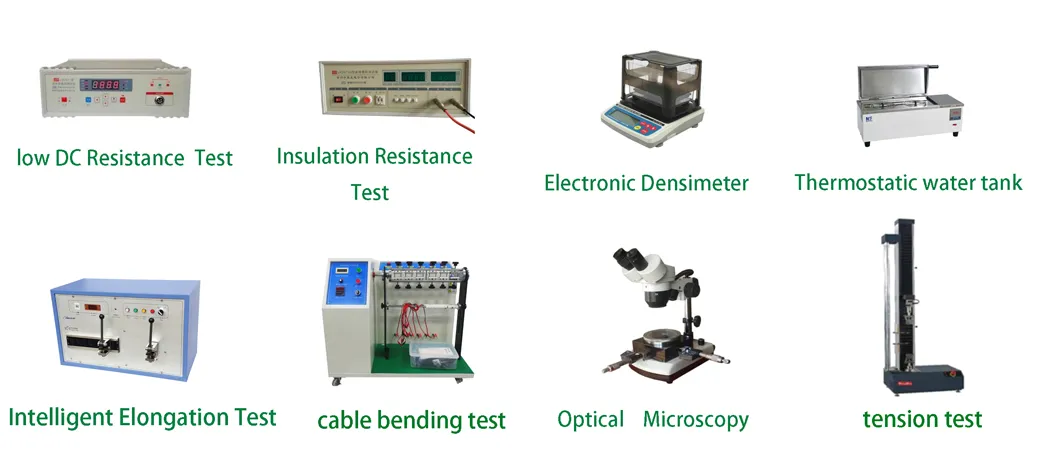

Test Equipment

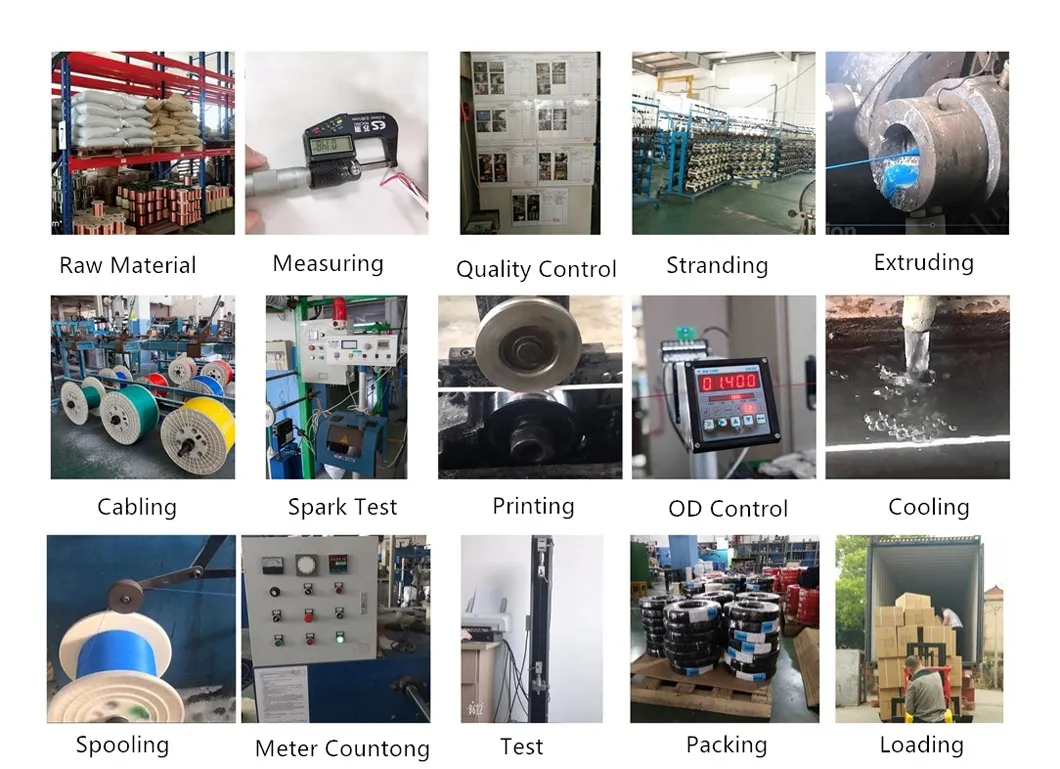

Production Process
Overseas Exibition
FAQ
Q:Are you a factory or a trading company
A:ADS company is a professional cable manufacturer with 15 years production experience.
Q:What's your company MOQ
A:Our company has MOQ requirements, but we also accept small quantity.
Q:Whether these products quality assured?
A:Most of cables are certificated. Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
Q:Can you send a sample for us to test?
A:1.If we have it in stock and the amount is small, it is free.
2.If we do not have it in stock, sample and freight cost have have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
Q:If I want to purchase, how to pay?
A: Generally we do T/T in 30% deposit before production, 70% balance before loading. Also payment terms are negotiable depending on customer's request.
Contact Us
Color:
ul1185 single core tinned copper braid shielded cable
1.Rated temperature:80ºC
2.Rated voltage:300V
3.Reference standard:UL758,UL1581,CSA C22.2No.210.2
4.Solid or stranded ,tinned or bare copper conductor 30~16AWG
5.PVC insulation, comply with ROHS environmental standard
6.PVC jacket , comply with ROHS environmental standard Tinned or bare copper wire spiral shield
7.Passes UL VW-1,CSA FT1 and JQA -F-Mark flame test
8.Uniform insulation thickness to ensure easy stripping and cutting
9.For general purpose internal wiring of appliance
CABLE CONSTRUCTION
| UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor outer diameter (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance(Ω/km ,20ºC | packing | Characteristic Impedance (Ω) | |
| FT/ROLL | METER/ROLL | ||||||||
| 1185 | 30 | 7/0.1 | 0.3 | 0.4 | 1.1 | 32/0.1 | 0.4 | 2.1 | 381 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.2 | 34/0.1 | 0.4 | 2.2 | 239 | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.3 | 38/0.1 | 0.4 | 2.3 | 150 | |
| 24 | 11/0.16 | 0.61 | 0.4 | 1.4 | 42/0.1 | 0.4 | 2.4 | 94.2 | |
| 22 | 17/0.16 | 0.76 | 0.4 | 1.55 | 43/0.1 | 0.4 | 2.55 | 59.4 | |
| 20 | 26/0.16 | 0.94 | 0.43 | 1.8 | 45/0.12 | 0.41 | 2.85 | 36.7 | |
| 18 | 41/0.16 | 1.18 | 0.44 | 2.05 | 51/0.12 | 0.61 | 3.5 | 23.2 | |
| 16 | 26/0.254 | 1.49 | 0.46 | 2.4 | 55/0.12 | 0.58 | 3.8 | 14.6 | |
